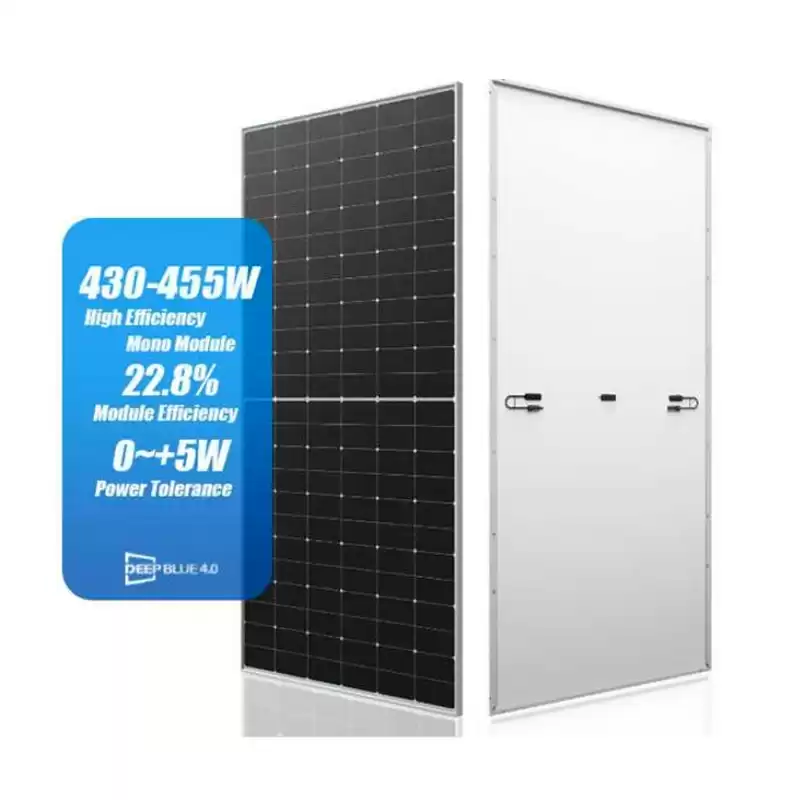

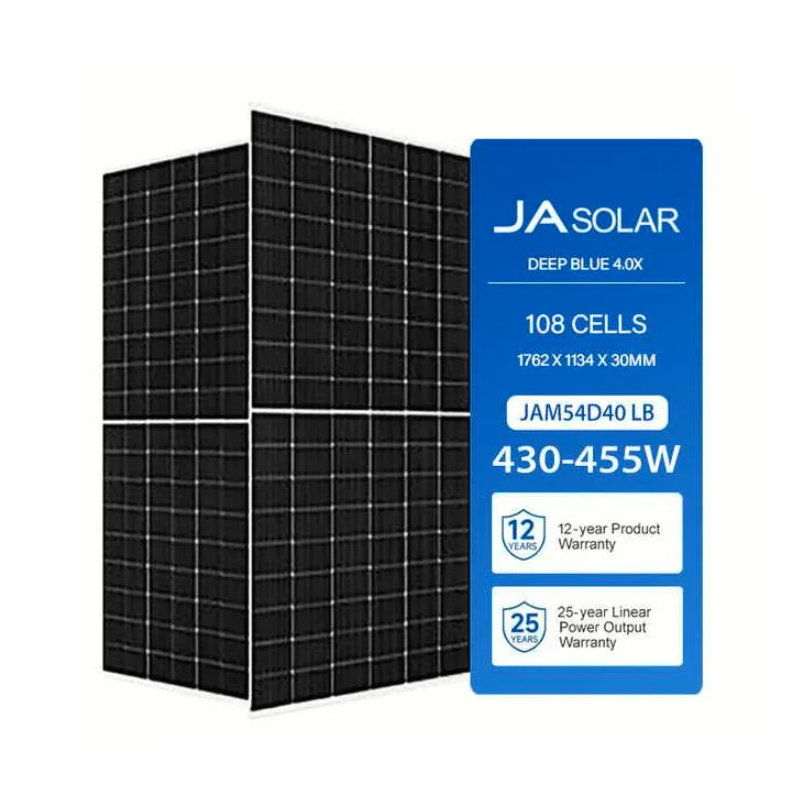

JA SOLAR JAM54D40-445/LB N-type Bifacial Double Glass Mono Solar Panel

JA SOLAR JAM54D40-445/LB

N-type Bifacial Double Glass Mono Solar Panel

·Higher power generation better LCOE

·n-type with very Lower LiD

·Better Temperature Coefficient

·Better low irradiance response



Basic Info.

Model NO.
JAM54D40 430-455/LB
Application
Industrial
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Power
430W-455W
Weight
22kg
Application Class
Class a
No. of Cells
108(6X18)
Solar Cell
Mono-16bb
Connector
QC4.10-351/Mc4-Evo2a
Glass
1.6mm/1.6mm
Keyword
Ja Bifacial Perc Solar Panel
Transport Package
36pieces Panels Packed in a Pallet
Specification
1762*1134*30mm
Trademark
JA
Origin
China
HS Code
8504402000
Production Capacity
5000000watt Per Month

Packaging & Delivery

Package Size
178.00cm * 115.00cm * 3.30cm
Package Gross Weight
27.000kg

Product Description

 Products Description
Ja Solar Power Product Jam54D40 Lb 430W-455W Solar Panels 430W 435W 440W 445W 450W Double Glass Solar PanelJa Solar Power Product Jam54D40 Lb 430W-455W Solar Panels 430W 435W 440W 445W 450W Double Glass Solar Panel
Type
JAM50D40-430LB
JAM50D40-435LB
JAM50D40-440LB
JAM50D40-445LB
JAM50D40-450LB
JAM50D40-455LB
Rated Maximum Power(Pmax)
430
435
440
445
450
455
Open Circuit Voltage(Voc)
38.50
38.70
38.90
39.10
39.30
39.50
Maximum Power Voltage (Vmp)
32.12
32.29
32.47
32.65
32.82
33.00
Short Circuit Current(Isc)
14.14
14.23
14.31
14.40
14.48
14.56
Maximum Power Current(Imp)
13.39
13.47
13.55
13.63
13.71
13.79
Module Efficiency[%]
21.5
21.8
22.0
22.3
22.5
22.8
At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain, localized warehousing, technical service for global customers. Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
