Applications:

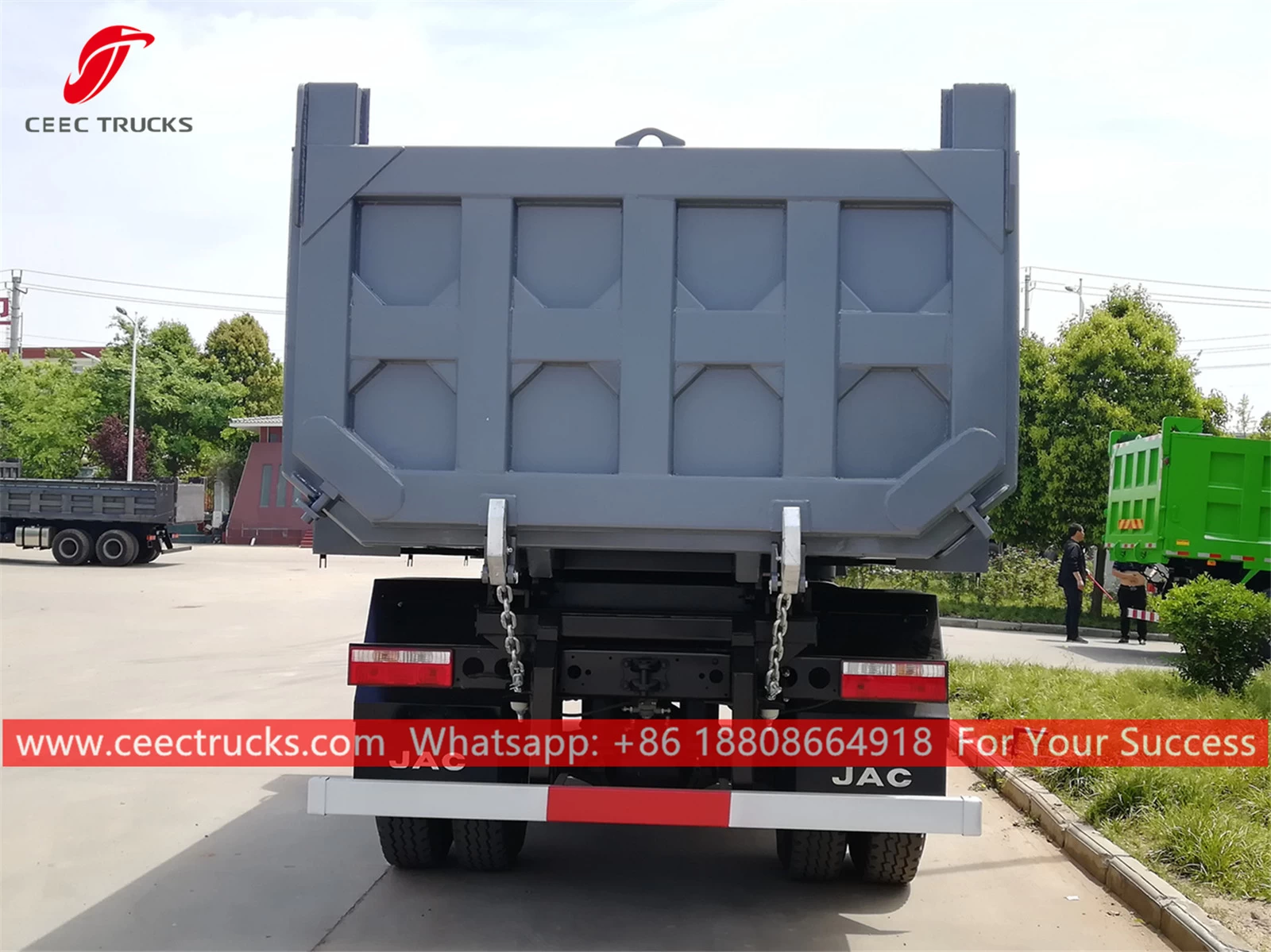

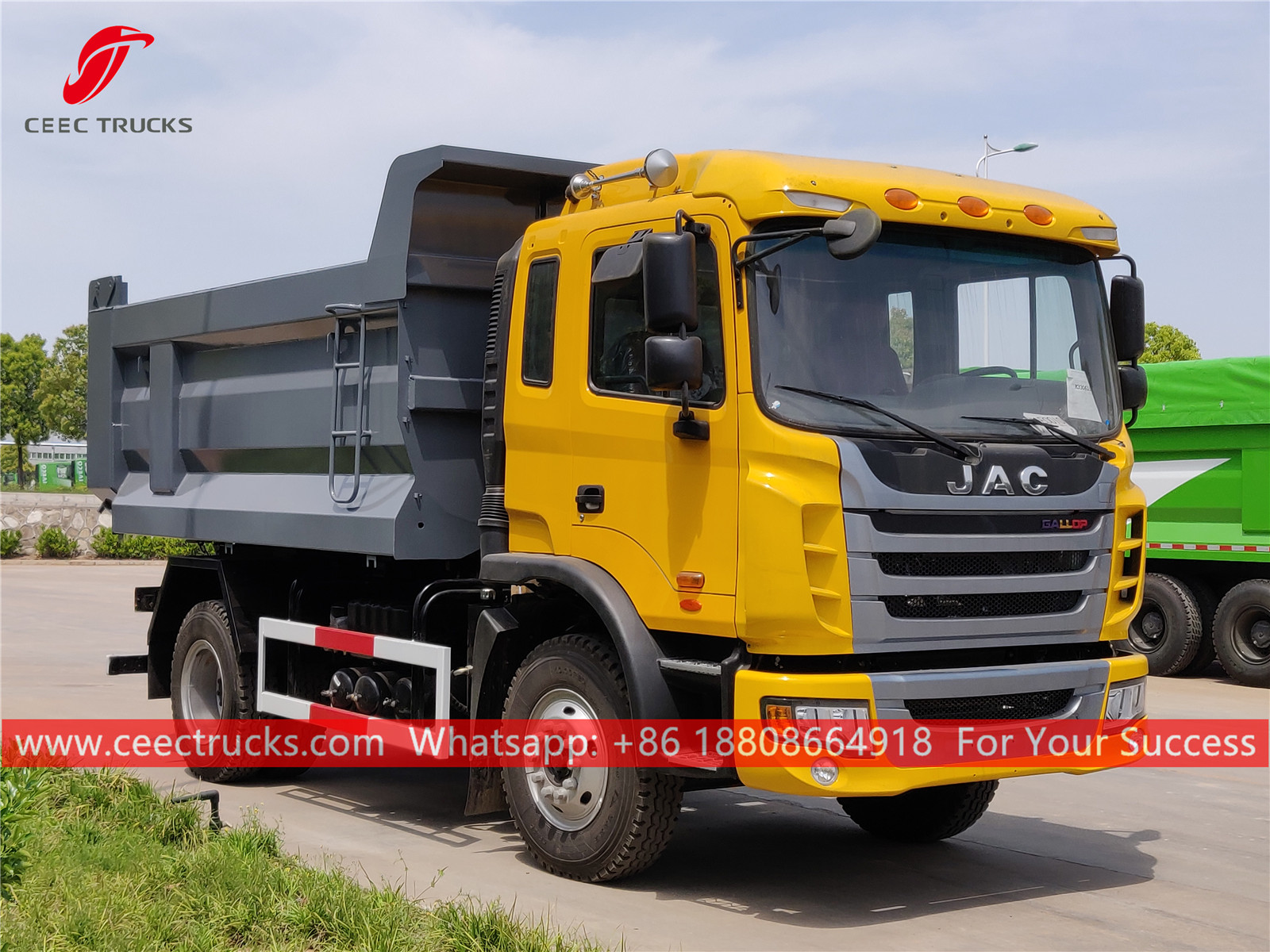

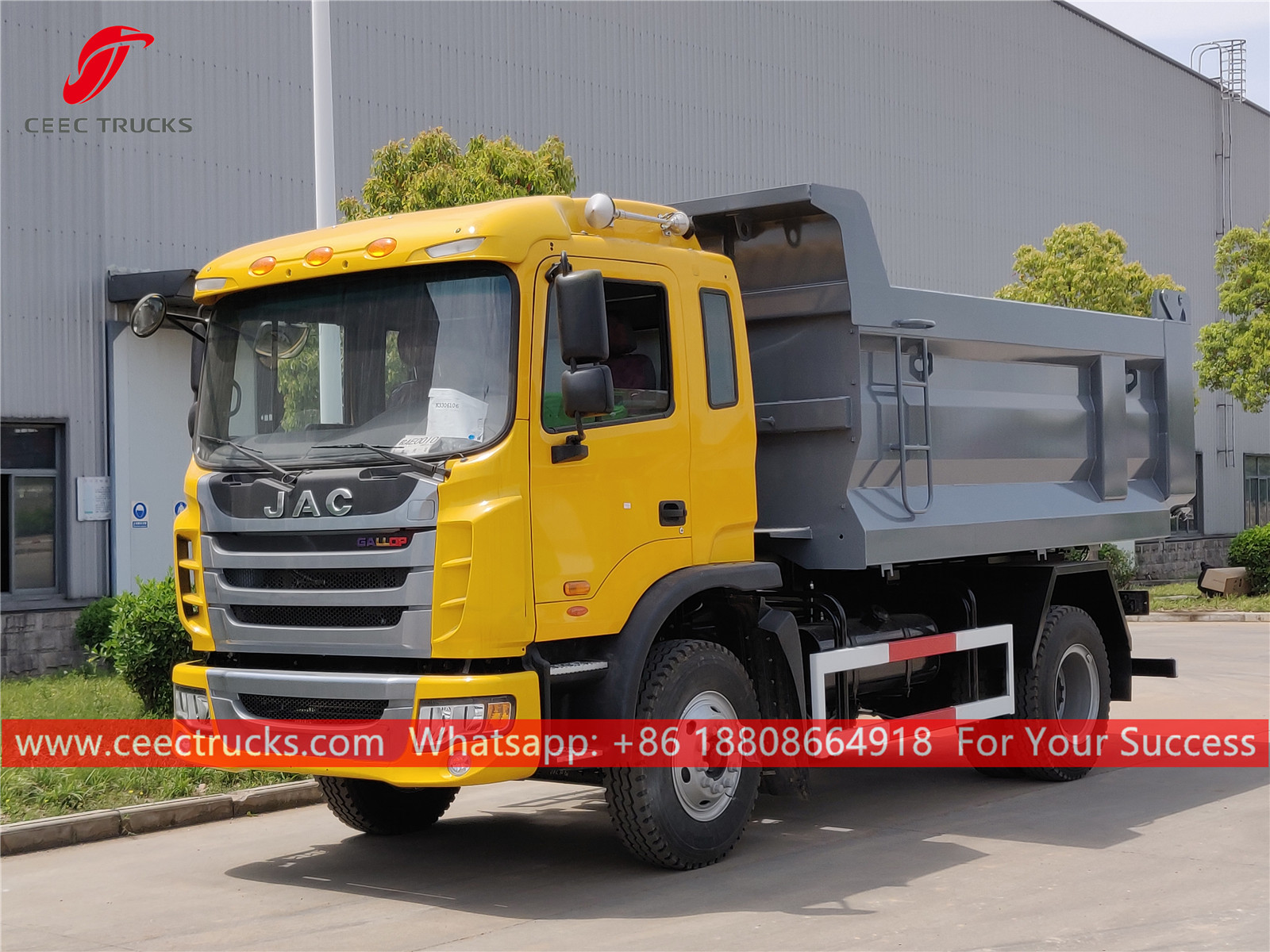

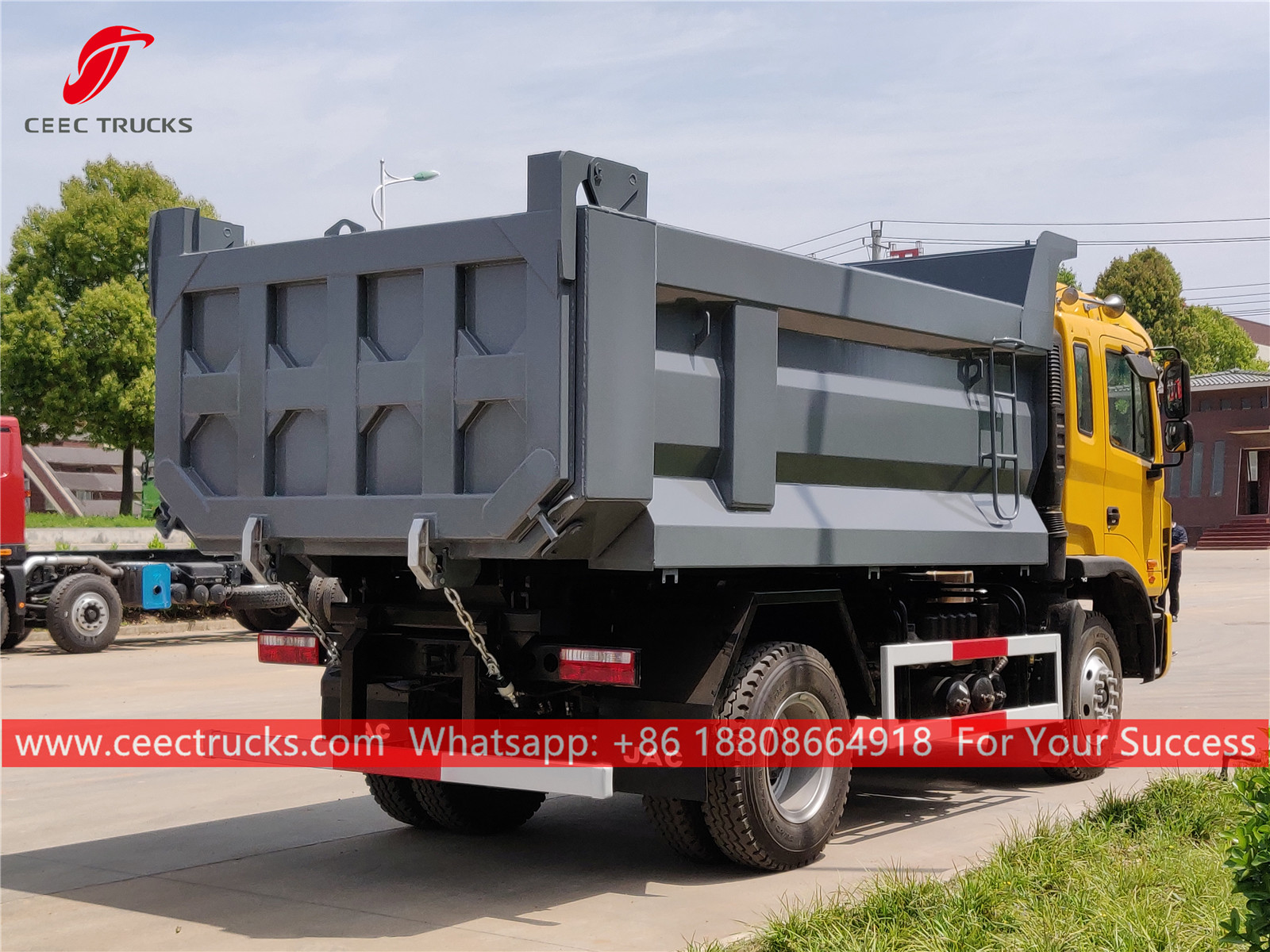

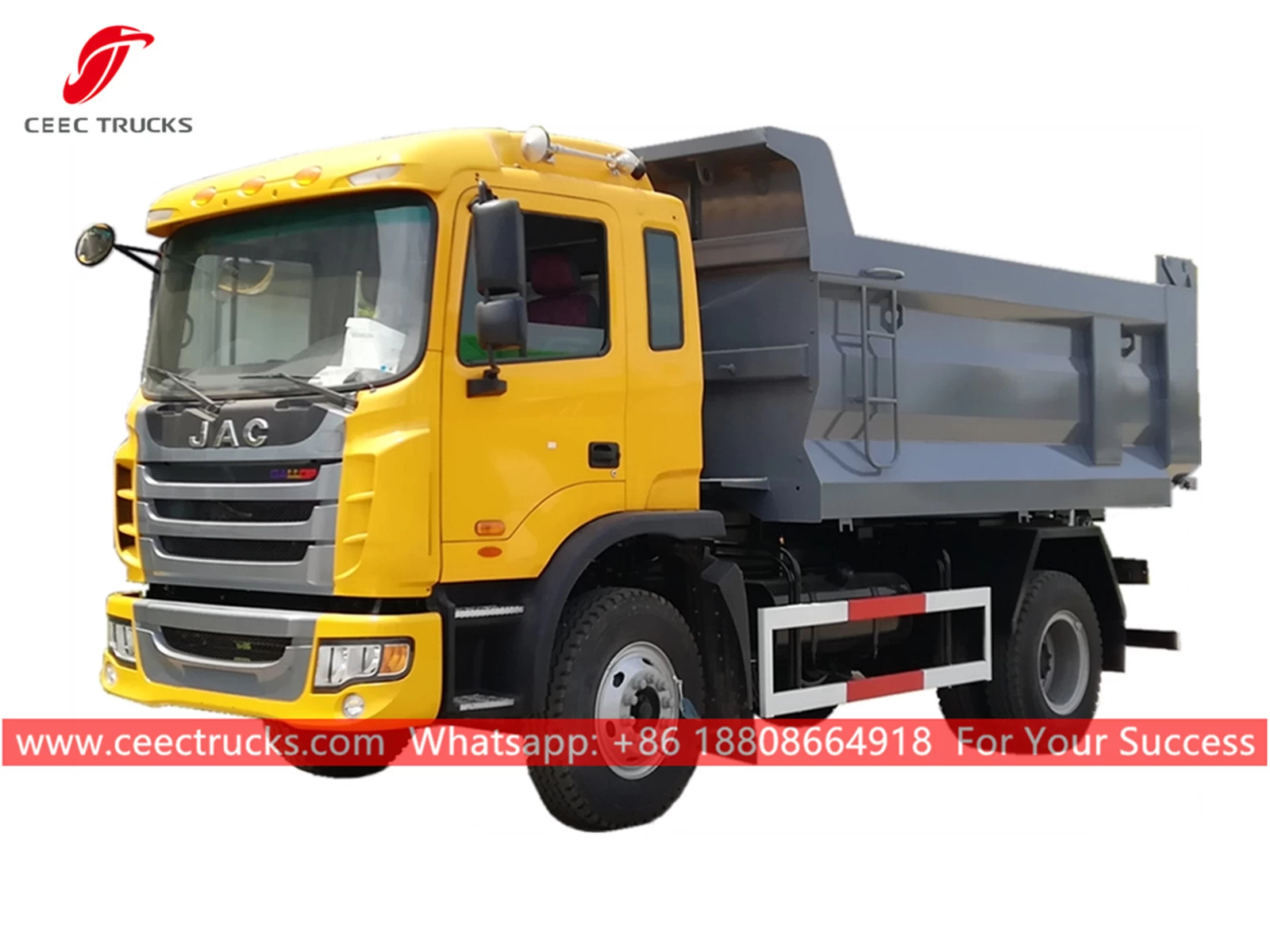

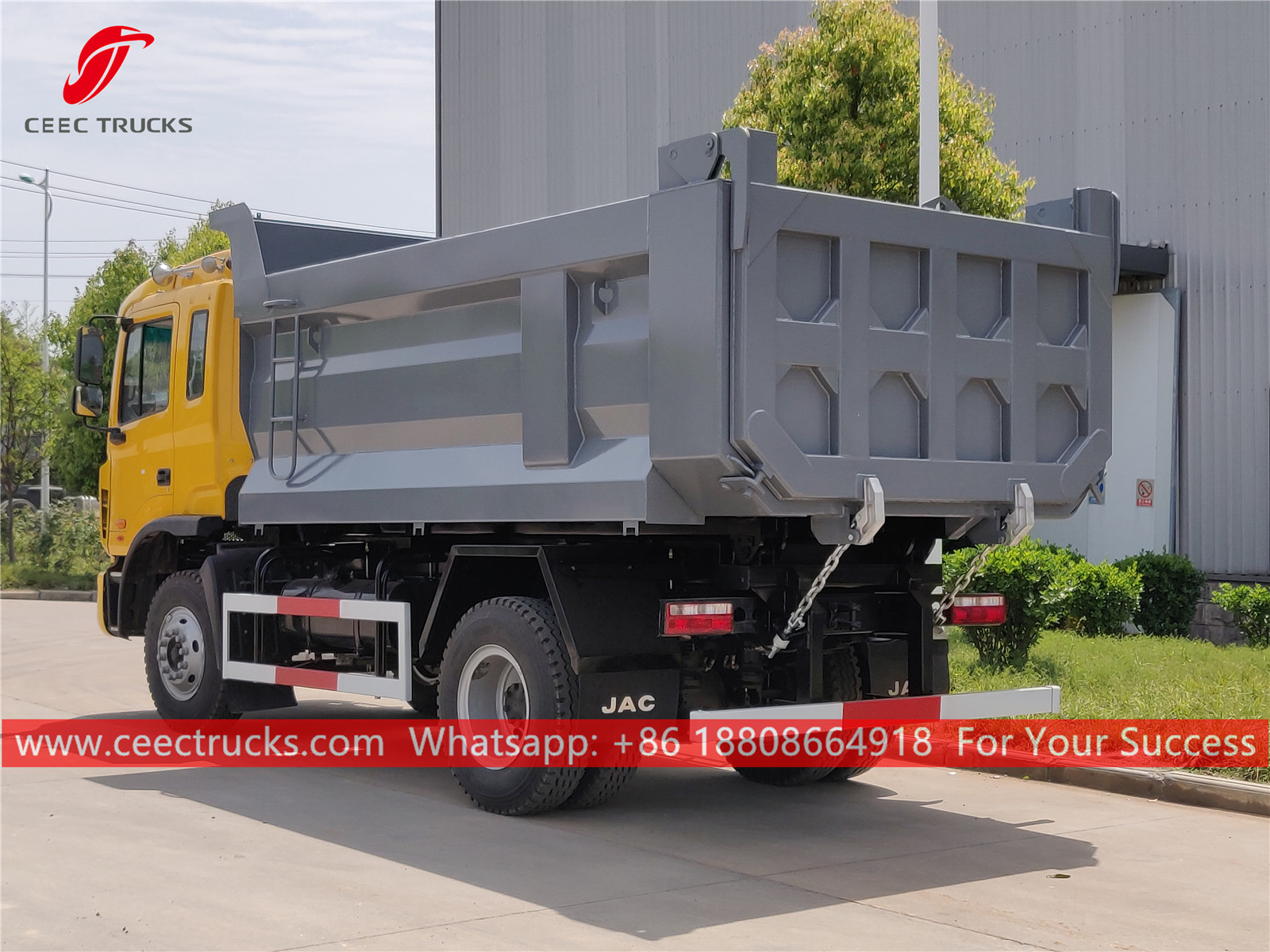

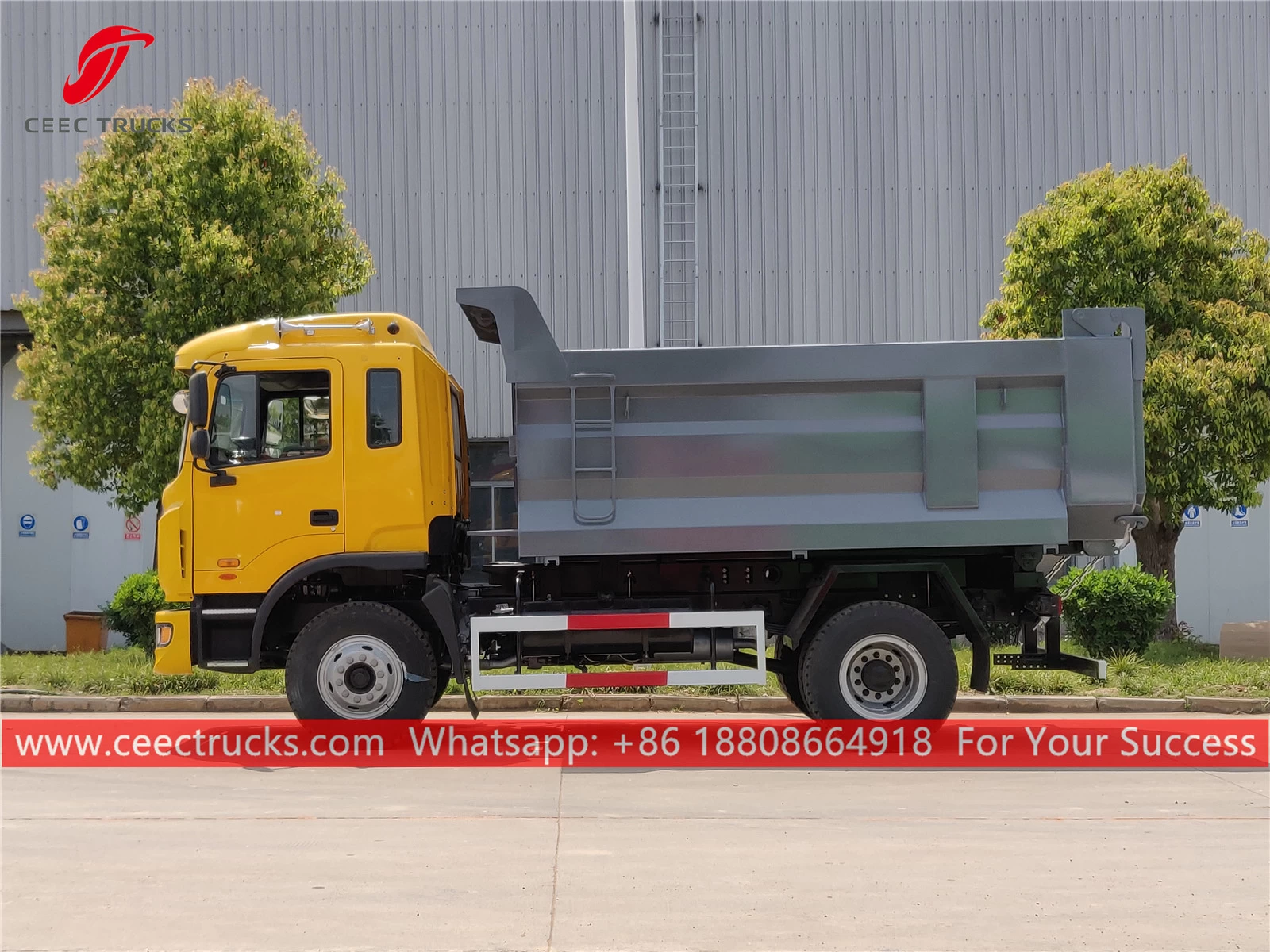

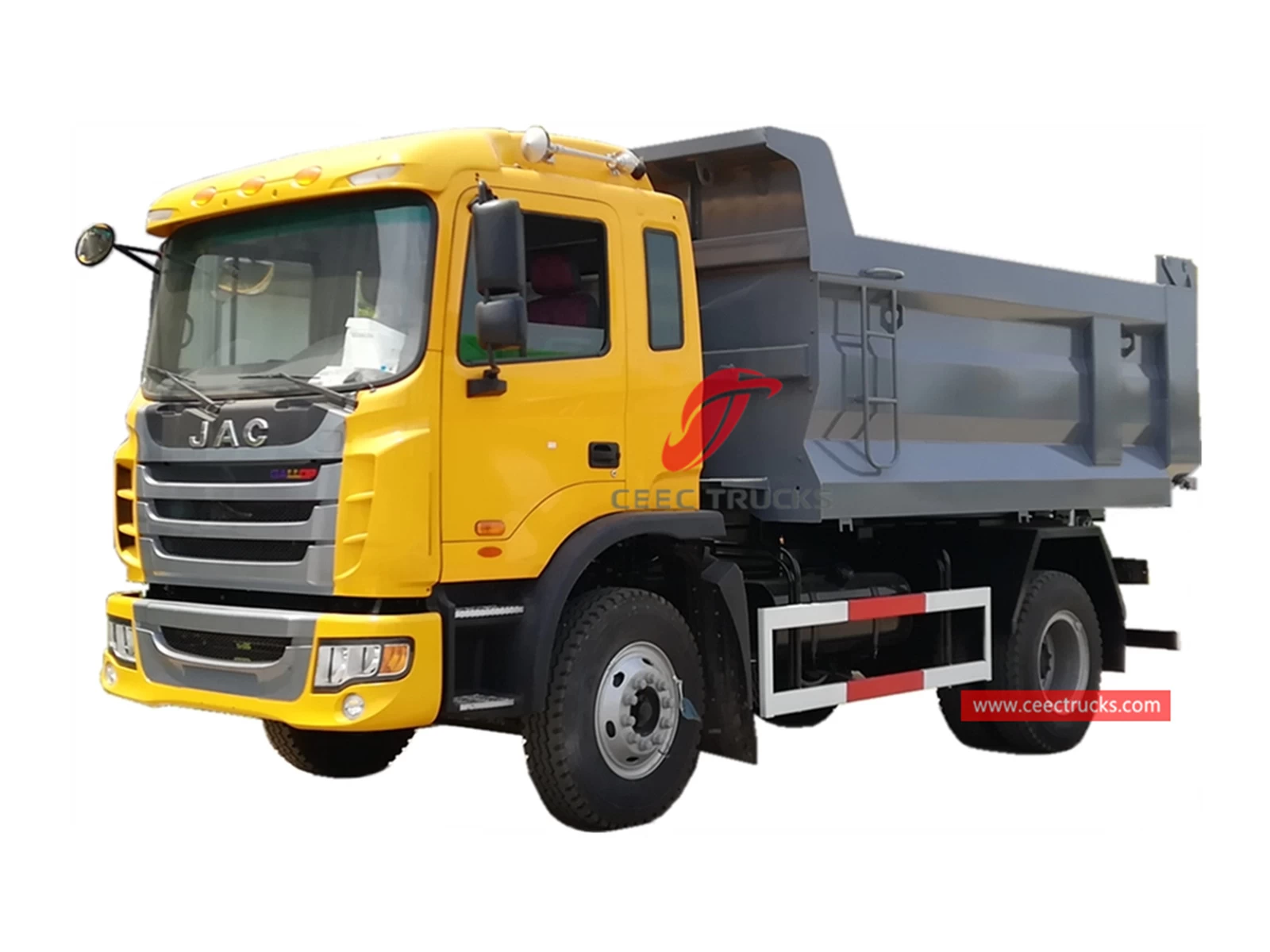

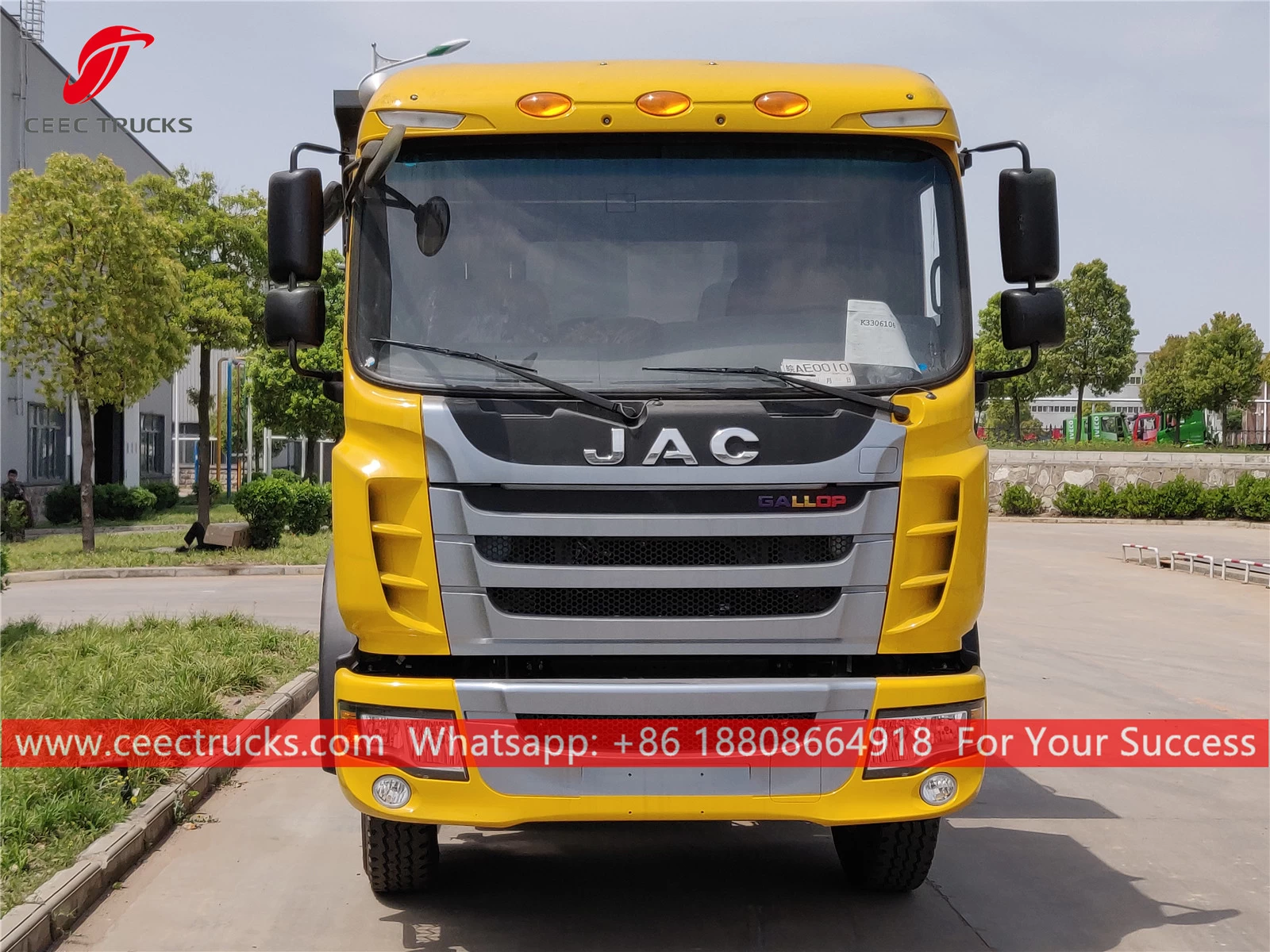

JAC 4X2 Dumper truck (also called JAC 6-wheel tipper truck, JAC 4X2 dump truck, hot sale
tip trucks JAC, JAC one axle dump truck, good quality dump truck JAC, 10Tons Sand tipping truck, JAC small tipper lorry, JAC tipper) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.
CEEC TRUCK dump
truck is manufactured with the cutting-edge technology and components
in the world such as WABCO double-cylinder air compressor, brake valve,
HYVA front or middle hydraulic system, etc.
Key Features:
---- JAC heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
Specifications:
|
Hot sale JAC Dump truck
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
JAC
|
|
Overall Dimension
|
6720 * 2400 * 3300 mm
|
|
GVW / Kerb Weight
|
16,000kg / 7,950kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
WEICHAI diesel engine
|
|
Power
|
160 HP (115 KW)
|
|
Displacement
|
4088 ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
4X2 (LHD or RHD)
|
|
Transmission
|
FAST 8 speed levers with 2
reverse
|
|
Wheelbase/No. of axle
|
3600 mm / 2
|
|
Tire Specification
|
9.00R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Pay loading capacity
|
10 Tons
|
|
Cargo body
|
4200*2200*800
|
|
Thickness of cargo body
|
Option 1: Bottom 8mm, Side 6mm
Option 2: Bottom 10mm, Side 8mm
|
|
Cylinder type
|
T Type or Domestic 220 or HYVA 200
|
|

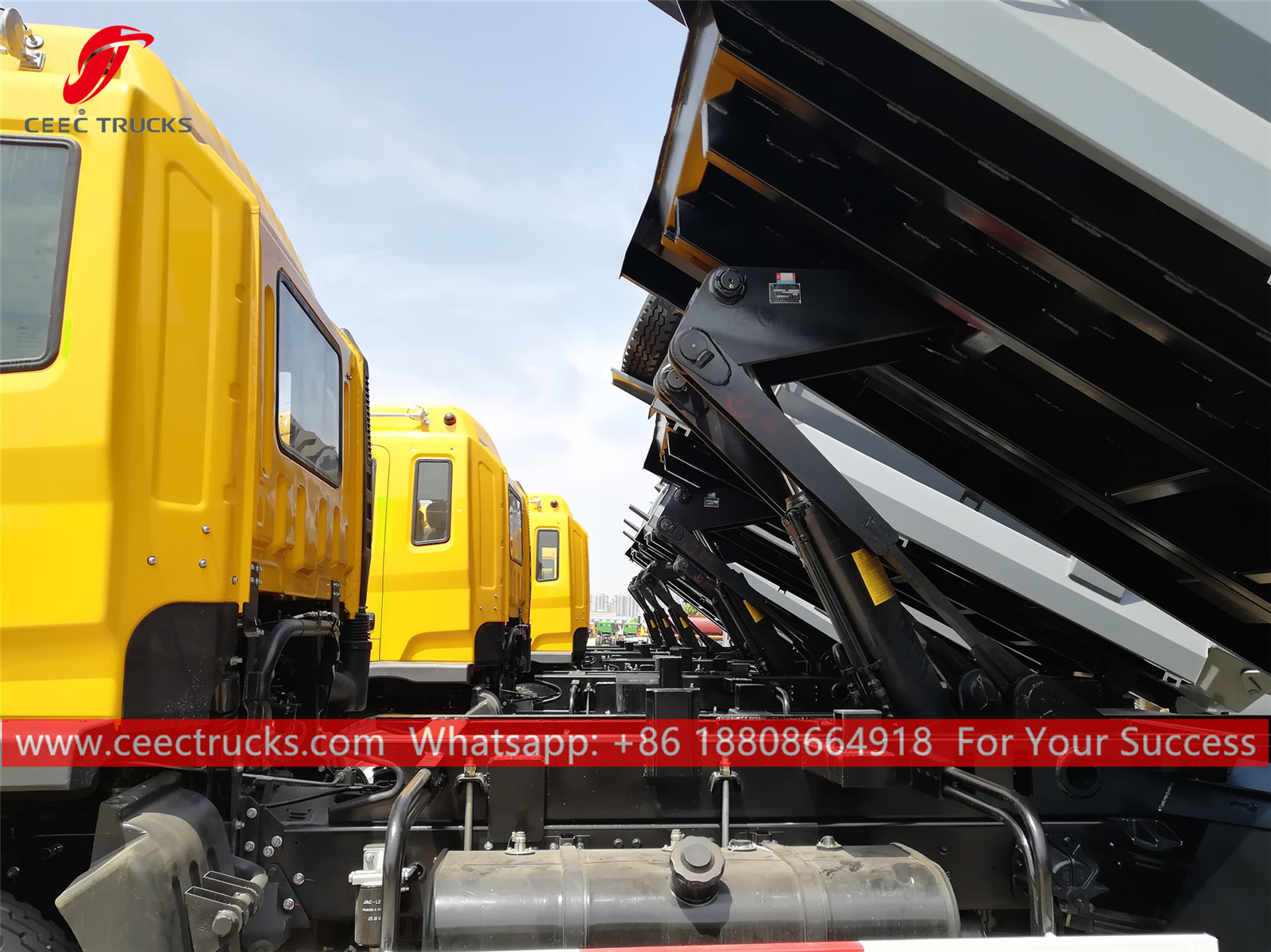

Lifting system
|
Middle or Front
|
|
Control
|
in the cabin
|
|
Color & LOGO
|
According to wish
|
|
All standard accessories: All steel body with drop sides. Auto release removable tailgate.
Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|
