Introduction

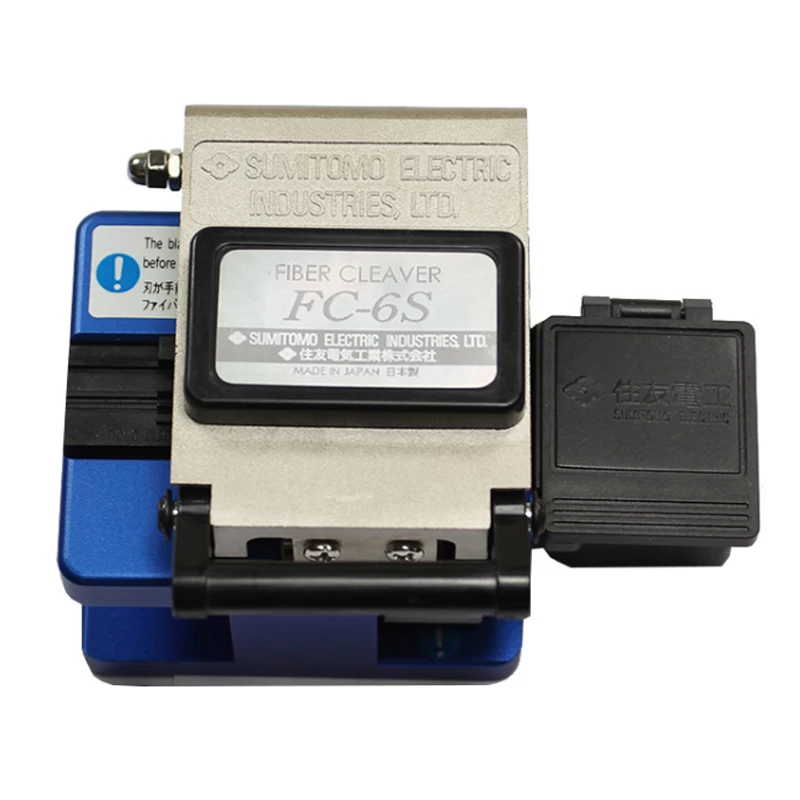

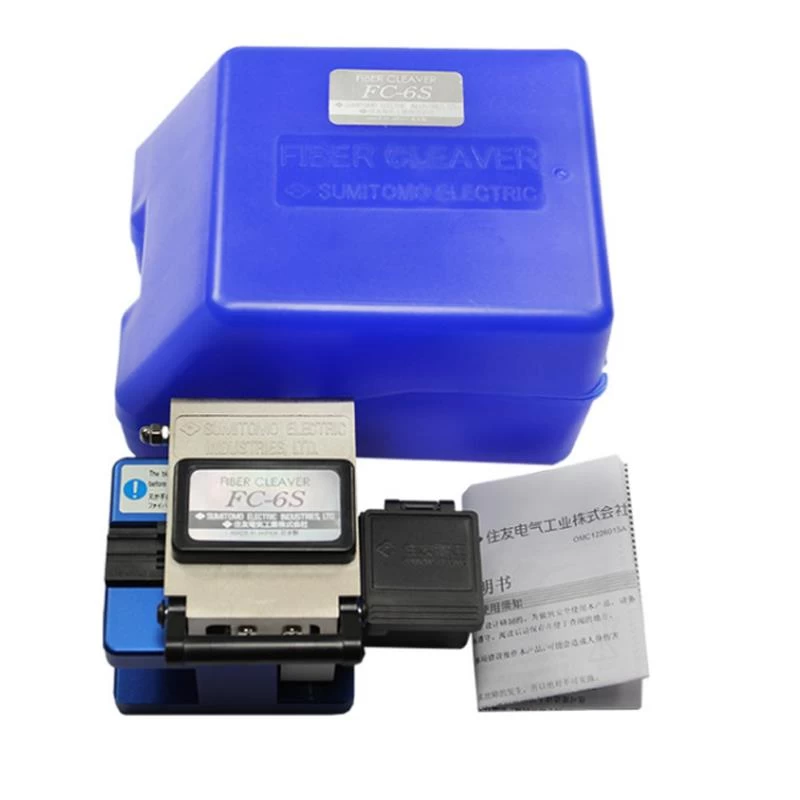

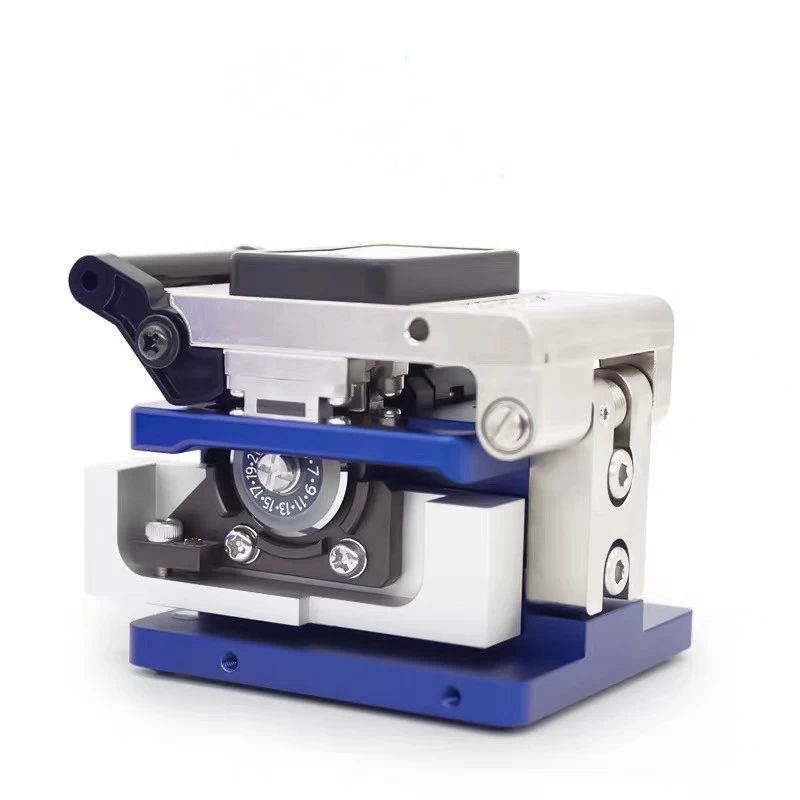

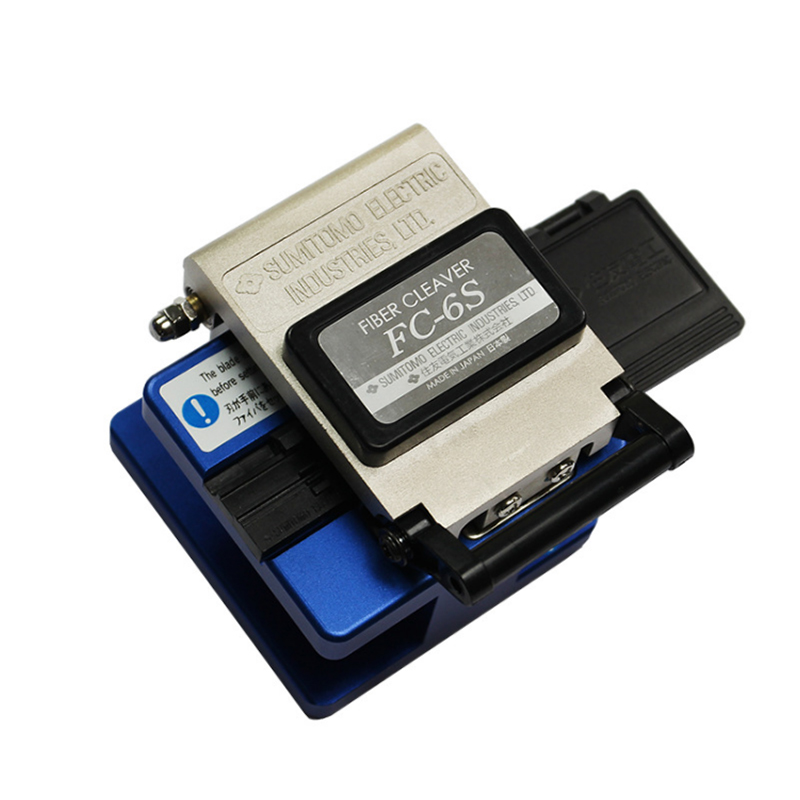

Sumitomo FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 48,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.
Features
-
Small size, lightweight, and easy handling
-
Applicable up to 12-fibre ribbon cleaving
-
Fibre collector equipped as standard
-
2-action operation including fibre scrap collection
-
Operation: Push back blade -> Set fibre -> Close body
-
Blade speed and anvil speed are mechanically controlled
-
Blade life:60000 fiber
Specification
|
Applicable fibers
|
Silica optical fiber
|
|
Bare fiber diameter
|
125µm
|
|
Cleaving angle
|
0.5 degrees at single fiber
|
|
Blade positions
|
3 height and 12 rotating positions
|
|
Blade life
|
60,000 fibers (5000 x 12 positions)
|
|
Dimensions
|
102W × 82D × 46H (mm)
|
|
Weight
|
430g
|
