On the basis of the imported advanced technology
from abroad, we have made innovative design continuously and gradually
developed JC25 JC30 JC35 JC45 JC60 JC65 JC70 JC75 JC100 series of skid steer loaders
and dozens of job-matched attachments.

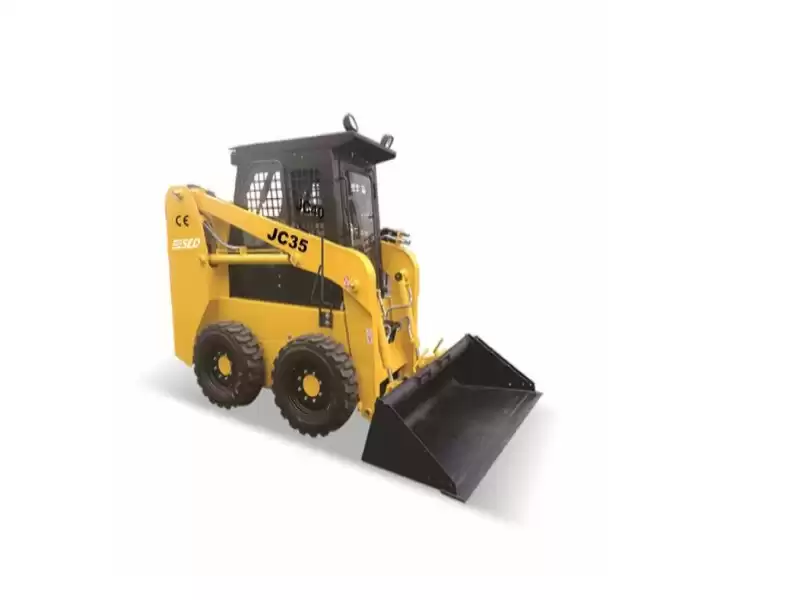

Main Features of JC35:
1,Compact
structure, maneuverable movement suitable for narrow Space operation
2,Close
cabin with joystickcontrol system
3,Gear type
transmission
4,Double
accelerograph control
5,Multi-function
with a widerange of attachments
6,Hydraulic brake
Technical Parameters:
|
Rated Operating Capacity
|
500
|
|
Tipping load(Kg)
|
1000
|
|
Bucket Capacity(m3)
|
0.25
|
|
Lifting force(kg)
|
1000
|
|
Hydraulic Pump Flow(L/min)
|
40
|
|
Engine power(HP)
|
35
|
|
Weight(Kg)
|
2200
|
|
Max. Travel Speed(km/h)
|
8
|
|
Grade ability (° )
|
20
|
|
Tire
|
8.5- 15
|
|
Fuel hyd. Oil capacity(L)
|
50/50
|
Dimensions:
|
A. Height at Maximum Extension
|
3300mm
|
|
B. Hinge Pin Height
|
2725mm
|
|
C. Total Height
|
2000mm
|
|
D. Length with Bucket
|
2950mm
|
|
E. Length without Bucket
|
2300mm
|
|
F. Width with Bucket
|
1400mm
|
|
G. Track Width
|
1080mm
|
|
H. Wheelbase
|
891mm
|
|
J. Ground Clearance
|
140mm
|
|
K. Dumping Angle
|
40°
|
|
L. Dumping Height
|
2050mm
|
|
M. Maximum Reach
|
790mm
|
Skid steer loader with different attachments
