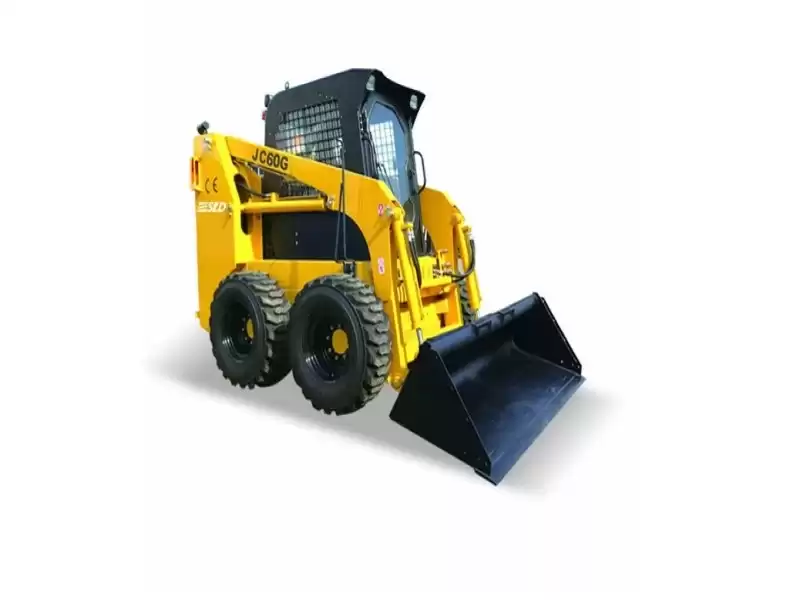

We has developed and put into production of JC25
JC35 JC45 JC60 JC65 JC70 JC75 JC100 series wheel type skid steer loader, TS50
TS65 TS100 series crawler skid steer loader. they are widely used in engineering
construction, port transportation, municipal construction, landscape,
environmental sanitation, water conservancy, agriculture etc many fileds. The
main components of the products are matched by well-known international
manufacturers.
Main Features:
1,Compact structure, maneuverable movement suitable for narrow Space
operation
2,Close cabin with joystickcontrol system
3,Gear type transmission
4,Double accelerograph control
5,Multi-function with a widerange of attachments
6,Hydraulic brake
Technical Parameters:
|
Rated Operating Capacity
|
850
|
|
Tipping load(Kg)
|
1700
|
|
Bucket Capacity(m3)
|
0.5
|
|
Lifting Force(Kg)
|
1950
|
|
Hydraulic Pump Flow(L/min)
|
75
|
|
Engine power(HP)
|
60
|
|
Weight(Kg)
|
3150
|
|
Max. Travel Speed(km/h)
|
12
|
|
Grade ability(° )
|
20
|
|
Tire
|
12-16.5
|
|
Fuel/hyd. Oil capacity(L)
|
60/60
|
Dimensions
|
A. Height at Maximum Extension
|
3690mm
|
|
B. Hinge Pin Height
|
2920mm
|
|
C. Total Height
|
2080mm
|
|
D. Length with Bucket
|
3440mm
|
|
E. Length without Bucket
|
2640mm
|
|
F. Width with Bucket
|
1880mm
|
|
G. Track Width
|
1500mm
|
|
H. Wheelbase
|
991mm
|
|
J. Ground Clearance
|
205mm
|
|
K. Dumping Angle
|
40°
|
|
L. Dumping Height
|
2330mm
|
|
M. Maximum Reach
|
710mm
|
Attachments:
