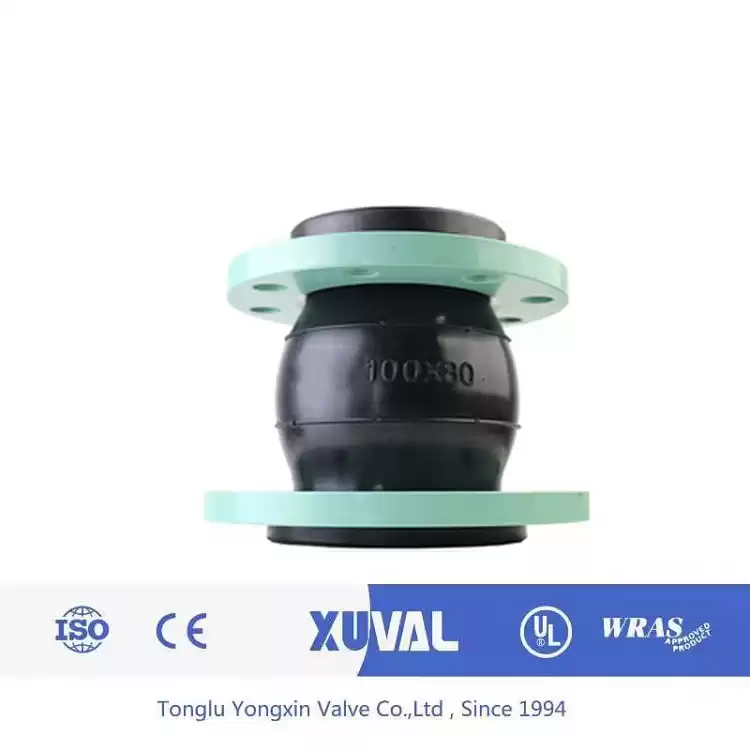

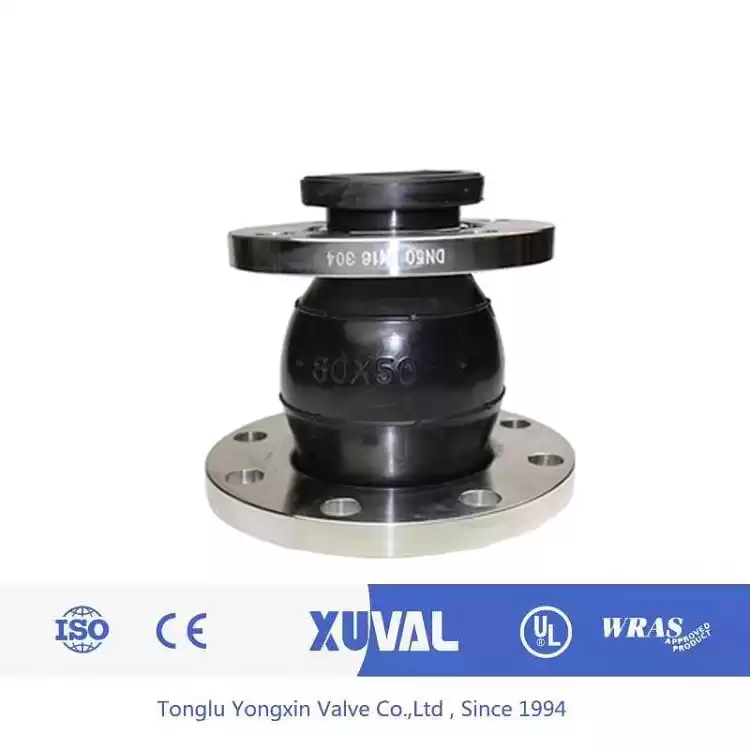

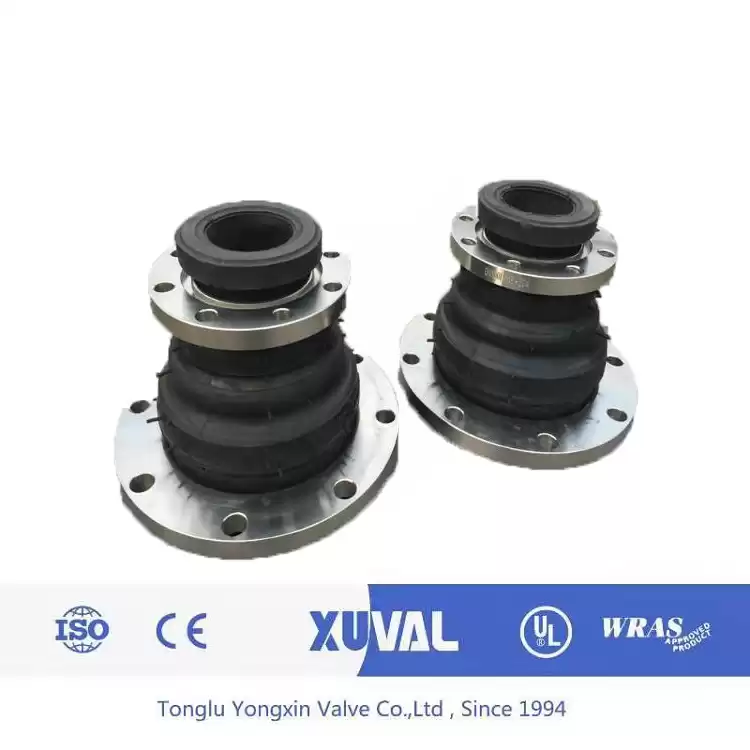

JDX Reducing Rubber Joint big and small joint
Flexible concentric reducing rubber joint is also called shock absorber, expansion joint, pipe shock absorber, shock absorber throat and soft joint. It is a flexible joint of metal pipe, which is composed of rubber ball and loose metal flange with inner rubber layer, nylon cord fabric reinforcement and outer rubber layer composite.Now the foreign advanced production technology is introduced, the inner layer is under high pressure in the production process, the nylon cord cloth and the rubber layer are better combined, the working pressure is higher than the ordinary flexible rubber joint, the quality is better.It is a kind of pipe joint with high elasticity, high air tightness, medium resistance and weather resistance.
Flexible concentric reducing rubber joint is also called shock absorber, expansion joint, pipe shock absorber, shock absorber throat and soft joint. It is a flexible joint of metal pipe, which is composed of rubber ball and loose metal flange with inner rubber layer, nylon cord fabric reinforcement and outer rubber layer composite.Now the foreign advanced production technology is introduced, the inner layer is under high pressure in the production process, the nylon cord cloth and the rubber layer are better combined, the working pressure is higher than the ordinary flexible rubber joint, the quality is better.It is a kind of pipe joint with high elasticity, high air tightness, medium resistance and weather resistance.
The main feature is that it can solve the problem of different diameters when metal pipes are connected, at the same time, it has the function of shock absorption and noise reduction, which can save the installation parts of pipes and cost.It is composed of rubber ball and loose metal flange with inner rubber layer, nylon cord fabric reinforcement, outer rubber layer composite.It can be widely used in water supply and drainage, circulating water, HVAC, fire fighting, papermaking, pharmaceutical, petrochemical, Marine, water pump, compressor, fan and other piping systems.The ordinary type is used for transporting air, compressed air, water, sea water, oil, acid and alkali of -15℃ ~ 120℃.The special type is used for conveying above medium or oil, concentrated acid and alkali, solid material above -30℃ ~ 250℃.
Flange Materials/Drilling:
The XUVAL Style rubber expansion joints are furnished complete with plated carbon steel flanges for corrosion protection. carbon steel 304 or 316 stainless steel flanges are available upon request as well as ANSI 150/250/300 lb.Other options include alternative elastomers, filled arches, stainless steel backing rings, or special bolt hole drilling. Large inventories are kept at our warehouses to allow for quick delivery.
Technical parameters:
|
Model
|
JDX(DN50~300)
|
JDX(350~600)
|
NOTE
|
|
Item
|
|
Mpa(kgf/cm²) Working pressure
|
1.0
|
0.6
|
A.Like media oil and acid and alkali
B.Spcial requirements for working temperature
C.Write and provide drawings and samples for order
D.Make notes when ordering
|
Mpa(kgf/cm²) Explosion pressure
|
1.8
|
1.5
|
|
Kpa(mm/Hg) Vacuum
|
86.7
|
53.3
|
|
Applicable Temperature
|
-20℃~+115℃（-30℃~+250℃ under special conditions)
|
|
Applicable media
|
Air,compressed air,water,sea water,hot water,oil.acid,alkali,and so on
|
Note:the materials of main componenrs are the same with that of KXT-S type
|
Nominal Diameter,Length,Displacement data(big and small joint)
|
DN big
DN small
|
L
mm
|
Axial Displacement(mm)
|
Horizontal displacement
(mm)
|
Angular deflection
(a1+a2)°
|
|
Extension
|
Compression
|
80X50
|
180
|
20
|
30
|
45
|
35
|
|
100X80
|
180
|
20
|
30
|
45
|
35
|
|
150X80
|
190
|
20
|
30
|
45
|
35
|
|
150X100
|
200
|
22
|
30
|
45
|
35
|
|
200X100
|
200
|
22
|
30
|
45
|
35
|
|
200X150
|
200
|
22
|
30
|
40
|
35
|
|
250X200
|
200
|
25
|
35
|
40
|
30
|
|
300X200
|
220
|
25
|
35
|
40
|
30
|
|
300X250
|
220
|
25
|
35
|
40
|
30
|
|
350X200
|
220
|
25
|
35
|
40
|
30
|
|
350X300
|
220
|
25
|
38
|
35
|
30
|
|
400X350
|
220
|
25
|
38
|
35
|
30
|
|
500X400
|
230
|
28
|
38
|
35
|
26
|
|
600X400
|
240
|
28
|
38
|
35
|
26
|
|
600X500
|
240
|
28
|
38
|
35
|
26
|
Note: the coupling flanges by National Drainage S311 Standard
|
NOTE:
1.For special order,products can be made according to customer's requirements,flange standard is based on GB/T9115.1-2000,the materials of spheres are Buna,EPDM,chloroprene rubber and so on.
2.The product with DN>200mm is available for water-supplying overhead.The pipe must be equipped with fixed support or fixed bracket, if not,the product shall be installed with escapement.
3.When using Rubber Joints, the matching flanges should be valve flanges or GB/T9115.1(RF) FLANGES.
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45days.
Competitive Advantage:
1). 18 Months Guarantee for quality.
2).OEM manufacturer, print client’s LOGO on the valve body.
3).Offer Operation Manual & Install Introduction for safety use.
4).Offer manufacturer’s reasonable price to win the market for both.
5).Accept any the third party inspection.
6).As a factory, every production process can be controlled during manufacture.
7).Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.
