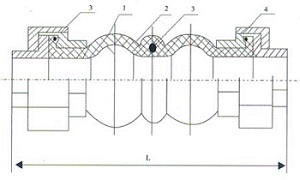

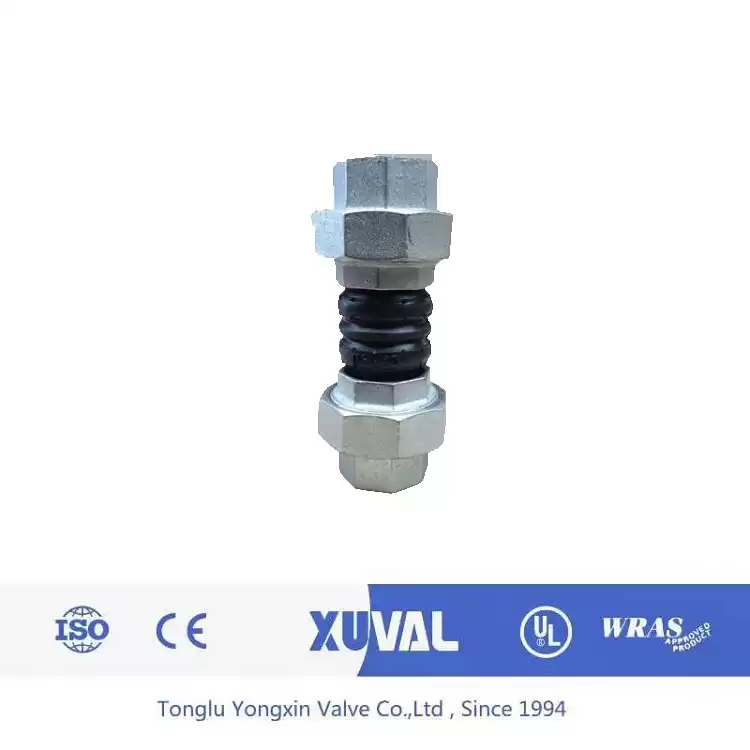

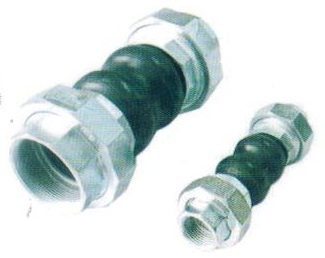

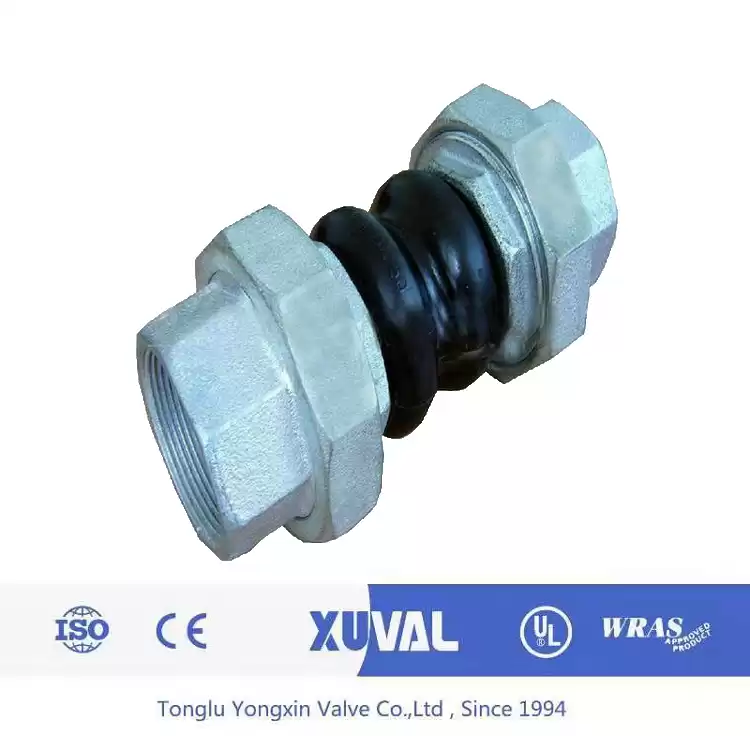

JGD B Threaded Rubber Joint
Technical Parameters:
|
Mpa(kgf/cm²）Working pressure
|
1.0(10)
|
Angular deflection
|
(a1+a2)45°
|
Mpa(kgf/cm²）Explpsion pressure
|
3.0(30)
|
Kpa(mm/Hg) Vacuum
|
53.3(400)
|
|
℃ Applicable Temperature
|
-15℃~115℃（-30℃~250℃ under special conditions)
|
Applicable Temperature
|
Air,compressed air,water,sea water,hot water,oil,acid,alkali,and so on
|
Main data:
DN
|
Length
(mm)
|
Axial displacement
(mm)
|
Horizontal
displacement
(mm)
|
|
mm
|
inch
|
Extension
|
Compression
|
|
20
|
0.75
|
180
|
5-6
|
22
|
22
|
|
25
|
1
|
180
|
5-6
|
22
|
22
|
|
32
|
1.25
|
200
|
5-6
|
22
|
22
|
|
40
|
1.5
|
210
|
5-6
|
22
|
22
|
|
50
|
2
|
220
|
5-6
|
22
|
22
|
|
65
|
2.5
|
245
|
5-6
|
22
|
22
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough
subject to the order quantity. But anyway,normally, we are able to make sure the delivery will not exceed 45 days.
