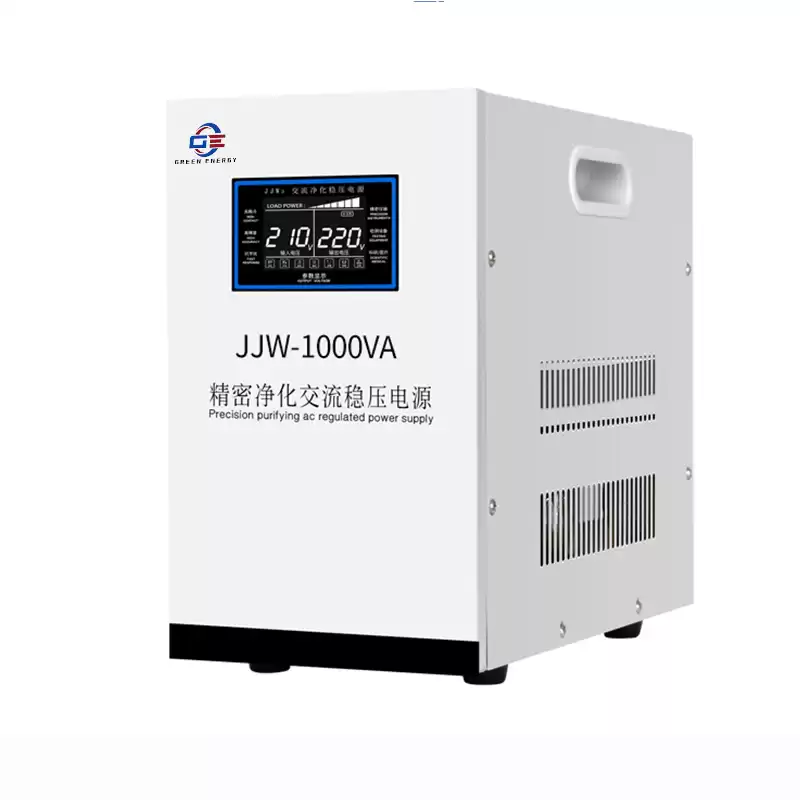

JJW Single-Phase High-Precision Purification Non-Contact AC Voltage Stabilizer
⇒ PRODUCT DESCRIPTION
JJW series precision AC purification stabilized power supply is a new type of power supply product that adopts the international advanced sinusoidal energy distribution voltage stabilization technology and integrates the functions of voltage stabilization and mains purification. It has the advantages of high voltage regulation accuracy, fast dynamic response speed, small distortion, strong load adaptability, and strong anti-electromagnetic interference ability. Mainly used in computers, precision instruments, testing instruments, communication and broadcasting equipment, medical equipment, laboratories, automatic control systems, etc. that require high power supply quality.
Main Technical Parameters
■Input voltage single-phase 170-265V three-phase 304-456V
■Output voltage single-phase 220V±1% three-phase 380V±1%
■Regulation accuracy ±1%
■Frequency: 50/60Hz
■Spike absorption input 1000V, 3US spike, output ≥5V
■Full load efficiency>92%
■Response speed≤1S (when the external voltage change is greater than 10%)
■Electrical strength: There is no breakdown and flashover for 1 minute with a power frequency sinusoidal voltage of 2000V
■Applicable load: any load
■Waveform distortion: ≤5%.
■Insulation resistance: single-phase>5MΩ, three-phase>2MΩ
■Audio noise: ≤60dB distance 1m
■Overvoltage protection value: single-phase 246V±4V, three-phase 426V±7V
Six protection functions to achieve safe voltage regulation 1. Overload protection When the load power reaches 120V%, the voltage stabilizer will automatically protect and cut off the output. 2. Overvoltage protection When the output voltage exceeds 265V, the overvoltage indicator lights up and cuts off the output. 3. Undervoltage protection When the output voltage is lower than 175V, the undervoltage indicator lights up and the output is cut off. 4. Delay protection The delay protection starts the voltage stabilizer and waits for 3 seconds before it can work. 5. Phase loss protection If one or two phases of the three-phase power are missing, the voltage stabilizer cannot be started. 6. Over temperature protection When the temperature is too high, the voltage regulator automatically protects.

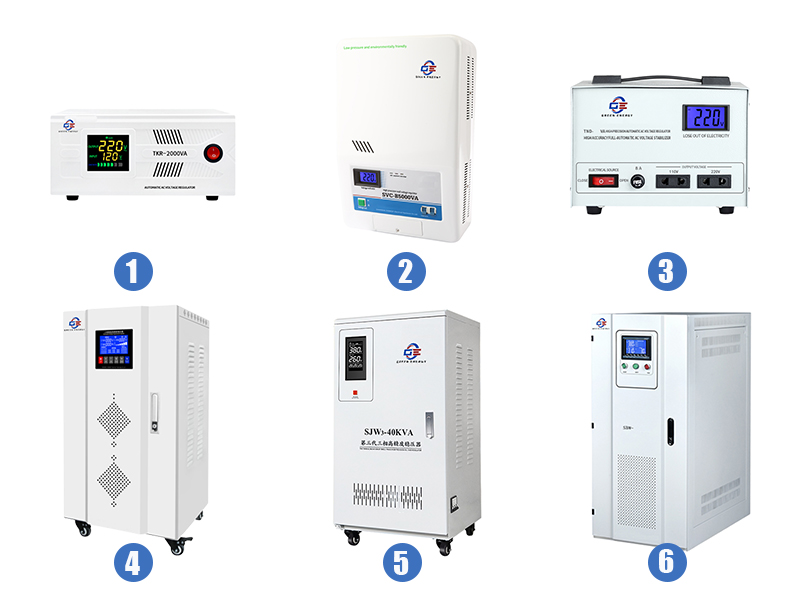

⇒ RELATED PRODUCT
