Product Features

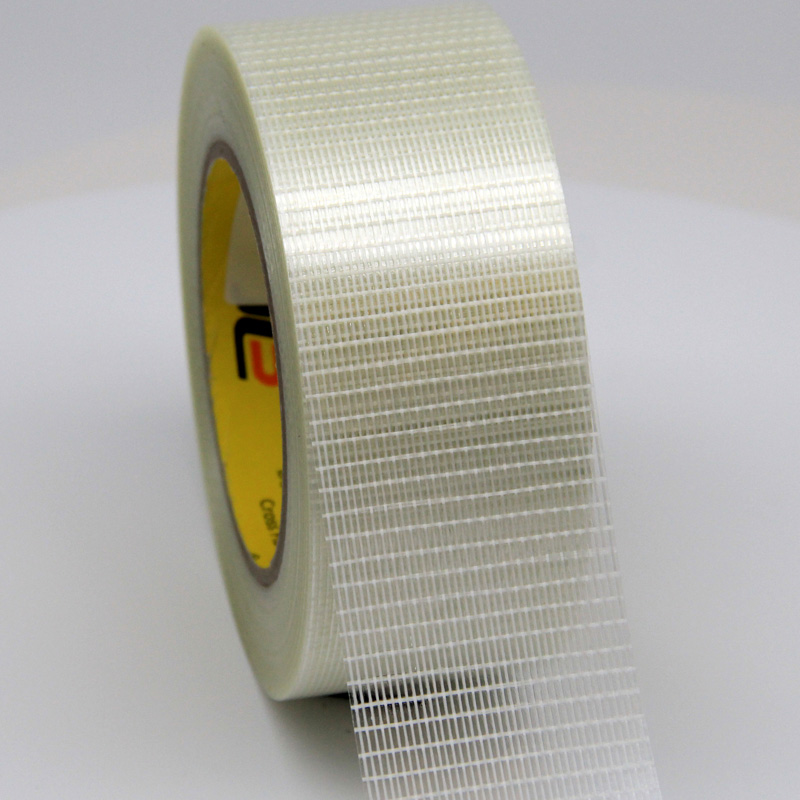

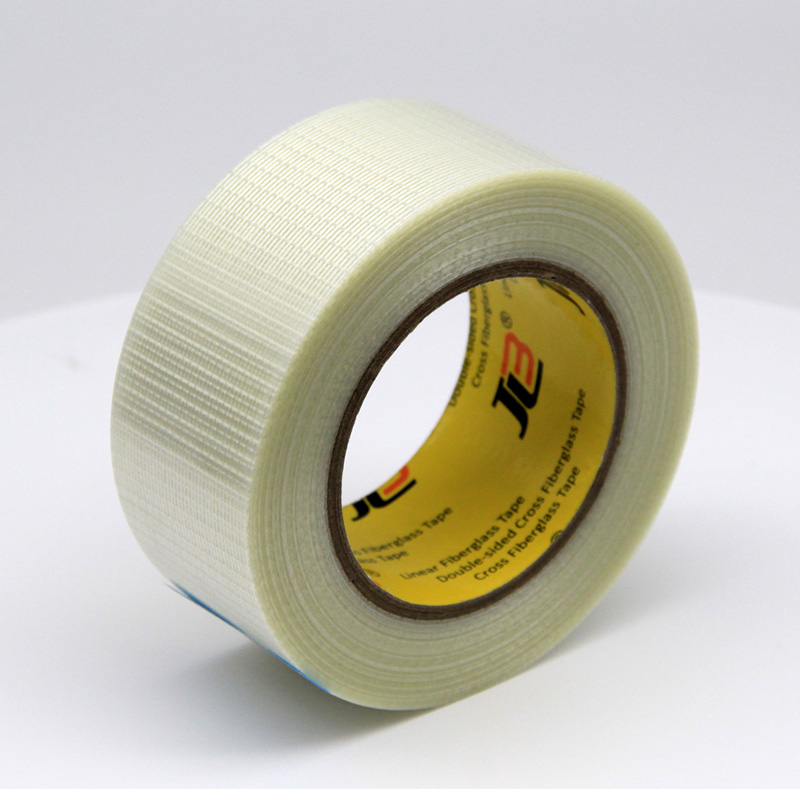

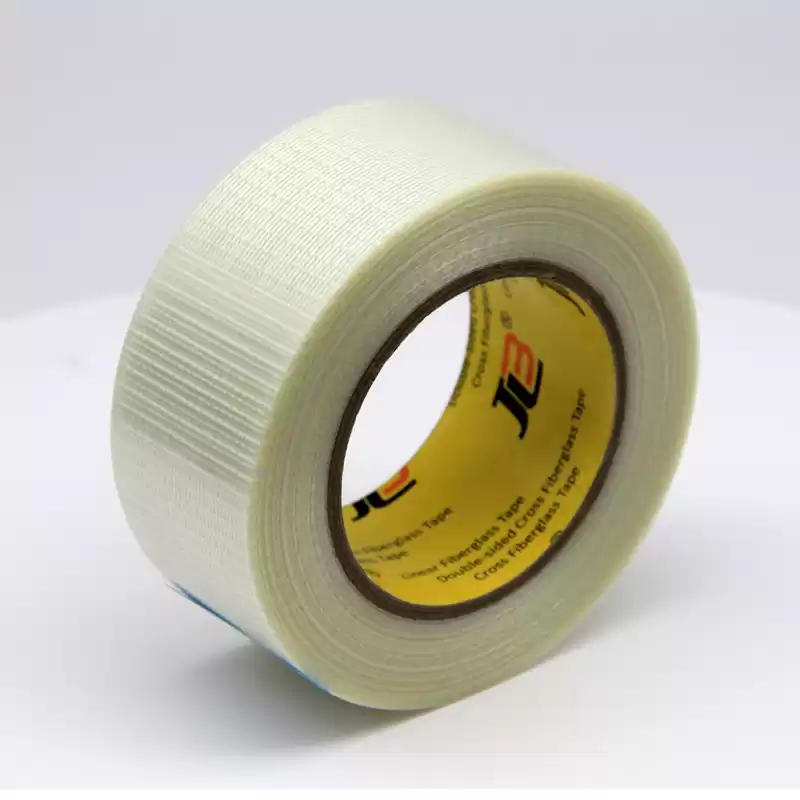

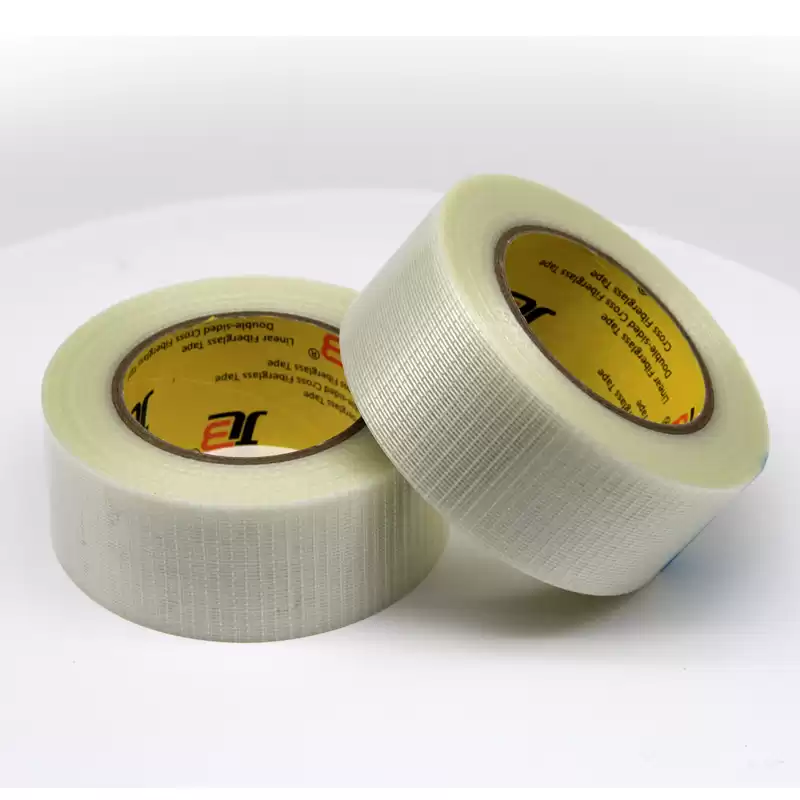

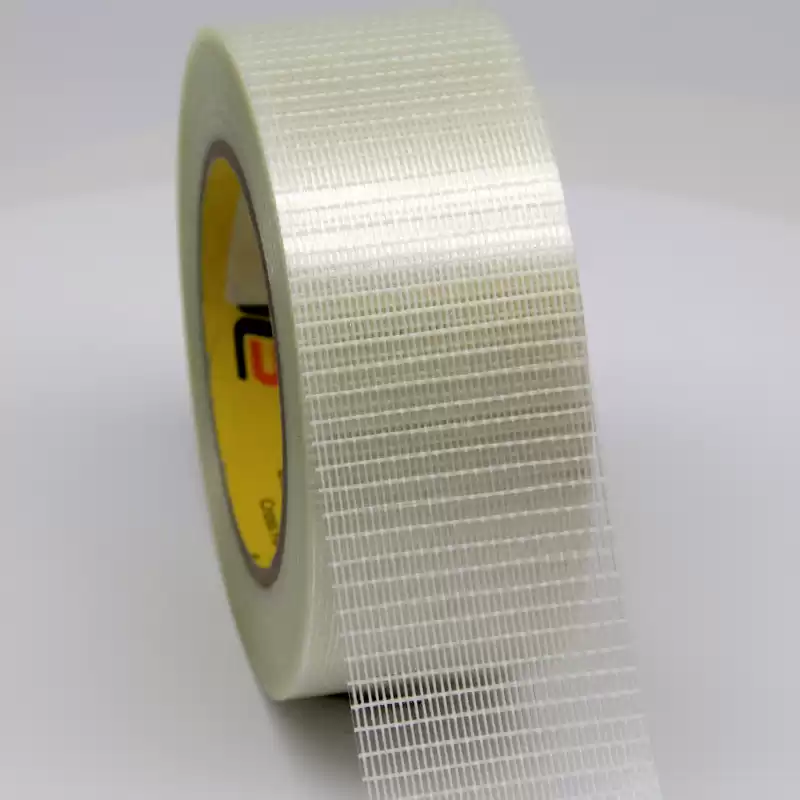

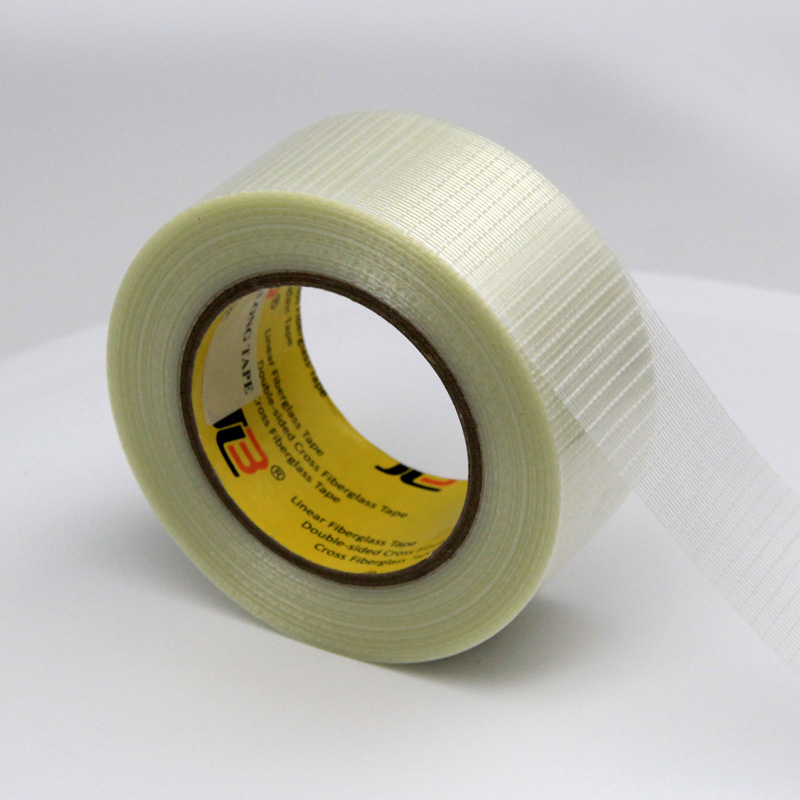

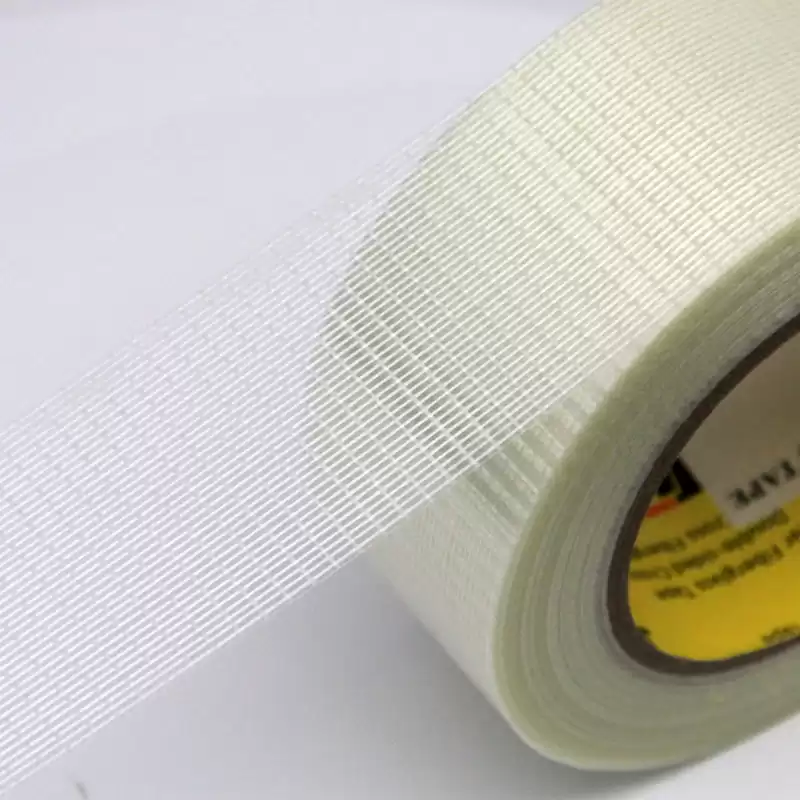

JLW-306 is a light yellow and high strength bi-directional filament tape. Glass fiber contributes higher tensile strength and improved synthetic rubber delivers stronger adhesion; generating bi-directionally strengthened effect; high resistance to abrasion; impact resistance and high holding power.
TDS
|
Physical Properties
|
Standard
|
Metric
|
Test Method
|
|
Reinforcement
|
Fiberglass
|
|
Adhesive
|
Synthetic Rubber
|
|
Backing
|
PET
|
|
Color
|
Light Yellow
|
|
Total Thickness
|
7.9 mils
|
0.20 mm
|
ASTM D-3652
|
GB/T7125
|
|
Peel Adhesion 90°
|
137 oz/in
|
38 N/25mm
|
ASTM D-3330
|
GB/T2792
|
|
Holding Power
|
≥48h
|
≥48h
|
ASTM D-3654
|
GB/T4851
|
|
Tensile strength
|
72 lbs/in
|
320 N/25mm
|
ASTM D-3759
|
GB/T7753
|
|
Elongation at break
|
3-5%
|
3-5%
|
ASTM D-3759
|
GB/T7753
|
|
Service Tem. - Mini
|
23℉
|
-5℃
|
BC/BD-220SE
|
BC/BD-220SE
|
|
Service Tem. - Max
|
158℉
|
70℃
|
DHG-9055A
|
DHG-9055A
|
Product Application

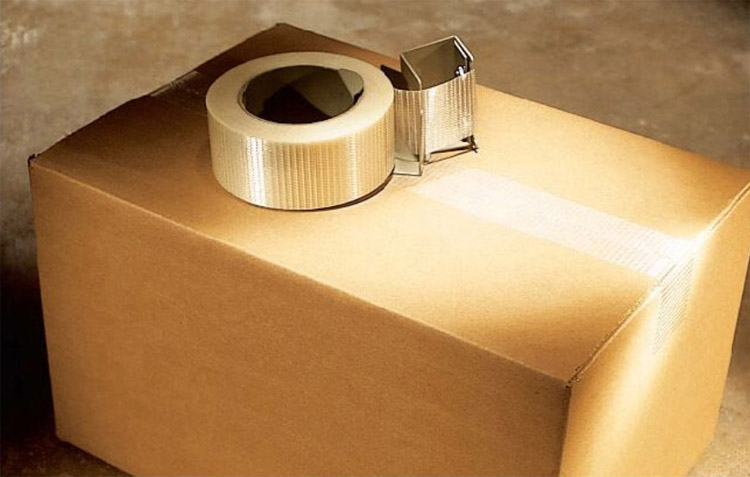

Suitable for pipe strapping; general bundling; pallet fixing; sealing and bundling reinforced marine carton.

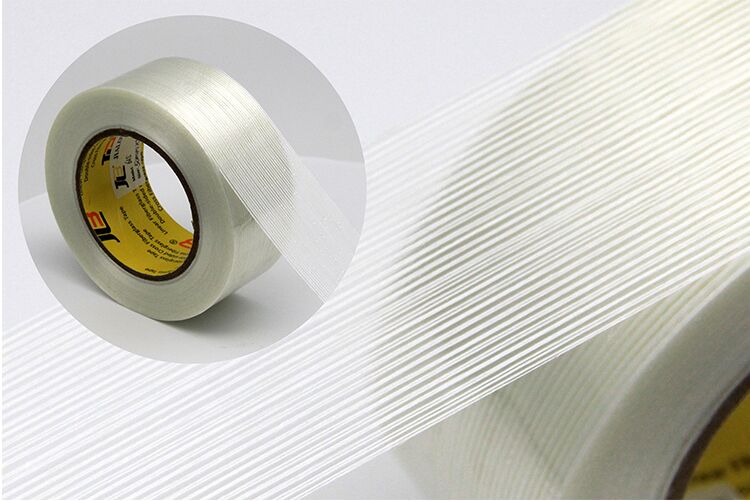

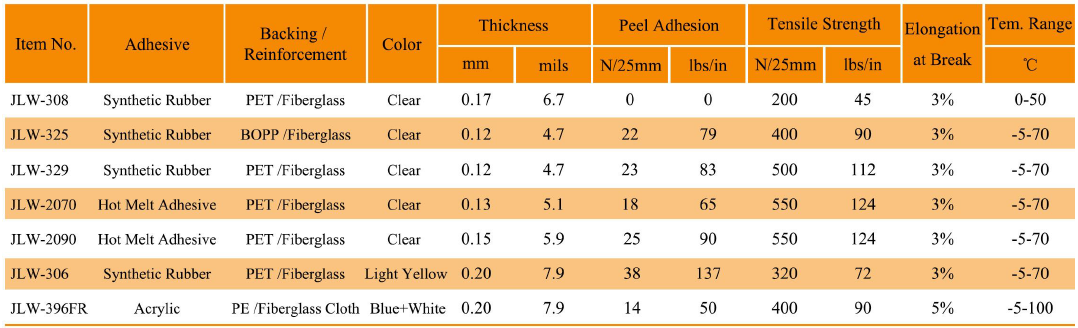

Other Related Products
· JLW-308: Will be sticky when it is heated; Good wear resistance, applied in the internal fastening of high voltage cable etc.
· JLW-325, JLW-329, JLW-306: Heavy box closure, splicing, general bundling and reinforcing, sealing edge of special woven bag sealing edge, metal coil closure, pipeline bundling etc.
· JLW-2070: Heavy box closure, palletizing, strapping, bundling and reinforcing etc.
· JLW-396FR: Fiberglass cloth tape, is made of flame retardant acrylic adhesive, which provide excellent flame retardant properties ; Mainly designed for the application of aircraft cargo and other maintenance, repair and operating (MRO); It is normally applied in sealing aircraft cargo panels.
