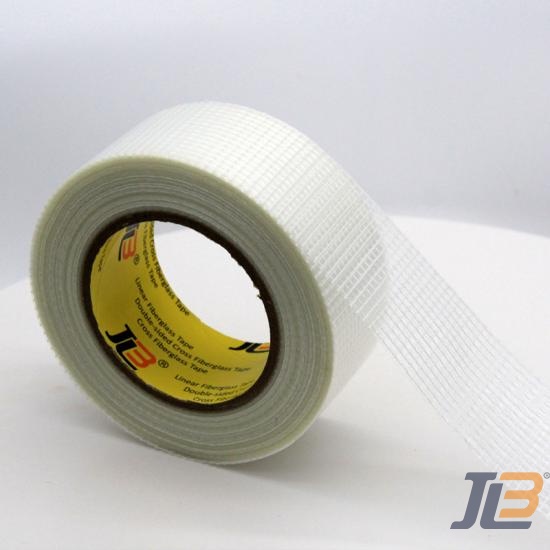

JLW-308 Single Side Adhesive Tape
Transparent Reinforced Filament Tape. Also Known as Fiberglass Tape for Electrical Insulation, High Heat Resistant Tape, in Bopp or Pet Film, Adding Glass Fiber or Chemical Fiber Reinforcementm, Can Make The Tape Have Higher Tensile Resistance, and The Improved Synthetic Rubber Adhesive Has Stronger Adhesion, High Wear Resistance and Impact Resistance and High Retention.
- ColorTransparent
- AdhesiveSynthetic Rubber
- Backing PET
- ReinforcementFiberglass
Product Features
JLW-308 is a transparent reinforced bi-directional filament tape. Glass fiber contributes higher tensile strength. No adhesive; generating bi-directionally strengthened effect; high resistance to abrasion; impact resistance.
TDS
| Physical Properties | Standard | Metric | Test Method | ||
| Reinforcement | Fiberglass | ||||
| Adhesive | Synthetic Rubber | ||||
| Backing | PET | ||||
| Color | Clear | ||||
| Total Thickness | 6.7 mils | 0.17 mm | ASTM D-3652 | GB/T7125 | |
| Peel Adhesion 90° | 0 | 0 | ASTM D-3330 | GB/T2792 | |
| Holding Power | 0 | 0 | ASTM D-3654 | GB/T4851 | |
| Tensile strength | 45 lbs/in | 200 N/25mm | ASTM D-3759 | GB/T7753 | |
| Elongation at break | 3-5% | 3-5% | ASTM D-3759 | GB/T7753 | |
| Service Tem. - Mini | 32℉ | 0℃ | BC/BD-220SE | BC/BD-220SE | |
| Service Tem. - Max | 122℉ | 50℃ | DHG-9055A | DHG-9055A | |
Product Application

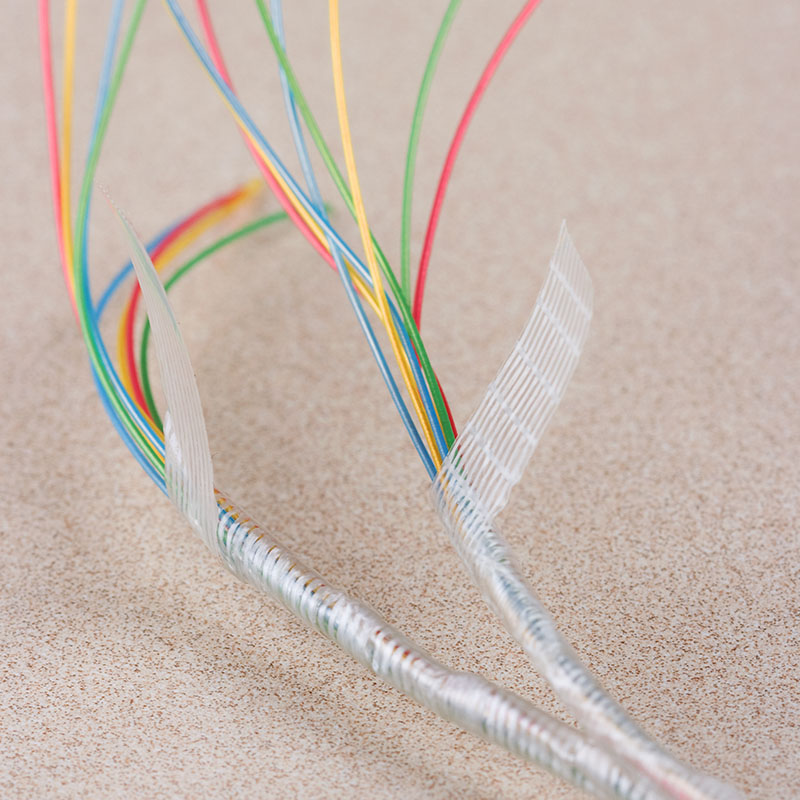

Suitable for internal bundling and fixing.

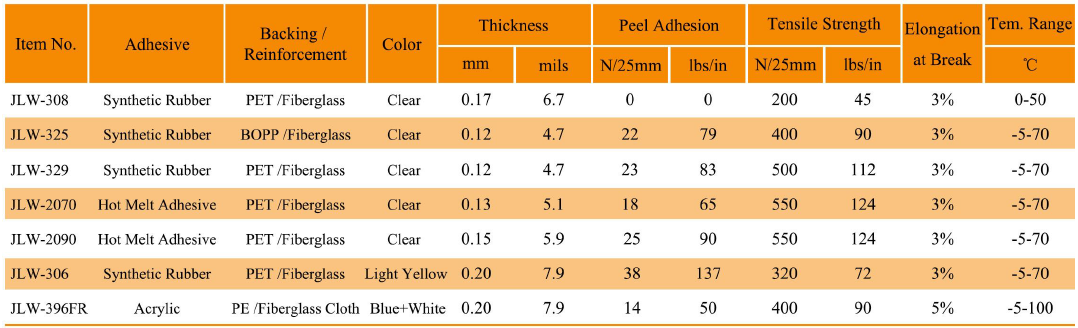

Other Related Products
· JLW-308: Will be sticky when it is heated; Good wear resistance, applied in the internal fastening of high voltage cable etc.
· JLW-325, JLW-329, JLW-306: Heavy box closure, splicing, general bundling and reinforcing, sealing edge of special woven bag sealing edge, metal coil closure, pipeline bundling etc.
· JLW-2070: Heavy box closure, palletizing, strapping, bundling and reinforcing etc.
· JLW-396FR: Fiberglass cloth tape, is made of flame retardant acrylic adhesive, which provide excellent flame retardant properties ; Mainly designed for the application of aircraft cargo and other maintenance, repair and operating (MRO); It is normally applied in sealing aircraft cargo panels.
