Product Features

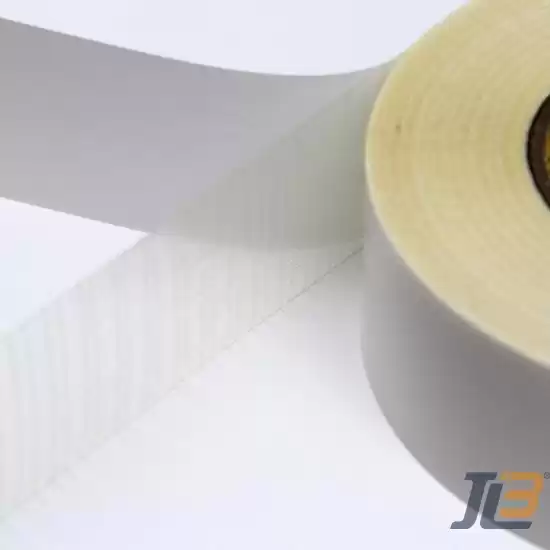

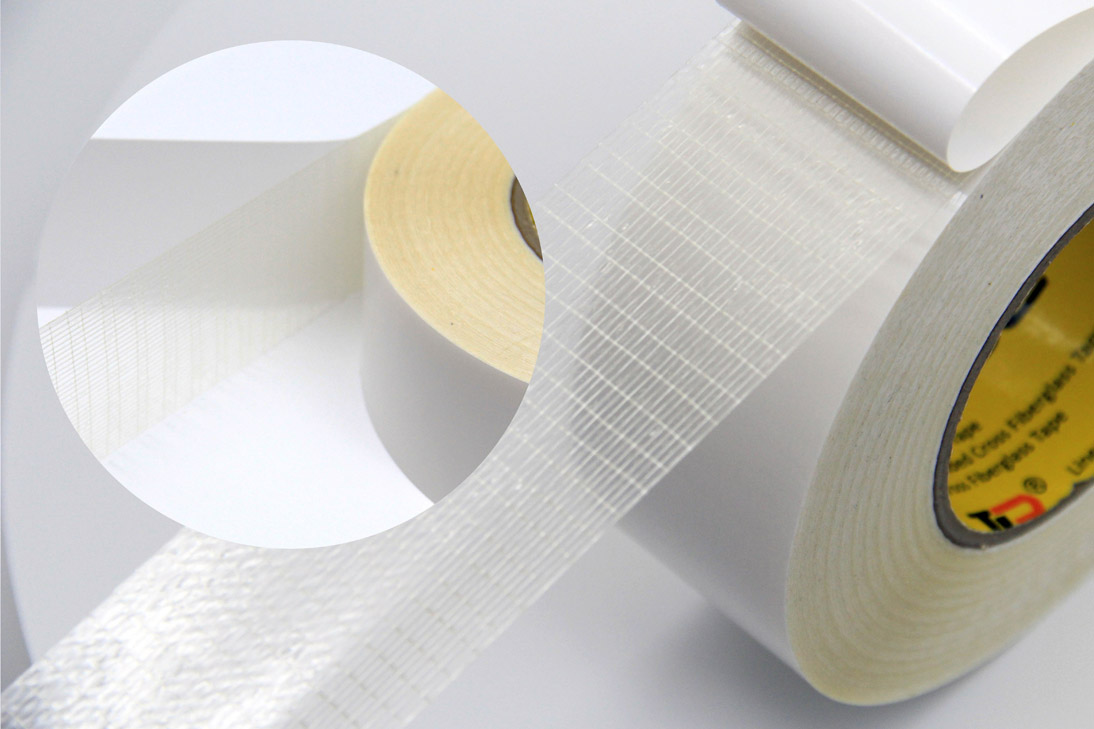

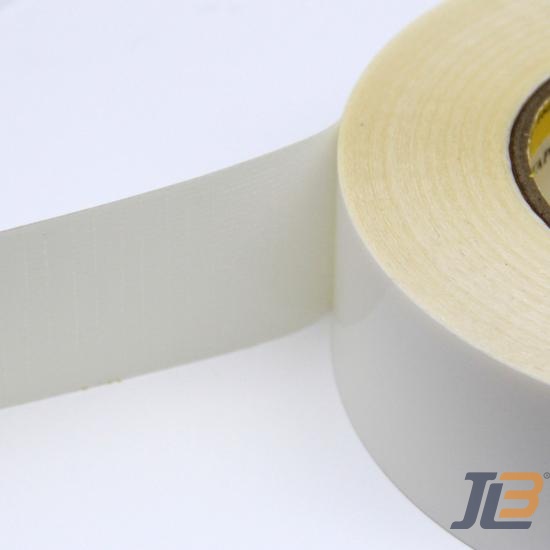

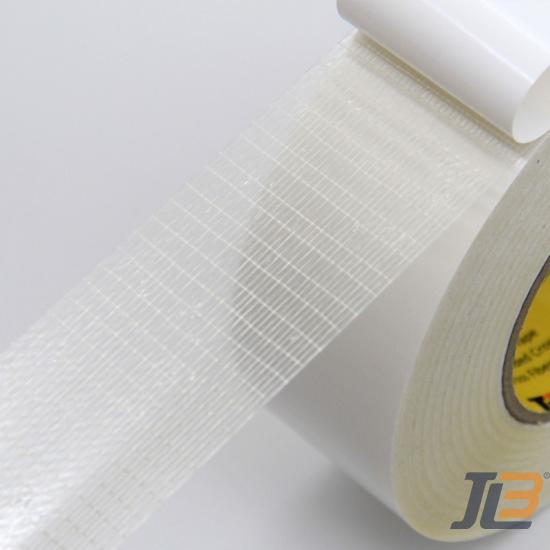

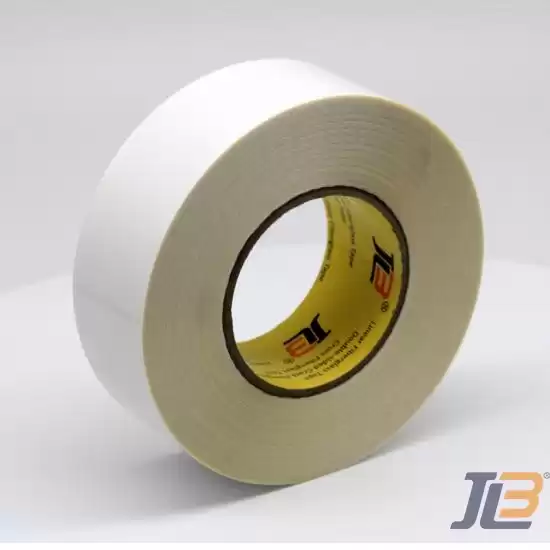

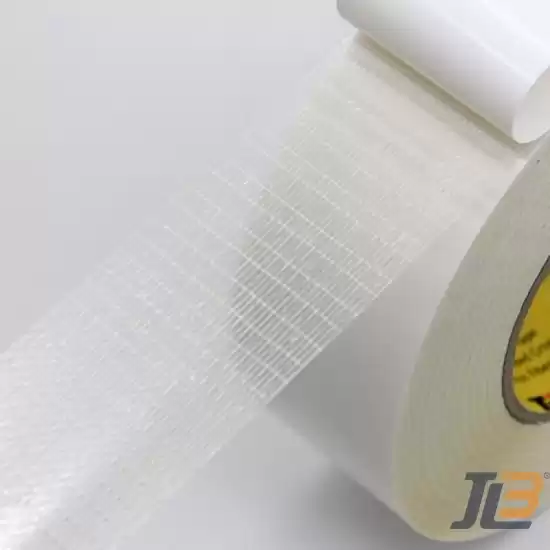

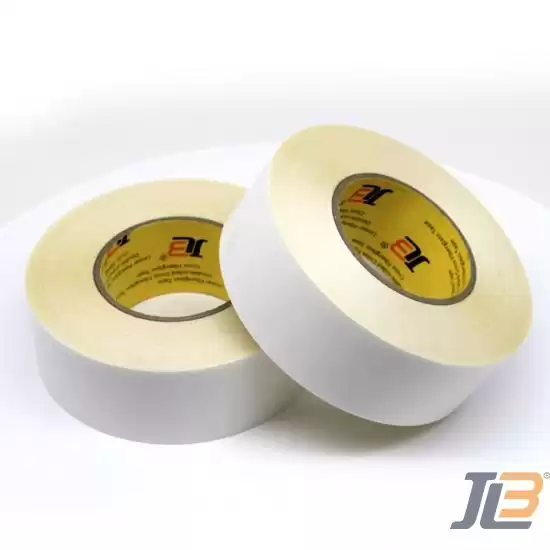

JLW-316BG is a white and high strength bi-directional double-sided filament tape. Glass fiber contributes higher tensile strength and improved pressure-sensitive adhesive delivers stronger adhesion; generating bidirectionally strengthened effect; high resistance to abrasion; impact resistance and high holding power.
TDS
|
Physical Properties
|
Standard
|
Metric
|
Test Method
|
|
Reinforcement
|
Fiberglass
|
|
Adhesive
|
Acrylic Pressure-Sensitive Adhesive
|
|
Backing
|
White PET Film
|
|
Color
|
White
|
|
Total Thickness
|
9.8 mils
|
0.25 mm
|
ASTM D-3652
|
GB/T7125
|
|
Peel Adhesion 90°
|
61 oz/in
|
17 N/25mm
|
ASTM D-3330
|
GB/T2792
|
|
Holding Power
|
≥5 h
|
≥5 h
|
ASTM D-3654
|
GB/T4851
|
|
Tensile strength
|
67 lbs/in
|
300 N/25mm
|
ASTM D-3759
|
GB/T7753
|
|
Elongation at break
|
5-7%
|
5-7%
|
ASTM D-3759
|
GB/T7753
|
|
Service Tem. - Mini
|
23℉
|
-5℃
|
BC/BD-220SE
|
BC/BD-220SE
|
|
Service Tem. - Max
|
212℉
|
100℃
|
DHG-9055A
|
DHG-9055A
|
Product Application

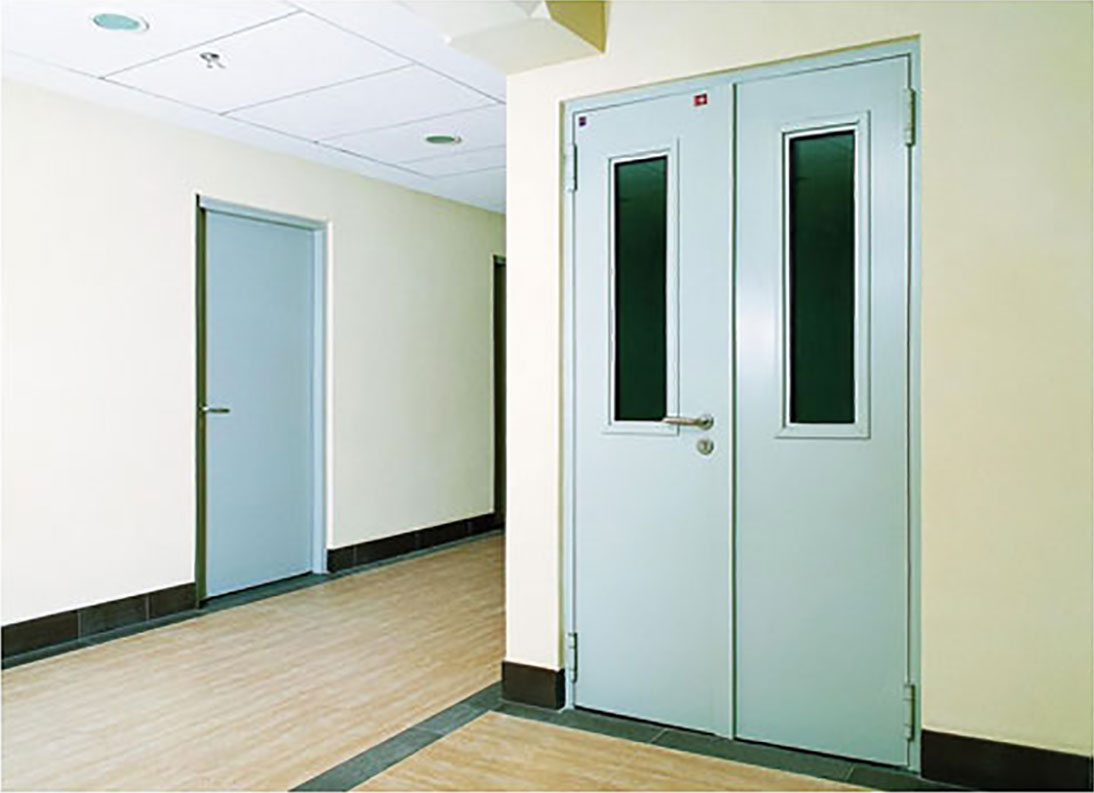

Suitable for the self-adhesion of decoration articles; exclusively for foam sealing strip of fireproof
doors and windows.

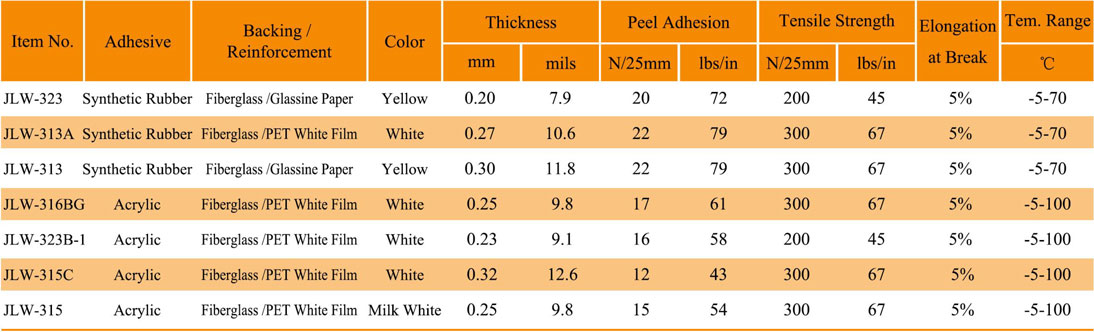

Other Related Products
· JLW-323, JLW-313A, JLW-313: self-adhesion of decoration articles, insulation layer of floor, rubber products, foam, textiles, auto interior, non-weaving fabrics, bags and suitcases, tag, leather, aluminum board and wooden ornament, and the strip sealing of windows and doors
· JLW-316BG, JLW-323B-1: Used in fireproof materials, mainly for foam sealing strip of fireproof doors and windows.
