Truck description:
CNCSC rubbish truck JMC use design of no skeleton circular arc, the layout is reasonable and beautiful. In order to prevent the filler dropped out because of cylinder pipe sudden burst, increase the safety of use, the lift system of hydraulic is equipped with a two-way hydraulic lock that ensures safety.
Advantages:

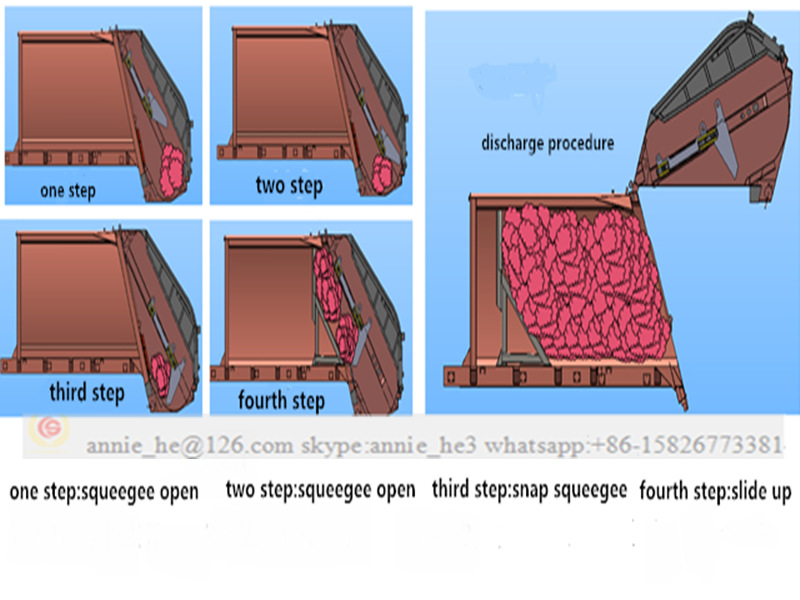

1. With bi-directional compression technology, compression ratios is up to 1:2.5, and household waste can be compressed to more than 600kg/m³.
2. The main component fillers waste bins and push shovels are made of Q345A high-strength manganese steel, with a solid structure, light weight, high rigidity and good strength. The bins and fillers are sealed with high-quality imported rubber strips, with a good sealing and long service life.
3.The hydraulic system of 6 cubic trash truck adopts a combined control valve set, and the tubing is arranged orderly, beautiful, and the layout is reasonable.
4.The side and top surface of the garbage container is circular arc, with light weight, rigid strength and beautiful appearance.

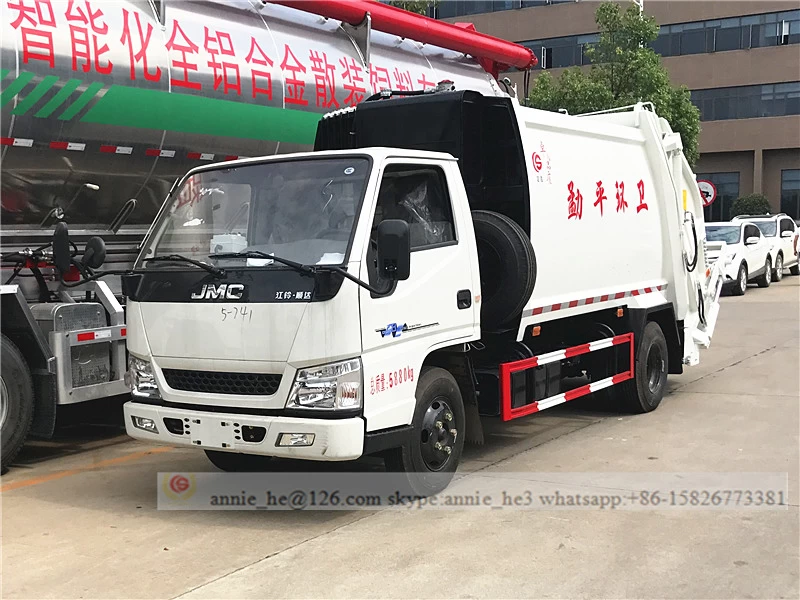

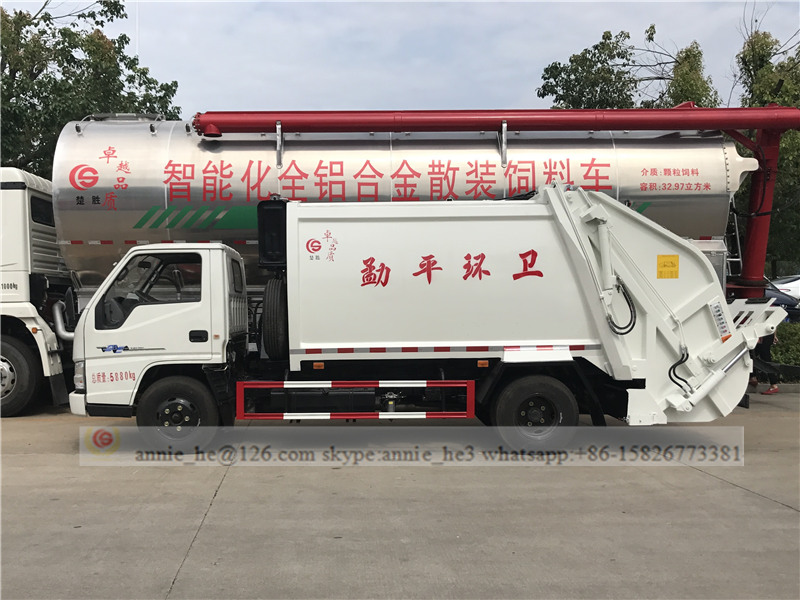

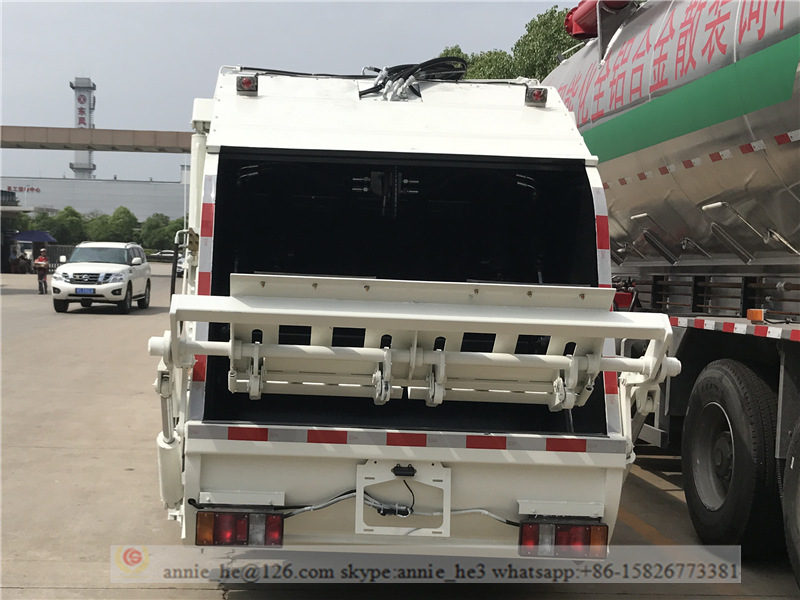

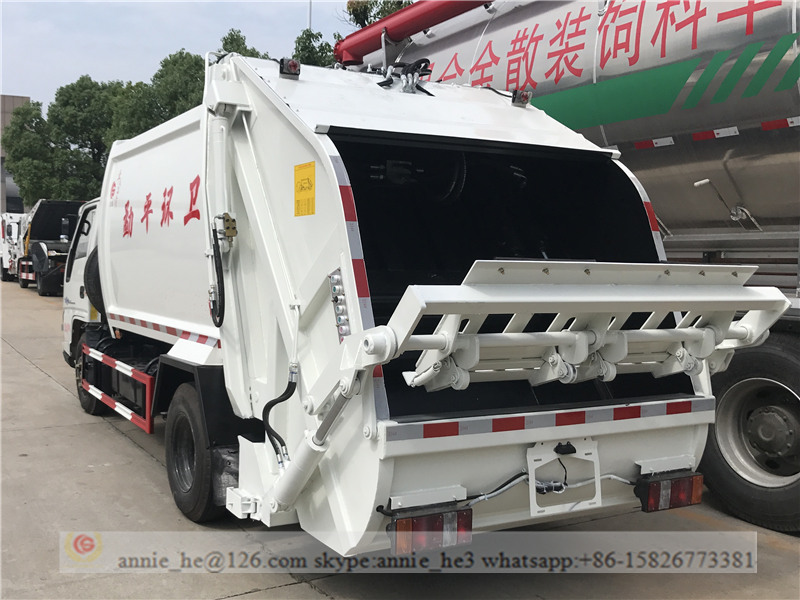

JMC Refuse Truck 6 cubic
|
Truck description
|
GVW (kg)
|
5880
|
|
Kerb weight (kg)
|
5050
|
|
Overall
dimension (mm)
|
Length
|
6420
|
|
Width
|
1980
|
|
Height
|
2550
|
|
Chassis
|
Number of axles
|
2
|
|
Allowable Passengers in cab
|
2
|
|
Air conditioner
|
For option
|
|
Wheel base(mm)
|
3360
|
|
Type of fuel
|
Diesel
|
|
Exhaust/output
|
2771ml/85kw
|
|
Tire specification
|
7.00R16LT for option
|
|
Tank description
|
Material
|
Q345 manganese steel
|
|
Thickness
|
Side plate (mm)
|
3 or changed as request
|
|
Bottom plate(mm)
|
4 or changed as request
|
|
compression
parameter
|
garbage density after compression
|
0.5-0.8t/m3
|
|
full filling one time
|
less than 30S
|
|
one time unloading
|
less than 40S
|
|
compression ratio
|
more than 1:2.5
|
|
Other remark
|
Above specification is just for reference, please send us your request details.
|
|
