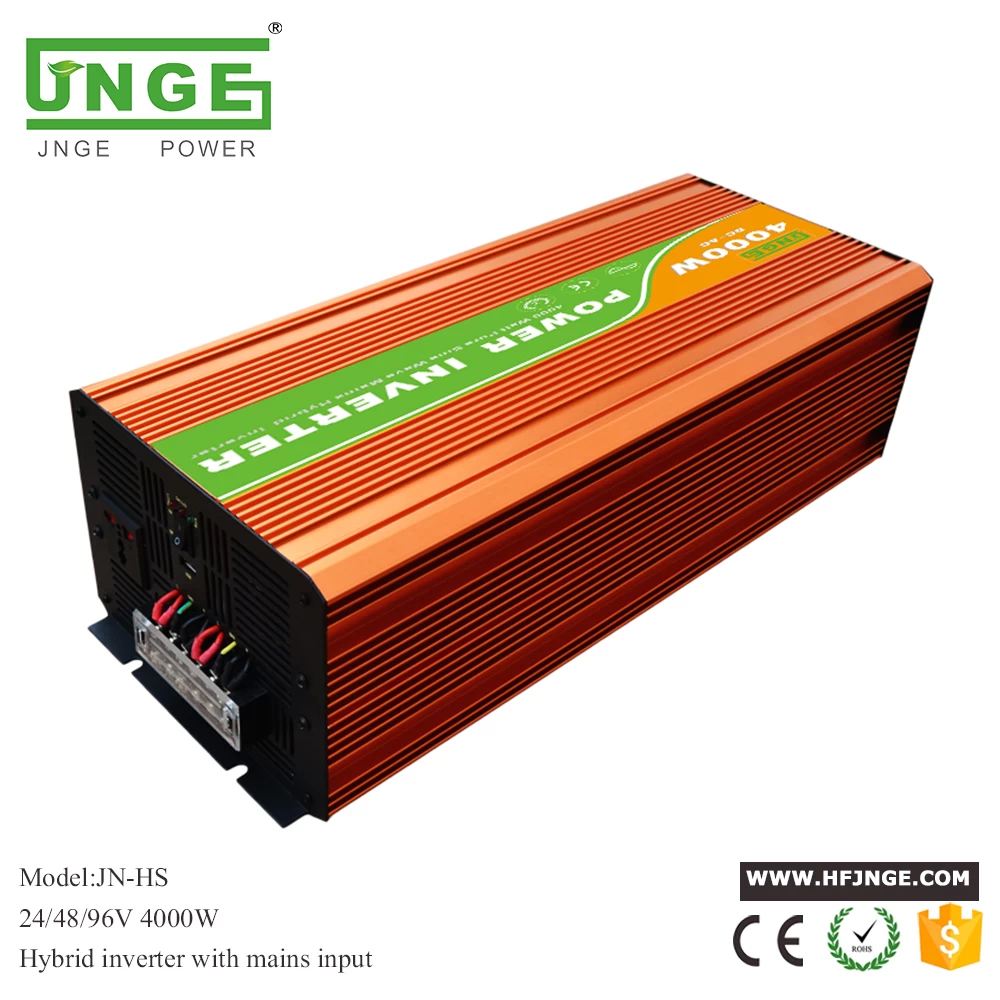

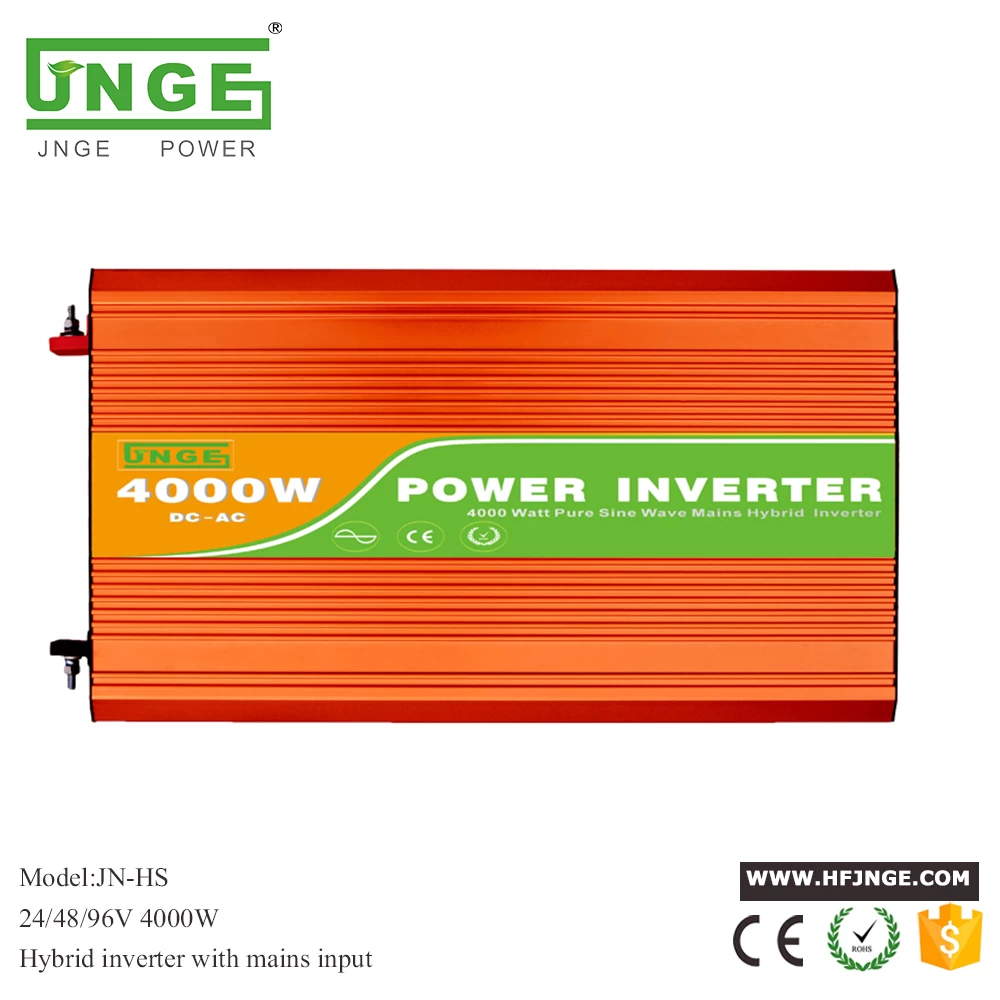

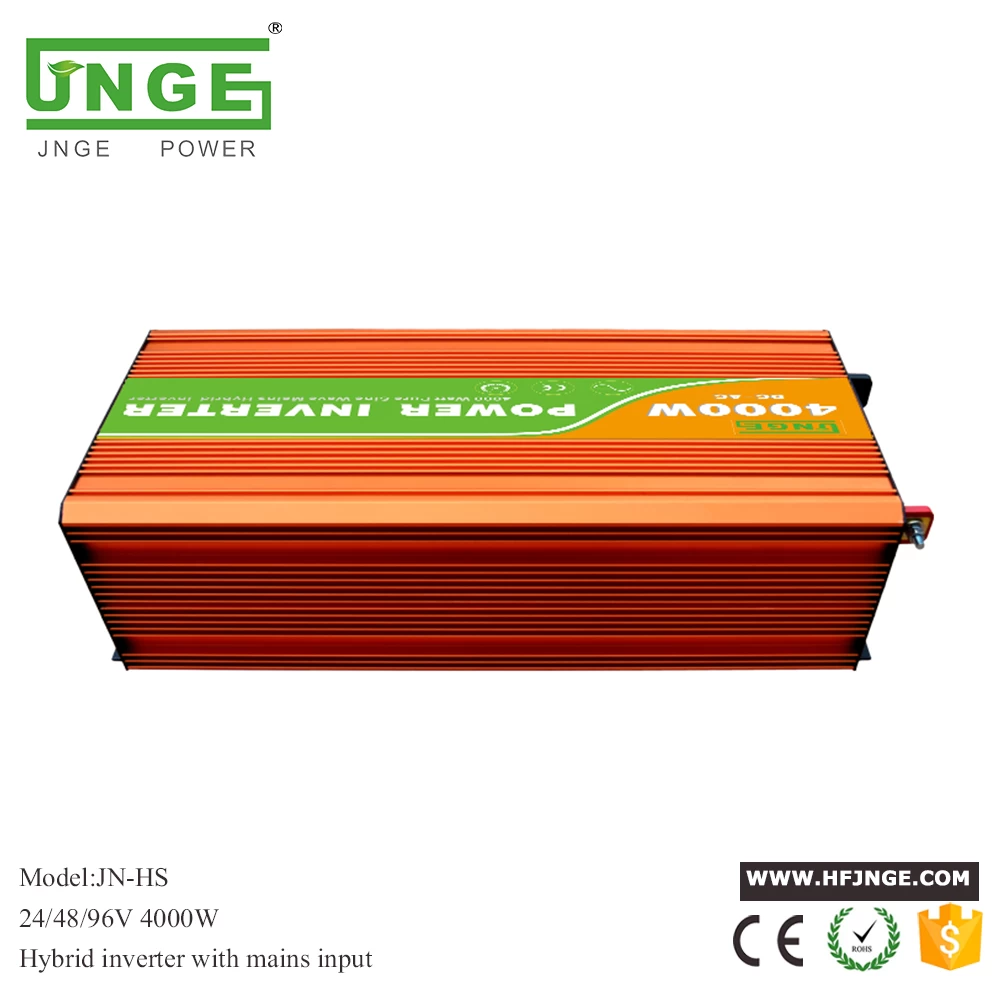

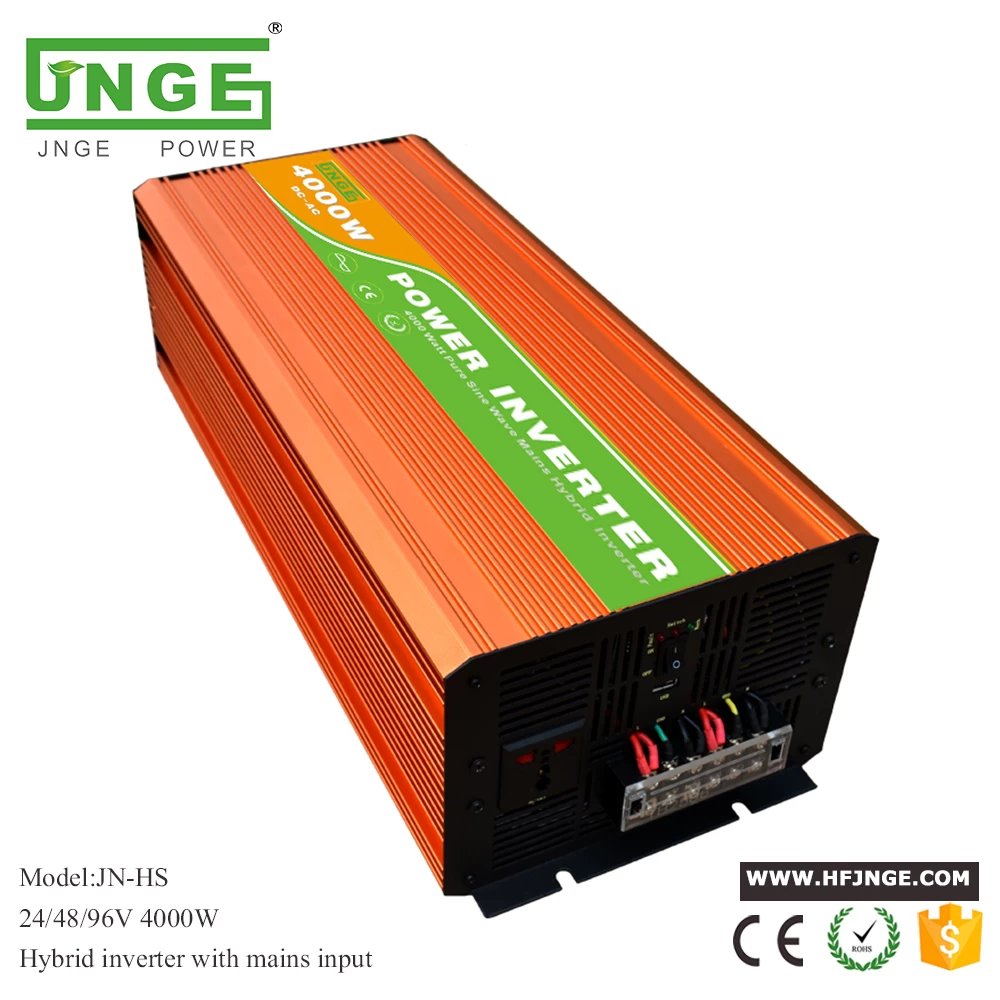

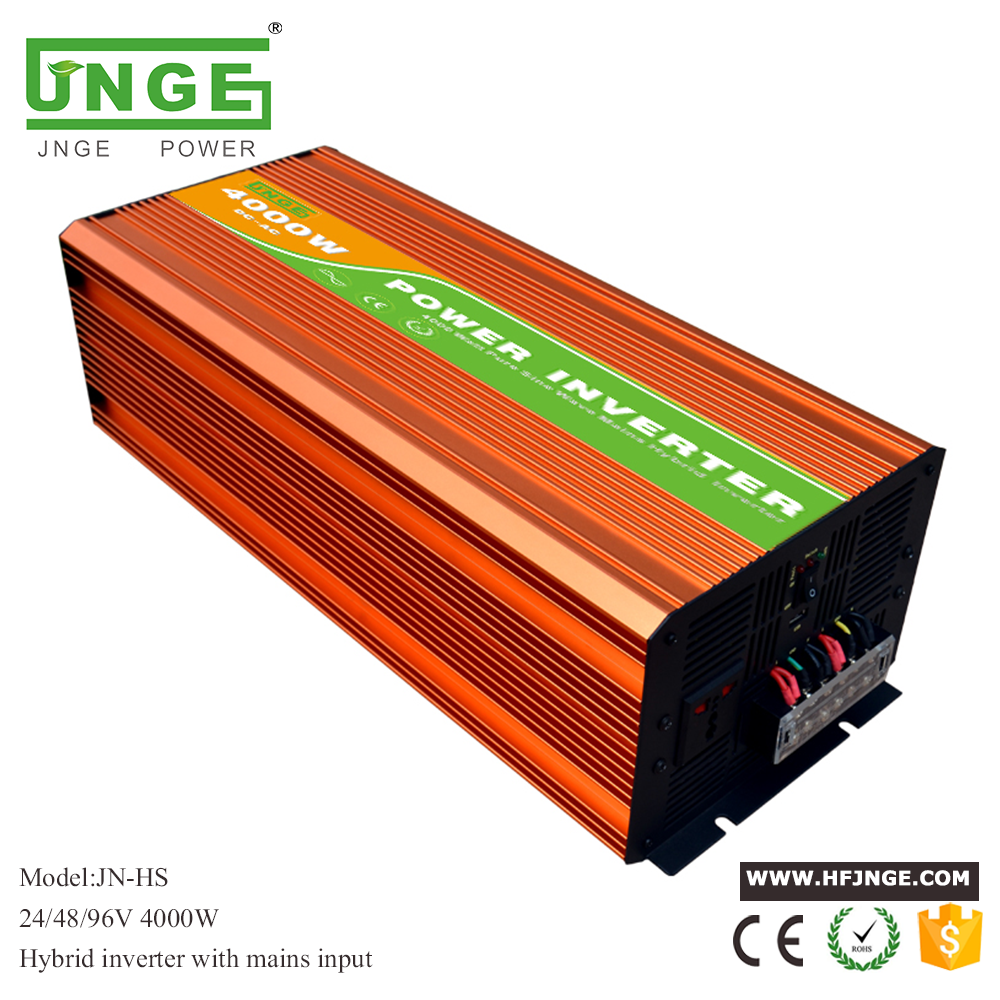

JN-HS 4000w AC mains DC hybrid pure sine wave inverter

·Anodized alluminum case provides durability & max heat dissipation

·DC cigarette lighter accessory plug and heavy -duty cable clamps for high-output direct battery connections both included.

·Automatic restart function.

·USB output port : 5V500mA (optional )

·ON/OFF switch control the inverter by hand

·The inverter is compact , light weight and easy to operate.

·Loads can be powered directly from the AC outlets.

·The inverter is equipped with numerous protection features to guarantee safe and trouble-free



This is a 4000W 12V 24V pure sine wave power inverter hybrid type which can generate 4000W of continuous power and up to 8000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).It has hybrid function with AC mians ,you can set battery working in priority or AC mains working in prioroty as your demand.


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters)


It is more efficient compared to modified sine wave inverters.

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.
The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.


SWITCH  Batteries  preference or mains preference(can be set up)
OUTPUT OUTPUT VOLT 100/110/120/220/230/240VAC
CONTINUOUS POWER 4000W
SURGE POWER 8000W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz/60Hz
AC REGULATION LOW & HIGH 10%
Non-load  Consumption <26W
EFFICEINCY >90%
INPUT USB OUTPUTt 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 21-30VDC          40-60VDC         80-120VDC
PROTECTION WORKING INPUT 24VDC             48VDC            96VDC
FUSE 20A                   10A                 15A
Low battery alarm 21+0.5V             42+0.5V          84+0.5v
Low battery shut down 20+0.5V              40+0.5V          80+0.5V
Over voltage shut down 30.5+0.5V            60+0.5V          120+0.5V
Over load shut down 4800W OVER 10 SECOND
Over heating shut down >75
Over Thermal  shut down the output
Working Temperature BETWEEN -10 and +50
soft start
OTHER DIMENSION(L*W*H)  485*218*155mm
INNER BOX DIMENSION  575*310*255mm
CARTON DIMENSION  580*315*255mm
NET WEIGHT 11±1KG
GROSS WEIGHT 13.2±1KG
PACKING 1PCS/CTN
