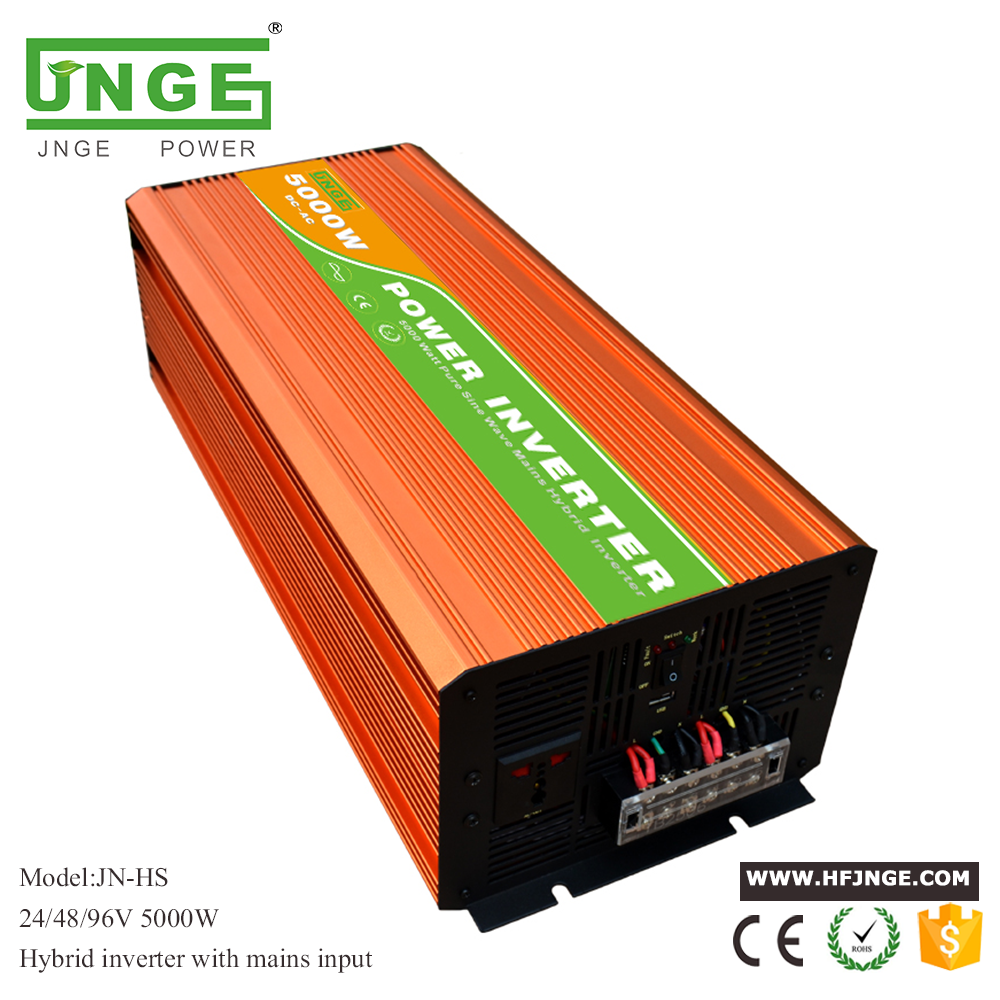

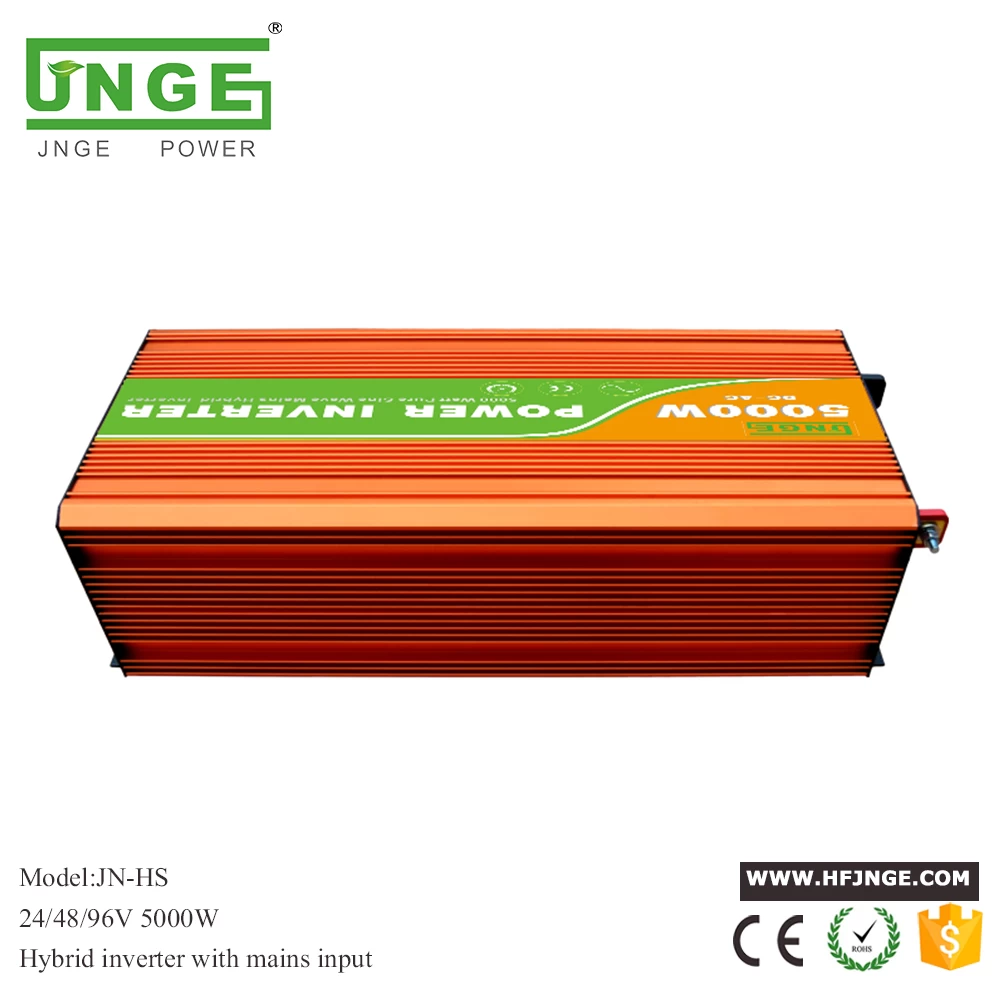

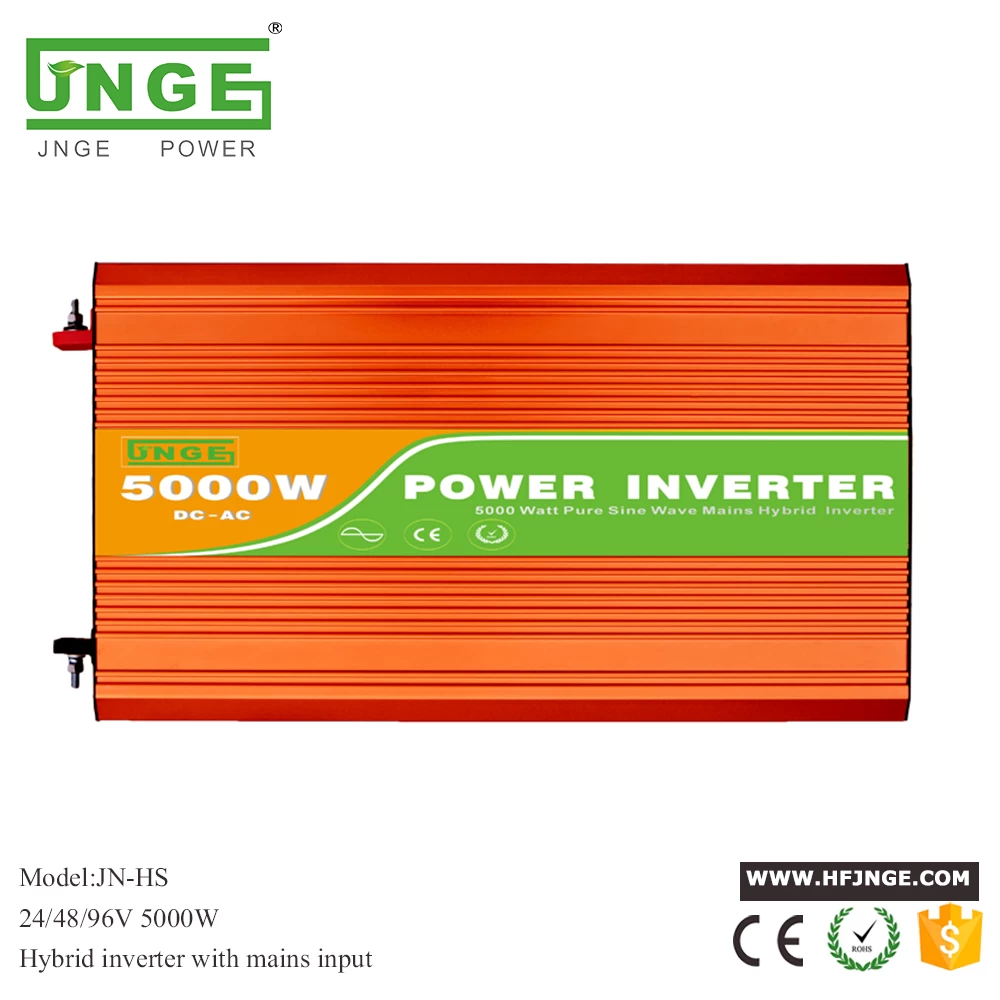

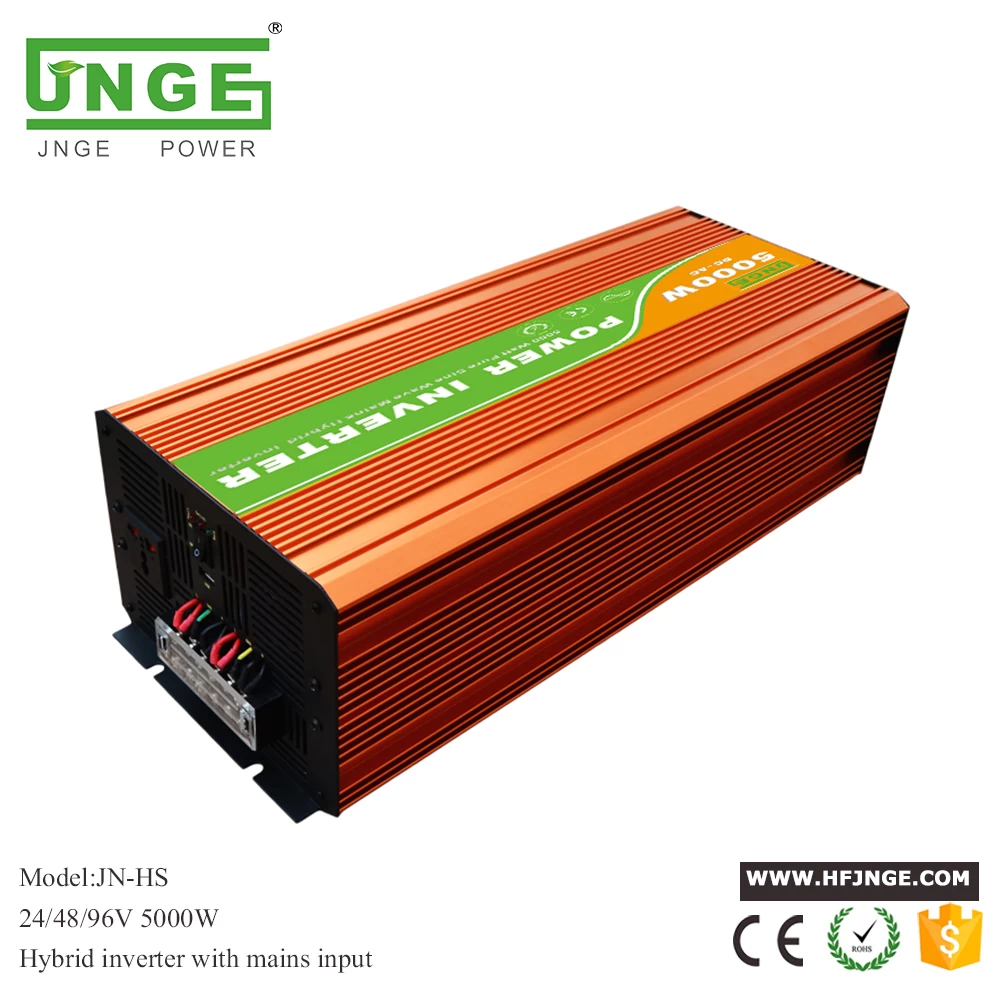

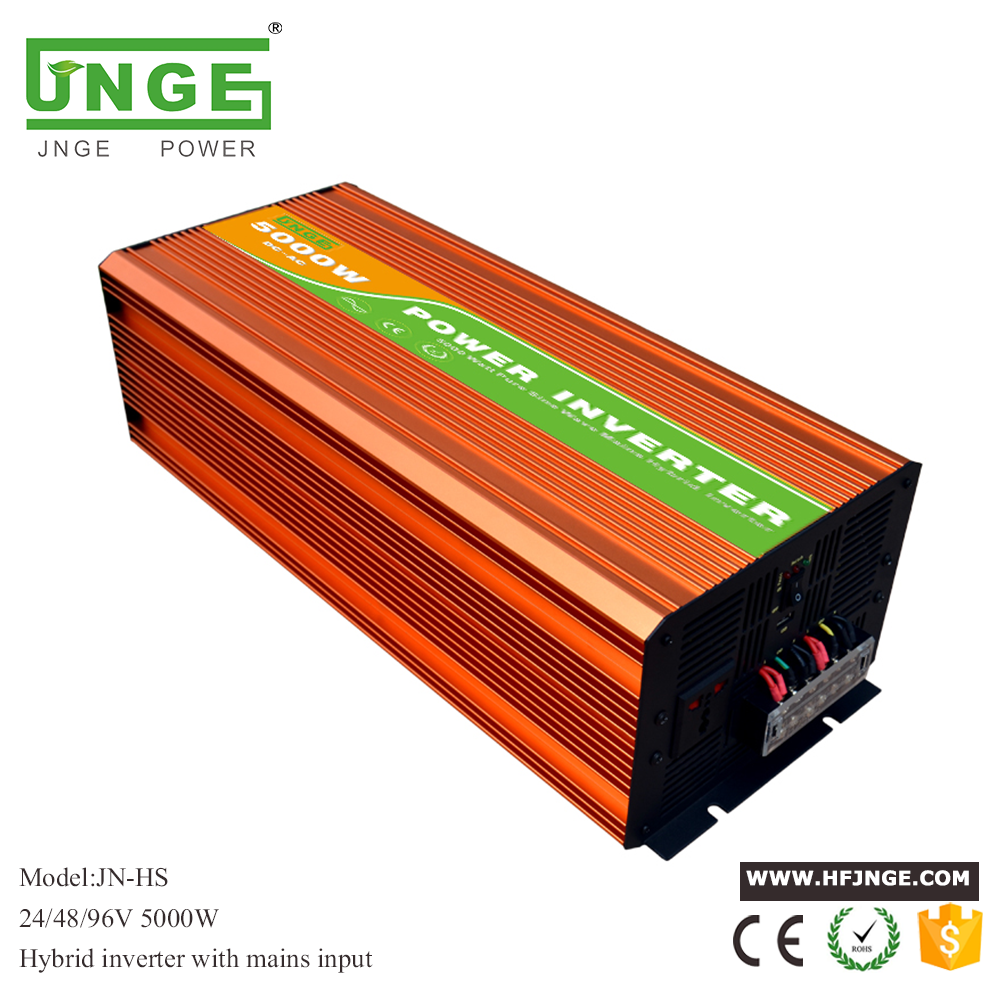

This is a 5000W 24V 48V pure sine wave power inverter hybrid type which can generate 5000W of continuous power and up to 10000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).It has hybrid function with AC mians ,you can set battery working in priority or AC mains working in prioroty as your demand.
This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:
It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters)
It is more efficient compared to modified sine wave inverters.
This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.
The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.
Parameters:
|
SWITCH
|
Batteries preference or mains preference(can be set up)
|
|
OUTPUT
|
OUTPUT VOLT
|
100/110/120/220/230/240VAC
|
|
CONTINUOUS POWER
|
5000W
|
|
SURGE POWER
|
10000W
|
|
WAVEFORM
|
PURE SINE WAVE
|
|
FREQUENCY
|
50Hz/60Hz
|
|
AC REGULATION
|
LOW & HIGH 10%
|
|
Non-load Consumption
|
<28W
|
|
EFFICEINCY
|
>90%
|
|
INPUT
|
USB OUTPUTt
|
5V
|
|
DC VOLTAGE
|
LED DISPLAY POWER
& FAIL STATUS
|
|
INPUT RANGE
|
21-30V 40-60V 80-120V
|
|
PROTECTION
|
WORKING INPUT
|
24VDC 48VDC 96VDC
|
|
FUSE
|
20A 10A 15A
|
|
Low battery alarm
|
21+0.5V 42+0.5V 84+0.5V
|
|
Low battery shut down
|
20+0.5V 40+0.5V 80+0.5V
|
|
Over voltage shut down
|
30.5+0.5V 60+0.5V 120+0.5V
|
|
Over load shut down
|
6000W OVER 10 SECOND
|
|
Over heating
shut down
|
>75℃
|
|
Over
Thermal
|
shut down the output
|
|
Working
Temperature
|
BETWEEN -10℃ and +50℃
|
|
soft start
|
|
OTHER
|
DIMENSION(L*W*H)
|
490*216*153mm
|
|
INNER BOX
DIMENSION
|
554*299*249mm
|
|
CARTON DIMENSION
|
555*300*250mm
|
|
NET WEIGHT
|
12±1KG
|
|
GROSS WEIGHT
|
13.6±1KG
|
|
PACKING
|
1PCS/CTN
|
