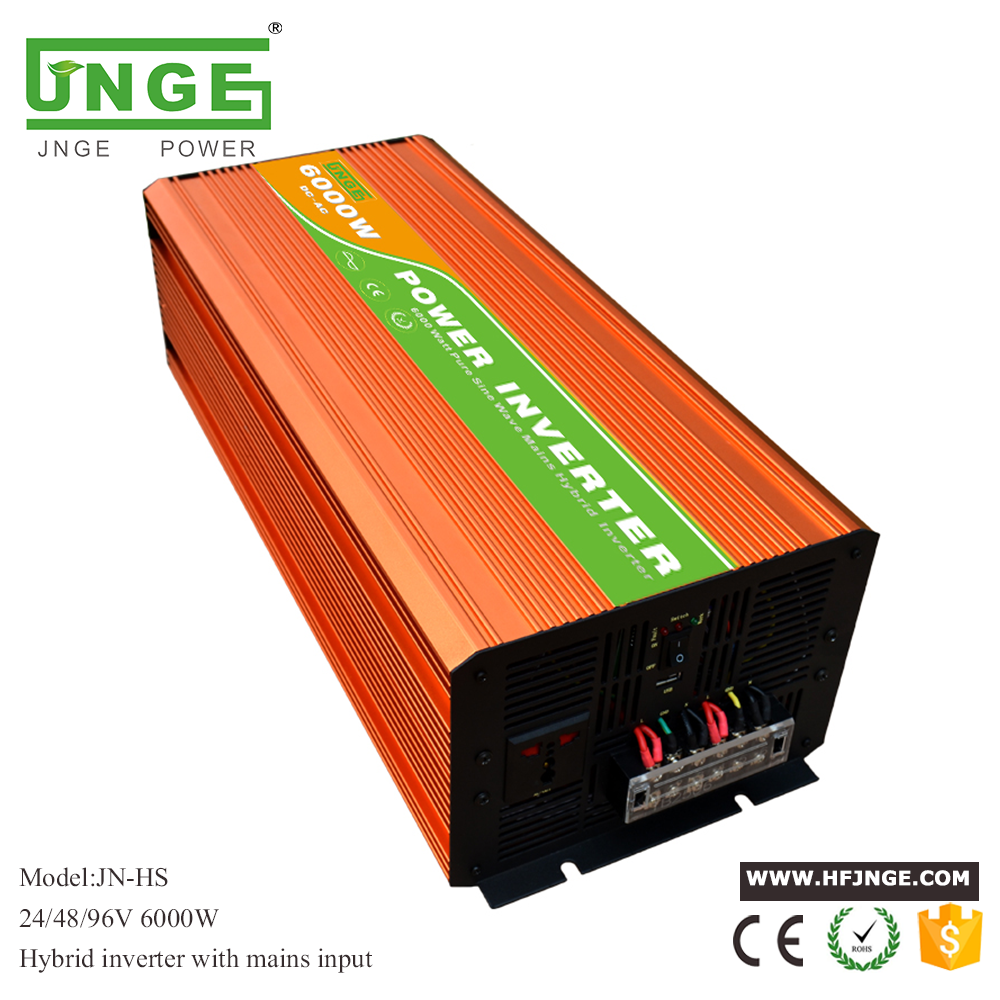

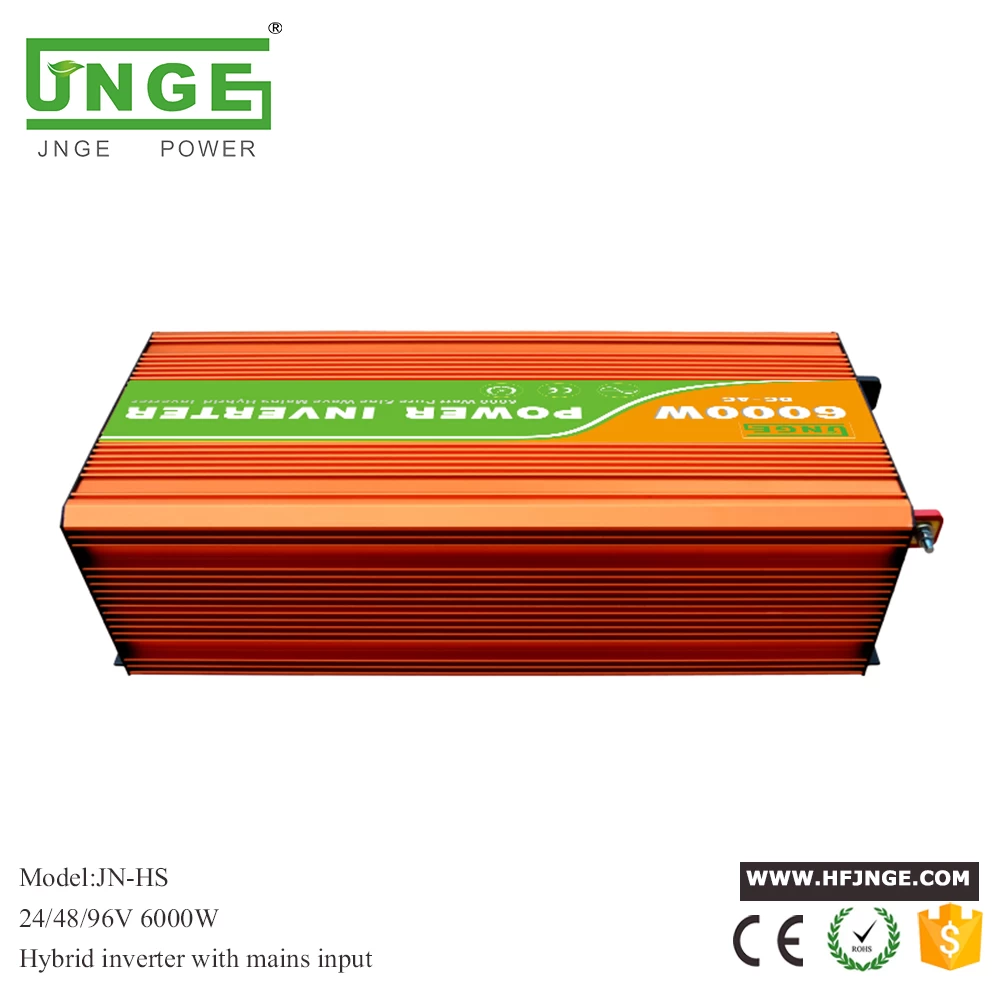

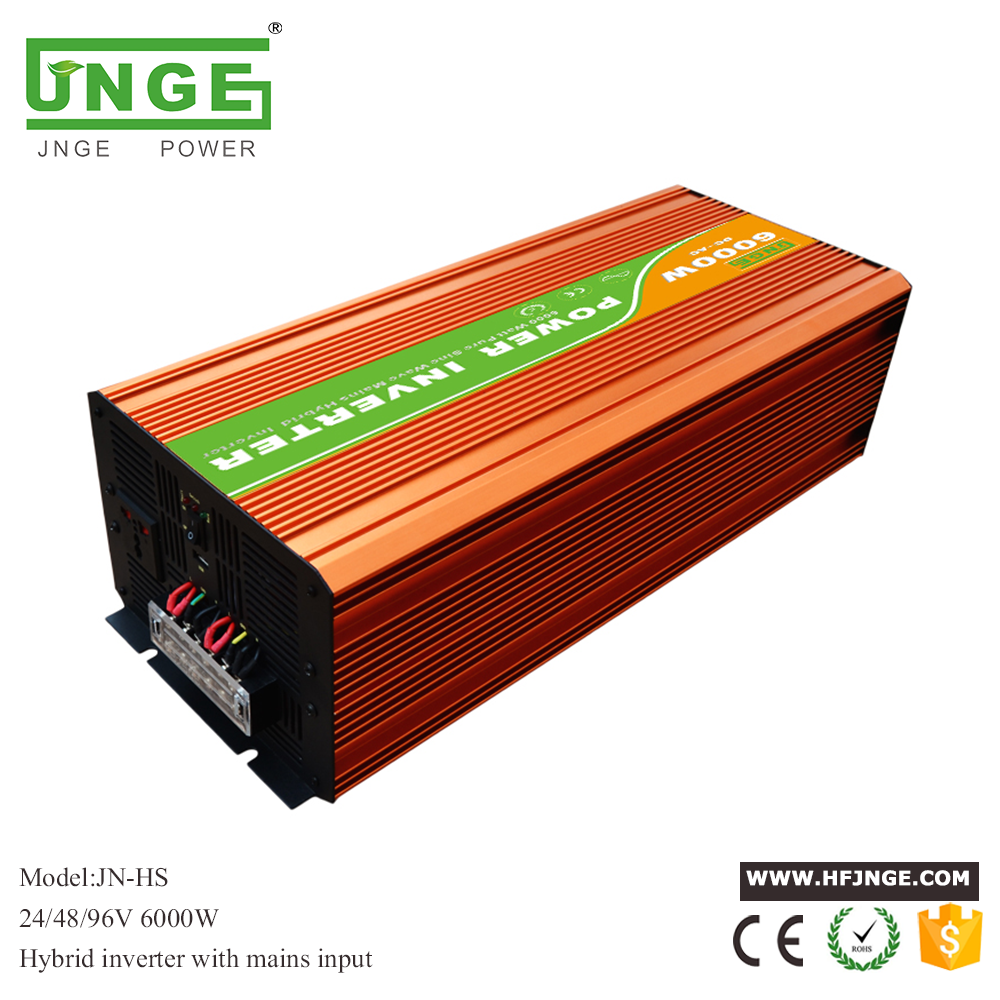

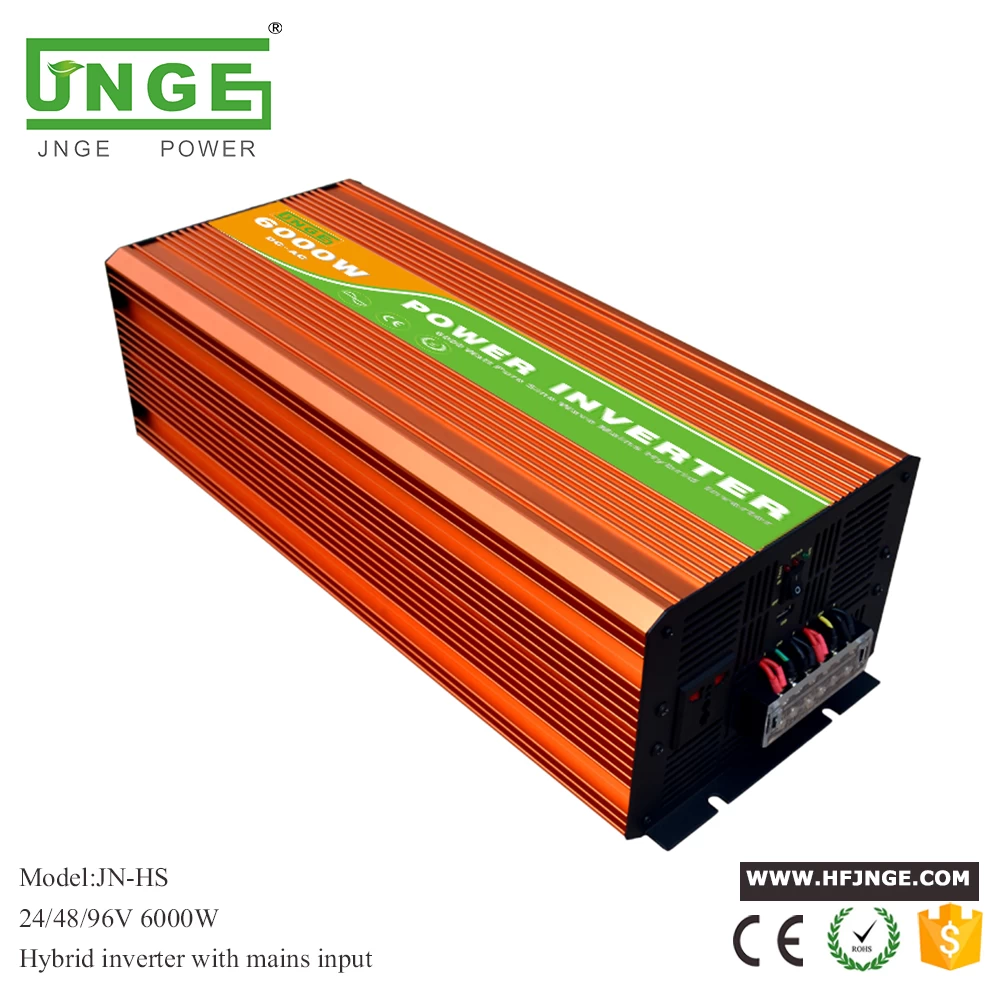

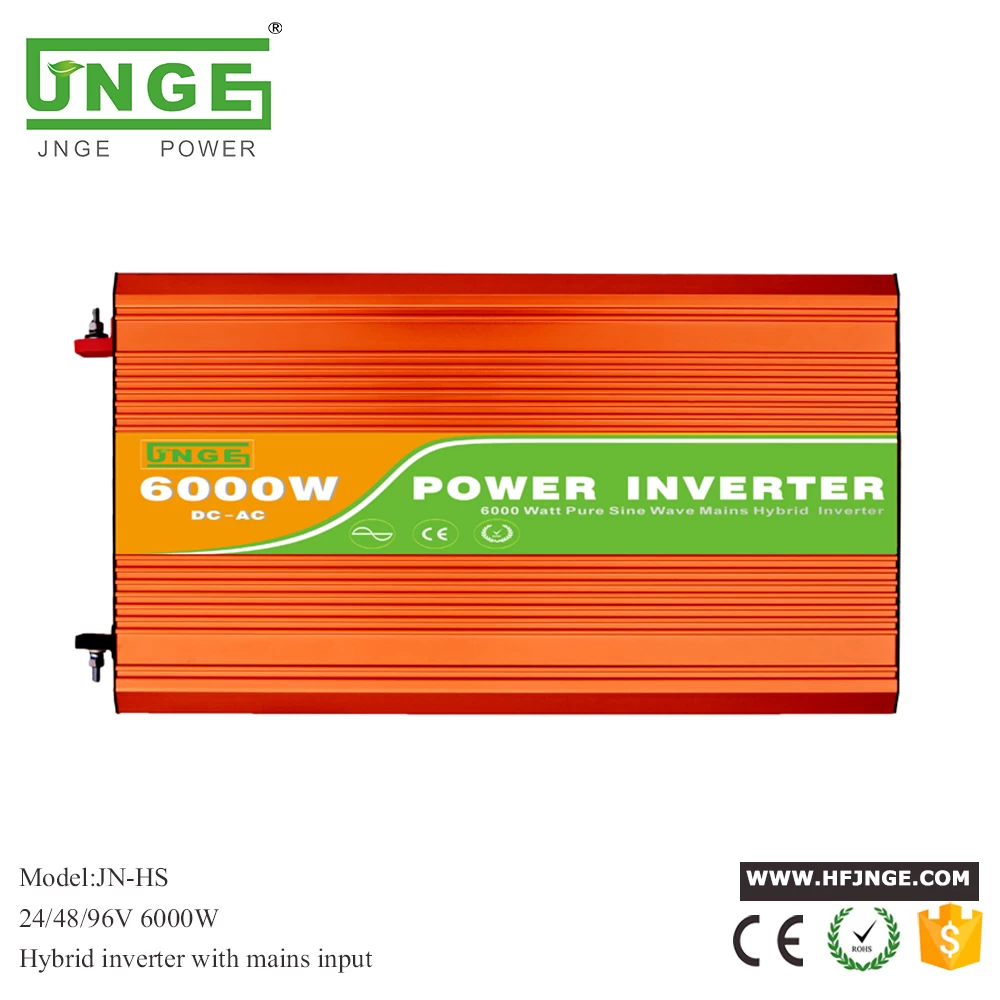

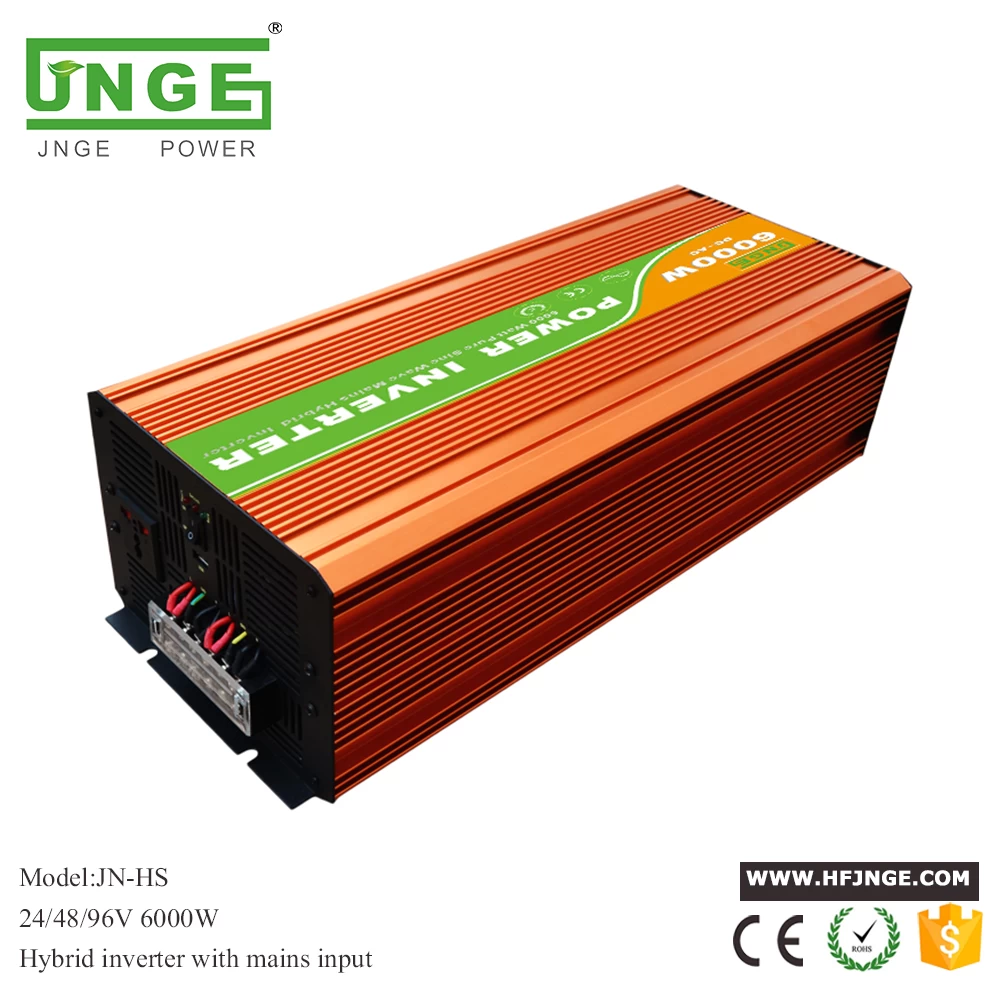

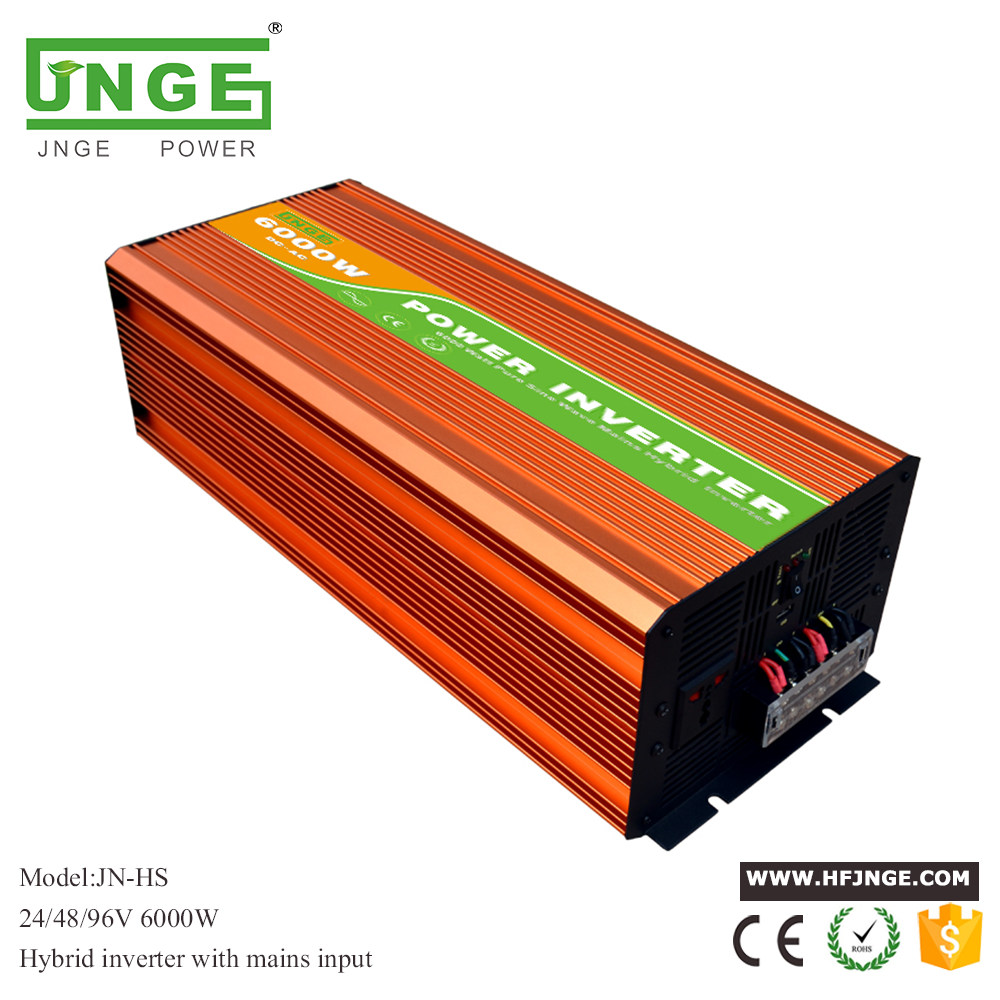

JN-HS 6000W hybrid inverter with mains function

Features:

1. 100% power Pure sine Wave Output.

2. Intelligent IC control.

3. Small, light and artistic, benefited from adopting the SMD pastern technology.

4. Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.

5.Multiple protection function



This is a 6000W 12V 24V pure sine wave power inverter hybrid type which can generate 6000W of continuous power and up to 12000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).It has hybrid function with AC mians ,you can set battery working in priority or AC mains working in prioroty as your demand.


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters)


It is more efficient compared to modified sine wave inverters.

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.


The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.


Parameters:

SWITCH  Batteries  preference or mains preference(can be set up)
OUTPUT OUTPUT VOLT 100/110/120/220/230/240VAC
CONTINUOUS POWER 6000W
INVERTER ups SURGE POWER 12000W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz/60Hz
AC REGULATION LOW & HIGH 10%
Non-load  Consumption <28W
EFFICEINCY >90%
INPUT USB OUTPUTt 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 21-30VDC    40-60VDC    80-120VDC
PROTECTION WORKING INPUT 24VDC           48VDC         96VDC
FUSE 20A                 10A             15A
Low battery alarm 21.5+0.5V        42+0.5V     84+0.5V
Low battery shut down 20+0.5V           40+0.5V     80+0.5V
Over voltage shut down 30.5+0.5V         60+0.5V     120+0.5V
Over load shut down 6000W OVER 10 SECOND
Over heating shut down >75
Over Thermal  shut down the output
Working Temperature BETWEEN -10 and +50
soft start
OTHER DIMENSION(L*W*H)  580*218*155mm
INNER BOX DIMENSION  604*299*249mm
CARTON DIMENSION  670*310*255mm
NET WEIGHT 14.2±0.2KG
GROSS WEIGHT 16±1KG
PACKING 1PC/CTN
