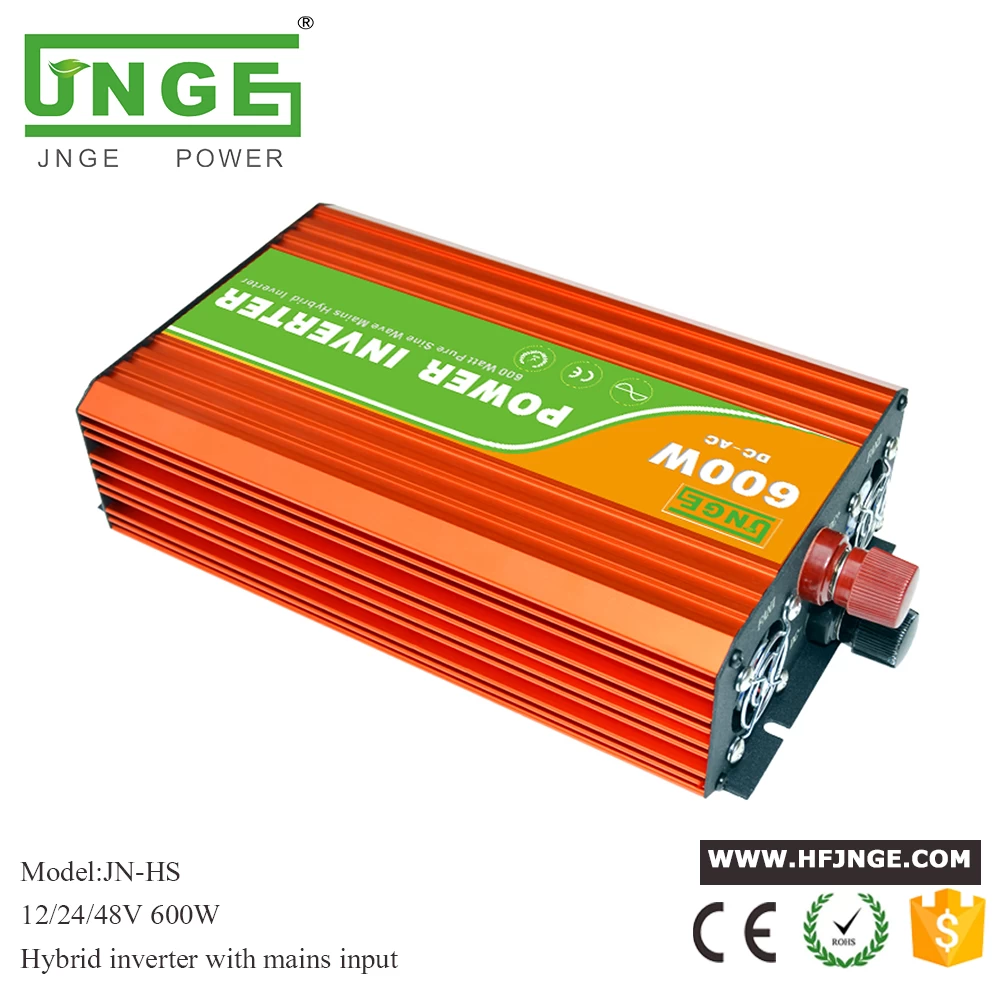

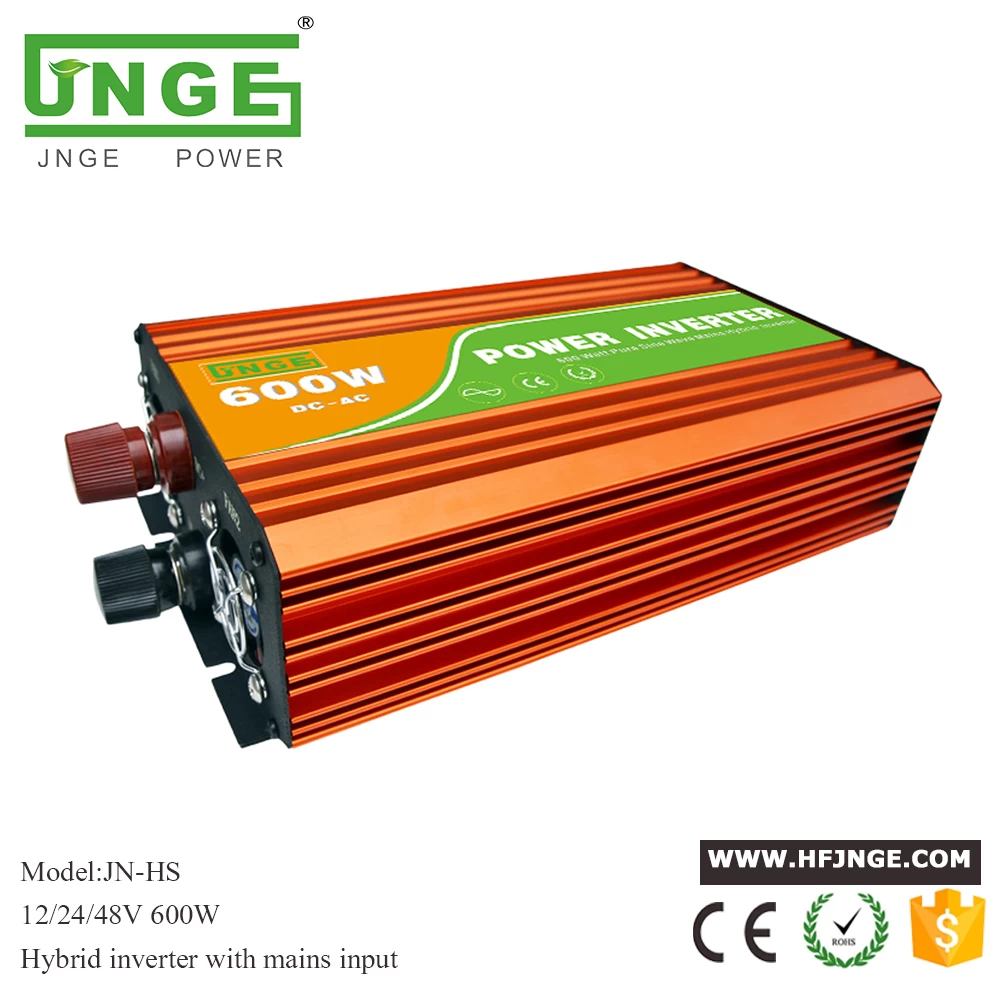

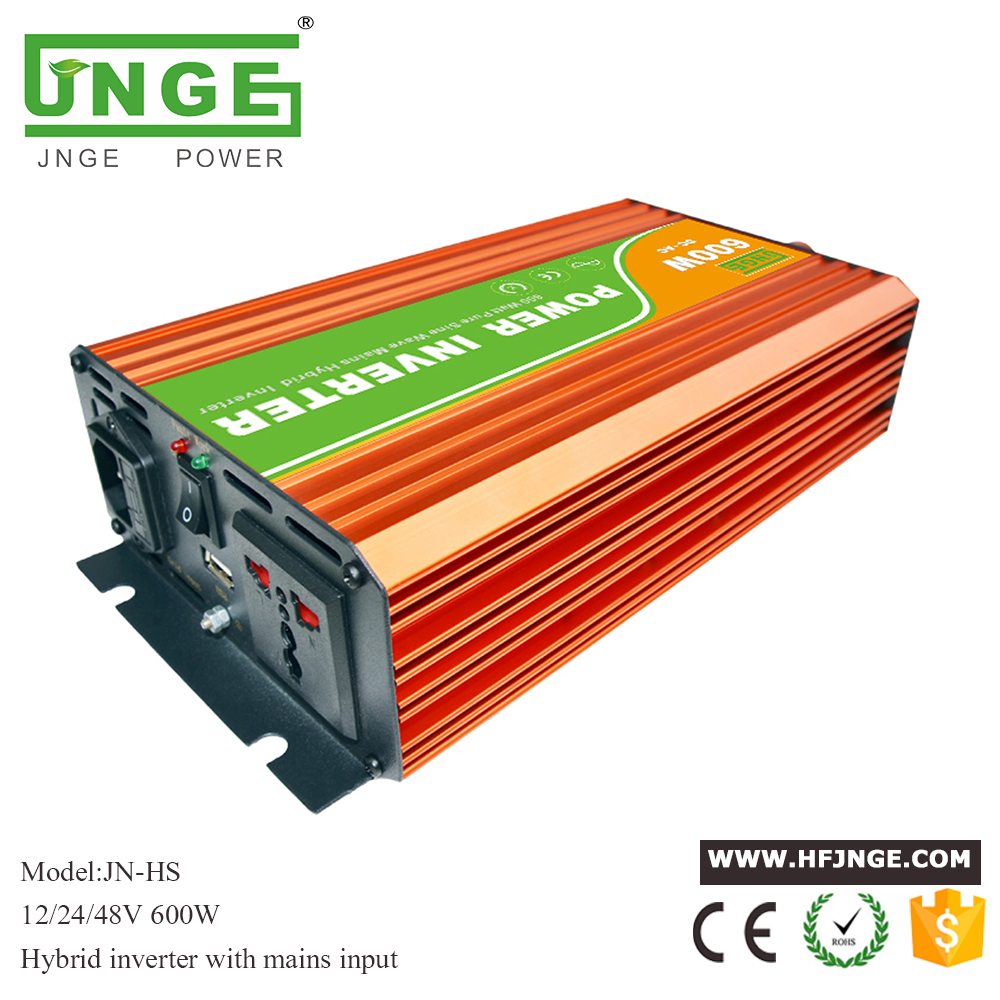

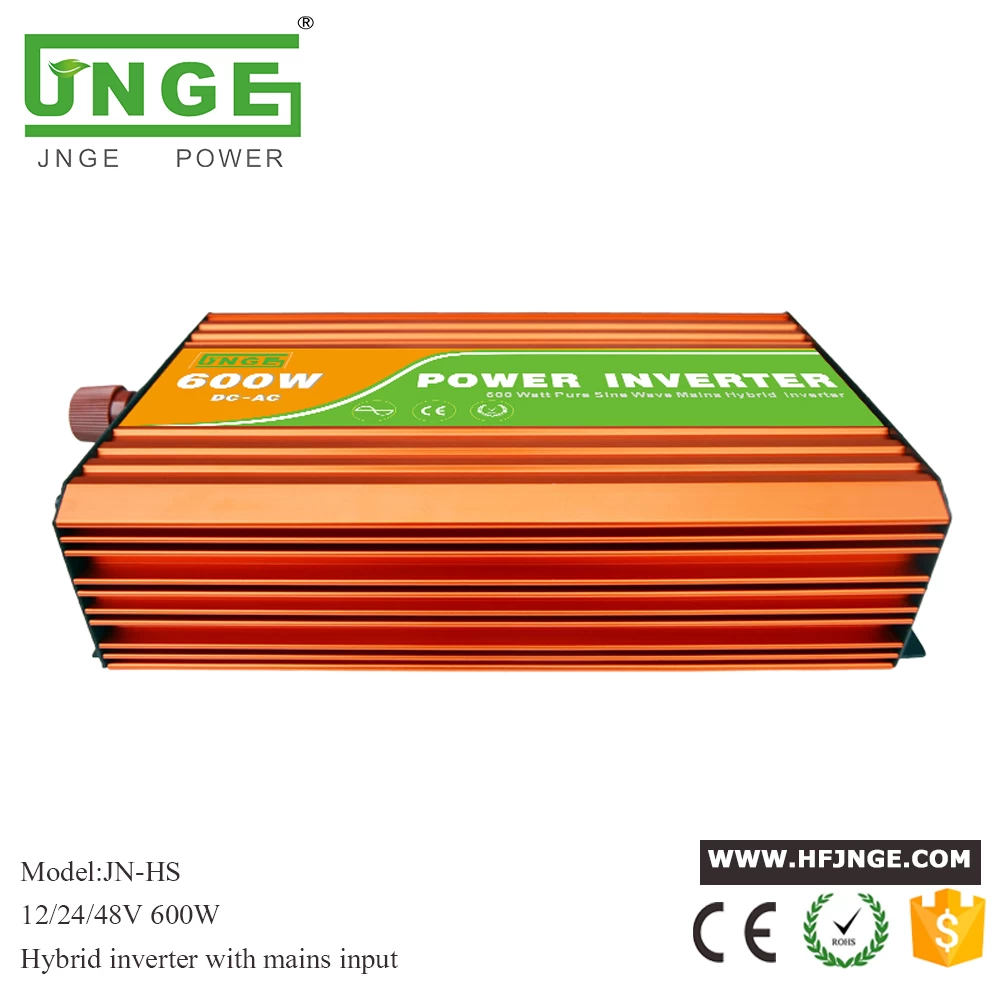

JN-HS 600W Pure Sine Wave Hybrid power inverter

1.Soft start:smooth start-up of appliances

2.Pure sine wave output waveform

3.DC/AC Isolated for Pure Sine Wave power inverter

4.Universal Protection Circuit:Over-voltage,thermal protection,earth fault protection,overload protection,bat.Polarity reverse protection,low voltage protection

5.Low interference Technology

6.With power ON/OFF switch and Two-color LED indicator:Power,Fault

7.The surge power twice as rated power

8.Thermal Methods:cooling fans,30% load auto.on

9.Three years warranty



This is a 600W 12V 24V pure sine wave power inverter hybrid type which can generate 600W of continuous power and up to 1200W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).It has hybrid function with AC mians ,you can set battery working in priority or AC mains working in prioroty as your demand.


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters) .It is more efficient compared to modified sine wave inverters.

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.
The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.


Parameters:

SWITCH  Batteries  preference or mains preference (can be set up)
OUTPUT OUTPUT VOLT 100/110/120/220/230/240VAC
CONTINUOUS POWER 600W
SURGE POWER 1200W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz/60Hz
AC REGULATION LOW & HIGH 10%
Non-load  Consumption <7W
EFFICEINCY >90%
INPUT USB OUTPUTt 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 10-15VDC    21-30VDC    40-60VDC
PROTECTION WORKING INPUT 12VDC         24VDC        48VDC
FUSE 35A              20A           15A
Low battery alarm 10.5+0.3V      21+0.5V    42+0.5V
Low battery shut down 10+0.5V         20+0.5V    40+0.5V
Over voltage shut down 15.5+0.5V       30.5+0.5V   60+0.5V
Over load shut down 360W OVER 10 SECOND
Over heating shut down >75
Over Thermal  shut down the output
Working Temperature BETWEEN -10 and +50
soft start
OTHER DIMENSION(L*W*H)  235*146*66mm
INNER BOX DIMENSION  300*180*115mm
CARTON DIMENSION  580*305*380mm
NET WEIGHT 1.85±0.2KG
GROSS WEIGHT 20±0.1KG
PACKING 10PCS/CTN
