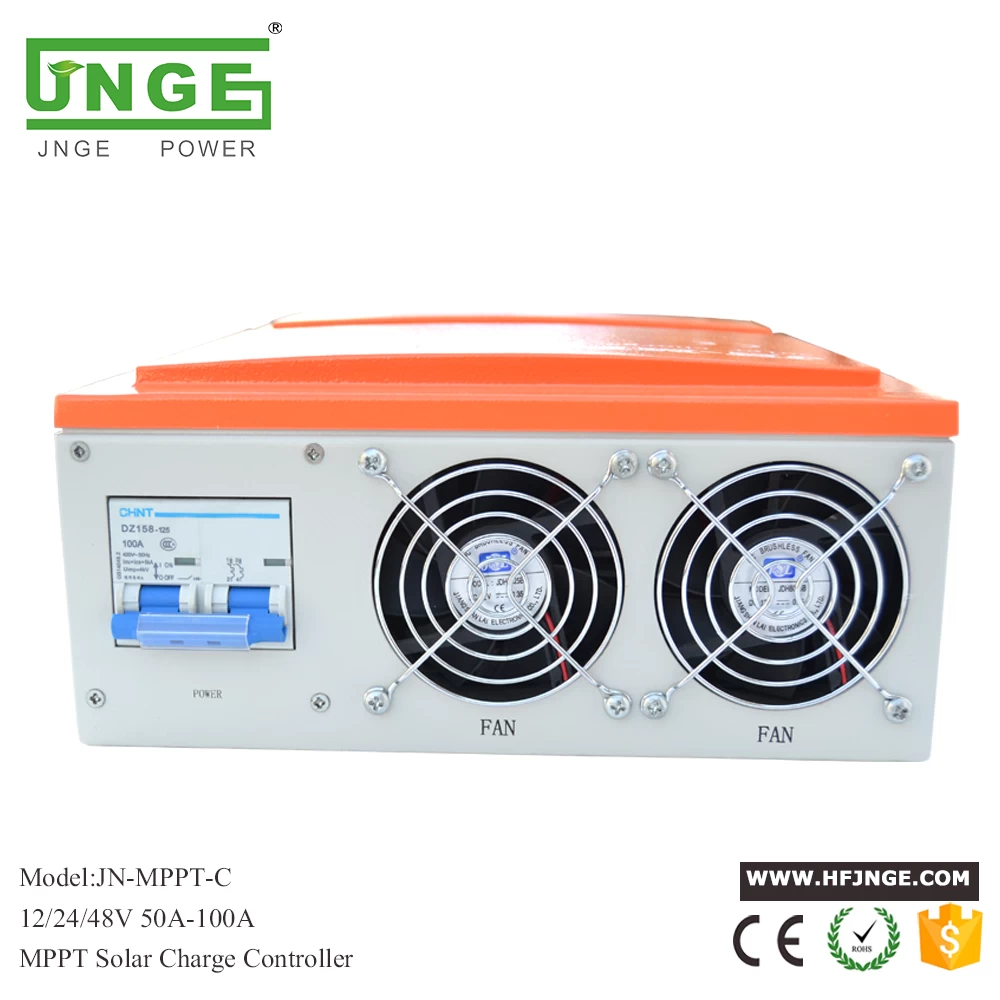

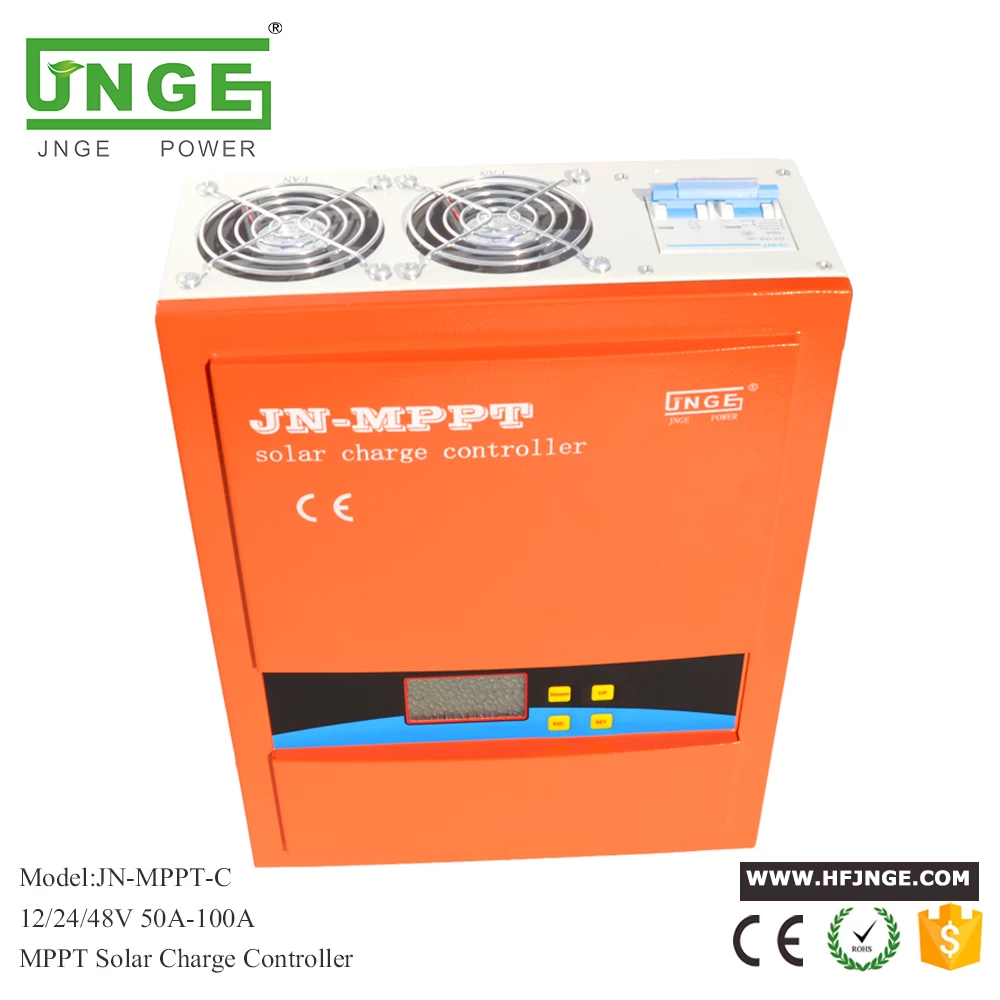

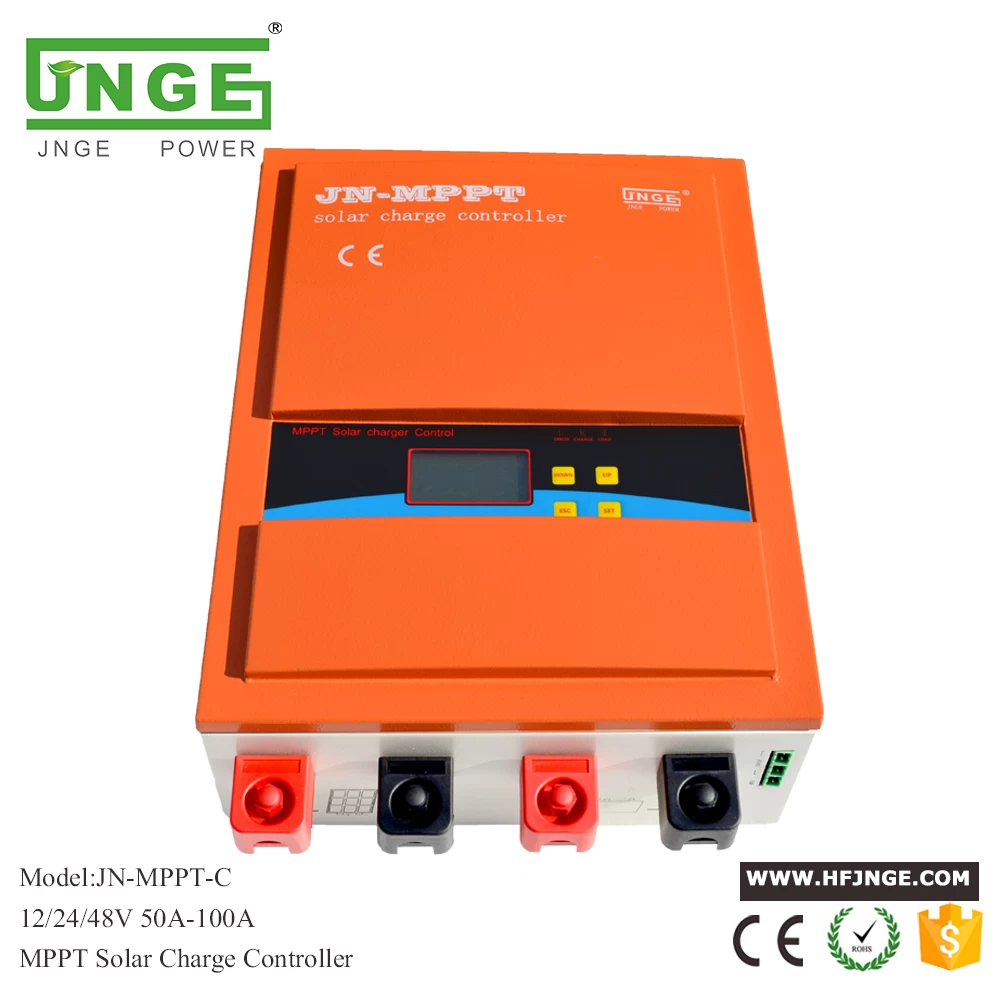

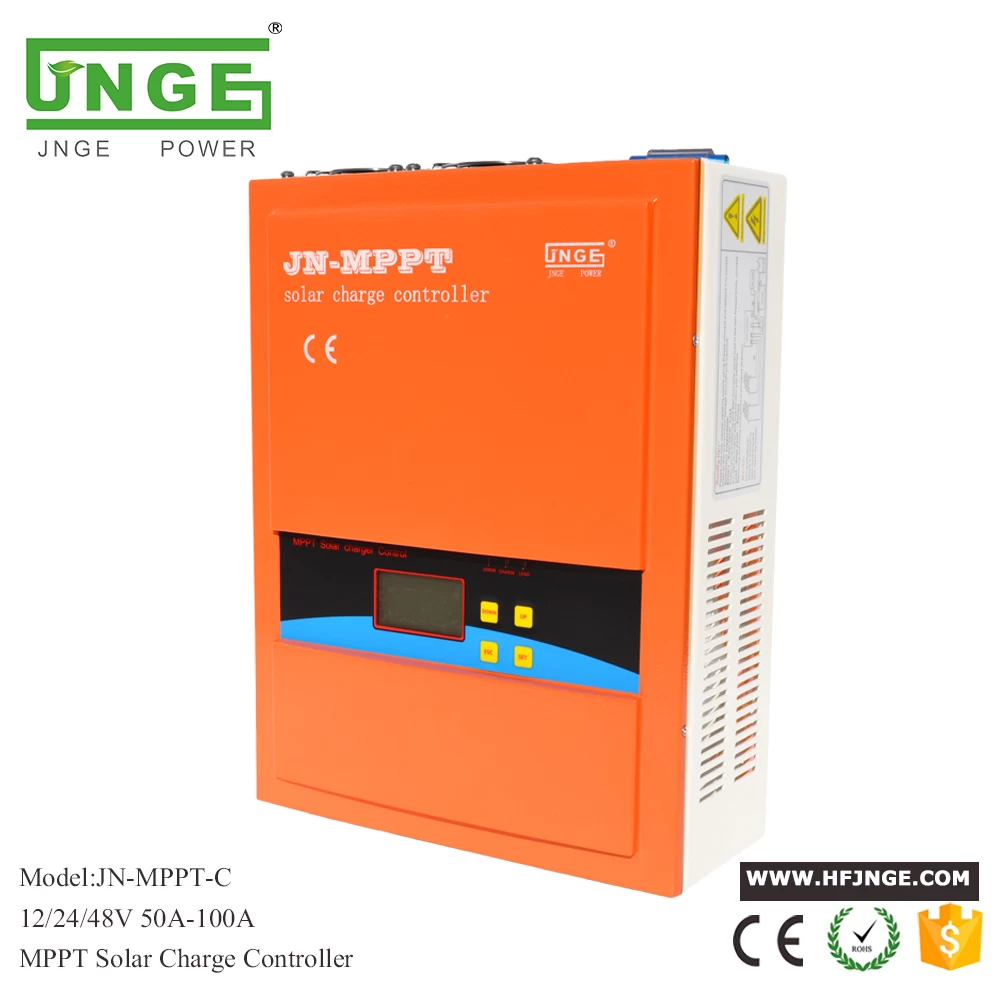

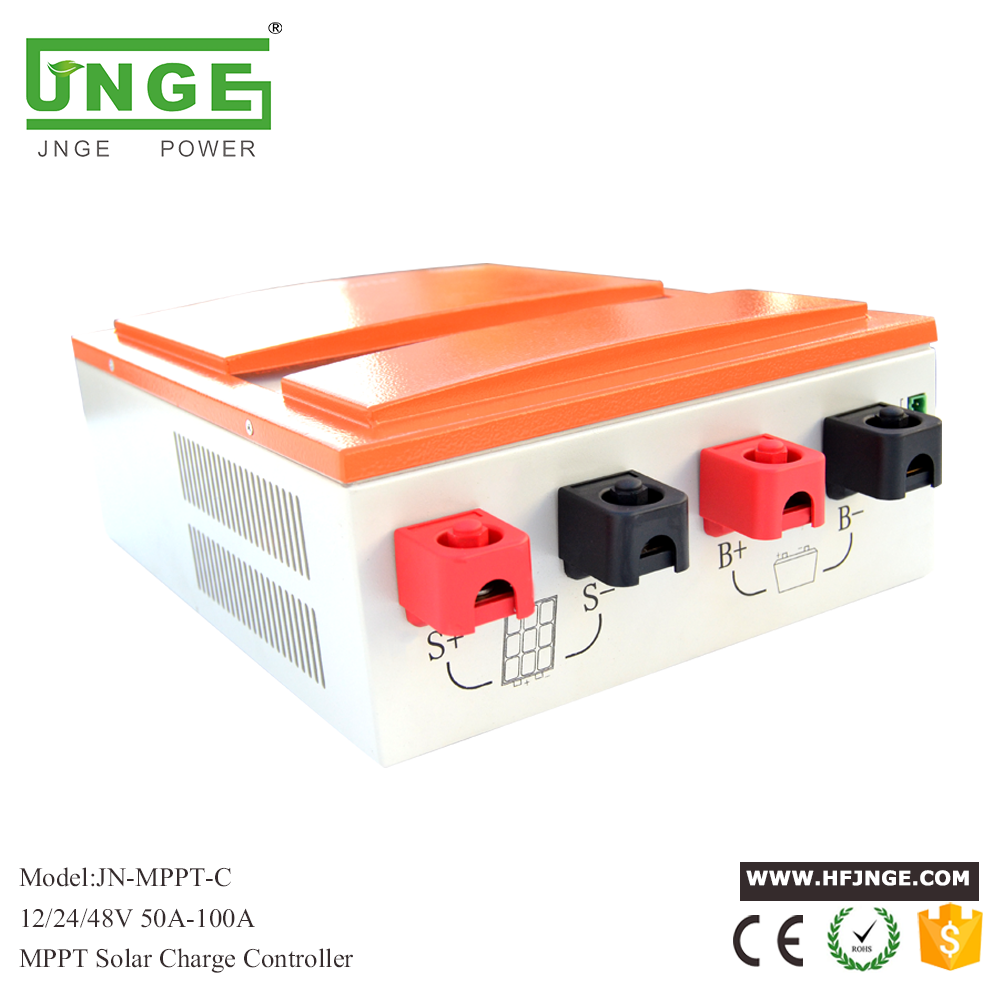

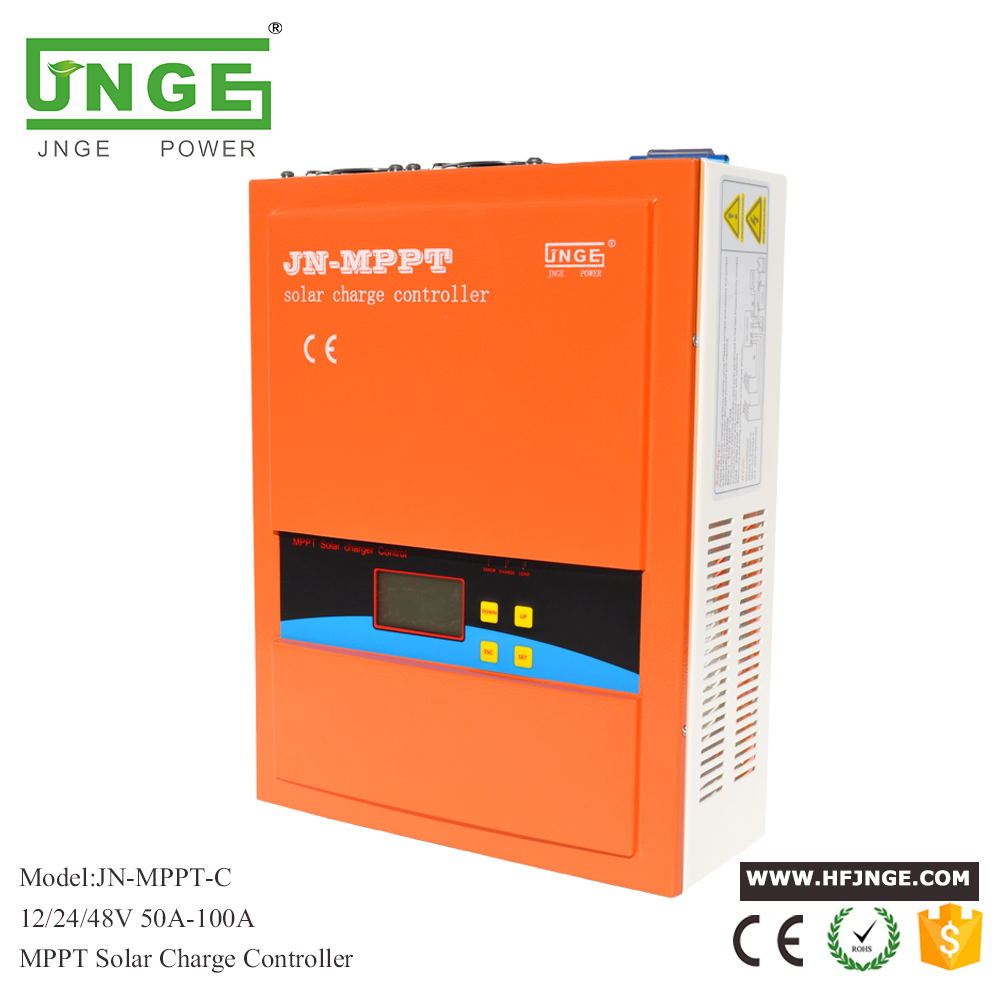

JN-MPPT-C 50A 60A 80A 100A MPPT solar charge controller 12V 24V 48V auto

JN-MPPT-C sereis MPPT solar controller series ranges from 50a 60a 80a 100a, advanced MPPT maximum power point tracking technology,tracing efficiency more than 99.5%.



JN-MPPT-C 50A 60A 80A 100A MPPT solar charge controller 12V 24V 48V auto

Product Advantages:

1.12V 24V 48V system voltage auto identify.

2. MPPT charging efficiency more than 99.5%

3. Support RS485 communication interface,more intelligent.

4. Strong data storage, storage time can be up to 10 years.

5. Synchronous rectification technology, ensure higher conversion efficiency under small charging condition.

6. Dual peaks and multi-peak tracking technology.

7. Japan imported power kits with better performance and more durable.

8. Common cathode circuit design makes the system more stable and reliable.

9. Support for parallel conenction, 99 sets max.


MPPT Charge Controller Parameters:

Parameters Name

The parameter values (and adjustable range)

Default values

Current

50A

60A

80A

100A



System Voltage

12V24V48V



Photovoltaic max input voltage

20V100V(12V system Voltage)

40V150V(suggest lower than 145V)(24Vsystem Voltage)

80V150V(suggest lower than 145V)(48Vsystem Voltage)



Rated working current

50A

60A

80A

100A



Photovoltaic max input power

600W/12V

1200W/24

2440W/48

720W/12V

1440W/24V

2880W/48V

960W/12V

1920W/24V

3480W/48V

1200W/12V

2400W/24V

4800W/48V



MPPT efficiency

99.5%



Conversion

efficiency

96%



Over voltage (over charge)

1617V,×nV

16V,×nV

Over voltage recovery

1515.5V, ×nV

15V,×nV

Charging limit voltage

15.516V, ×nV

15.5V,×nV

Equalizing charge voltage

1515.5V, ×nV

15.2V,×nV

Boost charge voltage

1415V, ×nV

14.4V,×nV

Boost charge recovery

12.313.5V,×nV

13.2V,×nV

 Floating charge

      voltage

13.214.0,×nV

13.8V,×nV

Over discharge voltage

9.811.8V,×nV

10.8V,×nV

Over discharge  recovery

12.013.0V,×nV

12.6V,×nV

Equalizing charge time

1/2/3 hour

1H

Boost charge time

1/2/3 hour

1H

Device address

199

6

Light control OPEN voltage

Not applicable

5

Light control CLOSE voltage

Not applicable

6

Time delay

Not applicable



Temperature compensation

04

4

Over temperature protection

When the temperature reaches 75 charging current is limited to half of the rated current, When the temperature reaches 90 charging and load are shut off





Working temperature

-20℃~50



Storage temperature

-40℃~80



Humidity

10% 90% Non-condensate



Weight

7.25kg



Size

374.5*260*114.5mm
