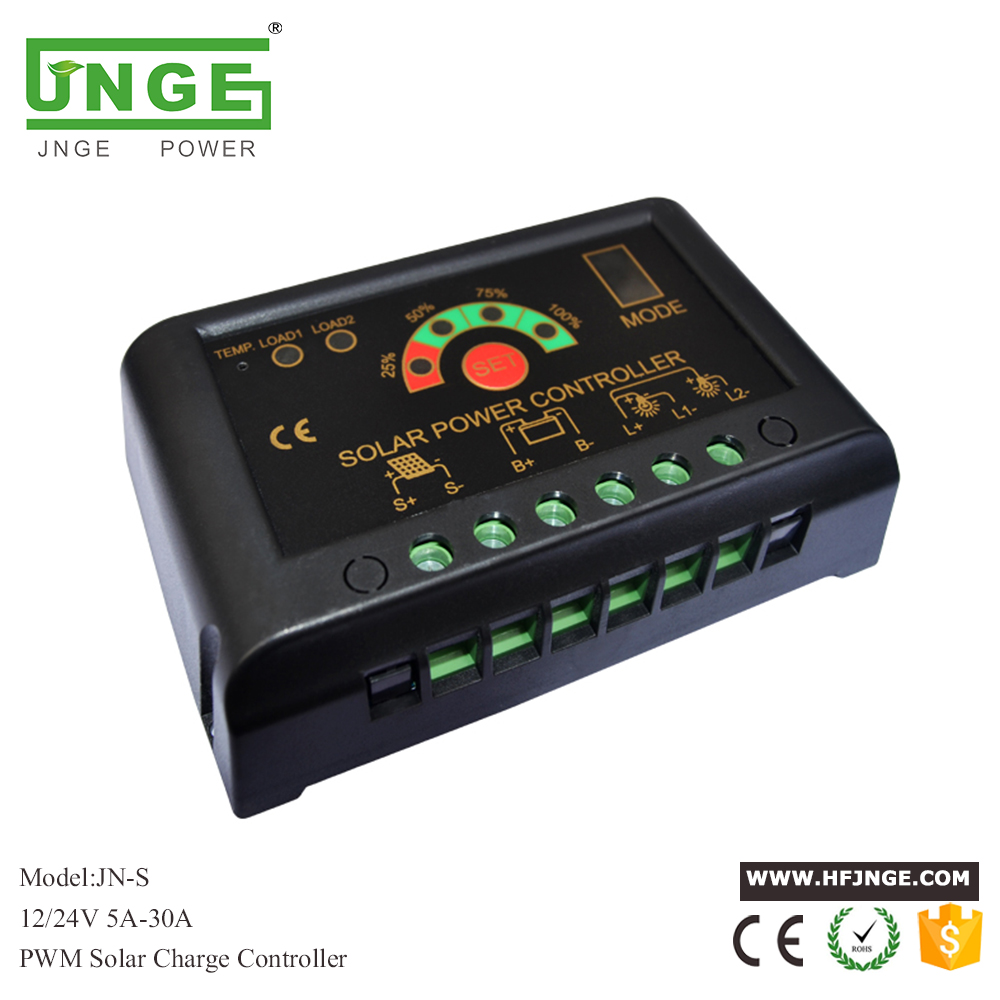

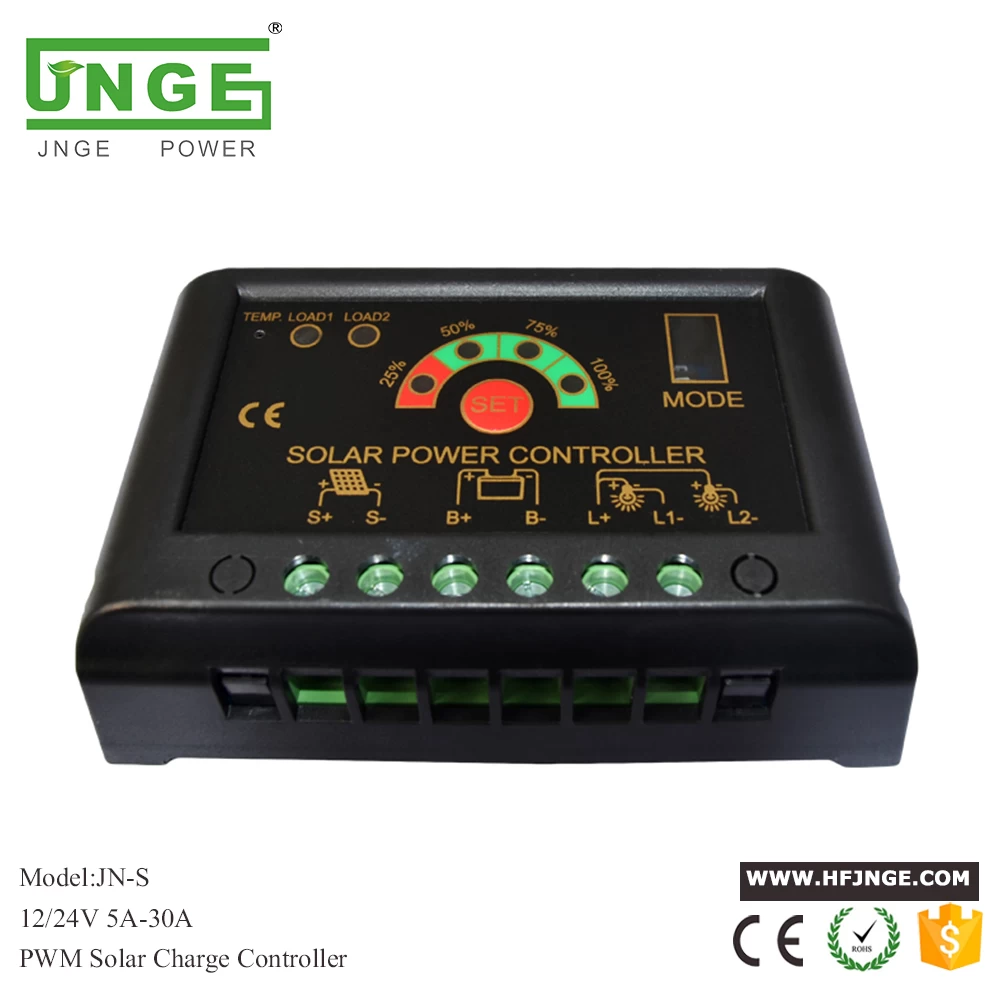

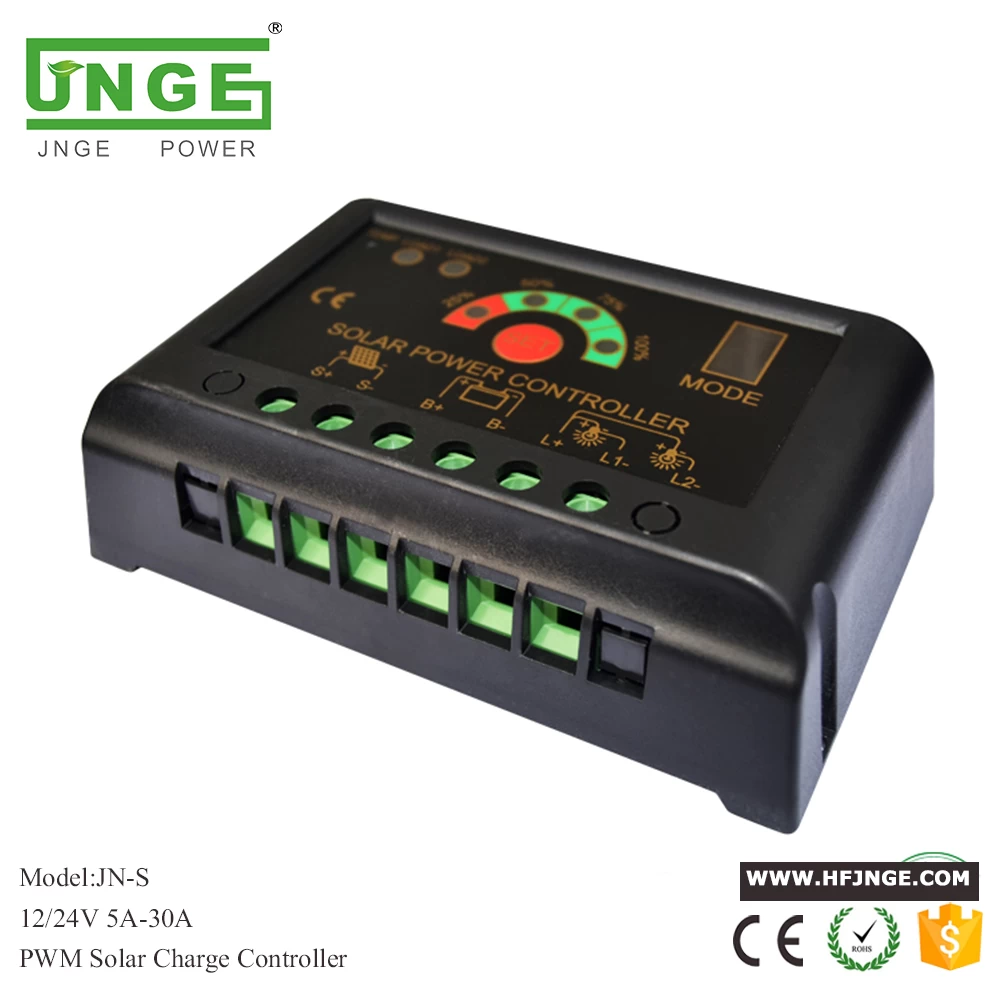

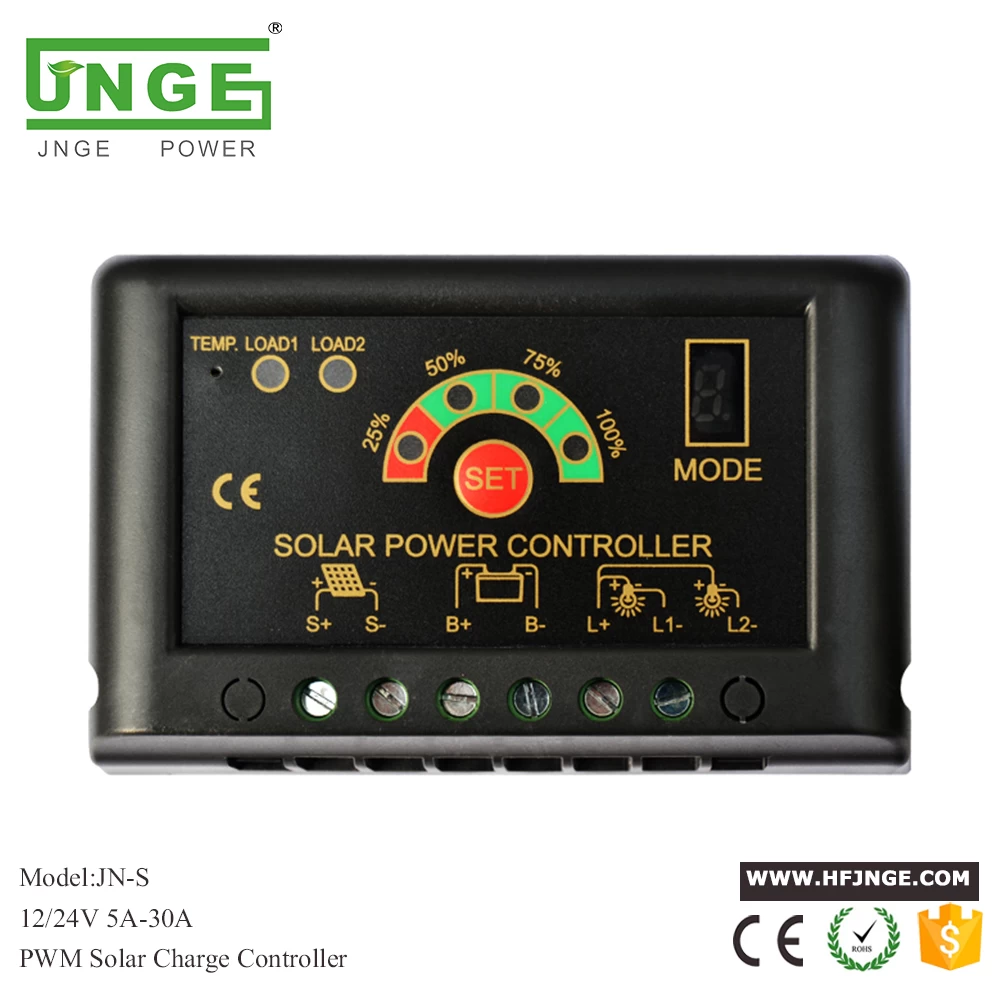

JN-S 12V 24V 5A 10A 15A 20A 30A IP56 Auto Small Solar Controller with Auto Rated Voltage Battery

The product is the new generation of intelligent solar charge and discharge controller, it has strong stability and high service life. This series is 12V/24V automatic identification, with automatic detection battery voltage function, pwm charging way and comprehensive protection function: overcharge, over-discharge, over-current, short-circuit, reversed.



JN-S 12V 24V 5A 10A 15A 20A 30A IP56 Auto Small Solar Controller with Auto Rated Voltage Battery


Functions of JN-S solar charge controller :

1.The controller has household type and street lamp type.

2.The controller has 12V, 24V auto identification of the design.

3.The controller has light control and time control (street lamp type).

4.The controller has the overcharge, discharge, over current, short circuit, answer back and protective measures.

5.The controller has the power-down protection, it means the controller can auto save the parameters we set before when there no power.

6.With the Strong charging and equilibrium charging, floating three-step PWM control charging ways.


Parameters:

Rated voltage

12 v, 24 v auto

Strong charging pressure

14.8V/29.6V

Equilibrium charging

14.5V/29V

Float charging pressure

13.7V/27.4V

Under voltage

10.8V/21.6

Under recover voltage

13V/26V

Maximum charging current

10A  20A  30A

Maximum load current

10A  20A  30A

Controller protect

over-charge, over-discharge, over-current, short-circuit, reversed

Charging way

PWM charging way

Working temperature

-40-60

Weight (gross)

200g

Product size

136*92*31mm

Protection level

IP56
