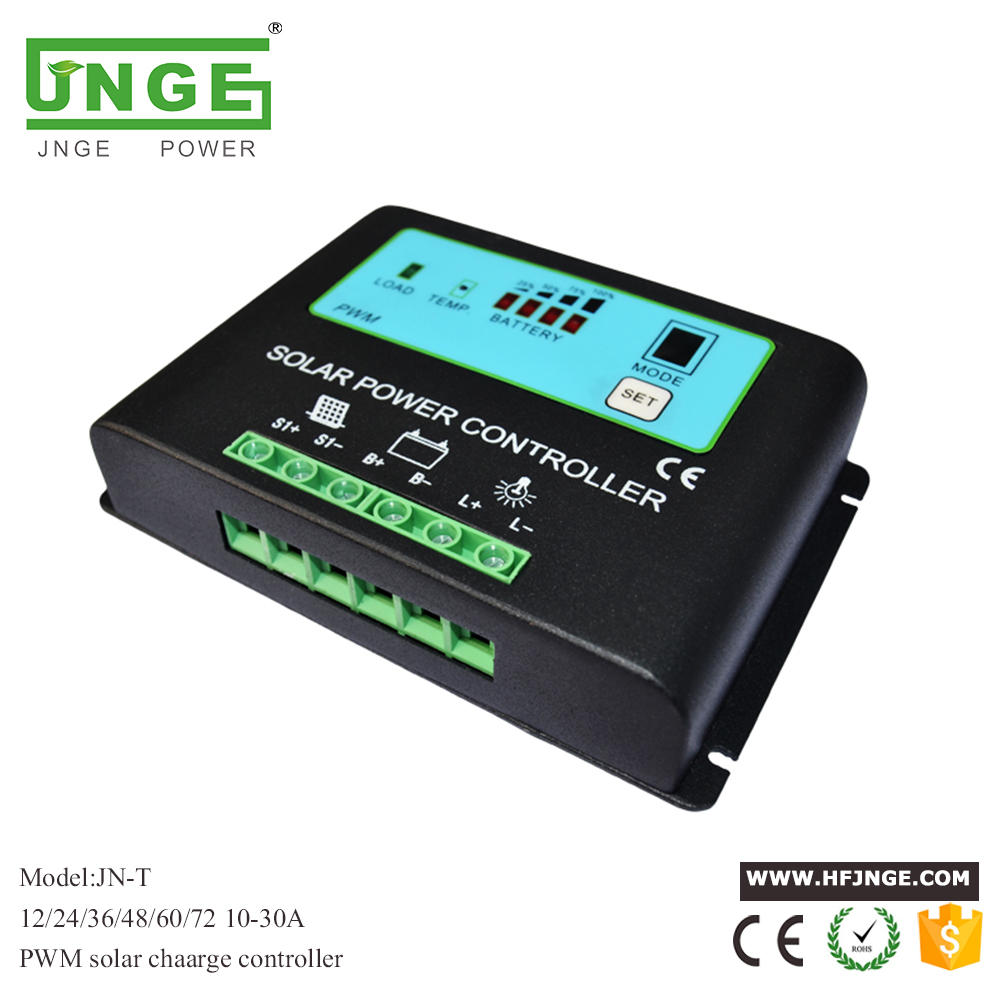

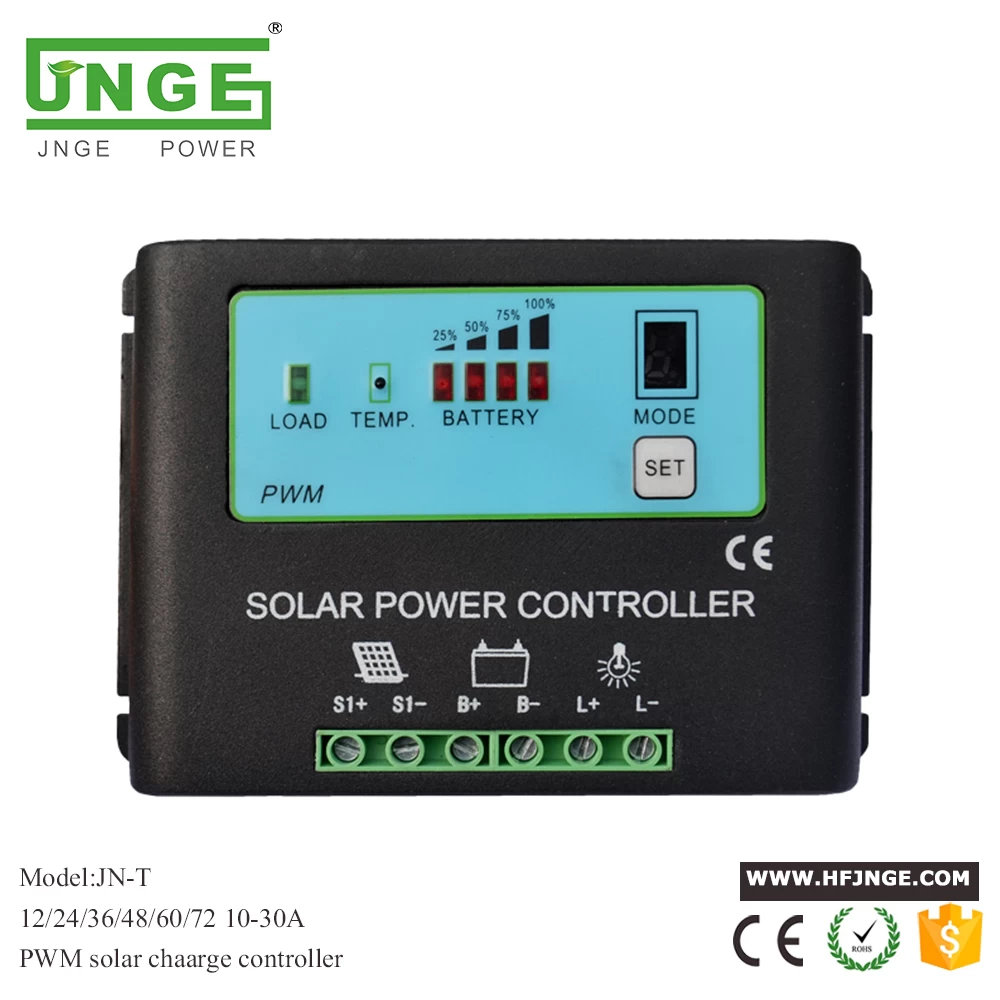

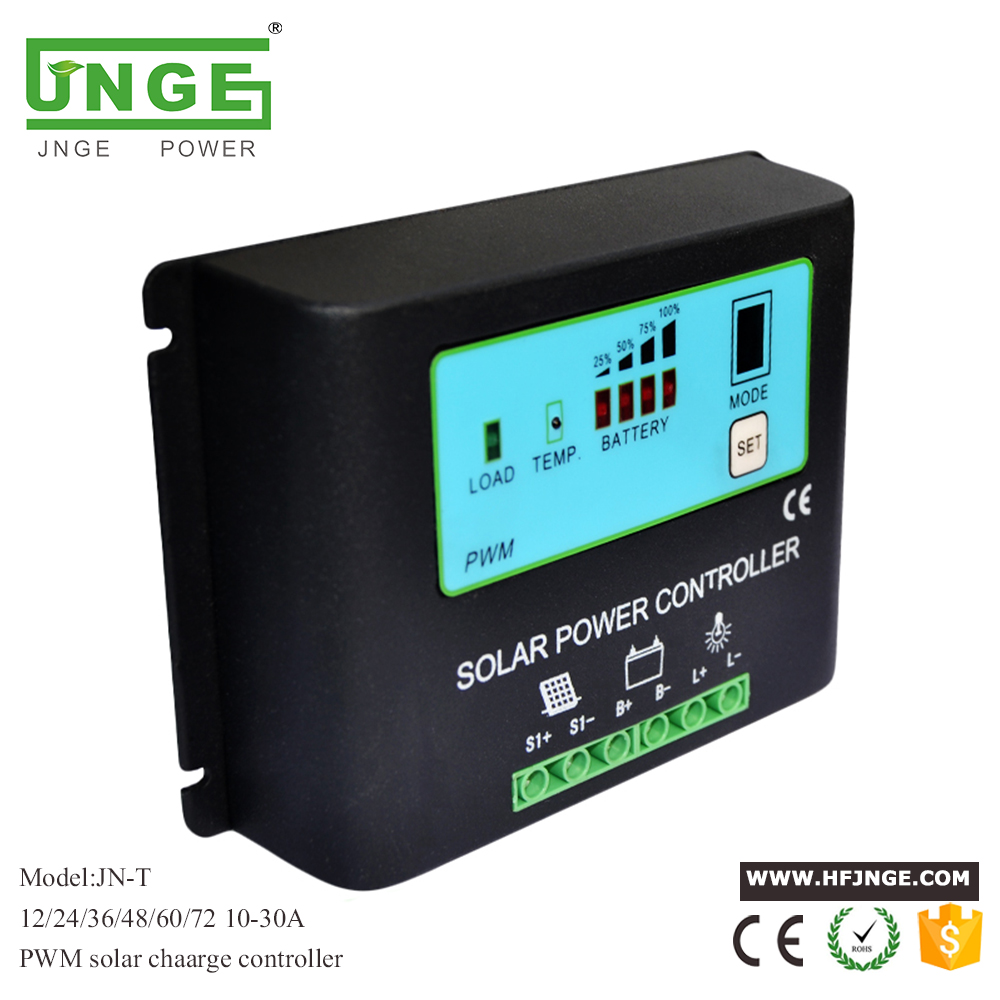

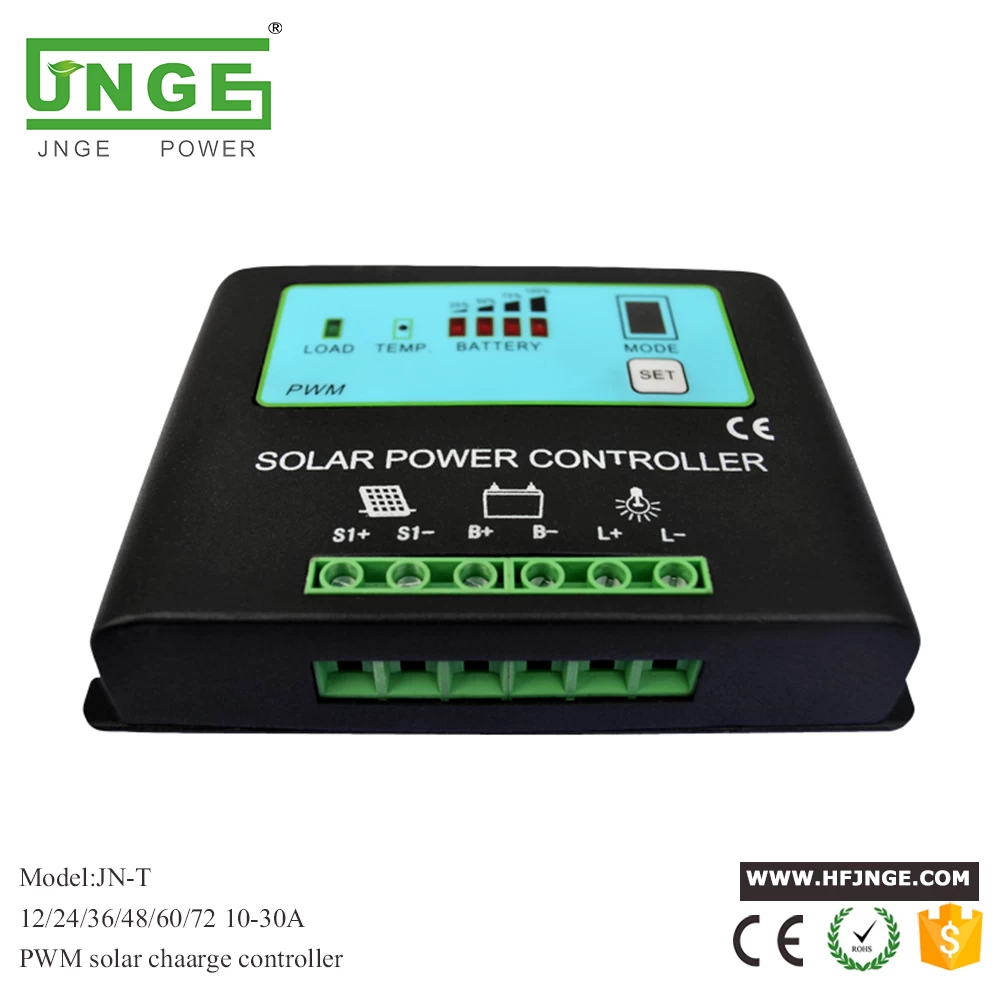

JN-T 36V 48V 60V 72V Solar charge Controller 10A 20A 30A

The JN-T series charge controller is the new generation of intelligent solar charge and discharge controller, it has strong stability and high service life. Suitable for 36V 48V 60V 72V battery voltage.



JN-T 36V 48V 60V 72V Solar Charge Controller 10A 20A 30A


Functions:

1.The solar controller has household type and street lamp type in the design of an organic whole.

2.The controller has 12 v, 24 v automatic identification and suitable for 36V 48V 60V 72V battery voltage.

3.The controller has light control and time control (street lamp type).

4.The controller has the overcharge, discharge, over current, short circuit, answer back and protective measures.

5.Scientific and rigorous shape design, the use of high-grade protection means.

6.With the Strong charging and equilibrium charging, floating three-step PWM control charging ways.


Parrameters:

Rated voltage

12V/24V,AUTO

36V

48V

Strong charging pressure

14.8V/29.6V

44.4V

59.2V

Equilibrium charging

14.5V/29V

43.5V

58.0V

Float charging pressure

13.7V/27.4V

41.1V

54.8V

Under voltage protection

10.8V/21.6V

32.4V

43.2V

Under recover voltage

13V/26V

39V

52.0V

Maximum-charging current

20A/25A/30A

10A/20A/30A

10A/20A

Maximum load current

20A/25A/30A

10A/20A/30A

10A/20A

Over load protection

3s recover 1.2 times, 10s recover 1.5 times, more than two times need manual recover

Maximum wire diameter

4mm²

Working temperature

-40-60℃

Weight (gross)

M

Product size

136*92*31mm

Protection level

IP56

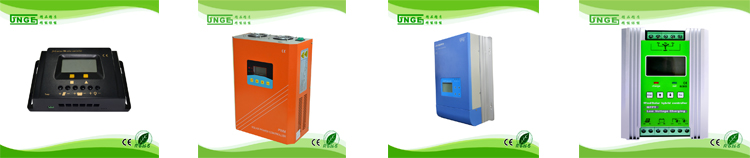

Related products:
