MS-FEC2611-0 Product Description：

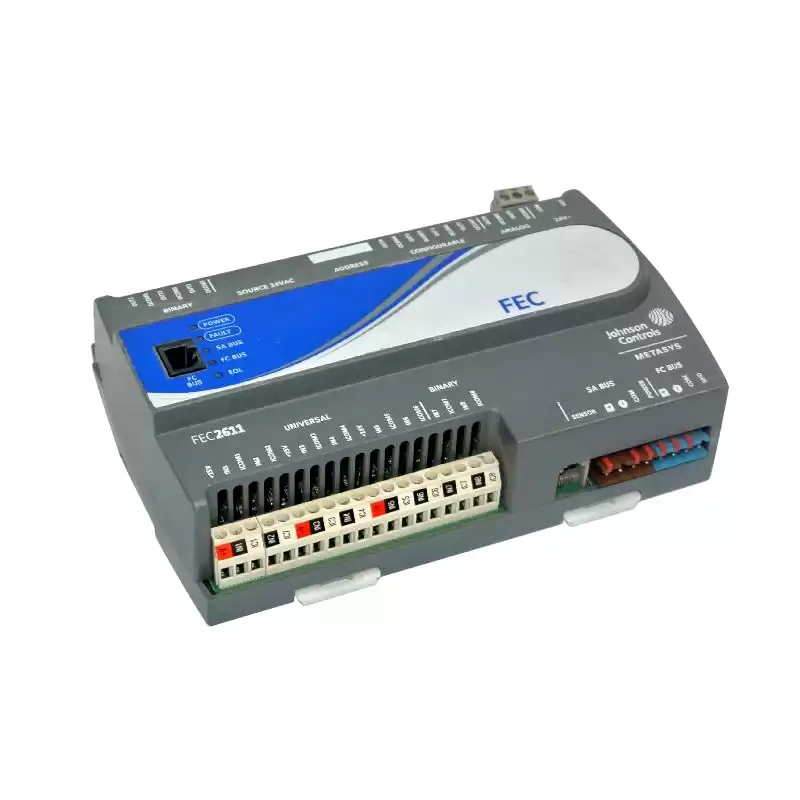

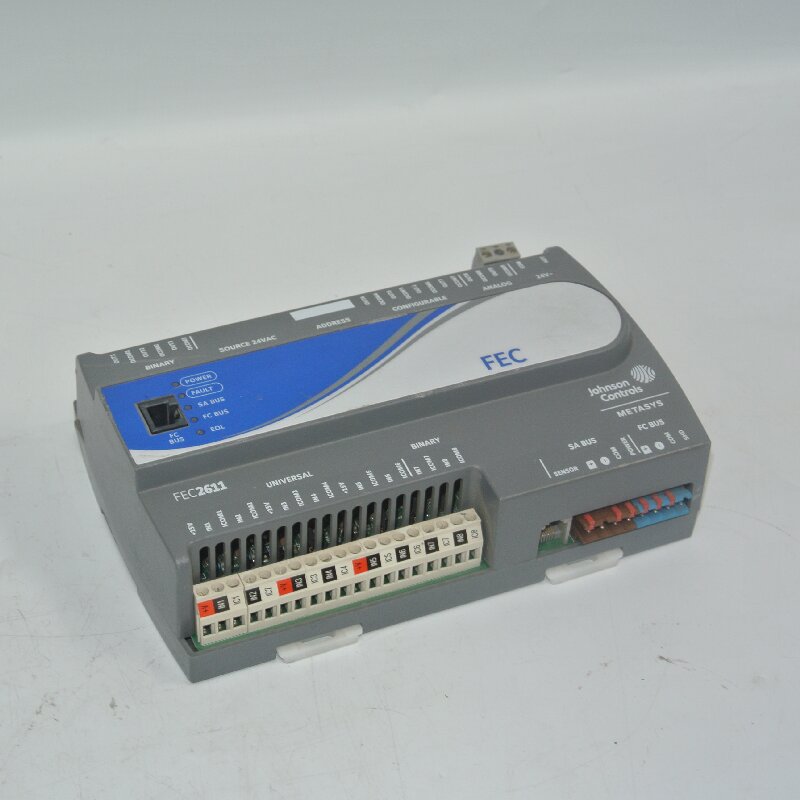

The Johnson Controls MS-FEC2611-0 (MSFEC26110) is a Metasys MS series input output equipment controller with 17 points. The equipment controller points are divided as 6 universal inputs (UI), 2 binary inputs (BI), 3 binary outputs (BO), 4 configurable outputs (CO), and 2 analog outputs (AO). The MS-FEC2611-0 can be mounted on the 35mm DIN rail or on a screw mount on a level surface with three clips that are incorporated on the controller.The Johnson Controls METASYS MS-FEC2611-0 can be melded with other METASYS input output modules (IOM). The MS-FEC2611-0 is able to connect wirelessly by a ZFR1800 series bus system. This permits wireless communication with others FECs.

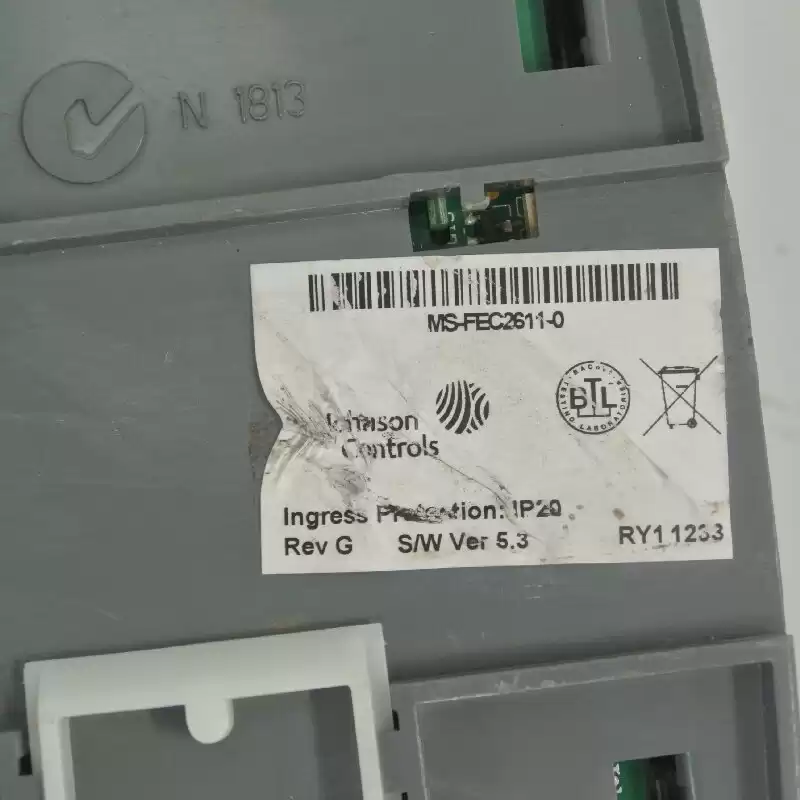

The dimensions of the MS-FEC2611-0 input output equipment controller is 150mm by 190mm by 53mm (5.91in by 7.48in by 2.07in) with the terminals and mounting clips included. The enclosure rating of this input output controller is IP20. The IP20 protects the MS-FEC2611-0 equipment controller from accidental finger contact or contact by some other foreign object.
The MS-FEC2611-0 input output equipment controller has a voltage of 24VAC and a frequency of 50/60Hz. Its current-voltage power consumption is 14VA; the VA rating does not include power given by extraneous devices which are connected to the BO or CO. Its memory is 1MB flash memory and it has a Random Access Memory (RAM) of 512KB. This permits one to download normal or customize applications by making use of the Controller Configuration Tool (CCT) software
