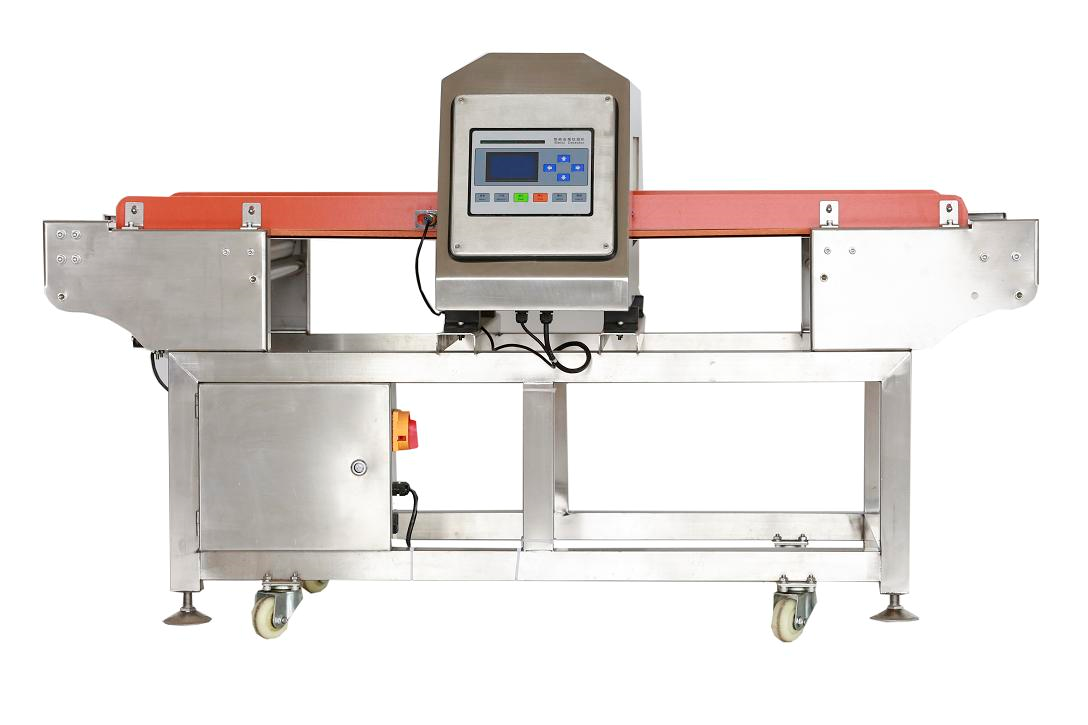

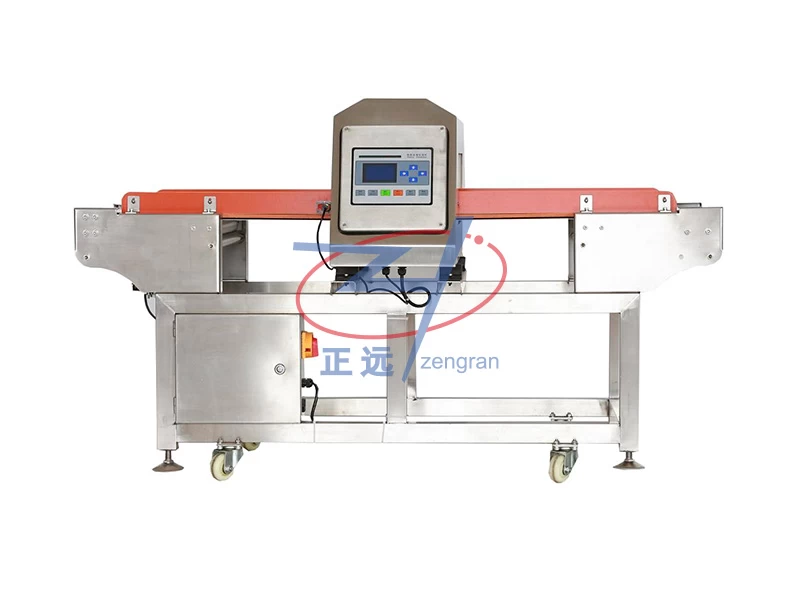

JST4015 Metal Detecting Machine

Easy to operate, high detection accuracy, core components imported from Europe, high precision and fast speed; modular design is easy to clean and maintain, and has an extraordinary service life; operators on the production line can quickly and skillfully use it.



Automatic JST4015 Metal Detecting Machine

Automatic JST4015 Metal Detecting Machine

Technical features:

No.

Features

1

The sensitivity of Fe material and Non--fe material are adjustable;

2

Automatic No-qualified production reject

3

Enjoys a strong inhibition for the effection of sea foods,frozen foods,pickled products,etc.

4

The design of a succinctly detachable   framdework is easy for the operators to clean the equipment

5

Enhanced signal processing performance due to adoption of special magnet material

6

Fully digital setting on the operating interface with automatic adjustment function.

7

The detection sensitivity varies with different detection window height, and changes with the detected metal’s property,  shape, detection environment and location of the test object;

8

Conveyor belt speed: 25~40 m/min, or customized according to the requirement.

9

Metal detecting machine suitable for the production and processing procedure of various industries as of food, plastic chemical engineering, textile, medicine, timber, etc.


Application:

Liquid: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc. Thick liquid: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.

Solid: candy, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, pickles, puffed food etc.

Granule: grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.

Powder: milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.



Technical Form:

Max bag width

400mm

Max bag height

150mm

Machine length

1600mm

Suitable product weight

<10kg

Automatic setting function

own

Belt conveying speed

23M/min, can be special made according customer’s requirement

Empty machine detecting accuracy

Fe: 1.0mm, SUS: 2.0mm

This accuracy is for empty machine detecting, the actual accuracy will be known after testing with   products

Alarm

Alarm and machine stop

Detecting environment

No high-power interference source; no mass movement metal interference

Detecting system

Digital intelligence system

interface

Chinese/English

debug mode

Automatic debugging and manual set parameters
