• For temperatures between -50 to +260 °C
• RoHS conformity for EU and China
• Configuration with setup program via USB interface
• M12 × 1 plug connector; protection type IP67 according ton DIN EN 60529
with inserted machine connector
Brief description

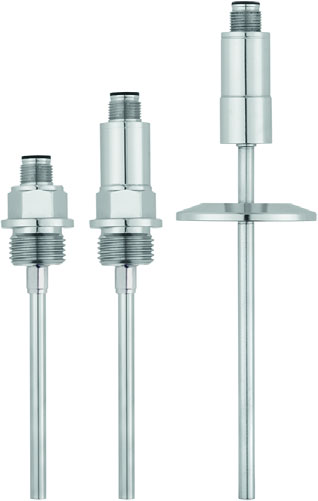

The screw-in RTD temperature probe in a compact design comprises a protection tube with integrated temperature sensor, a process connection, and an attached housing for the transmitter electronic components. The integrated programmable two-wire transmitter converts the resistance value into a current signal.
The screw-in RTD temperature probe with programmable two-wire transmitter is used to measure temperatures from -50 to +150 °C (-58 to +302 °F), with extension tube up to 260 °C (500 °F) (without transmitter: -50 to +200 °C or -58 to +392 °F).
The measuring range, fine adjustment, or measuring circuit monitoring etc. can be configured with a setup program.
The output signal 4 to 20 mA or reversed 20 to 4 mA is available in linearized way (temperature linear). The device is designed for industrial applications and complies with the European standards to guarantee electromagnetic compatibility (EMC).
The transmitter must be protected from temperatures above 85 °C!
Also available as an ATEX/IECEx RTD temperature probe upon request.
|
 |
GENERAL TECHNICAL DATA
| Areas of application |
Food and pharmaceutical applications, CIP and SIP plants, mechanical and plant engineering, refrigeration and air-conditioning engineering |
| Accuracy |
Tolerance class: class B (class A or AA as optional extra) |
| Measuring circuits |
1 |
| Output |
Pt100/Pt1000 passive; 1 × programmable transmitter output 4 to 20 mA |
| Operating temperature |
-50 to +260 °C |
| Sensor |
Pt100, Pt1000 |
| Declaration of conformity |
EC 1935/2004 material confirmation |
| Features |
EHEDG certification |
| Process connection |
Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells |
| Approvals |
EHEDG, SIL, PL, ATEX/IECEx upon request |
| Protection fitting |
Stainless steel 316L |
| Protection type |
IP67 |
| Connection |
M12 connector |
| Option |
Transmitter |
