JUMO CTI-500 202755

Technical data

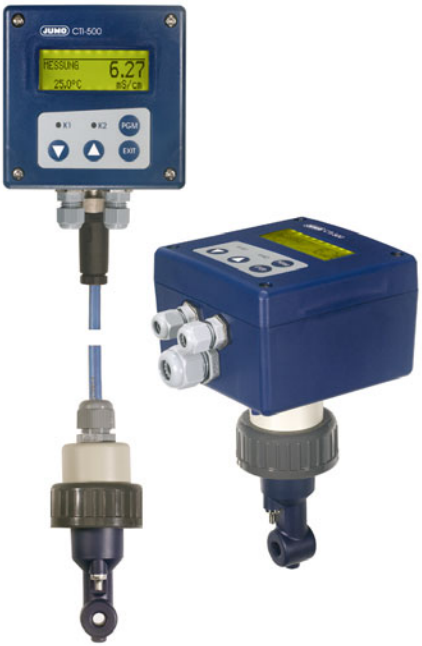

JUMO CTI-500   Inductive Conductivity/Concentration and Temperature Transmitter with switch contacts   Type 202755   Brief description The device is used for the measurement/control of conductivity or concentration in liquid media. It is particularly suitable for application in media where severe deposits of dirt, oil, grease or gypsum/lime precipitates are to be expected. The integrated temperature measurement enables fast and accurate temperature compensation, which is of special importance when measuring conductivity. Additional functions permit the combined changeover of measuring range and temperature coefficient. Two built-in switching outputs can be freely programmed to monitor conductivity/ concentration and /or temperature limits. It is also possible to assign alarm and control functions (dilution). The device is operated either from the membrane keypad and plain-text graphics display (operator language can be changed over) or through the user-friendly PC setup program. The display can be read off by simply rotating the housing cover. This applies to the installation both in horizontally and vertically arranged pipes. By using the setup program, the device configuration data can be saved for plant documentation and printed out. To prevent any tampering, the device can also be supplied without keypad or display. In this case, the setup program is needed for programming. The JUMO CTI-500 is available either as a combined unit (transmitter and measuring cell together in one unit) or as a split version (transmitter and cell connected by cable). The split version is particularly suitable for plant subjected to strong vibration and/or significant heat radiation at the measurement point, or for installation on sites that are difficult to access. Immersion models up to 2000 mm are available for application in open containers or sluices. Typical areas of application: Freshwater and wastewater engineering, air conditioning systems and cooling tower monitoring (dilution control), rinsing baths (e.g. monitoring electroplating baths), inlet and final checks in factory water treatment plant, concentration monitoring, vehicle wash plant, etc.

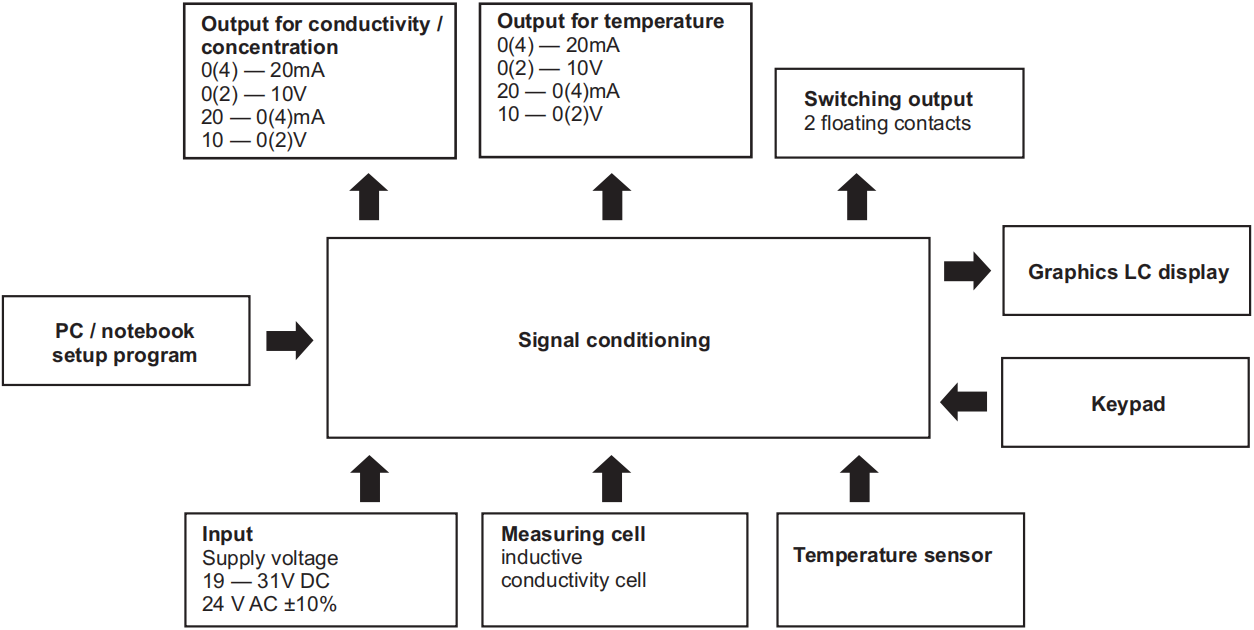

Block diagram

Key features • Dilution control • Activation of up to four ranges • Activation of up to four temperature coefficients • Concentration measurement with - two predefined curves - one freely definable curve (through the setup program) • Fast-response temperature sensor • Temperature compensation - linear - natural water - individual characteristic (learning function) • Operation - via keypad and LC display - through setup program • Operator languages: English, French, German, Italian, Dutch, Spanish, Polish, Portuguese, Russian, Swedish • By using the setup program: - user-friendly programming - plant documentation
