JUMO CTI-750
Inductive Conductivity/Concentration and Temperature Transmitter
with switch contacts
Brief description
The device is used for the measurement/control of conductivity or concentration in liquid
media. It is particularly recommended for use in media where severe deposits of dirt, oil, grease
or gypsum/lime precipitates are to be expected. The integrated temperature measurement
enables fast and accurate temperature compensation, which is of particular importance when
measuring conductivity. Additional functions, such as the combined changeover of
measurement range and temperature coefficient, and a particularly robust conductivity probe,
enable optimum application in CIP processes.
Two built-in switching outputs can be freely programmed to monitor limits for conductivity/
concentration and/or temperature. It is also possible to assign alarm and control functions
(dilution).

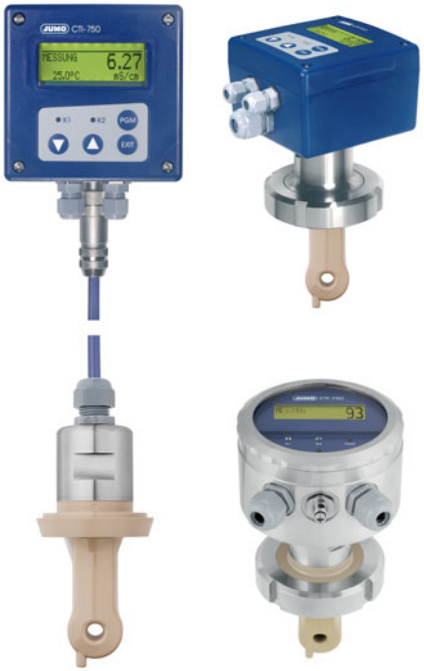

The device is operated either from the membrane keypad and plain-text graphics display or
through the user-friendly PC setup program. The display can be read in a vertical or horizontal
mounting position. The device can also be supplied without a keyboard/display. In this case, the
setup program is required for programming.
Plastic or stainless steel can be chosen as the housing material, depending on the requirement.
The separate sensor design is particularly suitable for systems with powerful vibrations and/or
powerful heat emissions at the measuring location.
Typical areas of application: Food/beverage and pharmaceutical industries, product separation
in the beverage industry, breweries and dairies, bottle cleaning plant, concentration control in
electroplating and chemical processing plant, CIP systems, water and wastewater engineering,
dosing of chemicals, leakage indication, in heating and cooling plant, and so on.
|
