Type 202732
Housing for DIN rail mounting
(35 × 7,5 mm in accordance with DIN EN 60 715 A.1)
Brief description

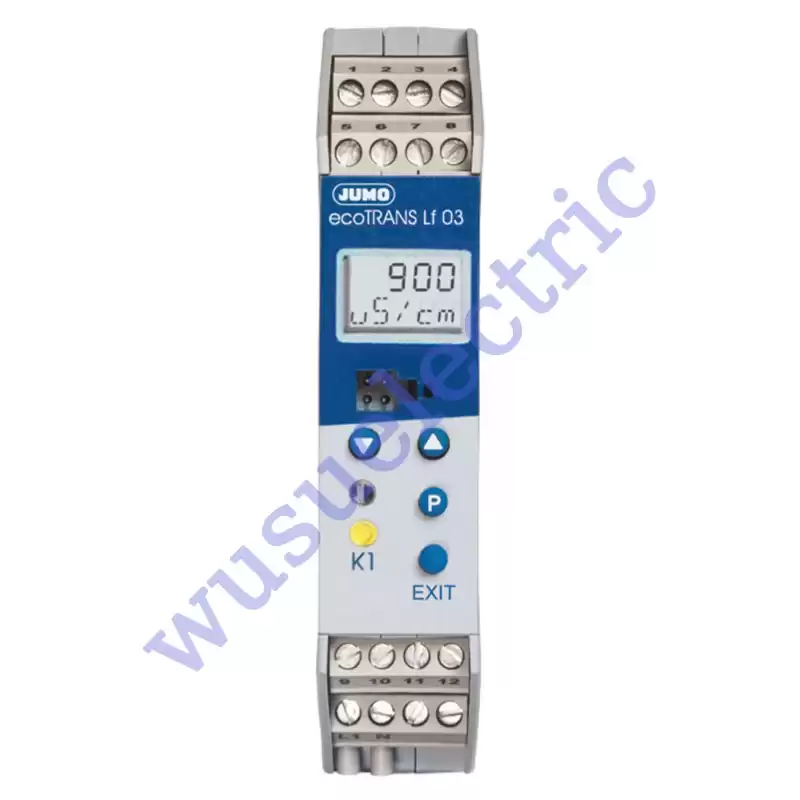

The JUMO ecoTRANS Lf 03 conductivity transmitter is used to measure the conductivity or
resistivity of liquids in conjunction with electrolytic conductivity cells.
Typical areas of application are freshwater monitoring and water treatment installations, reverse
osmosis plant, ion exchanger plant, high-purity water and pharmaceutical applications,
condensate monitoring, and checking rinsing baths and cooling water.
The instrument can be operated and configured from the keys and via the integrated LC display.
Alternatively, this can also be done very conveniently through the setup connection (notebook
/ PC), using the setup program. The setup program also serves for printing out the configuration
data, thus facilitating plant documentation.
The instruments are supplied with a calibration certificate which documents the instrument/
calibration data.
● Measurands： Conductivity; temperature; resistance
● Mounting： DIN rail
● Outputs： 2 analog outputs; 1 relay output or 2 open collector outputs
● Features： Integrated LCD display with a wide range of display units (μS/cm, mS/cm, kOhm × cm); USP switching function according to USP<645>; calibration certificate included
● Protection type： IP20
● Areas of application： For universal use
Stock items
| Type |
Note |
Part no. |
| 202732/888-888-101/000 |
relay output |
00441865 |
| 202732/888-888-177/000 |
open collector |
00441866 |
| 202732/888-888-101/024 |
relay output, including setup software |
00441867 |
