JUMO LOGOSCREEN 700
Highly-scalable paperless recorder
Brief description

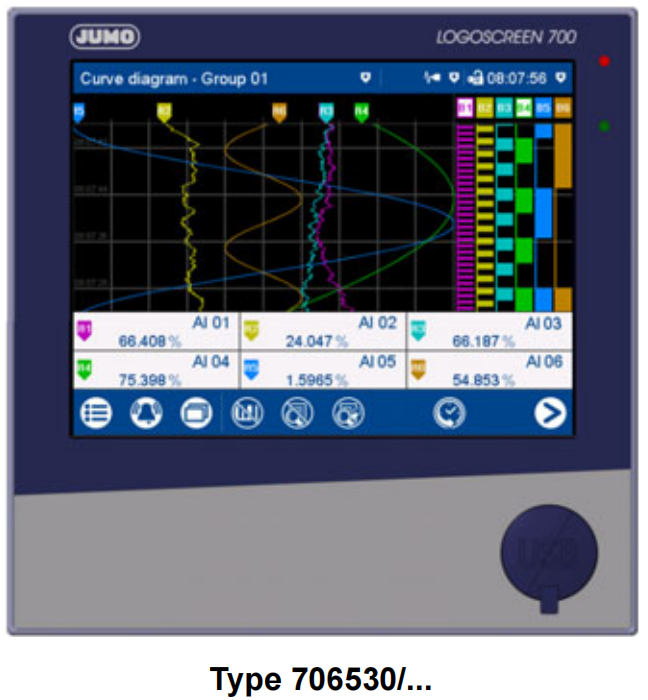

The JUMO LOGOSCREEN 700 paperless recorder is characterized by an intuitive, icon-based
operation and visualization concept that makes it easy to operate.
Multiple versions of the JUMO LOGOSCREEN 700 are available for process data recording. The
high level of scalability allows for flexible adaptation to various customer requirements: from the
device version without measurement input (120 process values via interface) through to different
device versions with up to 18 measurement inputs (universal analog inputs), 3 analog outputs,
18 digital inputs, 24 individually switchable digital inputs/outputs, and 7 relay outputs. The version
with FDA-compliant data recording fulfills all requirements according to 21 CFR Part 11.
In order to display the recorded data, the JUMO LOGOSCREEN 700 features various visualiza-
tions. In addition, the user can use the setup program to create up to 10 separate process
screens – with up to 100 objects per process screen – according to his individual requirements.
For batch-based processes, there are up to 5 special batch recordings available, which enable
the storage of additional, batch-related information. The extra code, "structured text" allows for
the creation of individual measurement and recording applications.
|
