● Process connection：All screw connections that are standard in the industry
● Accuracy (linearity)：0.5 %
● Input：-1 to +100 bar relative pressure
● Output：4 to 20 mA two-wire; DC 0 to 10 V three-wire
● Medium temperature：-20 to +125 °C
● Measuring system：Thick film strain gauge measuring principle
|

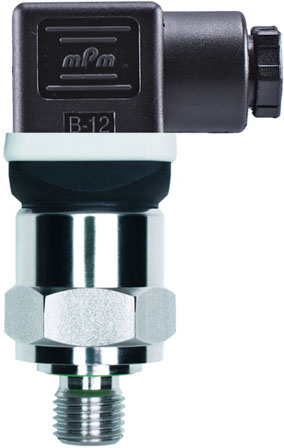

JUMO MIDAS
OEM-Pressure Transmitter
Applications
● Compressors
● Mechanical and plant engineering
● Industrial Pneumatics
● Commercial vehicles
● Building technology
Special features
● From 0 to 1,6 bar up to 0 to 100 bar,
relative pressure
● Elastomer-sealed
● Compact design: from 58 mm length
● High chemical resistance
● High mechanical strength membrane
Description
The pressure transmitter is used for pressure measurement of liquid and gaseous media. With
the well proofed ceramic thick film sensor, the pressure is measured, converted into an electrical
standard signal (voltage or current) and output via electrical connections, e.g. line socket, M12
plug connector or attached cable.
A large number of process connections are available for adaptation to the process.
|
Type 401001
|
Advantage Products
| JUMO |
401001/000-460-405-502-20-601-61/000 |
JUMO |
401001/000-460-412-502-20-601-61/000 |
| JUMO |
401001/000-460-405-502-20-602-61/000 |
JUMO |
401001/000-460-415-502-20-601-61/000 |
| JUMO |
401001/000-460-405-502-20-604-61/000 |
JUMO |
401001/000-460-418-502-20-601-61/000 |
| JUMO |
401001/000-460-405-502-20-601-36/000 |
JUMO |
401001/000-460-420-502-20-601-61/000
|
| JUMO |
401001/000-460-405-502-20-601-11/000 |
JUMO |
401001/000-455-405-502-20-601-61/000 |
| JUMO |
401001/000-460-405-501-20-601-61/000 |
JUMO |
401001/000-456-405-502-20-601-61/000 |
| JUMO |
401001/000-460-405-511-20-601-61/000 |
JUMO |
401001/000-457-405-502-20-601-61/000 |
| JUMO |
401001/000-460-405-521-20-601-61/000 |
JUMO |
401001/000-458-405-502-20-601-61/000 |
| JUMO |
401001/000-460-405-523-20-601-61/000 |
JUMO |
401001/000-459-405-502-20-601-61/000 |
| JUMO |
401001/000-460-405-562-20-601-61/000 |
JUMO |
401001/000-461-405-502-20-601-61/000 |
