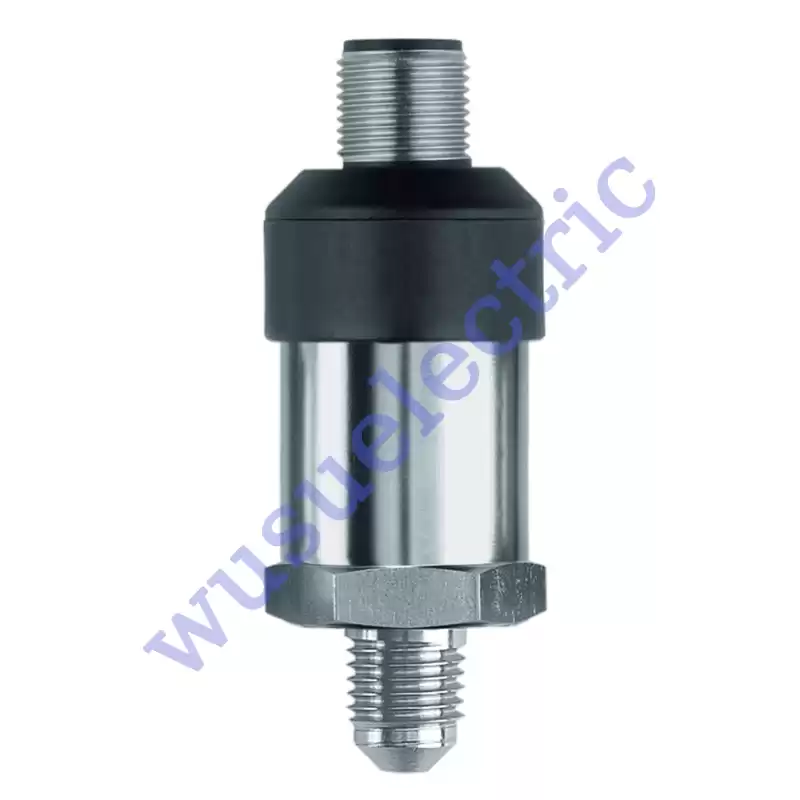

JUMO MIDAS C08 401002 OEM pressure transmitter

This pressure transmitter is a basic product and acquires the relative pressure of liquid as well as gaseous media. The ceramic sensor has a long-term stability of under 0.2 %. It is used in particular in mechanical and plant engineering.



hot selling



1 year warranty



Best choice and best discounts



Contact us:alice@cn2014.com



● Output:4 to 20 mA two-wire; DC 0.5 to 4.5 V three-wire; DC 0 to 10 V three-wire; DC 1 to (5)6 V three-wire

● Input:-1 to +60 bar relative pressure

● Accuracy (linearity):0.25 %

● Measuring system:Thick film on ceramic bodies (piezoresistive)

● Medium temperature:-20 to +125 °C

● Process connection:All screw connections that are standard in the industry

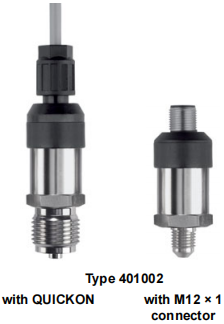

JUMO MIDAS C08
OEM Pressure Transmitter – Basic

Applications
●  compressors
 machinery and plant engineering
 industrial pneumatics
 commercial vehicles
 building technology

Brief description
This pressure transmitter is used as the core product for the MIDAS range for applications re-
quiring reliable implementation of measuring tasks with long-term stability and excellent price-
performance ratio. The MIDAS range provides solutions for all applications on the basis of this
core product.
The innovative and patented sensor design of the specifically developed ceramic sensor pro-
vides excellent long-term stability of < 0.2 %. It can be used for recording relative pressures of
1.6 bar to 60 bar in gaseous or liquid media.

Customer benefits
●  process-reliable
    Through constructive measures, the pressure transmitter achieves excellent vibration resis-
    tance and enables application under high vibration load, as occurs in commercial vehicles
    for example. The throughput through the fully automatic measuring and calibration devices,
    the diagnostic function of the switching circuit, and the full final inspection complete the high
    standard of quality.

 economic
    The QUICKON quick-clamp technology enables quicker and safer installation. The connec-
    tion is even guaranteed with any temperature fluctuations that may occur thanks to the
    spring contacts. This electrical connection means that installation times can be shortened
    and as a result, costs are reduced by 60 % compared to conventional connection options.

 versatile
    The universal application is reflected by the wide choice of measuring ranges, process con-
    nections, and electrical connections.
Special features
 long-term stability < 0.2 %
 new level of quality for the OEM sector
 60 % quicker device installation with the
    QUICKON quick-clamp technology
 temperature compensation range
    increased by 50 % to -20 °C to +100 °C
 2.5 times more vibration resistance than
    the industry standard
●  made in Germany



Stock version
Stock version
Order code Part no.
401002/000-459-405-502-20-601-23/000 00542743
401002/000-456-405-502-20-601-61/000 00546113
401002/000-457-405-502-20-601-61/000 00546119
401002/000-458-405-502-20-601-61/000 00546120
401002/000-459-405-502-20-601-61/000 00546121
401002/000-460-405-502-20-601-61/000 00546122
401002/000-460-405-504-20-601-61/000 00551012
401002/000-461-405-502-20-601-61/000 00546123
401002/000-462-405-502-20-601-61/000 00546124
401002/000-480-405-502-20-601-61/000 00552402
401002/000-481-405-502-20-601-61/000 00546125
401002/000-455-405-502-20-601-61/000 00550506
