● Connection： Ferrules according to DIN 46228, multi-pole plug connector
● Compensating cable： Silicone, PTFE, metal braiding
● Process connection： Screw connection G 1/2, screw connection G 3/8
● Protection tube： Stainless steel 1.4541, Inconel 2.4816 (Inconel 600)
● Measuring insert： J, K, L
● Option： Application-specific insertion length, protection tube diameter from 0.5 mm
● Application areas： chemical plants, power plants, pipes, engine manufacturing, test benches, stationary fuel cells (temperature measurement, flame monitoring)
● Special features： Flexible sheath cable with vibration-resistant measuring insert, fast response time

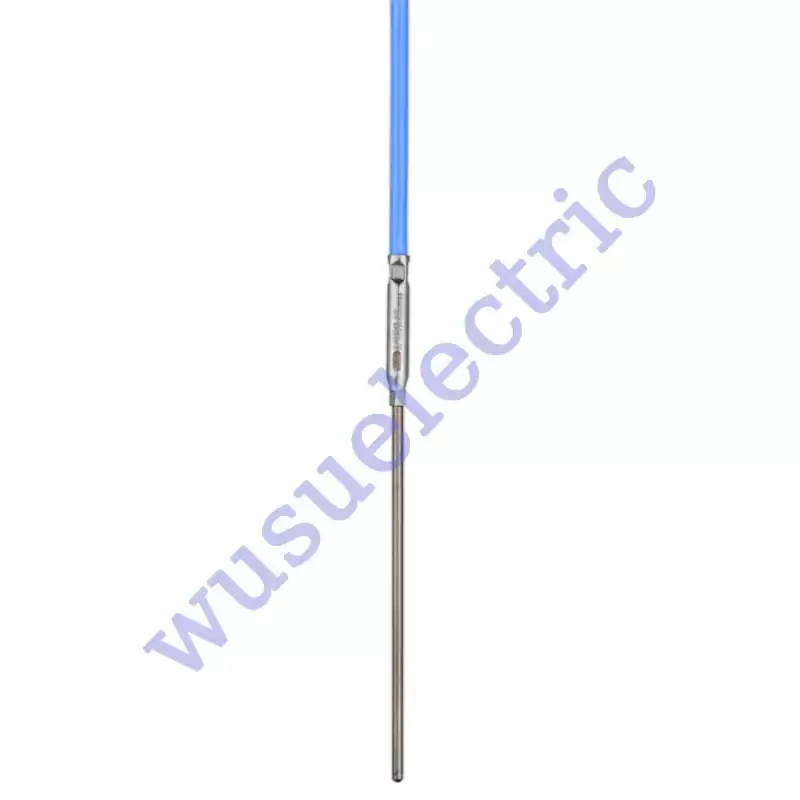

Mineral-Insulated Thermocouples
According to DIN 43710
and DIN EN 60584
● For temperatures between -200 to +1200 °C
● Flexible sheath cable with vibration-resistant measuring insert
● Protection tube diameter as of 0.5 mm
● Quick response time
● Application-specific insertion length
Due to their specific features, mineral-insulated thermocouples are used in chemical plants,
power plants, pipelines, engine building, and test rigs. Inside the flexible and thin-walled
sheathed cable, the thermowires are embedded in compressed and fire-resistant magnesium
oxide.
The good thermal transfer between the sheath and the thermocouple enables short response
times (t0.5 as of 0.15 s) and excellent measuring accuracy. The vibration-resistant construction
guarantees a long operating life. The smallest bending radius is 5 times the outer diameter. With
a diameter of 0.5 to 2.0 mm, the minimum insertion length (EL) is ≥ 50 mm; with a diameter of
3.0 to 6.0 mm the EL is ≥ 100 mm.
The thermocouples are designed to be insulated from the sheath as standard. The measuring
insert is equipped with thermocouples (elements) according to DIN EN 60584 and/or DIN
43710. Versions with two thermocouples are also possible.
Test pressure: check for leaks at the measuring point at 40 bar (helium).
Leakage resistance: thermocouple against sheath at room temperature and lengths < 1 m
200 MΩ, with lengths ≥ 1 m 200 MΩ × m.
Stock versions
| Order code |
Part no. |
| 901250/32 - 1042 - 3 - 100 - 11 - 2500 / 000 |
00056809 |
| 901250/32 - 1042 - 3 - 200 - 11 - 2500 / 000 |
00068433 |
| 901250/32 - 1042 - 1.5 - 100 - 11 - 2500 / 000 |
00056811 |
| 901250/32 - 1042 - 1.5 - 200 - 11 - 2500 / 000 |
00068438 |
| 901250/32 - 1043 - 6 - 100 - 11 - 2500 / 000 |
00056812 |
| 901250/32 - 1043 - 6 - 200 - 11 - 2500 / 000 |
00068427 |
| 901250/32 - 1043 - 3 - 100 - 11 - 2500 / 000 |
00056813 |
| 901250/32 - 1043 - 3 - 200 - 11 - 2500 / 000 |
00068441 |
| 901250/32 - 1043 - 3 - 300 - 11 - 2500 / 000 |
00068442 |
| 901250/32 - 1043 - 3 - 500 - 11 - 2500 / 000 |
00068443 |
| 901250/32 - 1043 - 1.5 - 100 - 11 - 2500 / 000 |
00049205 |
| 901250/32 - 1043 - 1.5 - 200 - 11 - 2500 / 000 |
00068436 |
| 901250/32 - 1043 - 1.5 - 500 - 11 - 2500 / 000 |
00068437 |
| 901250/32 - 1043 - 0.5 - 100 - 11 - 2500 / 000 |
00066345 |
Stock versions
| Order code |
Part no. |
| 901230/40 - 1043 - 6 - 200 - 104 / 000 |
00068430 |
| 901230/40 - 1043 - 6 - 300 - 104 / 000 |
00068431 |
