● Connection： Connector
● Areas of application： Shipbuilding, engine manufacturing, industrial boiler plants, pump engineering
● Operating temperature： -50 to +260 °C
● Approvals： GL
● Process connection： Thread
● Protection type： IP65
● Protection fitting： Stainless steel 1.4571
● Special features： Replaceable measuring insert for variants without transmitter
● Option： Head transmitter
● Measuring circuits： 1
● Features： Highly shakeproof, plug connector according to DIN EN 175301-803
● Sensor： Pt100

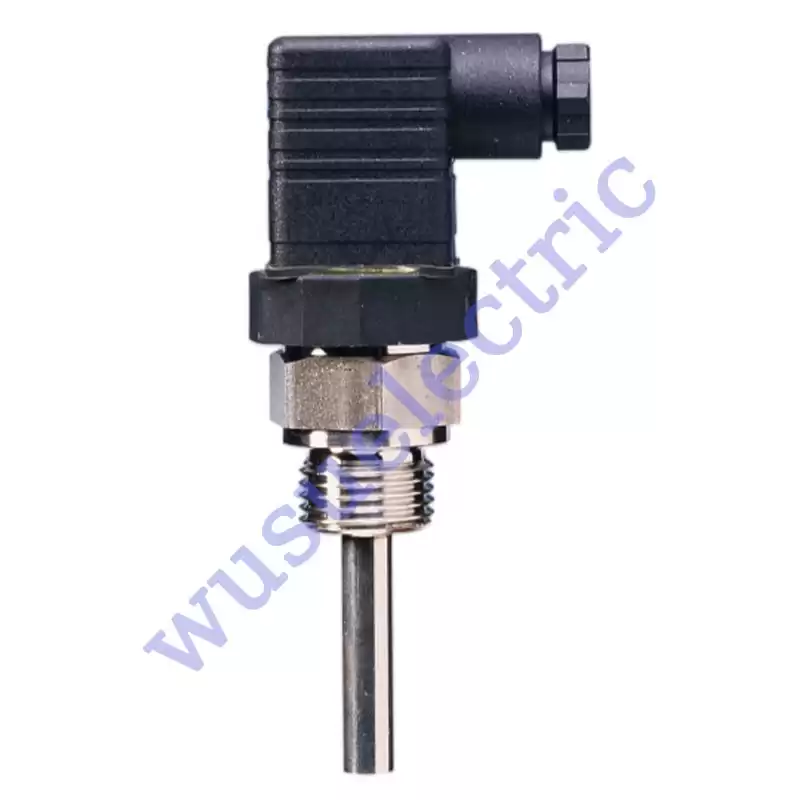

Screw-in RTD temperature probe
with plug connector
according to DIN EN 175301
● For temperatures between -50 to +260 °C
● Vibration-resistant construction
● The plug connection is locked to ensure contact, protection type IP65
● Available with transmitter
● DNV GL approval for basic types 902044/20 and 902044/21 (max. insertion length
200 mm)
Vibration-resistant screw-in RTD temperature probes allow temperatures to be measured under
pressure in engines and compressors as well as in plant engineering and shipbuilding.
The plug connection between the protection fitting and the connecting cable is locked to ensure
contact. It has protection type IP65 when connected.
The measuring insert is a Pt100 temperature sensor according to DIN EN 60751:2009 /
IEC 60751:2008, class B in two-wire circuit as standard. Other versions with Pt500 or Pt1000 are
also possible.
The connection can be carried out in a two-wire or four-wire circuit as required.
Basic types 902044/25 to 902044/29 are available as versions with transmitters (output 4 to
20 mA)
Stock versions
| Order code |
Part no. |
| 902044/15-380-1003-1-6-100-104-26/000 |
00600899 |
| 902044/20-380-1003-1-8-50-104-26/000 |
00365259 |
| 902044/20-380-1003-1-8-100-104-26/000 |
00368414 |
| 902044/20-380-1003-1-8-150-104-26/000 |
00368416 |
