● For temperatures between -50 to +600 °C
● Comes with replaceable measuring insert
● Available as single and double RTD temperature probe
● Terminal head form B, BUZ, BUZH, BBK, AB7, and KGI-1
● Available with transmitter
Brief description

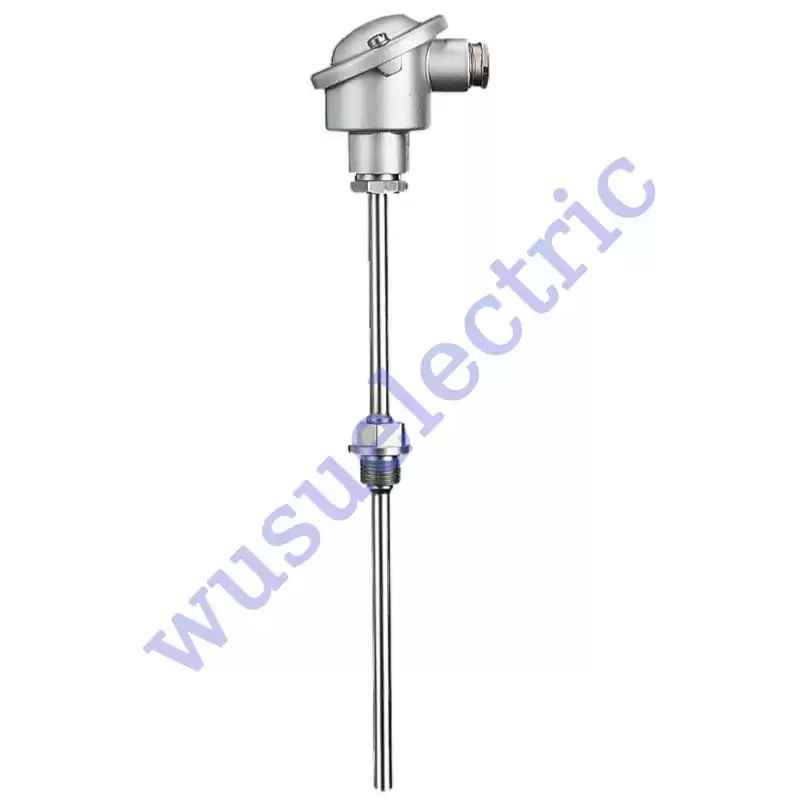

Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids
and gases. The reliable tightness of this installation type under negative pressure as well as
overpressure is an important selection criterion. The application areas are, among others, in airconditioning and refrigeration technology as well heater and furnace construction and apparatus
engineering.
The terminal head is suitable for temperatures up to +100 °C. In addition to the standard form B
connection head, the BUZ, BUZH, BBK, AB7, and KGI-1 design types are also available.
A Pt100 temperature sensor according to DIN EN 60751:2009 / IEC 60751:2008 (temperature
coefficient α = 3.850 × 10-3 °C-1), class B in two-wire circuit, is used as standard as the measuring insert; versions with Pt500 or Pt1000 are also possible. The connection is optionally possible
in a three-wire and four-wire circuit. A transmitter can be integrated into the terminal head as an
option.
Technical data
| Terminal head |
Form B DIN EN 50446, aluminum die-cast, M20 × 1.5; IP65, ambient temperature -40 to +100 °C
Form BUZ, aluminum die-cast, M20 × 1.5; IP65, ambient temperature -40 to +100 °C
Form BUZH, aluminum die-cast, M20 × 1.5; IP65, ambient temperature -40 to +100 °C
Form BBK, plastic, M20 × 1.5; IP54, ambient temperature -30 to +130 °C
Caution: reduced ambient temperature when using transmitters, data sheets 707010, 707030,
707050, 707060, and 707080 |
Insofar as the design type allows it, yellow terminal heads are used for SIL and PL applications
(extra codes 658 or 659). Exceptions to this are probes for use in alkaline environments and probes
where it is strictly necessary that they are PWIS-free. |
| Extension tube |
Stainless steel 1.4571, length 130 mm |
| Process connection |
Thread, stainless steel 1.4571 |
| Protection tube |
Stainless steel 1.4571, Ø 9 mm, Ø 11 mm, Ø 12 mm |
| Measuring insert |
Exchangeable, Pt100 temperature sensor, DIN EN 60751:2009 / IEC 60751:2008, class B, two-
wire circuit |
| Response times |
t0.9approx. 50 s, in water 0.2 m/s, Ø 9 mm |
| Vibration resistance |
20 g (peak-to-peak) at the tip of the measuring insert |
| Transmitters |
Programmable transmitter, data sheet 707010 |
| Analog transmitter, data sheet 707030 |
| Programmable transmitter, data sheet 707050 |
| Programmable two-channel transmitter with HART®/SIL, data sheet 707080 |
Programmable Wtrans B head transmitter with wireless data transmission, data sheet 707060
(suitable Wtrans receivers according to data sheet 902931) |
| Accessories |
Thermowell, data sheet 909710 |
Stock versions
| Order code |
Part no. |
| 902020/10-402-1003-1-9-160-104/000 |
00055562 |
| 902020/10-402-1003-1-9-250-104/000 |
00055563 |
| 902020/10-402-1003-1-9-400-104/000 |
00055564 |
| 902020/10-402-2003-1-9-160-104/000 |
00055565 |
| 902020/10-402-2003-1-9-250-104/000 |
00055566 |
| 902020/10-402-2003-1-9-400-104/000 |
00055567 |
| 902020/10-402-1001-1-9-160-104/330 (0 to 100 °C) |
00054616 |
| 902020/10-402-1001-1-9-160-104/330 (0 to 200 °C) |
00087522 |
| 902020/10-402-1001-1-9-250-104/330 (0 to 200 °C) |
00087527 |
| 902020/10-402-1001-1-9-400-104/331 (0 to 100 °C) |
00335111 |
