pH and redox combination electrodes
in glass or plastic shaft versions

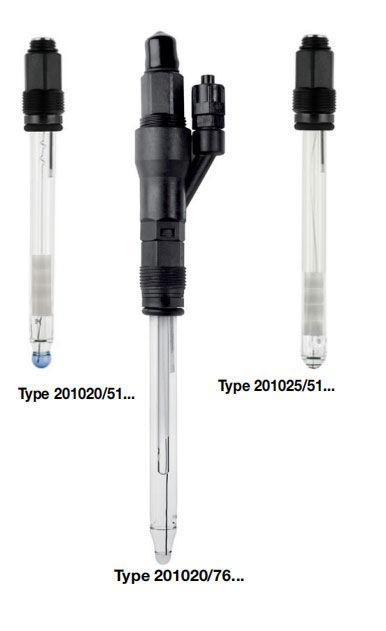

201020 series - pH electrodes
201025 series - redox electrodes
Brief description
JUMO tecLine electrodes are high-quality sensors for professional applications in process and
industrial measurement technology. These electrodes are known for their use of top-quality
materials and components. They are designed as combined electrodes (the glass or metal
electrode and the reference electrode are combined in one shaft). A temperature probe can also
be integrated as an option, depending on the type.
Suitable versions are available to meet a wide variety of requirements:
JUMO tecLine
• For industrial and communal water and wastewater engineering
• For measurements in suspensions and varnishes
• For measurements in low-ion media
• For high-alkaline, high-temperature and sterilization processes
• For media containing fluorides and low-temperature applications
• PRO version for the toughest operating conditions
JUMO tecLine sensors are state-of-the-art for modern pH and redox electrodes. Each electrode
is a quality product and is individually tested as a matter of routine. Modern production facilities
ensure consistent characteristics.
General information about the construction of the JUMO tecLine series
All standard electrodes are made from physiologically safe and FDA-listed materials.
The sensors are equipped with lead-free shaft glass and are therefore conform to RoHS.
|
 |
● Active part： UW glass (water and wastewater engineering); HA glass (for strong alkaline media); HT glass (at temperatures above 80 °C); DS glass (bio, pharmaceutical, and food technology, sterilization processes), C glass (fluoridated (hydrofluoric) media)
● Diaphragm： Ceramic, glass fiber, PTFE ring, annular gap, or pinhole diaphragm
● Temperature range： -5 to +135 °C
● Pressure range： Up to 10 bar (at 50 °C)
● Electrode head： VP plug head PG 13.5; screw head PG 13.5
● Features： For industrial applications, high level of mechanical robustness, with plastic shaft, integrated temperature sensor
● Area of application： Industrial and municipal water and wastewater technology, measurements in suspensions and paints/lacquers, measurements in low ion fluids, high-alkaline/high-temperature/sterilization processes, fluoridated media, and low temperature applications
pH stock versions
| Typ |
Brief description |
Part no. |
| 201020/51-18-07-22-120/837 |
Glass shaft,zirconium dioxide diaphragma
screw head,120 mm,salz reserve |
00300151 |
| 201020/51-18-07-22-120/000 |
Glass shaft,zirconium dioxide diaphragma
screw head,120 mm |
00300148 |
| 201020/51-18-07-18-120/837,840 |
Glass shaft,zirconium dioxide diaphragma
VP screw head,120 mm,salt reserve,integrated Pt100 |
00595184 |
| 201020/51-17-07-22-120/837 |
Glass shaft,zirconium dioxide diaphragma,
screw head,120mm (high-alkaline applications) |
00408953 |
| 201020/74-18-05-22-225/000 |
PSU plastic shaft with protection basket
glass filament diaphragm,screw head,225 mm |
00354295 |
| 201020/73-18-05-22-225/000 |
PSU plastic shaft without protection basket
glass filament diaphragm,screw head,225 mm |
00330857 |
| 201020/72-18-05-22-120/837,838 |
PEI plastic shaft with protection basket
glass filament diaphragm,screw head,120 mm,salt reserve
two-chamber system |
00303398 |
pH production versions
| Typ |
Brief |
description |
|
Part no |
| 201020/51-18-07-22-225/000 |
Glass |
shaft,zirconium dioxide |
diaphragm,screw head,225 mm |
00399535 |
| 201020/51-11-07-22-120/000 |
Glass |
shaft,zirconium dioxide |
diaphragm,screw head,120 mm |
00375623 |
Redox stock versions
| Typ |
Brief descriptio |
Part no |
| 201025/51-22-07-22-120/837 |
Glass shaft,platinum tip,zirconium dioxide diaphragm
screw head,120 mm,salt reserve |
00300397 |
| 201025/51-32-07-22-120/837 |
Glass shaft,gold tip,zirconium dioxide diaphragm
screw head,120 mm,salt reserve |
00300396 |
| 201025/72-22-05-22-120/837,838 |
PEI plastic shaft without protection basket,platinum tip
glass filament diaphragm,screw head,120 mm,salt reserve
two-chamber system |
00084011 |
