JUMO TYA 203
Three-phase
Thyristor power controller
for control of resistive/inductive loads

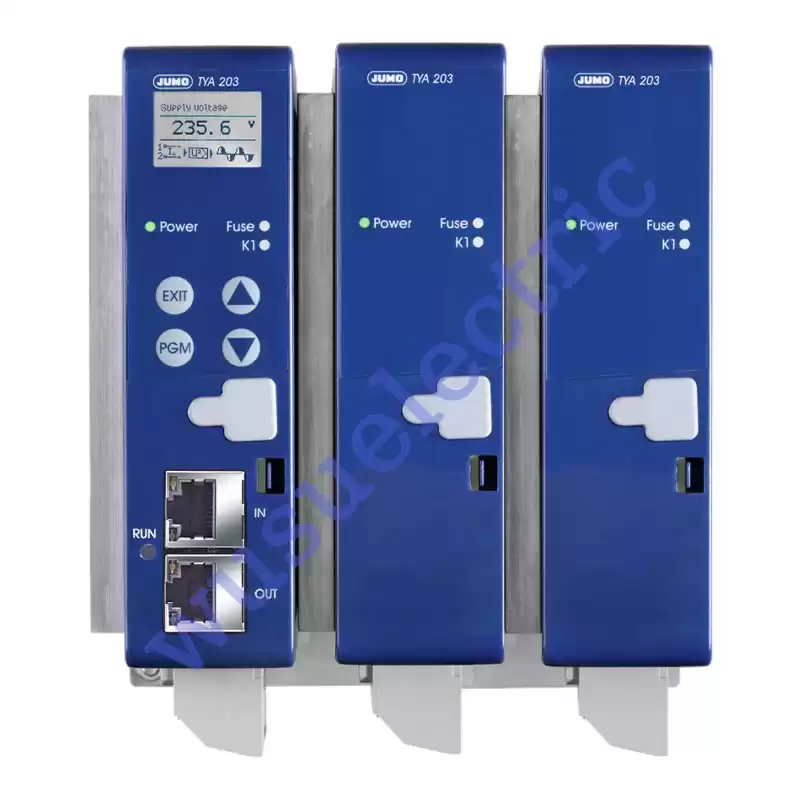

The JUMO TYA 203 is the result of consistent development of JUMO power controller technology and switches resistive and resistive/inductive (transformer) loads via a three-wire circuit. It
enables the wiring of the load in a star connection (with and without N conductor) or a delta connection. An open delta connection (six-conductor connection) can also be implemented. The
microprocessor controlled power controller displays all parameters in an LCD display with
background lighting. It can be operated using the four keys at the front.
Thyristor power controllers are used where larger resistive and resistive/inductive loads have to
be switched, e.g. in industrial furnace construction and plastics processing.
The Thyristor power controller with a load current of 20 A can either be clipped to a 35 mm
mounting rail or fitted to the wall on a mounting plate.
Devices with a load current greater than 20 A can only be mounted on the wall.
The TYA 203 works in phase angle control mode or in burst firing mode. In burst firing mode,
the phase angle of the first half-wave can be cut so that transformer loads can also be operated.
All Thyristor power controllers are fitted with a semiconductor fuse.
Available subordinate control loops are U, U2, I, I2, or P control.
When using the subordinate control loop, power voltage fluctuations during control processes
have no influence on the line segment to be controlled.
The option of specifying a base load is available.
To avoid high starting currents, a soft start can be set.
The Thyristor power controllers meet the operating conditions of DIN EN 50178.
The device has to be grounded in accordance with the regulations of the responsible energy
supply company
● Subordinate control loop： U, U2 control (as a standard feature); I, I2, P control (optional)
● Load voltage： 24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V
● Load currents： 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
● Operating modes： Phase-angle control, burst-firing operation, half-wave control, SSR logical operation, fast logical operation, alpha start, soft start
● Special features： Current limiting, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square)
● Approval： cULus
● Ambient temperature： -20 to +70 °C
● Load type： Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave), carbon emitter
● Control voltage： Control voltage = load voltage
● Configuration： Setup/USB-powered; plain text display on the device
● System interfaces： Modbus, PROFIBUS DP, system bus JUMO mTRON T, PROFINET, EtherCAT
Type
| 709063/X-0X-250-XXX-XXX-XX-25X |
| 709063/X-0X-150-XXX-XXX-XX-25X, |
| 709063/X-0X-200-XXX-XXX-XX-25X |
| 709063/X-0X-100-XXX-XXX-XX-25X |
| 709063/X-0X-050-XXX-XXX-XX-25X |
| 709063/X-0X-032-XXX-XXX-XX-25X |
Accessories
| Item |
Part no. |
| Setup program 709061 (TYA 201),709062 (TYA 202),and 709063 (TYA 203 |
00544869 |
| USB cable A-connector B-connector 3 m |
00506252 |
Installation kits
| Installation kit for DIN-rail 20 A TYA 203 |
00648636 |
General accessories
| ltem |
Load current lrated =In |
Part no. |
| 709710/02 semiconductor fuse 40 A/AC 690 V |
Iy=20A |
00513108 |
| 709710/02 semiconductor fuse 80 A/AC 690 V |
ly=32 A |
0006801 |
| 709710/02 semiconductor fuse 80 A/AC 690 V |
ln=50 A |
00068011 |
| 709710/02 semiconductor fuse 160 A/AC 690V |
ly=100 A |
00081801 |
| 709710/02 semiconductor fuse 350 A/AC 690 V |
lN=150 A |
00083318 |
| 709710/02 semiconductor fuse 550 A/AC 690V |
ly=200 A |
00371964 |
| 709710/02 semiconductor fuse 550 A/AC 690 V |
Iv=250 A |
00371964 |
