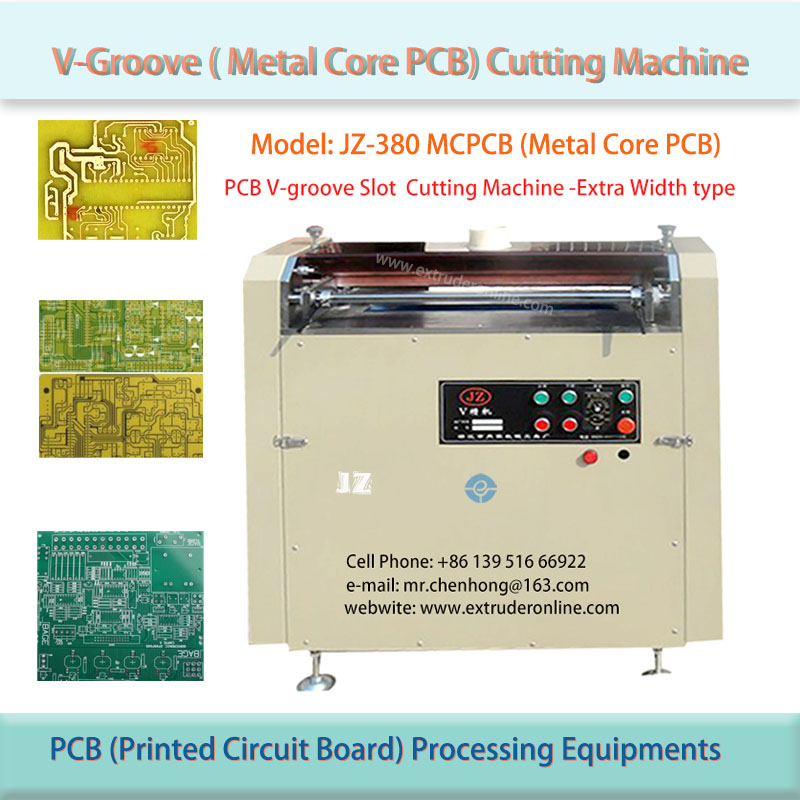

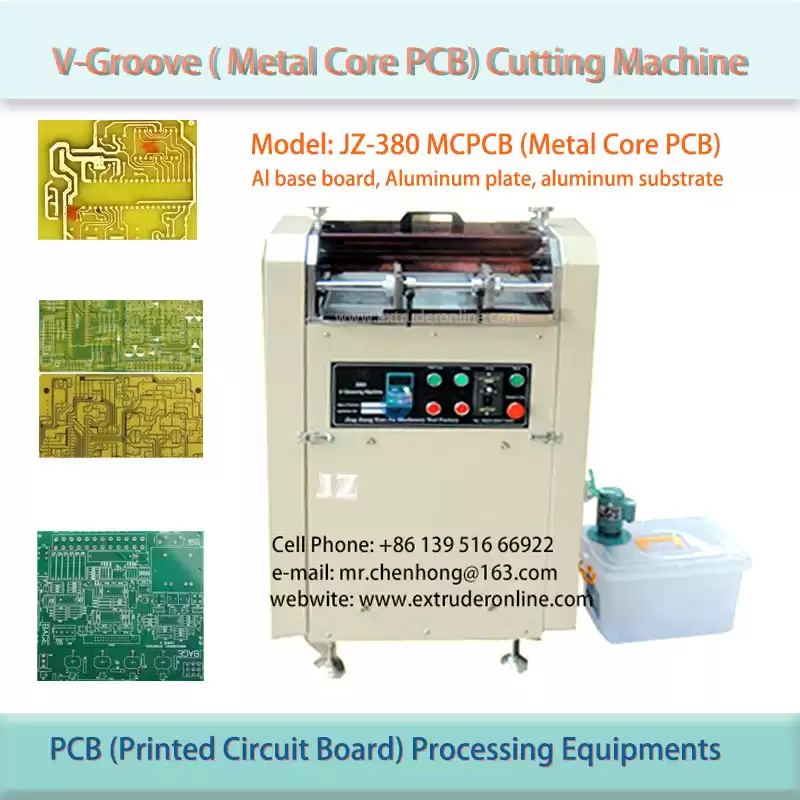

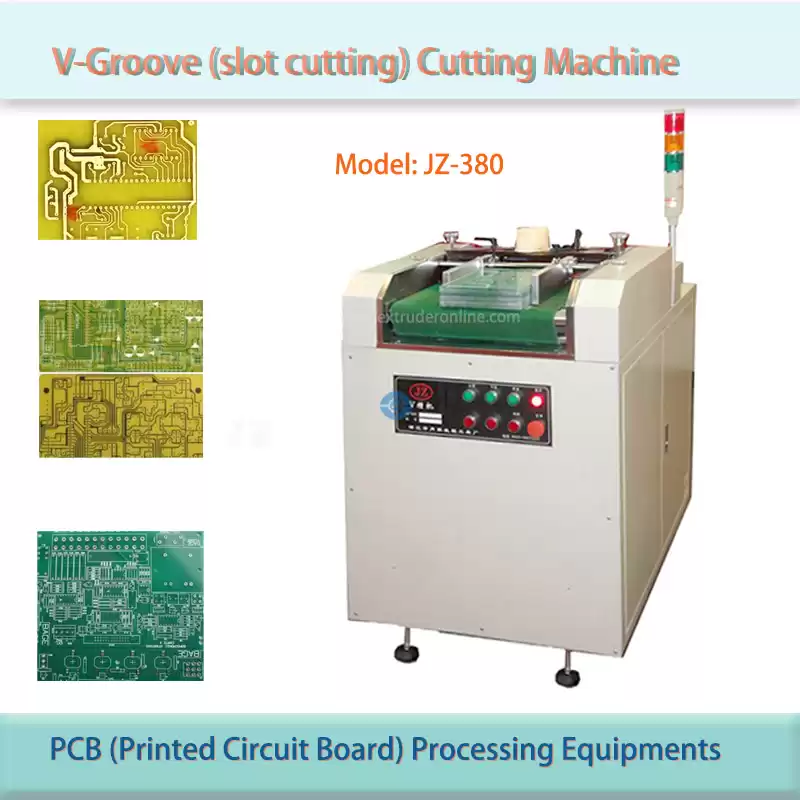

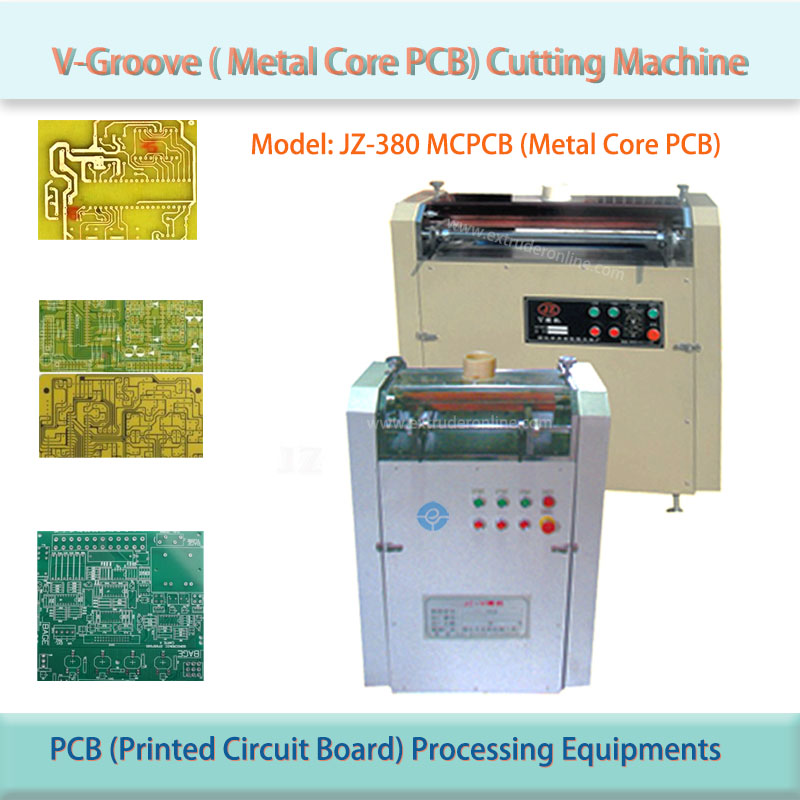

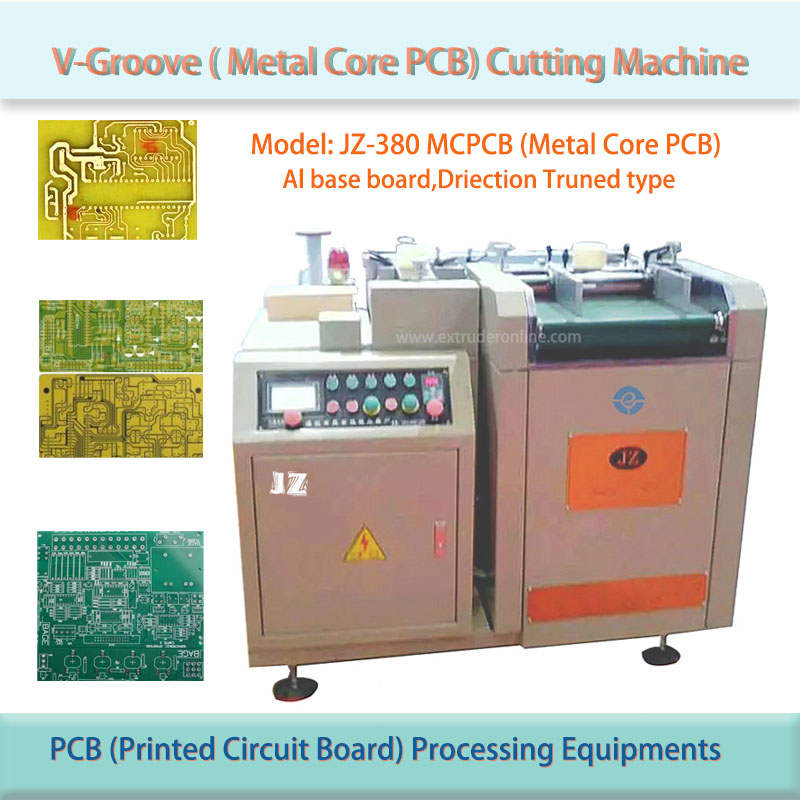

JZ380 MCPCB V-CUTTING CCL V-groove Aluminum baseed Board Cutting Machine

PCB V-groove Slots Cutting Machine- JZ 380

Model: JZ-380

This machine is for MCPCB V-groove cutting , slite the PCB raw material (Aluminum based board/ MCPCB) into further small size for next step processing.

Technical Parameter:

*.Cutting Speed: 0-7.5 Meter/Minute (Adjustable)

*.Specifications of Blade:

   OD50mm (or 51mm) * ID25mm* Thickness2.5mm (or 2.0mm);

*. Size of work piece: Width: 30- 360mm Length: 80-600mm;

*. Quantity of Blade: 6 PCS (3 Top and 3 Bottom);

*. Electric source and Power: AC380V 3 Phase, 50Hz, 1KW;
