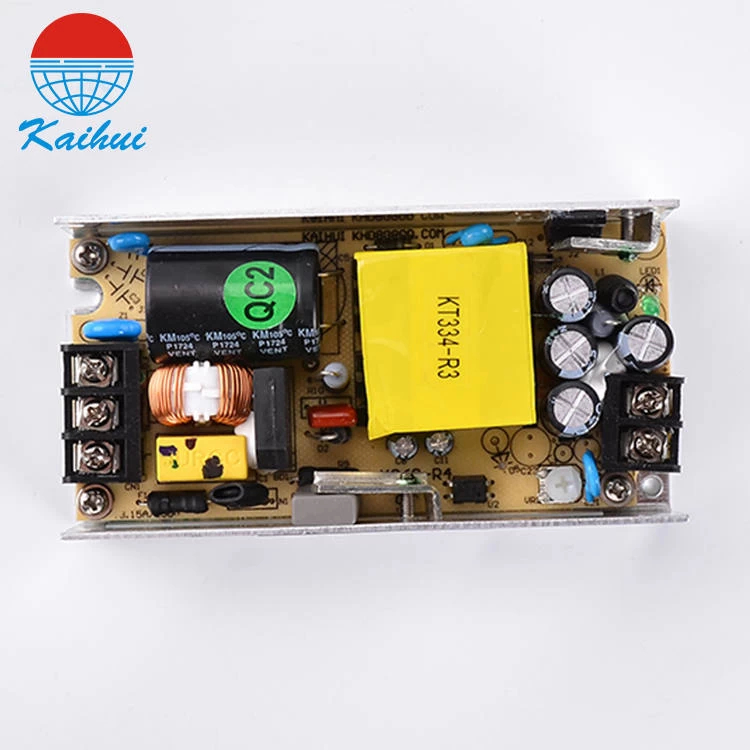

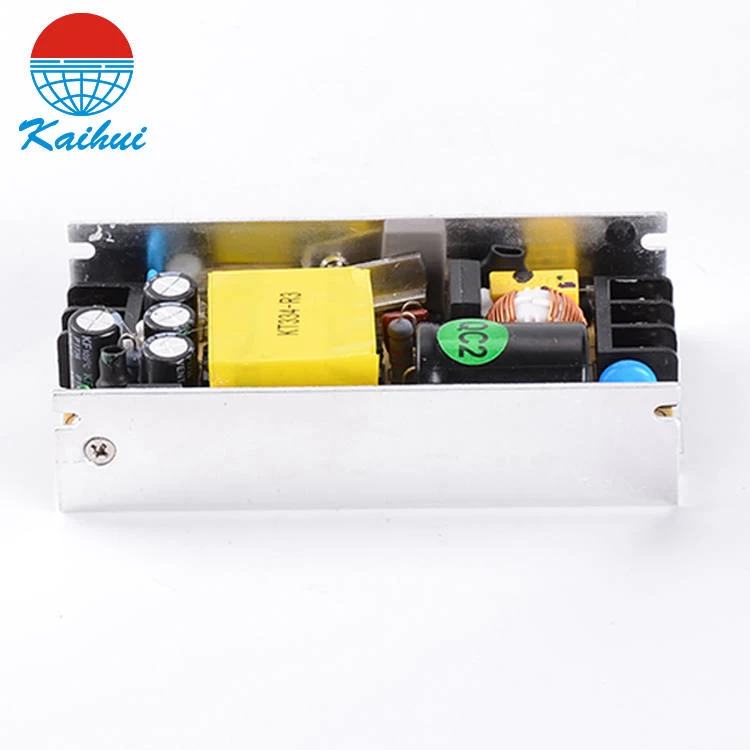

KAIHUI 120W LED Lighting Switching power supply AC/DC Open frame 12v 24v 36v 48v

KAIHUI non-pfc series hot selling 120w 12v 24v 36v 48v single output switching power supply used for LED stage lighting and electronic equipment.

Facebook Twitter Pinterest LinkedIn 分享

Description

Hot selling 12v 24v 36v 48v 120w single output power supply for LED lighting and electronic equipment

Description:

K26S-U120S series 120W switching power supply has high efficiency, Universal AC input voltage and 12v 24v 36v 48v output voltage adjustable with 2 years warranty, it can used in Stage lighting and other electronic products.

Features:

1, 120w power supply high efficiency;

2, DC 12V 24V 36V 48V 120w power supply unversial AC input voltage;

3, 24v 120w power supply short circuit, overload and over voltage protection.

Parameter
Item NO		K26S-U120S12	K26S-U120S24	K26S-U120S36	K26S-U120S48
Output	Output Voltage	+12V	+24V	+36V	+48V
	Rated Current	8.5A	5A	3.3A	2.5A
	Current Range	0-8.5A	0-5A	0-3.8A	0-2.5A
	Rated Power	102W	120W	117.8W	120W
	Ripple	120mVp-p	120mVp-p	240mVp-p	240mVp-p
	Adjustable Output Range	±10%
	Output Accuracy	±1%
	Line Regulation	±0.5%
	Load Regulation	±0.5%
	Set up,Rise,Keep up time	500ms, 50ms, 20ms
Input	Input Voltage Range	90~264V AC;110~360V DC
	Input Current	2A/115V;1A/230V
	Input Frequency	47~63Hz
	Efficiency	86%; 87%; 88%; 88%
	Inrush Current	30A@230V
	Leakage Current	<0.5mA@240V
Protection	Over Load Protection	105~150%, TYPE:HICCUP RESET:AUTO RECOVER
	Short Circuit Protection	TYPE:HICCUP RESET:AUTO RECOVER
	Over Voltage protection	15~18V; 30-33V; 42-45V; 54-60V
Environment	Working Temp.,Humidity	-10~50℃,10~90% RH，No condensation
	Storage Temp.,Humidity	-20~85℃,10~95% RH
	Temp.,Drift	±0.03%/℃(0~50℃)
	Vibration	10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
Safety&EMC Standards	Safety Standards	GB4943,EN60950
	Withstand Voltage	I/P-O/P,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min
	Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
	EMC Standards	GB9254,EN55022 CLASS B
Others	Dimension	1155928mm CASE：K826S
	Weight	0.3kg
Notes	1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity; 2. Accuracy: includes set up tolerance, line regulation, load regulation and so on; 3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end; 4. Line regulation: at rated load conditions, the input voltage changes from low to high measured; 5. Load regulation: the measured output load from 0 to 100% load change measured.
