Kazakhstan Double Cabin ISUZU NPR ELF Crane Trucks with 6.3Ton Telescopic
Boom Truck
Isuzu Boom crane trucks (also called Isuzu crane lifting trucks, Mobile crane truck, Truck loader crane, Isuzu folding boom truck crane, cargo truck crane, Lorry with crane trucks ) is
a type of machine can carry heavy weights and transport them. The truck
with crane mounted can load and unload the freight itself and don't
need to employ another crane.
The
ISUZU loader crane can freely route in 360 degrees, raise and extend,
make the loading simple and economic. Compare to the mobile crane, truck
loader cranes are more convenient and effective.
Description:
Often the delivery
urgency of Trucks gets affected in absence or due to delay of supporting
loading or unloading equipment. What if the Truck gets its own power of self-loading
and unloading? That is why we called Truck Mounted Crane - The Ultimate
Loading and Unloading Solution for Trucks
Areas of Application and Use:
◆ General
Materials Lifting of various size and load with standard Hook arrangement for
Construction Sites / Mines / Projects / Logistics Requirements
◆ Handling
Concrete Block for Building / Projects through Rotary Brick Clamp
◆ Man Lift or
Cherry Picker for Maintenance on Electricity Poles / Overhead Lines etc, thru
Person Carrying Basket
◆ Erection of
Light Post through Auger
◆ Handling of Wood Logs
(Forestry)
◆ Garbage Handling with Clamshell Bucket
◆ Palletized Load Handling thru Pallet Fork
◆ Tyre
Manipulator Application
◆ Scrap
Handling through Orange Peel Clamp
Features:
◆ Adopt world-class ISUZU Chassis, High power
and Fuel efficiency, Reliability, Uptime
◆ All Structural made of High Strength Steel
◆ Easy to mount and Minimum space required for
Mounting
◆ Can be Mounted Behind the Cabin or Rear Part
of Load Body, thus Truck Load
◆ Optional
Chassis 4x2, 6x4,8x4 and engine power
◆ Optional Crane brand: XCMG, UNIC, PALFINGER, HIAB
◆ Optional Crane type: Telescopic boom crane or knuckled boom crane
◆ Radio
Remote Control Available as an Optional Fitment
◆ Top Seat Control are
optional (where the Operator Seat is
attached to the Main Boom)
◆ Crane capacity : 2T, 3.2T, 4T, 5T,
6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons
Main
specifications:
|
Model
|
PT5102TSC
|
|
Driving Type
|
4x2 (Left
hand drive)
|
|
Wheelbase
|
4175 mm
|
|
Cab
|
Forward control over engine,
all-steel-welded construction
|
|
Crane System
|
Max Lifting
Capacity
|
6300 kg
|
|
Max Lifting
Moment
|
15.7 T.M
|
|
Recommend Power
|
20 kw
|
|
Max Oil Flow of
Hydraulic System
|
40 L/min
|
|
Max Pressure of
Hydraulic System
|
20 MPA
|
|
Oil Tank
Capacity
|
90 L
|
|
Rotation Angle
|
All Rotation
|
|
Engine
|
Model
|
4HK1-TCG40
|
|
Type
|
Diesel, turbo
charged inter-cooled, 4 cylinder
|
|
Max. Power
|
139 KW (190 HP)
|
|
Gearbox
|
MSB 5-shift,
mechanical type, 5 forward and 1 reverse with
|
|
Tire
|
8.25-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
100 km/h
|
Dimension drawing

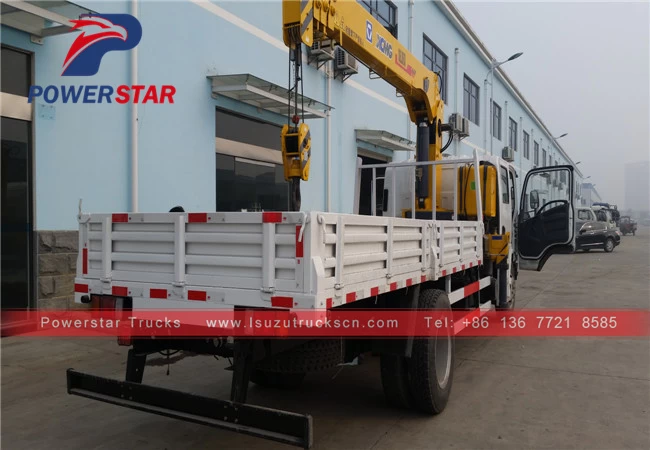

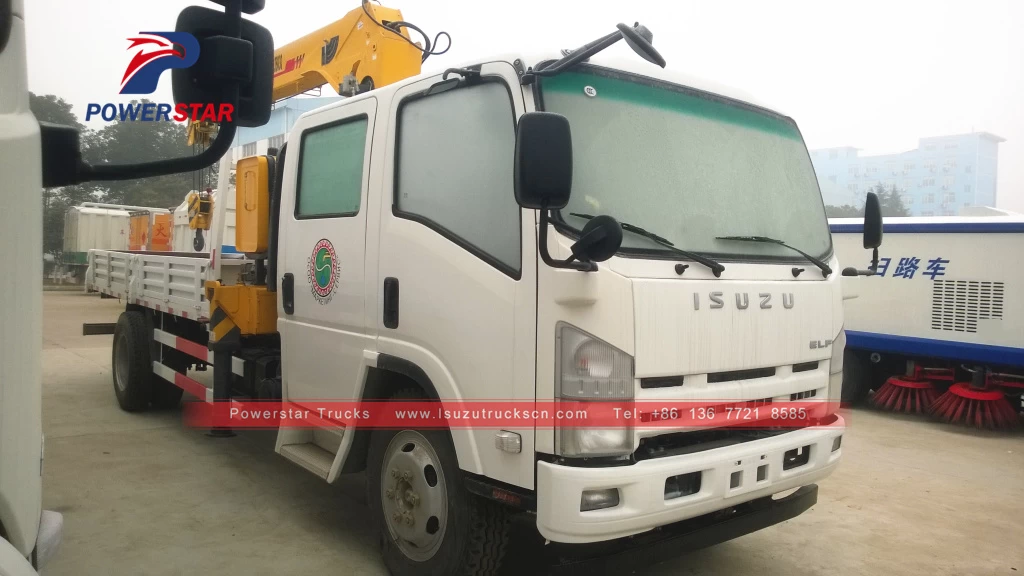

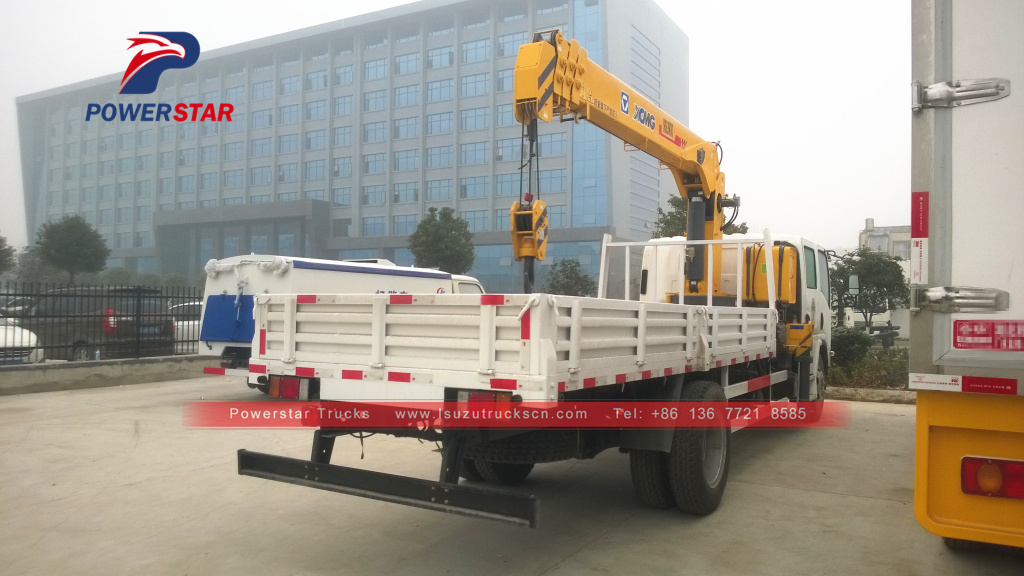

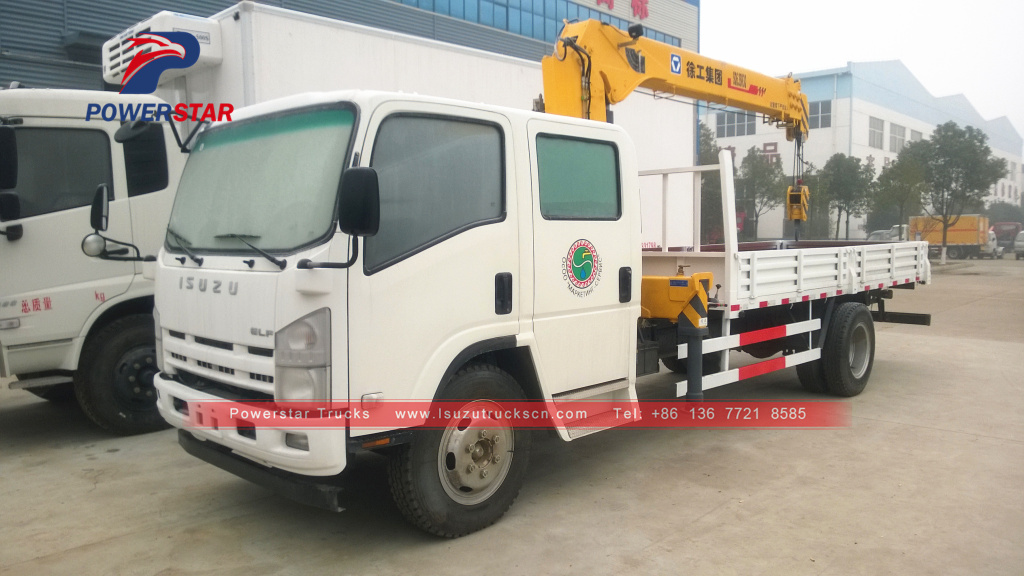

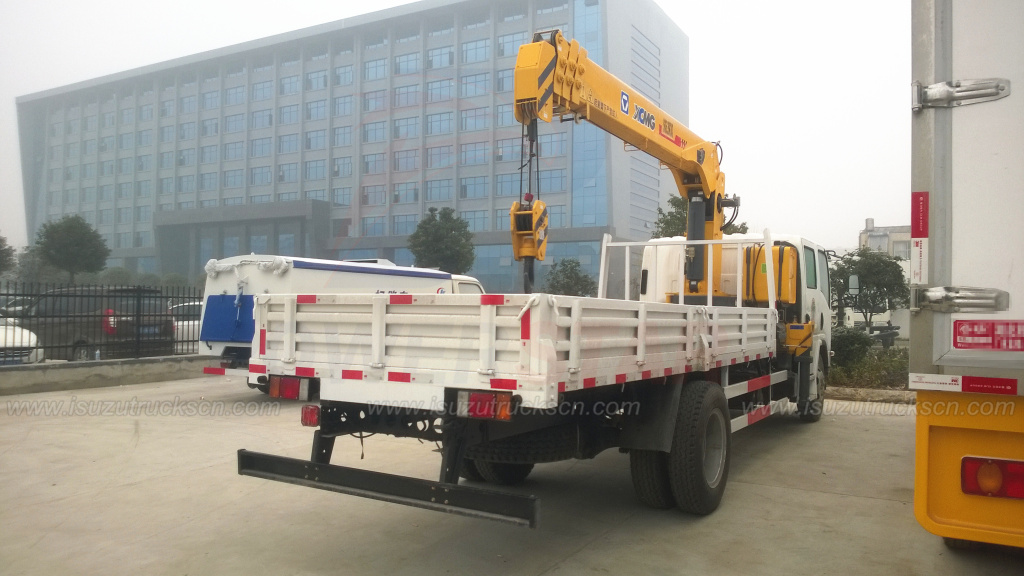

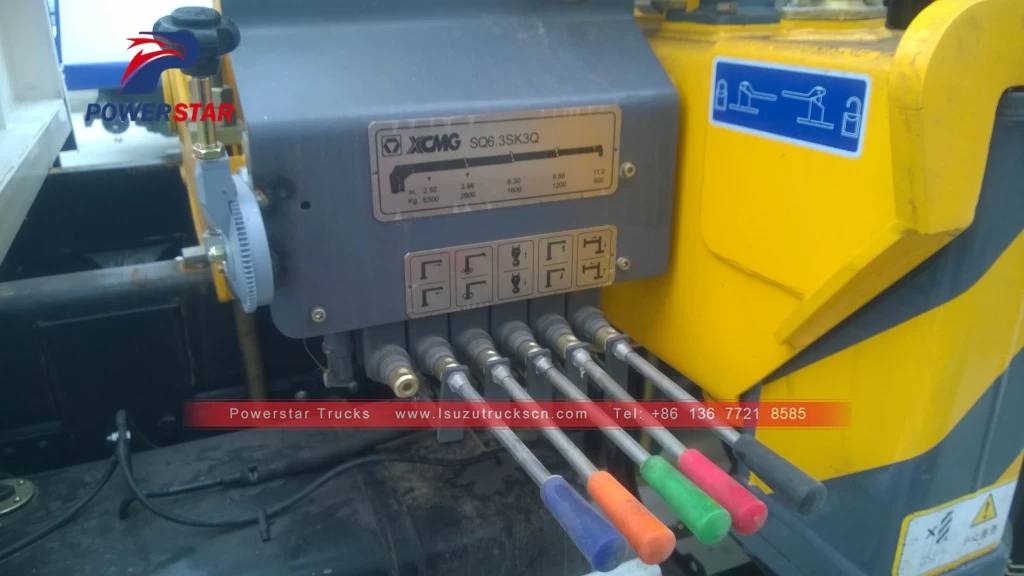

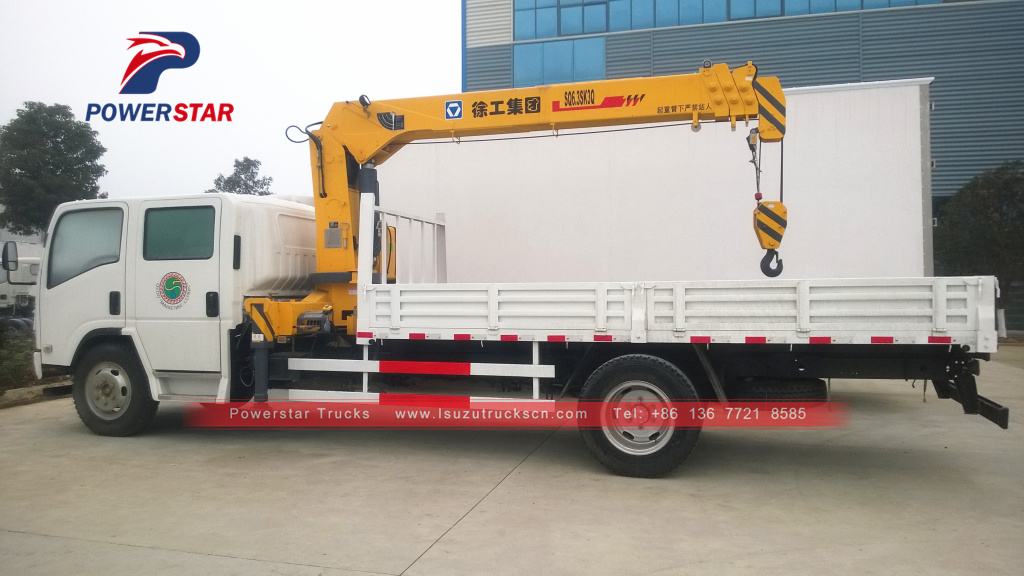

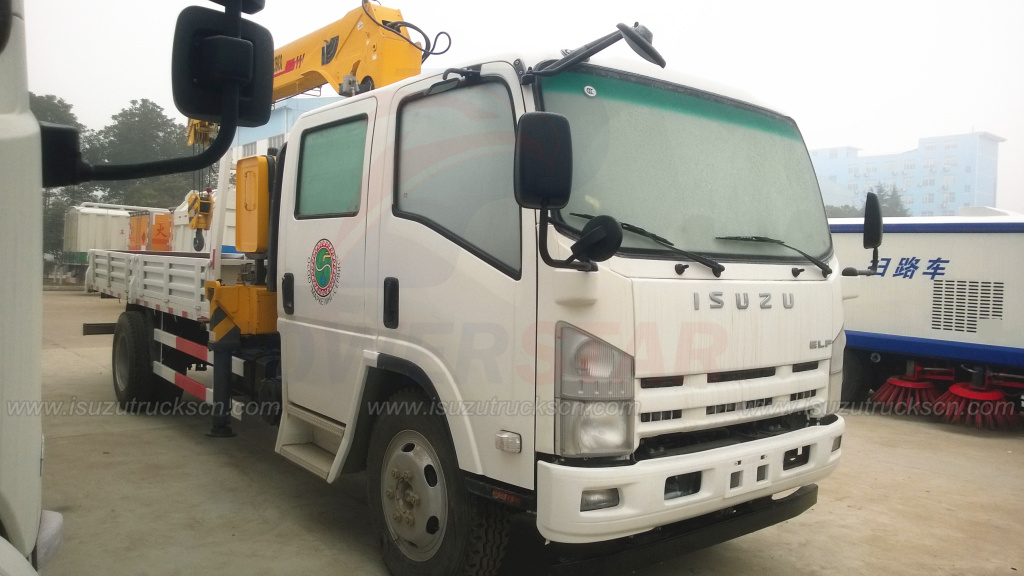

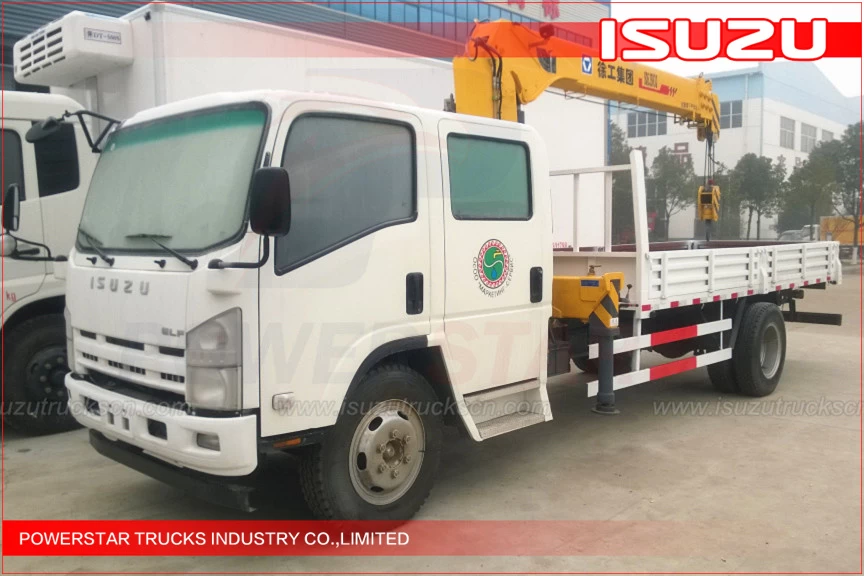

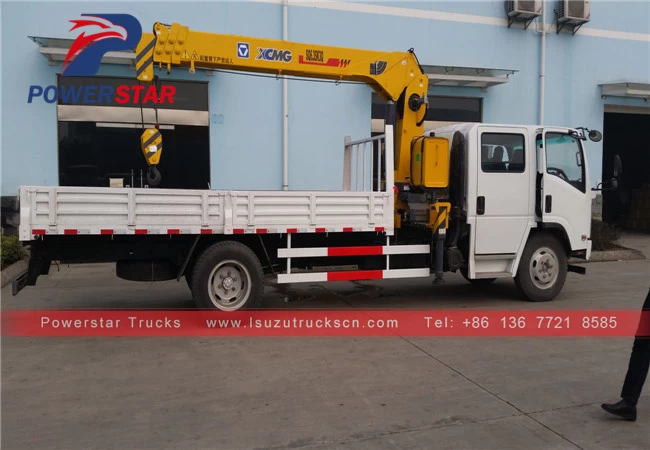

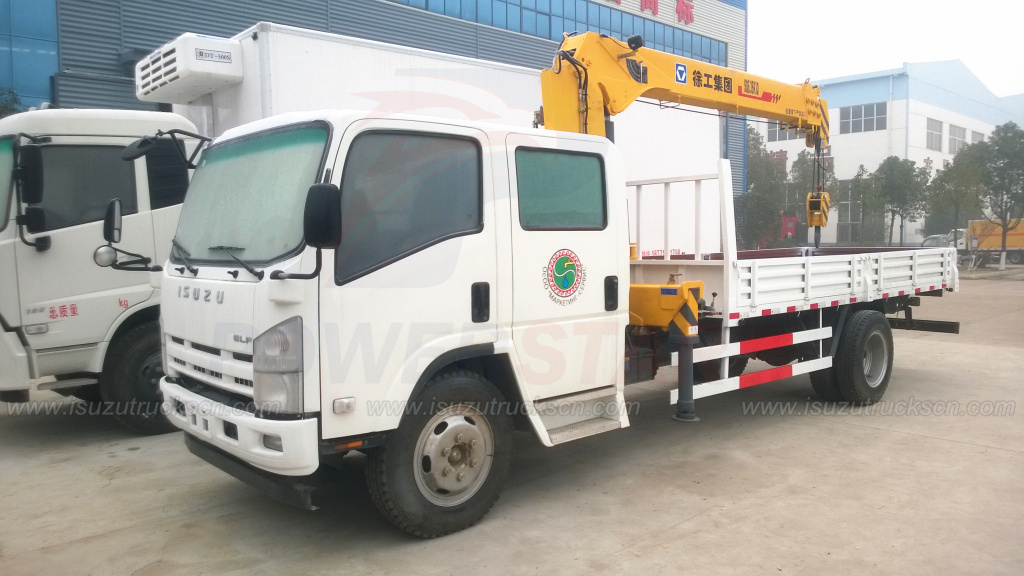

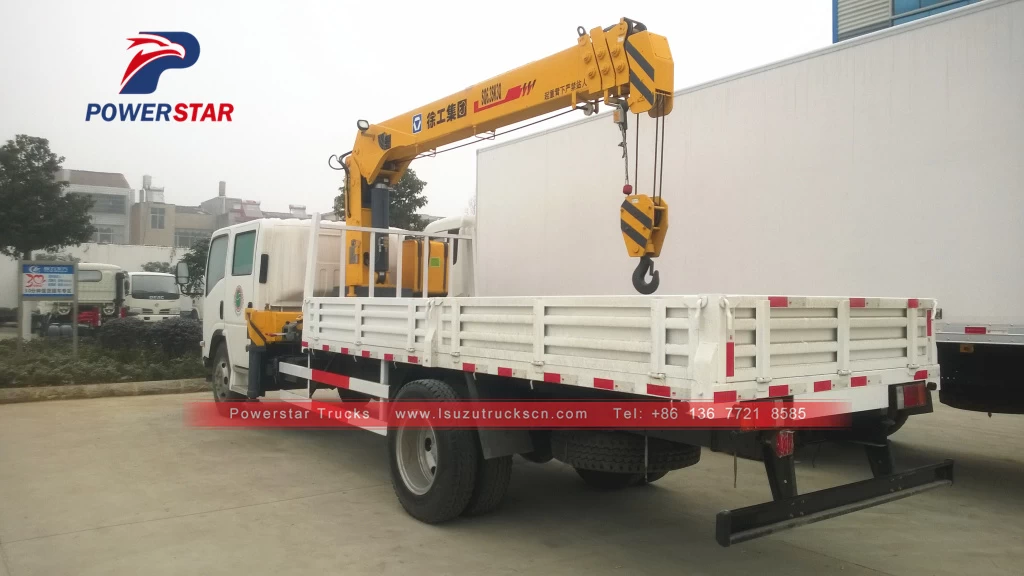

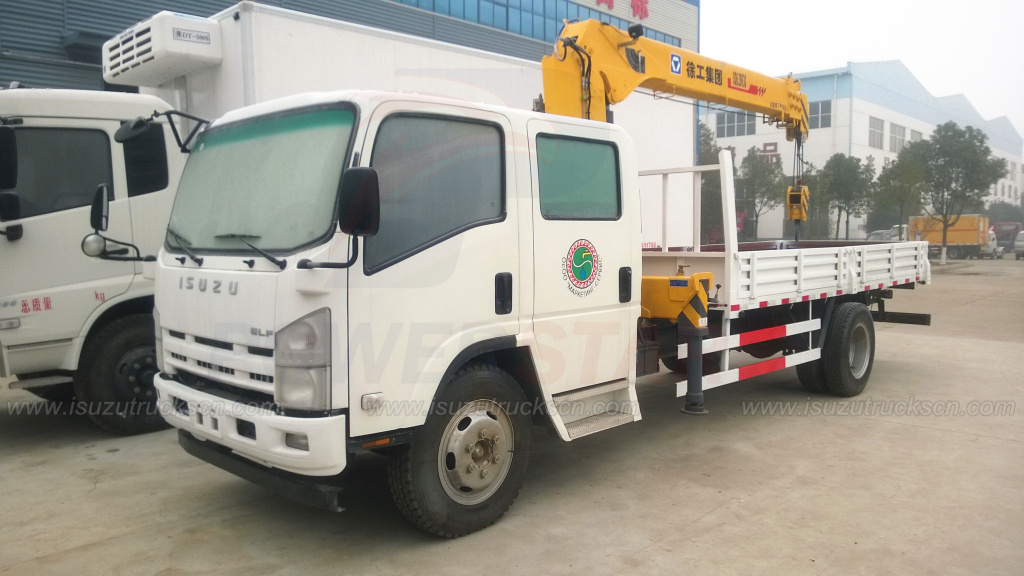

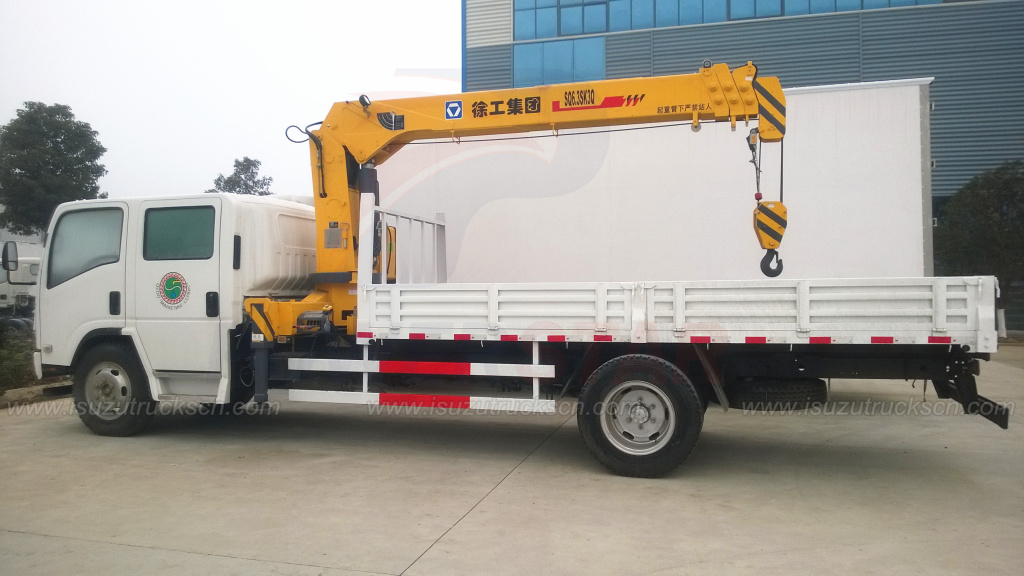

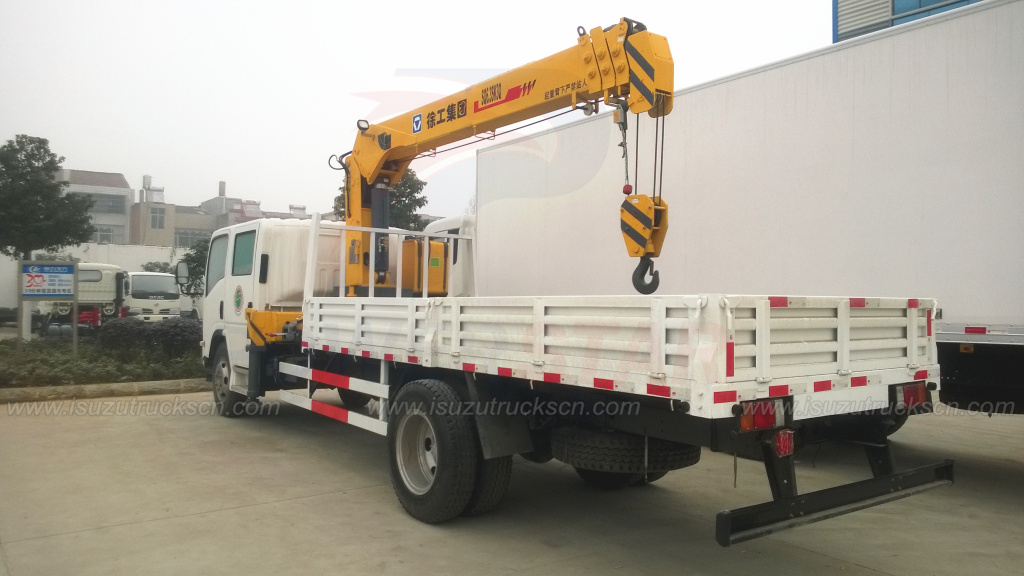

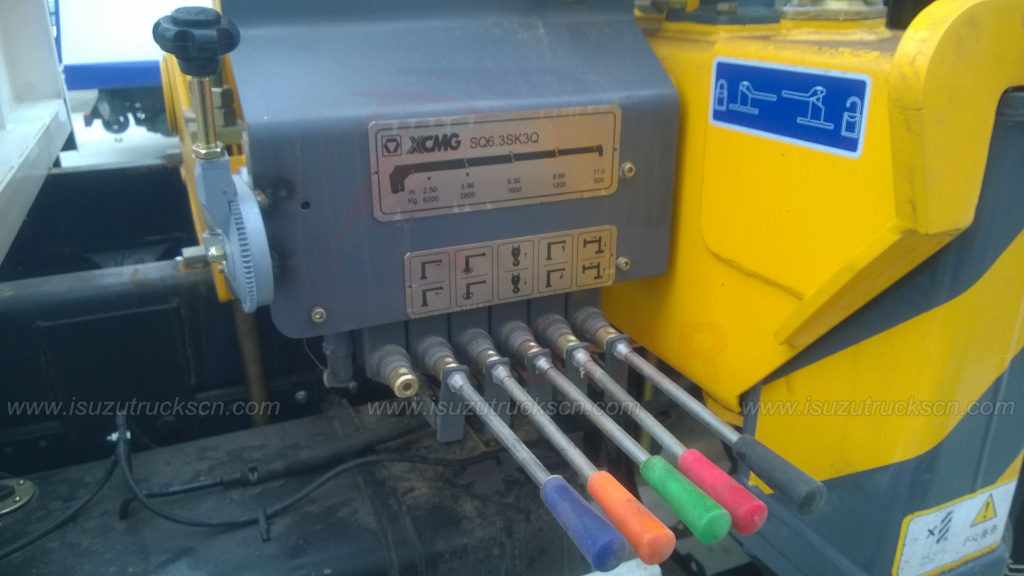

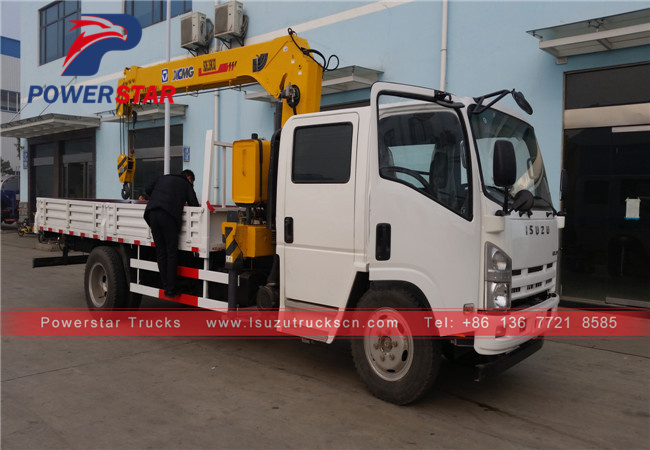

Customer build example:
ISUZU NPR ELF Crane Trucks with 6.3Ton Telescopic
Boom Truck
ISUZU NPR ELF Crane Trucks with 6.3Ton Telescopic
Boom Truck
ISUZU NPR ELF Crane Trucks with 6.3Ton Telescopic
Boom Truck
ISUZU NPR ELF Crane Trucks with 6.3Ton Telescopic
Boom Truck
ISUZU NPR ELF Crane Trucks with 6.3Ton Telescopic
Boom Truck
ISUZU NPR ELF Crane Trucks with 6.3Ton Telescopic
Boom Truck
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg
|
Spread
|
Fixed
|
2179mm
|
Single extension
|
2256-3556mm
|
Double extension
|
2212-4752mm
|
