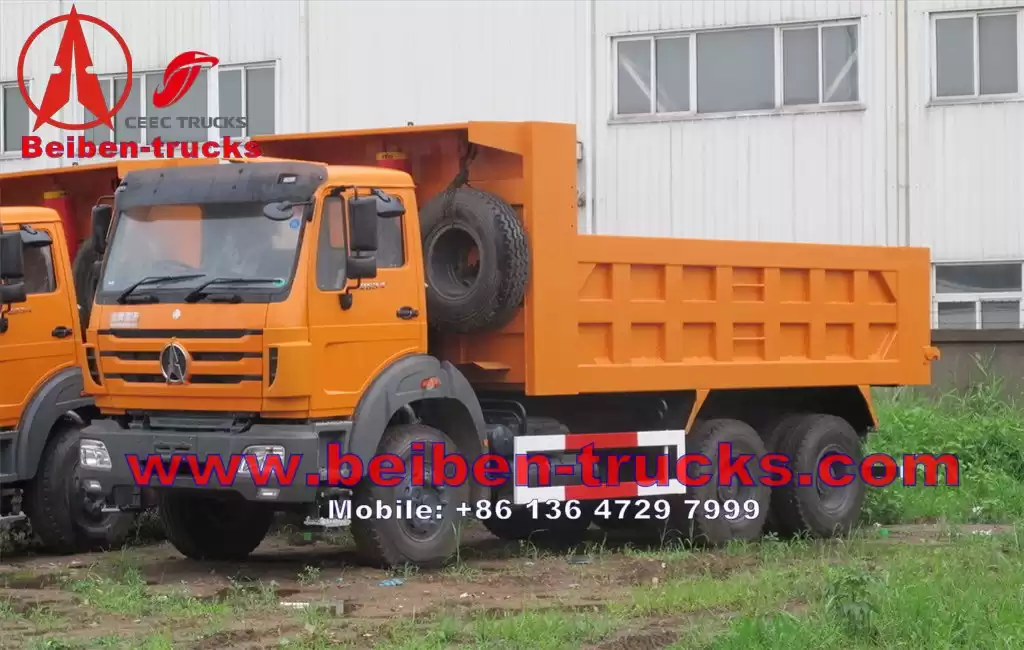

kenya 10 wheeler beiben 380 hp engine tipper truck

kenya 10 wheeler beiben 380 hp engine tipper truck , based on beiben 2638 6*4drive camions benne chassis. We are the best supplier for kenya north benz 2534,2538,2542 camions benne.



kenya 10 wheeler beiben 380 hp engine tipper truck

 We are the best supplier for congo beiben 2529,25342,2538,2542 camions benne, have exported more than 200 units kinds of beiben 6*4, 8*4 camions benne to africa .

We can supply an unlimited number of different beiben tipper trucks to any country in the world

Beiben Strong chassis with proven technology make these the work horse of your fleet. With low cost and high profitability, these are the north benz tipper trucks that constructors use.

Many options available:

  • 6×4, 6×6, 8×4
  • front or mid body tipping system
  • LHD or RDH
  • strengthened chassis
  • chose your body type and size; 10 m2, 15 m2, 20 m2
  • With or without backdoor – depending on your demands
  • with different cab types available
  • HP ranges from 280 – 480 HP, with gear boxes to match the power requirements



Wheel base  (mm)

3800+1450

Curb weight kg

12400

Engine



Model

WP10.380E32 (Wei Chai engine.Euro III,Based on Styre technology, made in China)

Power, max   kw/rpm

206/2200

Max torque(Nm/rpm)

1160/1100-1600

Emission standard

EUROII

Fuel tanker capacity   L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

ZF 5S-111GP(ZF technical, mechanism, 9 forward gears, 1 reverse gear, manual, made in China, produed by Bei Ben Transmission)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame of vehicle

Fish belly shape, variable width, variable section side beam structure

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle



Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner A/C
