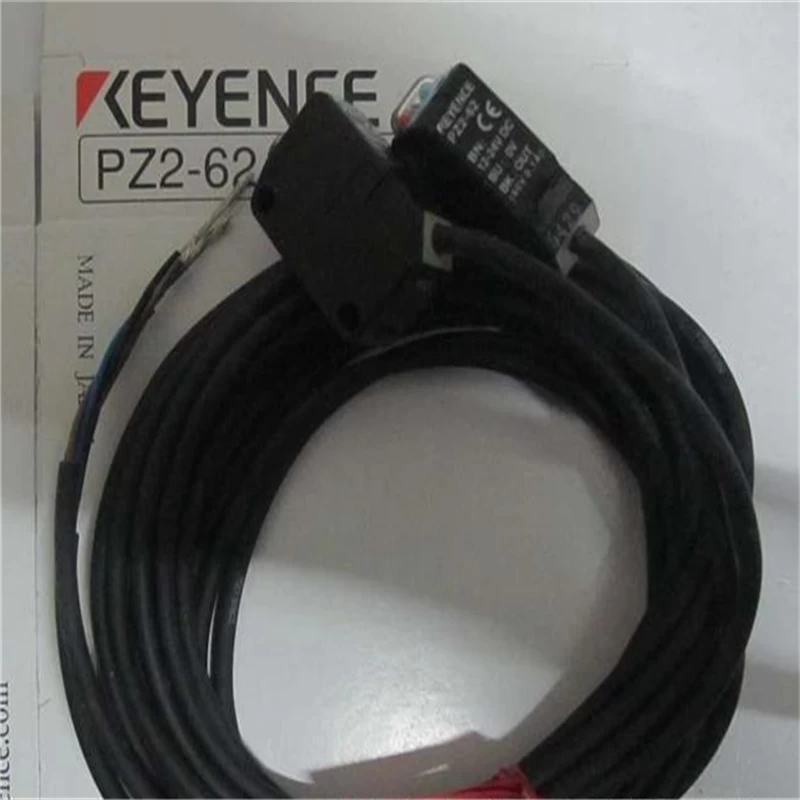

Model:PZ2-62P
SPECIFICATIONS
|
Model
|
PZ2-62P
|
|
Type
|
Retro-reflective model (for transparent object detection)
|
|
Detection distance
|
500 mm (with R-2)
|
|
Light source
|
Red LED
|
|
Detectable object
|
Transparent and opaque
|
|
Sensitivity adjustment
|
1-turn trimmer (240°)
|
|
Response time
|
1 ms max.
|
|
Operation mode
|
LIGHT-ON/DARK-ON (switch-selectable)
|
|
Indicator lamp
|
Output indicator: Red LED,Stable operation indicator: Green LED
|
|
Control output
|
Maximum PNP open-collector output: 100 mA (40 V or less), residual voltage: 1 V or less
|
|
Protection circuit
|
Reversed polarity, overcurrent protection, surge absorber
|
|
Rating
|
Power voltage
|
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
|
|
Current consumption
|
35 mA or less
|
|
Environmental resistance
|
Enclosure rating
|
IP67
|
|
Ambient light
|
Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
|
|
Ambient temperature
|
-20 to +55 °C -4 to 131 °F (No freezing)
|
|
Relative humidity
|
35 to 85 % RH (No condensation)
|
|
Vibration resistance
|
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
|
|
Shock resistance
|
1,000 m/s2, 6 times in each of the X, Y, and Z directions
|
|
Case material
|
Glass-fiber reinforced plastic
|
|
Weight
|
Approx. 50 g (including 2-m 6.6' connector cable)
|
