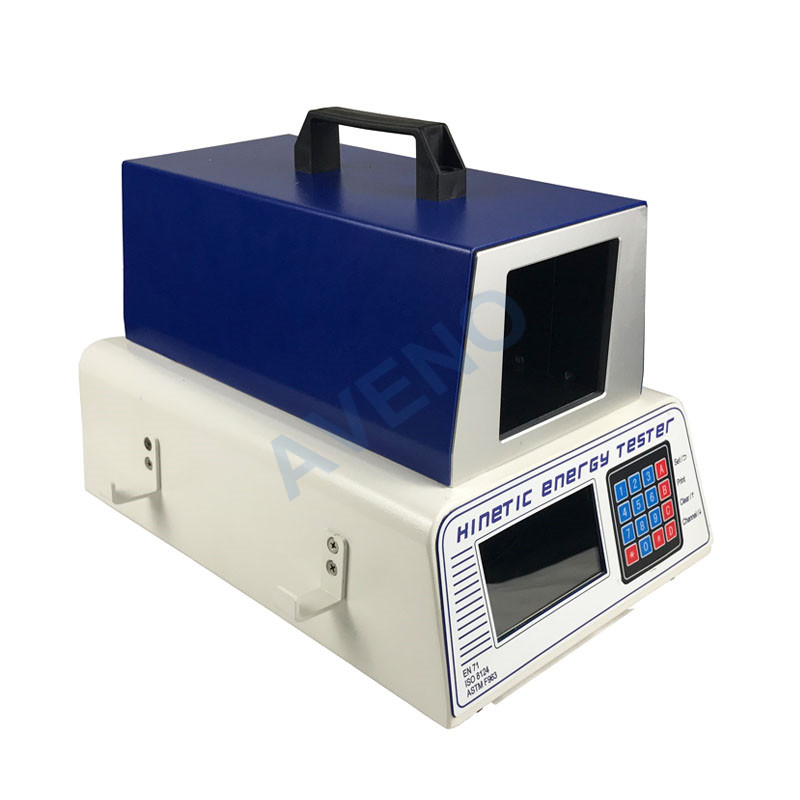

AT28-Kinetic Energy Tester
Application Of Kinetic Energy Tester
Kinetic Energy Tester is used to measure the speed and kinetic energy of energy- stored and launched toys(such as toy guns, bows, etc.), projectiles (such as bullets, arrows, etc.) or activity toys (such as toy cars, etc..
Principle Of Kinetic Energy Tester
The Kinetic Energy Tester can determine the speed and kinetic energy of a projectile by measuring the time it takes for a toy projectile or movable toy to travel a certain distance. Take 5 measurements and take the max. value as the kinetic energy result.
Standards Of Kinetic Energy Tester
ISO 8124-1 section 5.15
GB6675-2 section 5.15
EN-71-1 section 8.24
ASTM F963 section 8.14
Key Specification Of Kinetic Energy Tester
|
Model
|
AT28 Kinetic Energy
Tester
|
|
Display
|
LCD display
|
|
Number
of tests
|
5 times/group
|
|
Internal
test channel
|
100mmx100mm
|
|
Internal
Measurement
|
High Sensitivity IR
Grating
|
|
Internal
test distance
|
200mm
|
|
Internal
test projectile specifications
|
2mm~60mm
|
|
External
measurement
|
High Sensitivity
Infrared Sensor
|
|
Sample
type of external test
|
Movable objects can be
measured
|
|
External
sensor distance
|
25~380mm, adjustable
|
|
Sample
quality
|
Key input, 0.01~999.99g
|
|
Distance
|
key input, 0.1~999.9mm
|
|
Time
display
|
0.000001~9.999999s
|
|
Speed
display
|
Automatic calculation,
display:0.0001~999.99 m/s
|
|
Kinetic
energy display
|
Automatic calculation,
display: 0.000001~999.999999 J
|
|

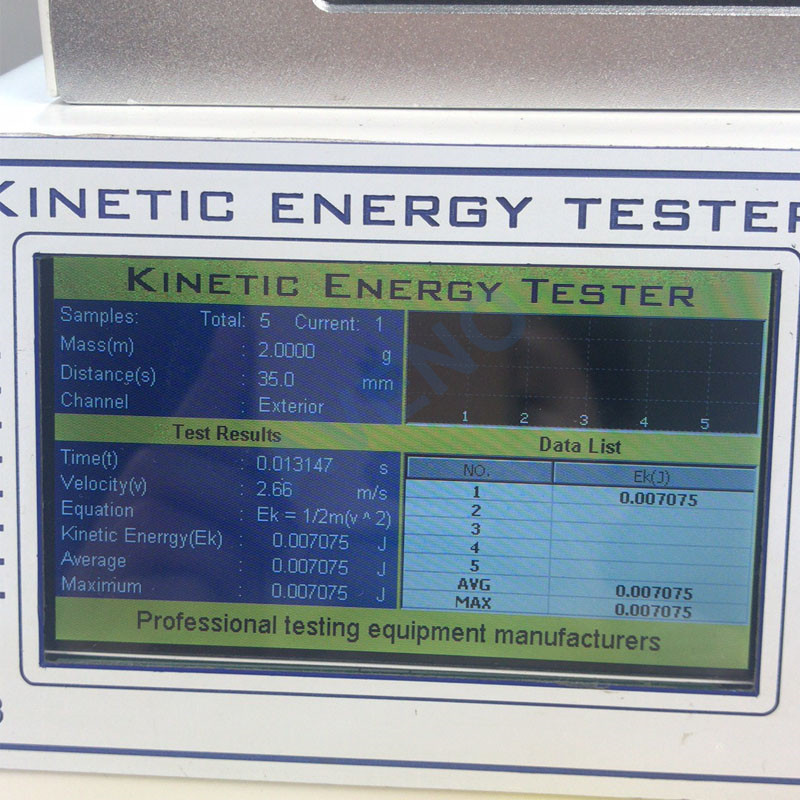

Data
display
|
Current test time,
speed, kinetic energy, average of 5 tests, maximum
|
|
Power
supply
|
AC 220V 50/60Hz 3A
|
|
Dimension
|
Host
|
31x42x30cm
|
|
External test group
|
9x43x13cm
|
|
Weight
|
12kg
|
Accessories Of Kinetic Energy Tester
|
Standard
Accessories
|

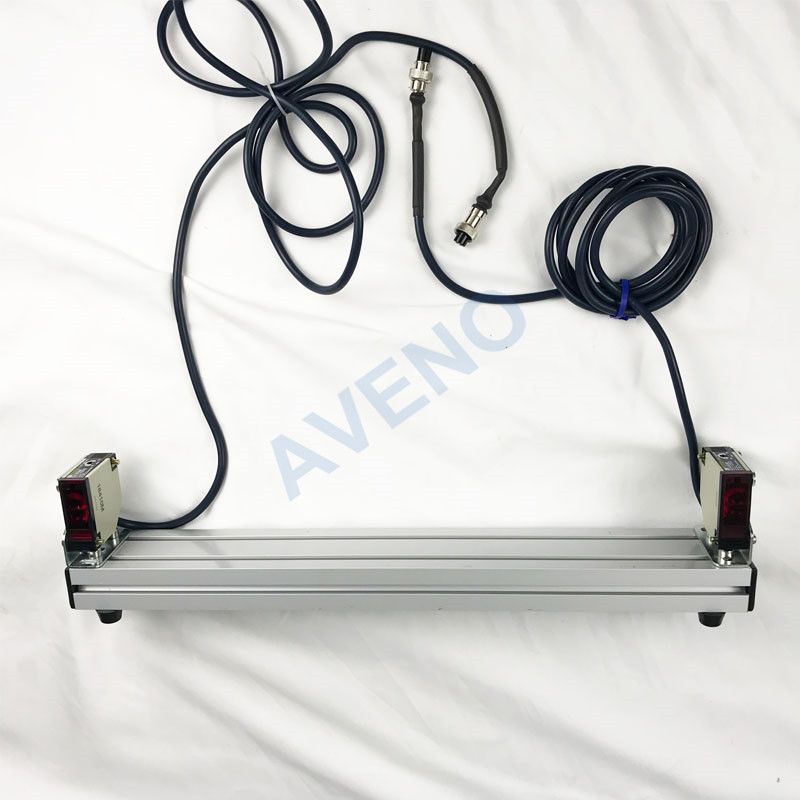

External test
sensor
|
1set
|
|
Power line
|
1pc
|
