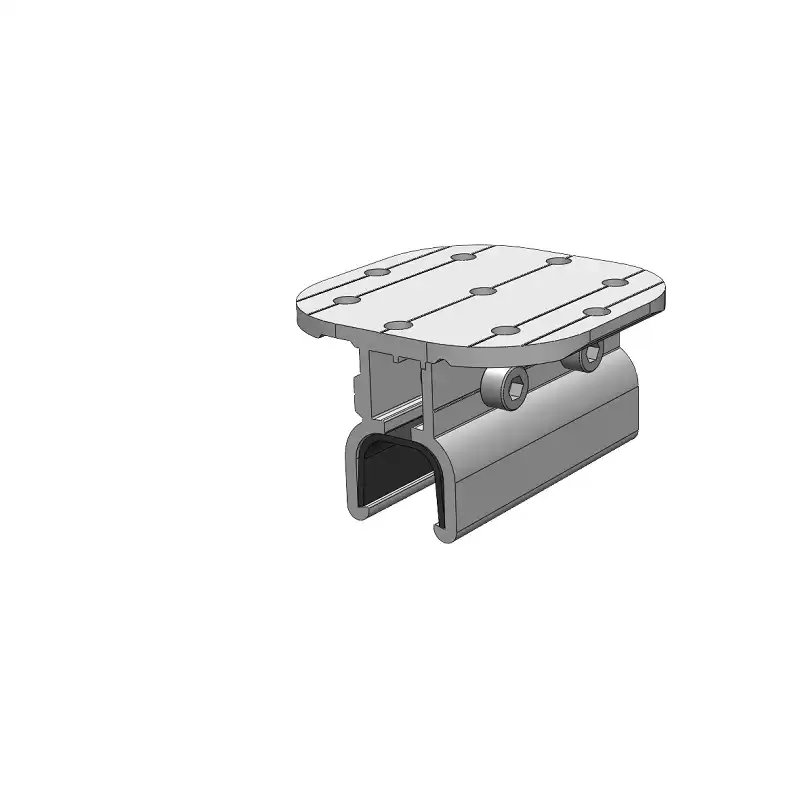

Klip lok 406&700 roof interface POW-TRB-C02
Product Description:
The Klip-Lok 406&700 is an integral part of a Klip-Lok installation, which allows for non-penetrative installations on tin roofing, fixing the rail on top of a clip lock roof.
The Powerack Universal Klip-Lok is a non-penetrative roof mounting system designed for tin roofs. They ensure water-tightness of the systems and have undergone thorough testing on real size roofing sheets.This ensures the safety, compliance, and the structural integrity of the solar installations. Thanks to this testing, Klip-lok type brackets are suitable for both tilted system installations and flush installations.
Product Category:
Tin interface
Product Code:
POW-TRB-C02
BOM:
| Product name |
Material |
Quantity |
| Main part 100mm |
Al6005-T5 |
1 |
| Side part 100mm |
Al6005-T5 |
1 |
8.1 AL Tube
|
Al6005-T5
|
2 |
| M8X30 hex socket head bolt |
SUS 304 |
2 |
Rubber pad
|
EPDM
|
1 |
Suitable for:
Lysaght KLIP-LOK 406, Lysaght KLIP-LOK 700, KingKlip, Speed Deck Ultra
Why choose us:
Unique designed of Mid&End clamps are used for 30-40mm thickness solar modules. A design that includes major specifications saves you inventory cost, quick and easy to install. Innovative design of rail connect base-support can effectively increase the product strength, ensure the safety of the product use. Powerack have a large variety of tin roof brackets provide customers options. Customized allowed according to customer needs to meet special installation requirements.
