Klip-Lok Metal Roof Solar Clamps
|
Product Name
|
Klip-Lok Metal Roof Solar Mount Racking System
|
|
Mount Location
|
Sloped Roof
|
|
Mount Base
|
Klip-Lok 406/700 Metal Roof
|
|
Mount Angle
|
0-15°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
Applicable Solar Panels
|
Framed Panels & Frameless Panels
|
|
Solar Panel Layout
|
Horizontal Panel Installation & Vertical Panel Installation
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017
|
|
Rack Material
|
Al6005-T5 (Surface Anodic Oxidation）
|
|
Fastener Material
|
SUS304/SUS410
|
|
Mounting Accessories Material
|
Al6005-T5 (Surface Anodic Oxidation）
|
|
Column color
|
Natural Silver or According to Customer
|
|
Warranty Period
|
10 years
|
|
Service Life
|
25 years
|
|
Loading Port
|
Xiamen Port,China
|
Advantages:
1. The Klip Lok clamp are simply attached to metal rooftop and provide a secure non-penetrating fastening solution.
2. Improved grabbing part for metal rooftop solar installation.
3. Fully anodized aluminum and SUS304 fasteners.
4. Can use with bottom mount rail.
5. The Klip Lok clamp would be simply fastened by 2 hex bolts.
Suitable for Klip-Lok Metal Roof
The Klip-Lok roof clamp provides an easy way to mount solar panels on Klip-Lok type roofs without penetrations.The Klip-Lok interface is a small platform that clamps on to the Klip-Lok 'ribs' without drilling through the tin roof. The solar mount clamp can be used with bottom mount rail, which can save installation time and labor cost.
|
Racking Accessories
|
Roof Clamp with Bolts,Washers,EPDM washer
|
|
Rails
|
|
Bolts and blocks(toggles)
|
|
End Clamp with Hex Socket Head Bolts M8,Toggles
|
|
Mid Clamp with Hex Socket Head Bolts M8,Toggles
|
More Similar Products:

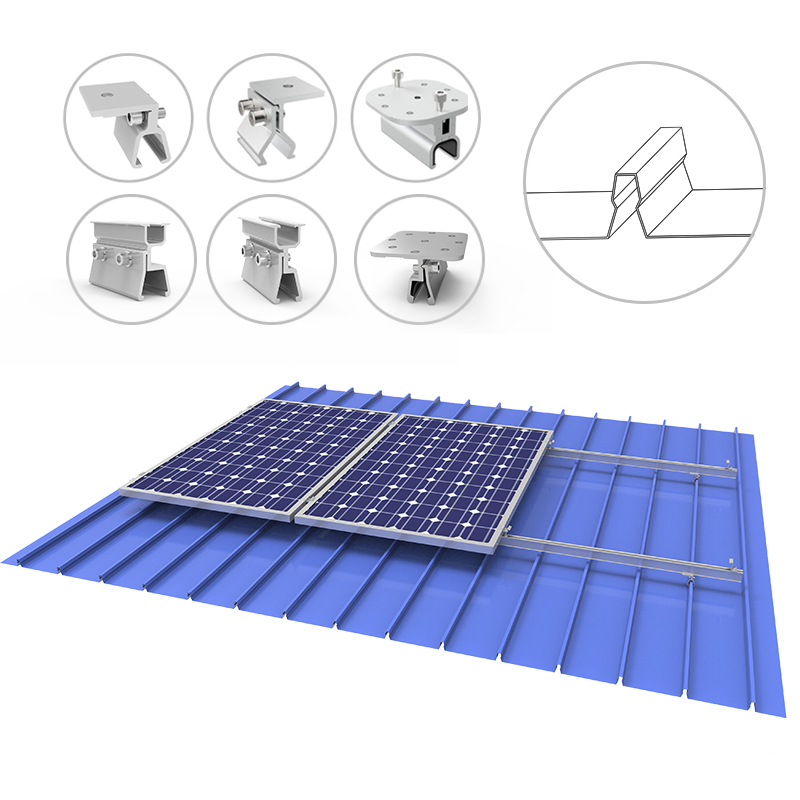

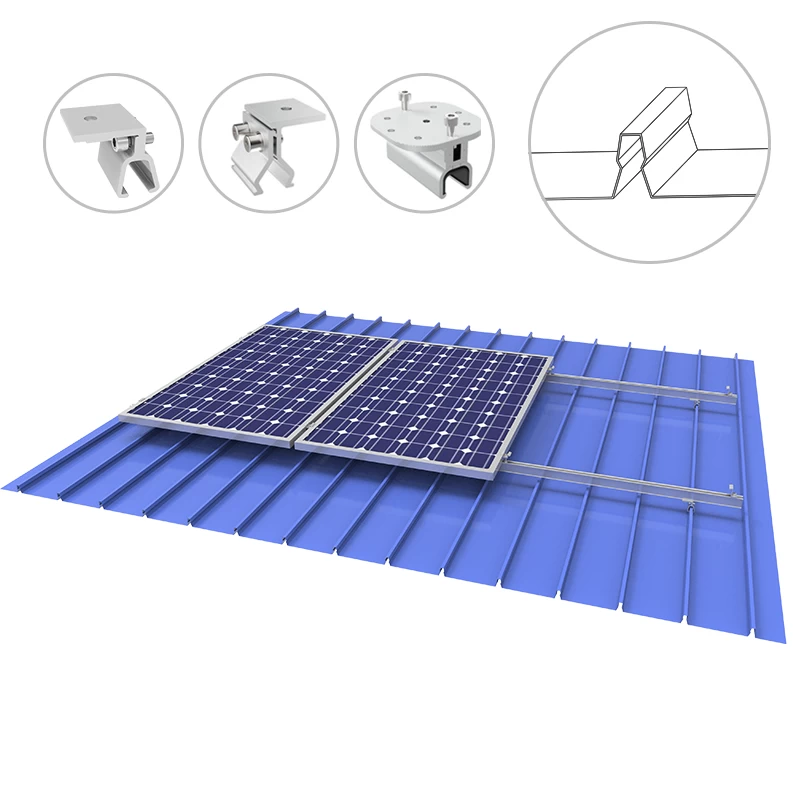

There are more options of rooftop clamps for Klip-Lok metal rooftop solar PV installation.
While metal roofs are
growing in popularity, they are still far less common than asphalt
shingles, and many contractors are unfamiliar with roofing or solar
panels, let alone how to combine the two. But the answer is a resounding
"yes" - the metal roof solar panel mount is absolutely doable.
