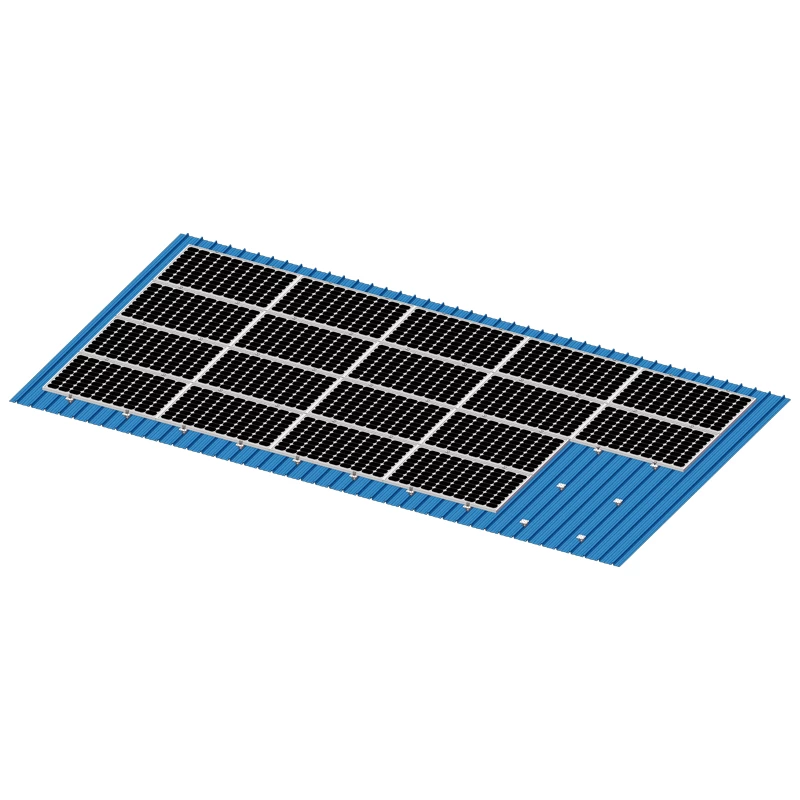

Product Name: Kliplok 700 stand seam roof mounting system
Product Description:
Klip Lok Standing Seam Roof Mounting is 100% no damage roof and is flexible for commercial and residential areas. Do not need rail to make installation easy and lower cost.
Brief Introduce:

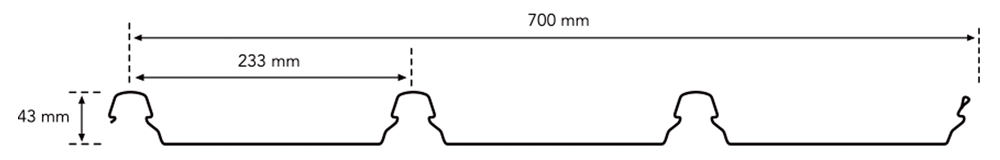

Install Site: Klip Lok 700 Roof
Max Building Height: Up to 20m(≈65ft).
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5
Warranty: 10 years warranty; 25 years service life.

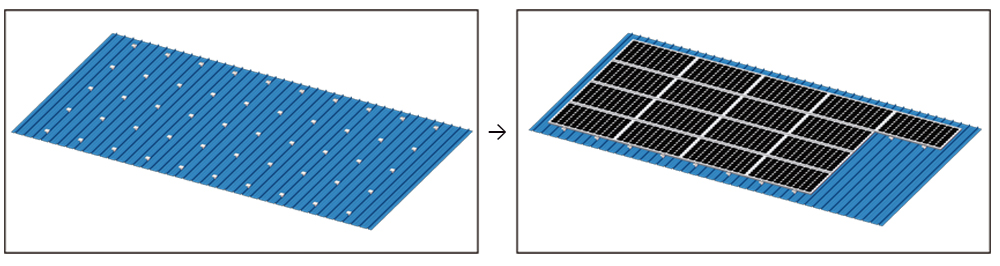

Installation Guide:
Step 1: Install railless clamp hook on roofing as per technical drawing.
Step 2: Fix solar panel on railless clamp hook until finished.

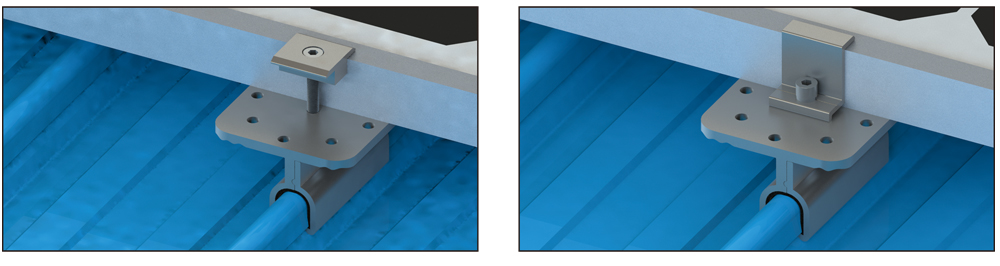

Detail:

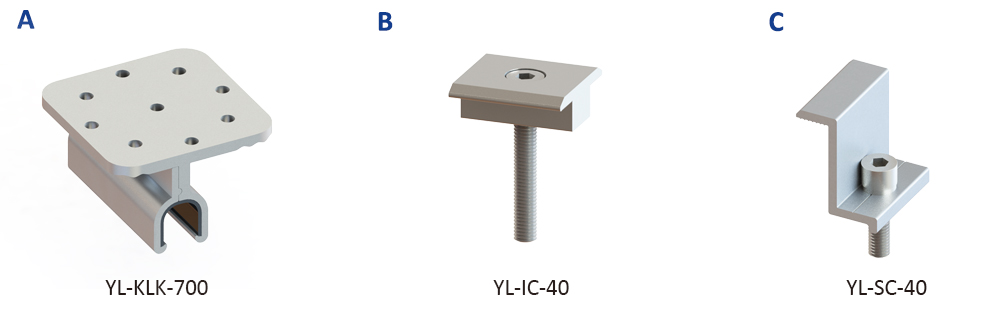

Components List:
A: Klip lok 700 roofing clamp hook
B: Mid clamp
C: End clamp
