The PS416-INP-400 digital input cards detect local signals for medium-sized and large machine and plant controls.
The digital input cards detect 24 V DC input signals
from external signal encoders via their 16 inputs and
make them available for further processing to the
central processor of the PLC.
Depending upon the requirements, the
PS416-INP-400 or the PS416-INP-401 can be used.
The basic difference has to do with the on/off delay
(see “Technical Data” on page 4-1).
The digital output cards supply the 24-V-DC for the
actuators. For this, the PS416-OUT-400 features
16 500 mA outputs; the PS416-OUT-410 has 8
2 A outputs.
|
|
|
|
|
Semi-Conductor Inputs
|
|
|
|
|
|
|
|
|
|
Signal Voltage
|
|
Connection Points
|
|
On-Delay Normally
|
|
Off-Delay Normally
|
|
|
|
|
|
|
|
|
|
24 VDC
|
|
16
|
|
0.2 ms
|
|
0.2 ms
|
KLOCKNER MOELLER PS416-INP-401
PS416-INP-401 | KLOCKNER MOELLER | Digital Expansion Module
Email:sales3@amikon.cn
|
Features
|
-
Space required: 1 slot
-
Addresses are defined separately with coding switches on the card
-
The card is configured with the S40 Topology Configurator
-
16 inputs
-
16 Status LEDs for the inputs
-
Potential isolation of all inputs through optocoupler
-

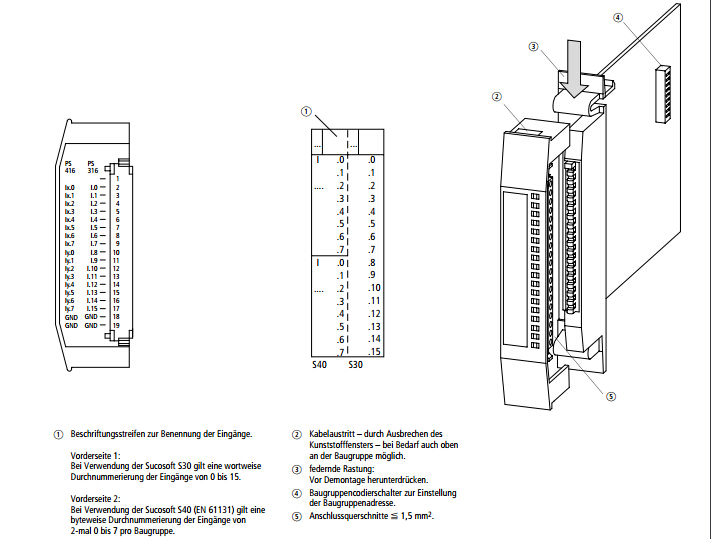

Labelling field for individual designation of inputs
-
Plug-in screw terminals allow prewiring of the plug connectors
-
Integrated RC circuit for interference suppression
-
Can be used in basic unit and expansion racks of the PS416
-
Provides input information on the local bit bus
|
More details --- please contact us !!!
|
