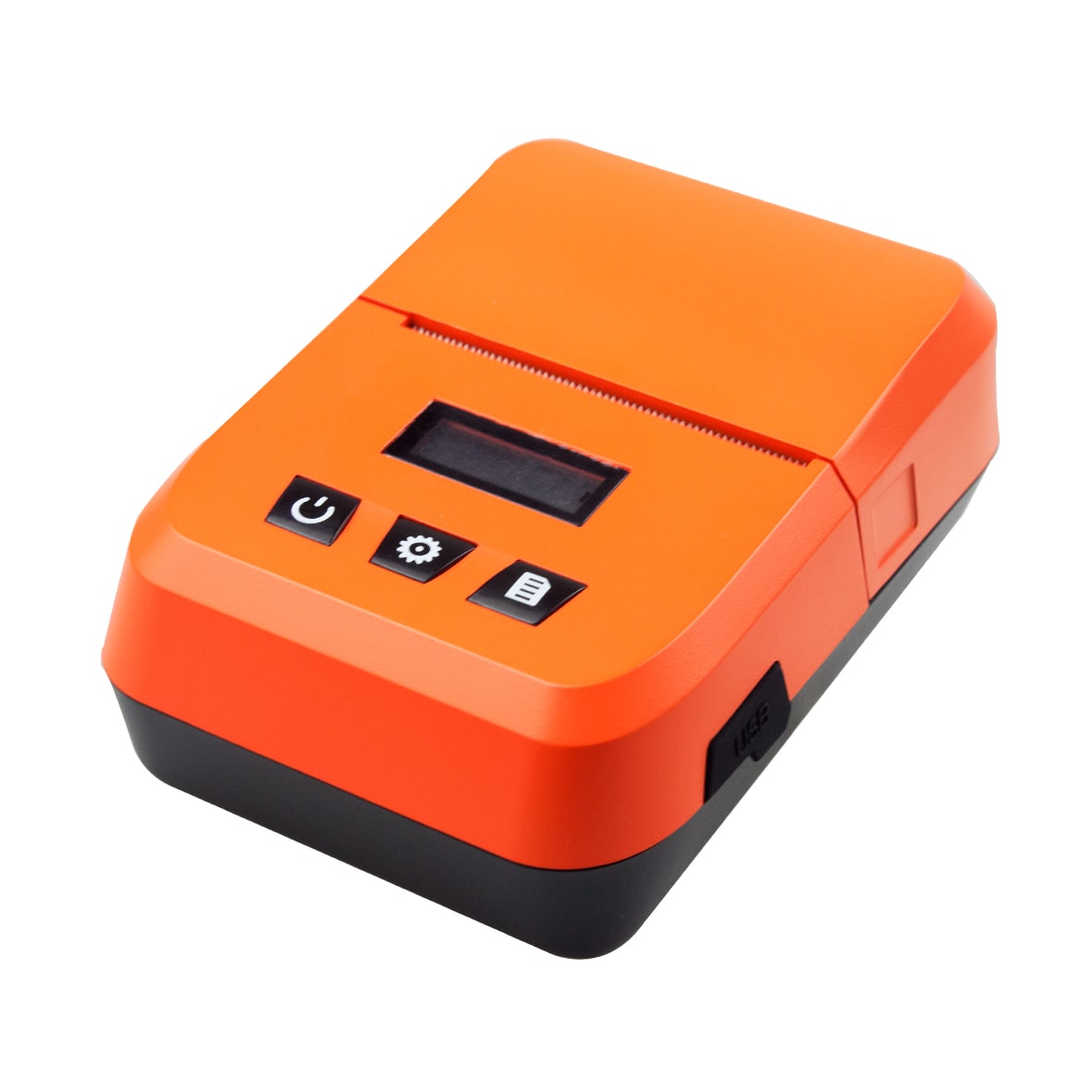

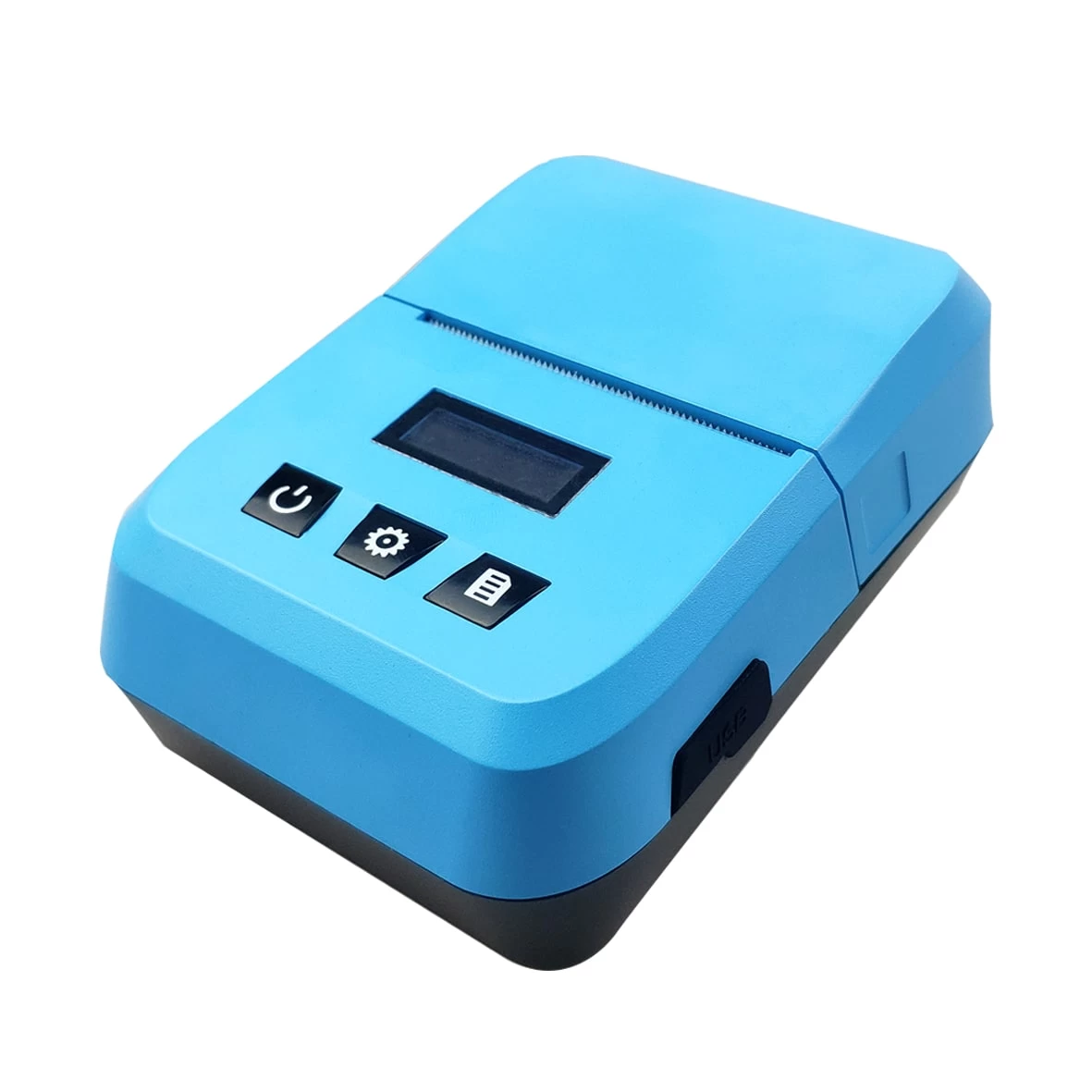

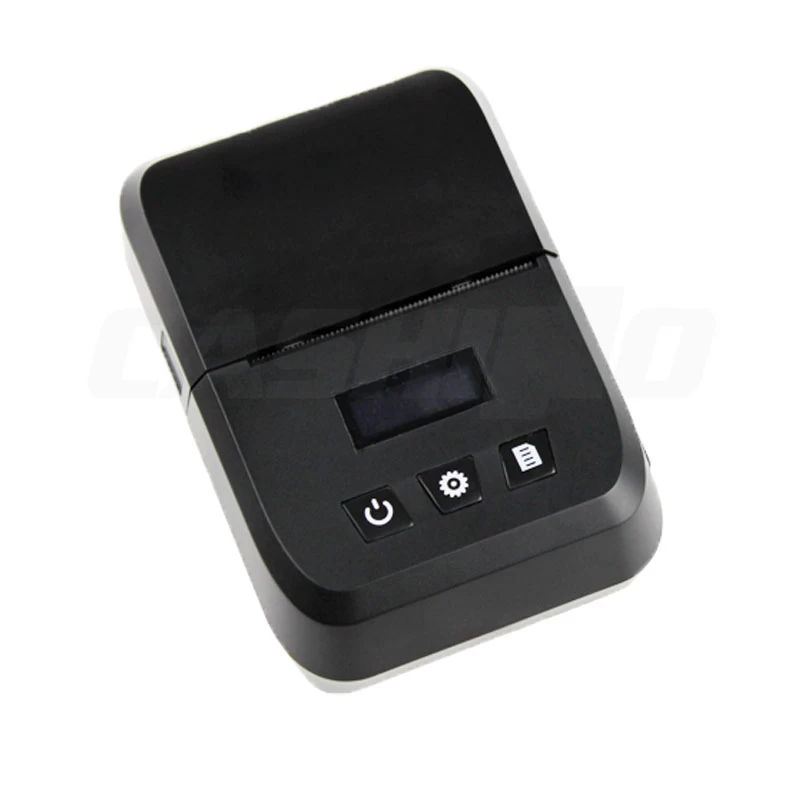

KLP-II 58MM mobile bluetooth label printer
KLP-II is a smart and compact mobile label and ticket printer. Easy-to-use, productivity-enhancing printers are small and lightweight, and can be easily carried on belt clips or trolleys, especially for foodservice industry to print the thermal label and receipt any time any place. Above all this 58mm mobile printer could support USB charging, this will reduce your cost.
Highlights
1). Support label and receipt printing
2). Easy loading paper
3). OLED Display
4). Anti-throw capacity could reach 1.5m with case protective
5). Multi-interfaces: USB and Bluetooth
6). Direct USB charging
7). Support client-side firmware upgrade
8). Provide Android system SDK software development kits
9). supply label edit app (only Android)
Specification
| MODEL |
KLP-II |
| Print |
print mode |
Thermal line printing |
| Printing speed（Max.) |
50mm/s (Label) , 90mm/s(Receipt) |
| Resolution |
203dpi(8dots/mm) |
| Effective printing width |
48mm |
| Paper spec. |
Paper Type |
Thermal paper roll/Thermal label roll |
| Paper Thickness |
Receipt:0.055-0.09mm ; Label:0.10-0.13mm |
| Paper Width |
25-58mm |
| Paper Diameter(O.D) |
40mm(Max.) |
| Roll Core Inner Diameter |
13mm(min) |
| Paper supply method |
Drop-in easy loading |
| LED indicator |
OLED display |
| Reliability |
TPH |
50km(12.5% print ratio) |
| Detection |
Paper end,Cover opend,paper gap |
| Barcode |
1D |
EAN-13,EAN-8,CODE39,CODE93,CODE128,CODEBAR,ITF,UPC A,UPC-E |
| 2D |
QR CODE,PDF417 |
| Text and graphic support |
Figure, symbol, graph, curve, icon, multi-languages |
| Command set |
ESC/POS,TSPL |
| Driver/SDK |
Windows Driver, Linux Driver,Android SDK,Label editor app(Andriod version) |
| Interface |
Wire |
Micro USB |
| Wireless |
Dual bluetooth |
| Battery |
7.4V,2000mAh |
| 3Hrs charging time |
| 72Hrs Stand-by |
| Battery adapter |
5V,2A USB Charging |
| Optionals and accessories |
Li-polymer battery, AC adapter, Micro USB cable,paper roll, |
| Protective Case,CD, user manual |
| Temperature |
Operating:0℃~50℃ |
| Storage:-20℃ ~ 60℃ |
| Humidity |
Operating:10%RH~80%RH |
| Storage:10%~90%RH |
Applications:
1). Mobile ticket
2). Mobile POS
3). Logistic
4). Transport
5). Retail
Company Information:
Xiamen Cashino Technology Co., Ltd. is a professional manufacturer of thermal printers since 2011, with the ISO9001, CE, Rohs and FCC certificates passed. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
Certificates:
Our Services:
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
