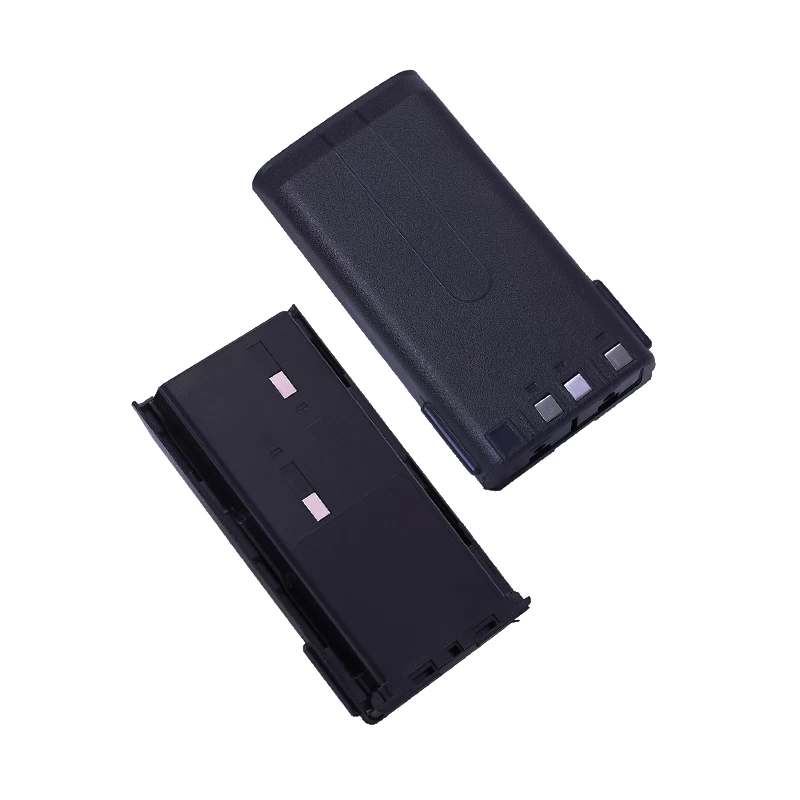

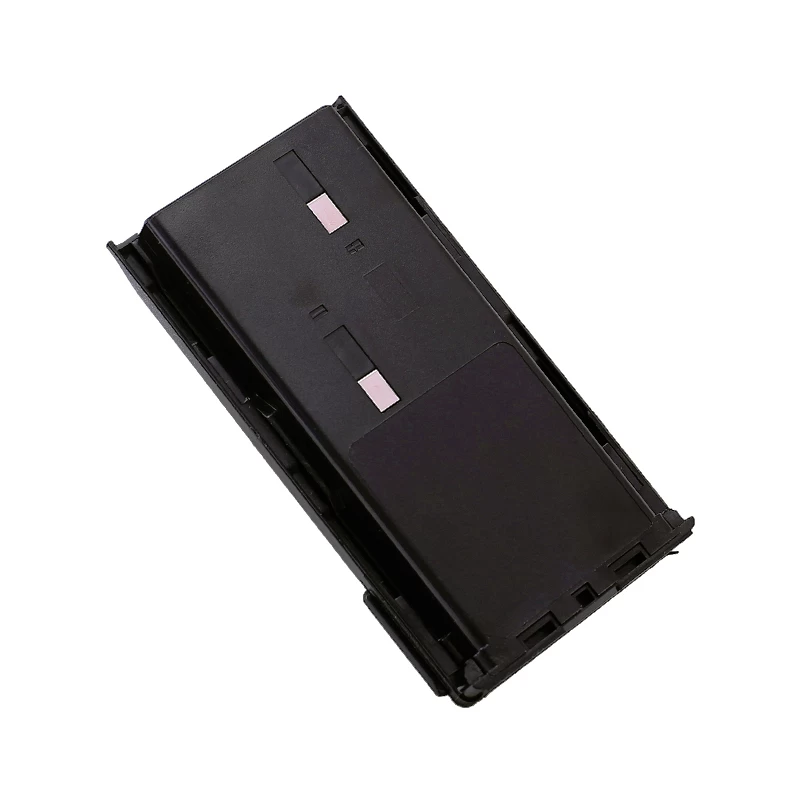

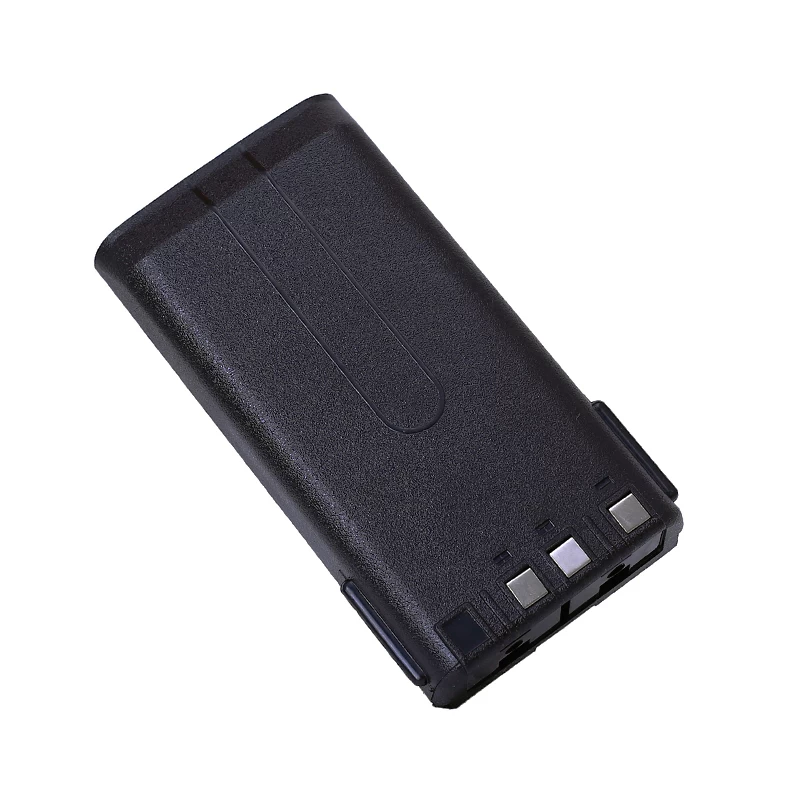

KNB-15 for KENWOOD also fits in the following models:
TK-3107 TK-360G TK-370G TK-373
TK-378G TK-379 TK-388G TCP-113 TK-378GC TK-382 TK-388G
KNB-15 for KENWOOD can also replace the following batteries:
KNB-14H KNB-15A KNB-15S
KNB-20N KNB-14N
KNB-15B KNB-14A KNB-14 KNB-15H KNB-20
|
General Specifications
|
|
Original Model No.
|
KNB-15
|
|
Compatible Radio Models
|
TK-2102G TK-260 TK-261 TK-272
TK-278G TK-3100 TK-3101 TK-3102G TK-338
TK-361 TK-372 TK-373G
|
|
Place Of Original
|
China
|
|
Voltage/Type
|
7.2V/7.4V NI-CD NI-MH
|
|
Capacity
|
900/1100/1300/1500/1800/2100 mAh
|
|
Dimensions (mm)
|
110*60*20mm
|
|
Mechanical
|
|
Cells used
|
Chinese cell or Japan cell
|
|
Plastic material
|
PC+ABS+fireproofing material
|
|
Assembly construction
|
Housings bonded by ultrasonic
|
|
Charger&radio contacts
|
silver-plate
|
|
Environmental
|
|
Charging temperature
|
+0°C to +45°C
|
|
Discharging temperature
|
-20°C to +60°C
|
|
Storage temperature
|
+25°C + –5°C
|
|
Storage position
|
non-critical
|
|
Package
|
|
Inner packing
|
Polyethylene tape packaged batteries in white separate boxes
|
|
Outer packing
|
Put white separate boxes into
34*34*34cm carton, 100PCS each carton
|
