KOBELCO Slewing Gearbox Bearing 25Z494D11 for SK200
25Z494D11 bearings are used in the Excavator Slewing Gearbox Bearing system of KOBELCO heavy machinery equipment：
25Z494D11 BEARING Kobelco parts SK200LC K907 K907D K907DLC K907LC MD200BLC MD200C SK150LC SK160LC SK200 ED180 SK210 SK210LC
KOBELCO Excavator Bearing 25Z494D11
| P/N | 25Z494D11 |
Material: |
GCR15 |
| i/d |
mm |
O/D |
mm |
| H |
mm |
Brand： | ZHZB |
|
Precision |
P0 , P6 , P5 |
Structure: |
Cylindrical Roller Bearings |
1. Special bearing for excavator slewing gearbox
2. With high radial load capacity, it can also bear axial load in any direction.
3. High-strength high-quality steel
4. Long service life
5. Smooth rotation, low noise
Our advantage:
100% factory quality inspection
Respond to customer questions within one day;
Allow small orders;
Faster transportation efficiency
Good after-sales service.
Professional manufacturer of bearings for slewing gearboxes of excavators. Has many years of manufacturing experience

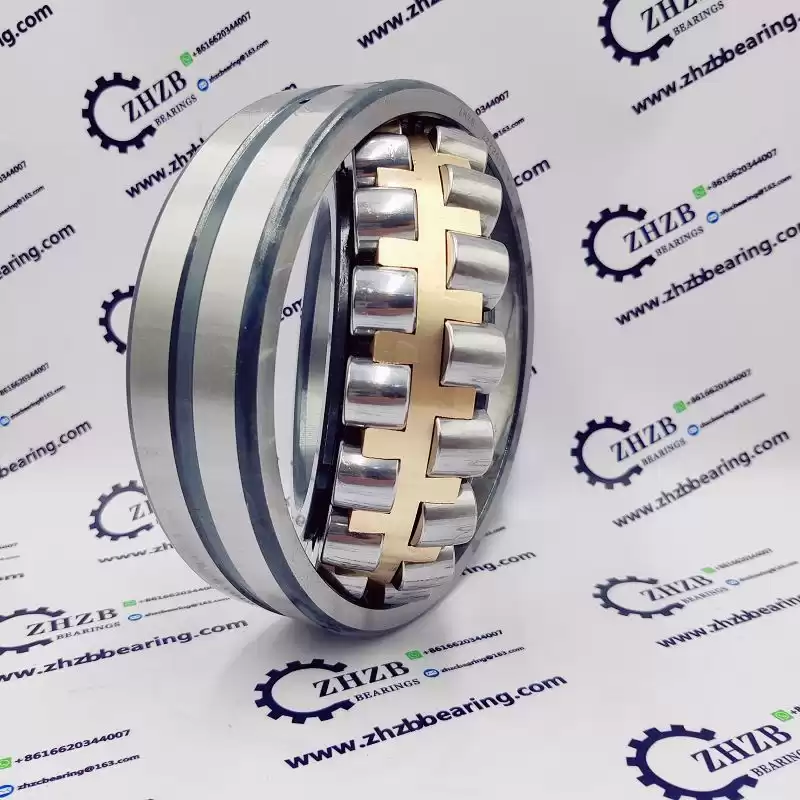

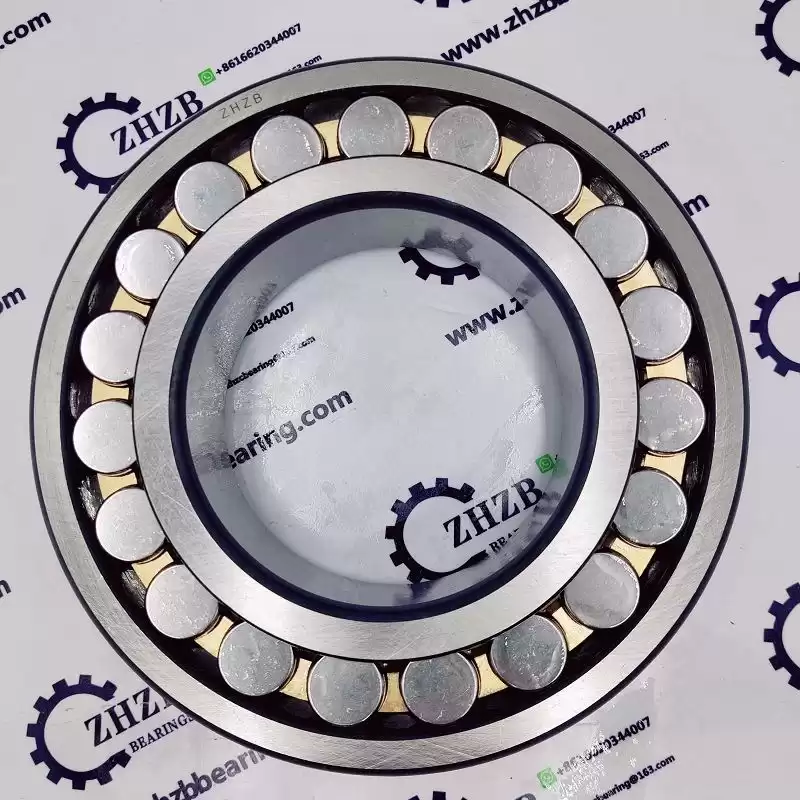

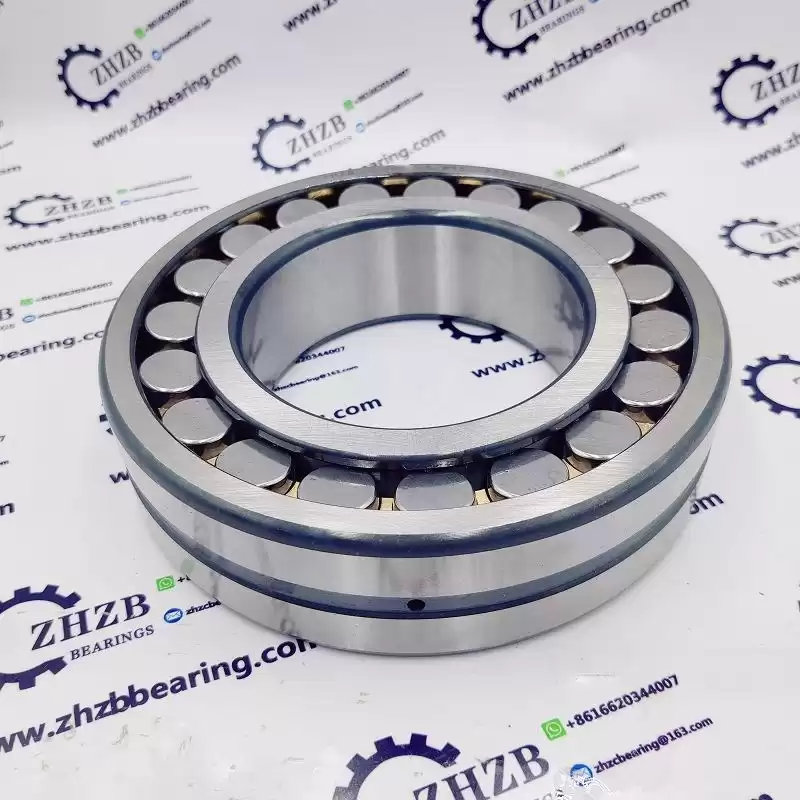

Product Photos

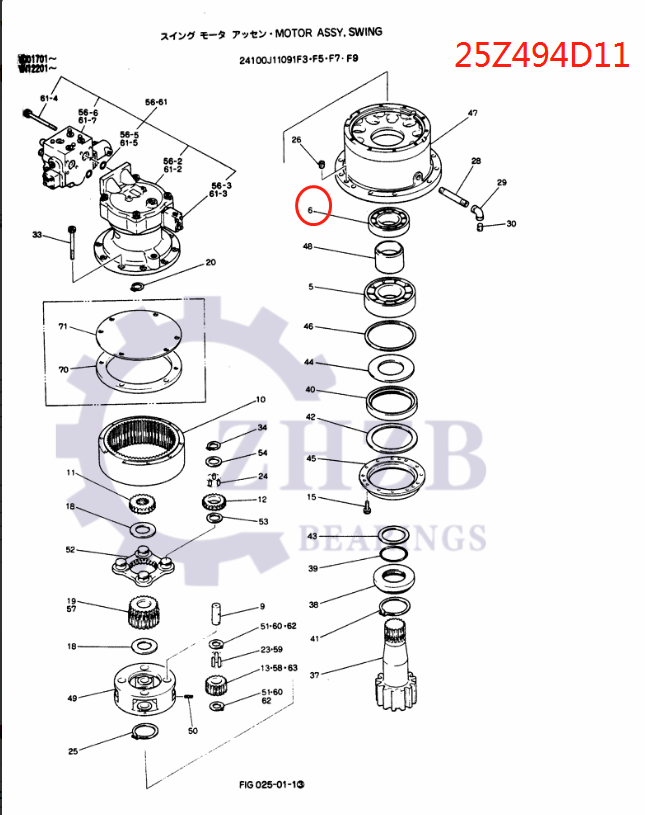

Any other parts for the slewing gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos. |
Part No |
Qty |
Parts name |
Comments |
|
. . |
24100J6175F2 |
[1] |
REDUCTION UNIT |
|
|
1. |
2401N590 |
[1] |
FINGER ASSY. |
KOB |
|
2. |
2418T13611 |
[1] |
SLEEVE |
KOB |
|
3. |
2418N2509 |
[1] |
RETAINER |
KOB Superseded by part number: 2418N3331 |
|
4. |
2414J1049 |
[1] |
HOUSING |
|
|
5. |
2425Z490 |
[1] |
BEARING |
KOB |
|
6. |
25Z494D11 |
[1] |
BEARING |
KOB |
|
7. |
2413J350 |
[1] |
DIFF. SPIDER |
KOB |
|
8. |
2413N391F1 |
[1] |
SPIDER |
KOB |
|
9. |
2410P694 |
[4] |
ROLLER SHAFT |
KOB |
|
10. |
2401N431 |
[1] |
GEAR |
KOB |
|
11. |
2401P624 |
[1] |
SUN GEAR |
KOB |
|
12. |
2401P625 |
[4] |
PINION |
KOB |
|
13. |
2401P627 |
[4] |
PINION |
KOB |
|
14. |
ZD11G09500 |
[1] |
O-RING,94.40mm ID x 100.60mm OD x 3.10mm |
KOB ID 94.40 ± 0.81 x OD 100mm |
|
15. |
ZS23C08030 |
[12] |
SCREW,Hex Socket Head, M8 x 30mm |
KOB M08x1.25x30mm Superseded by part number: ZS28C08030 |
|
16. |
2418R218 |
[1] |
SEAL, OIL |
SEAL, OIL |
|
17. |
2418T13612 |
[1] |
SPACER |
KOB |
|
18. |
2418T12561 |
[2] |
SPACER |
KOB |
|
19. |
2401P626 |
[1] |
SUN GEAR |
KOB |
|
20. |
ZR16X04500 |
[4] |
RING |
KOB Retaining -- ID 45 x OD 58 x Th 1.8mm |
|
21. |
2418T7535 |
[4] |
THRUST WASHER |
KOB |
|
22. |
2418T8322 |
[4] |
THRUST WASHER |
KOB |
|
23. |
2418T7513 |
[4] |
LOCKING PLATE |
KOB |
|
24. |
ZS23C08014 |
[8] |
SCREW,Hex Socket Head, M8 x 14mm |
KOB M08x1.25x14mm |
|
25. |
ZR16X08500 |
[1] |
LOCKING RING |
KOB |
|
26. |
ZS83C20020 |
[2] |
SCREW |
KOB Set -- M20x2.50x20mm |
|
27. |
2418T5452 |
[8] |
THRUST WASHER |
KOB |
|
28. |
ZE82T12000 |
[1] |
PLUG |
KOB 3/4" PT |
|
30. |
ZS23C14140 |
[10] |
SCREW,Hex Socket Head, M14 x 140mm |
KOB M14x2.0x140mm |
|
31. |
ZE82T08000 |
[1] |
PLUG |
KOB 1/2" PT |
|
32. |
2418T12562 |
[1] |
SPACER |
KOB |
|
33. |
2418N2307 |
[1] |
FLANGE |
|
|
34. |
ZE82T06000 |
[1] |
PLUG |
KOB Pipe, 3/8" PT |
|
. . |
24010P3F14 |
[1] |
SHAFT |
KOB CONSIT OF REF 9 |
