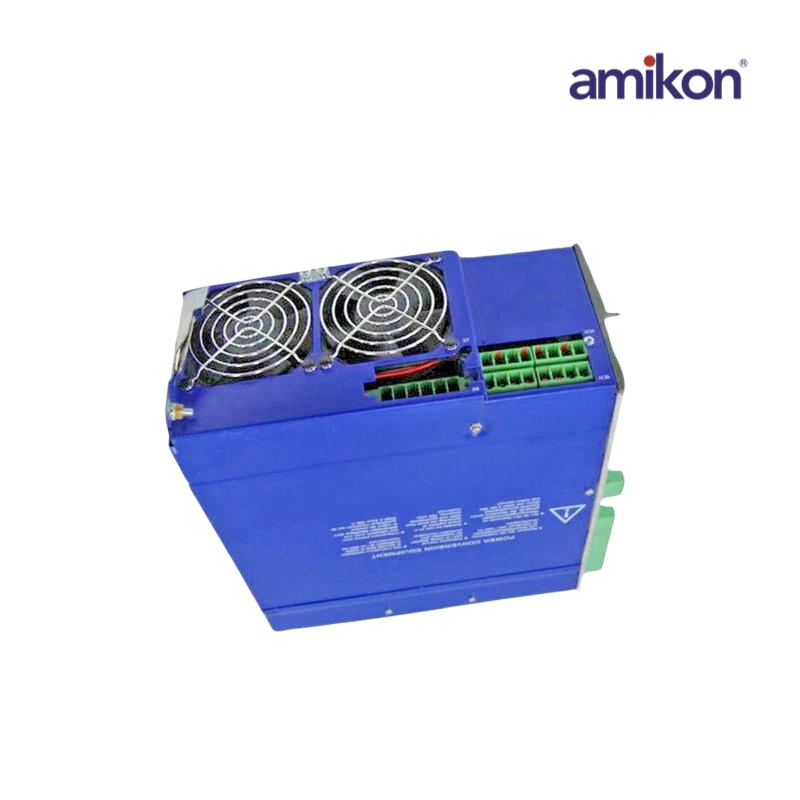

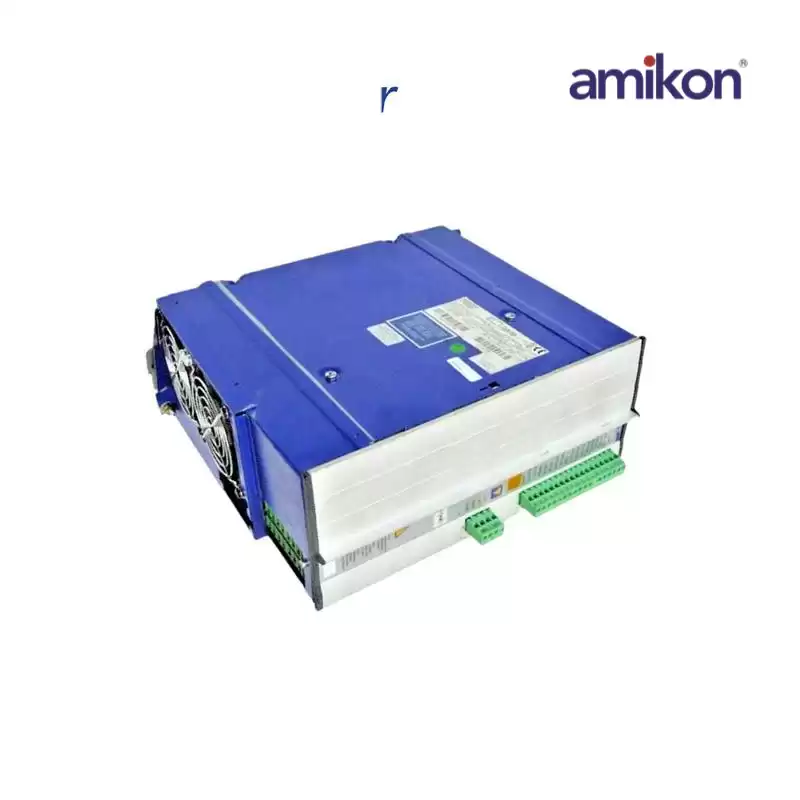

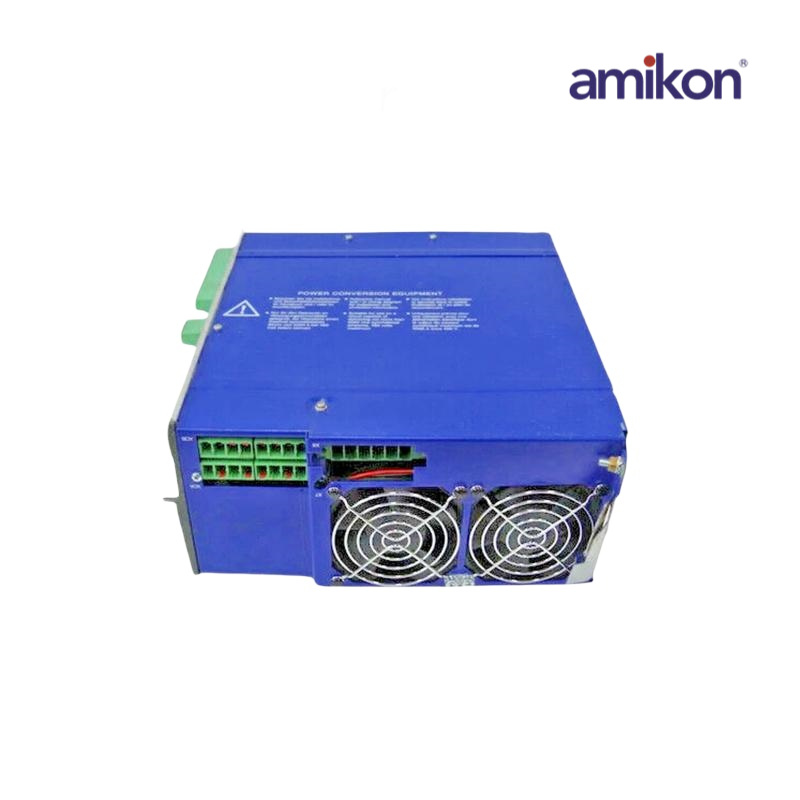

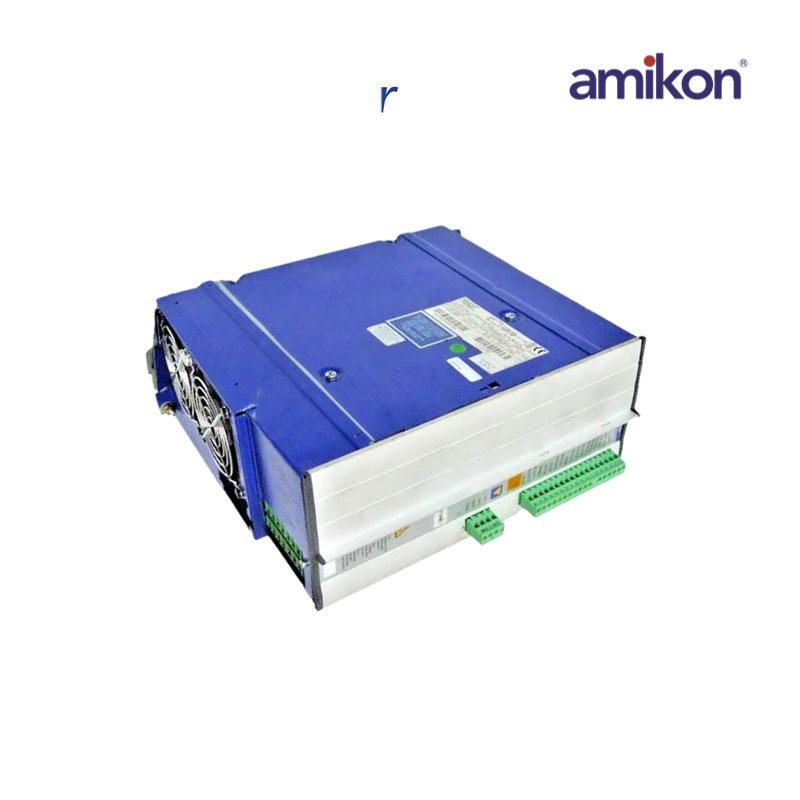

KOLLMORGEN 620-AS S62001 Servo Drive

The 620-AS S62001 is an Servo Drive from Kollmorgen. It is one of the P7000 series of drives from the manufacturer. The cabinet doors and covers must be kept closed during operation. The unit must not be touched for at least a couple of minutes after the power source is removed.  It has a continuous current rating of 2.5A. The device supports the use of a 7A slow-blow fuse.The drive features a maximum power rating of 350W at 120VAC or 240VAC.

The unit is available with a one-year warranty period.The drive features step and direction inputs apart from general-purpose inputs. The direction inputs have a minimum setup time of 55µs. The unit will not have condensation up to a humidity level of 90%. It must be mounted upright on a cold plate with M4 size screws. The device shuts off automatically when the temperature of the heat sink exceeds 70°C. The J4 connector on the drive is a 26-position D subminiature female connector with high density.
