Komatsu Excavator Bearing 20Y-26-21281
|
P/N
|
20Y-26-21281
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Radial needle roller bearings
|
Product features:
1. Special bearing for excavator final drive
2. High-strength high-quality steel
3. Smooth rotation and low noise
4. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
A professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

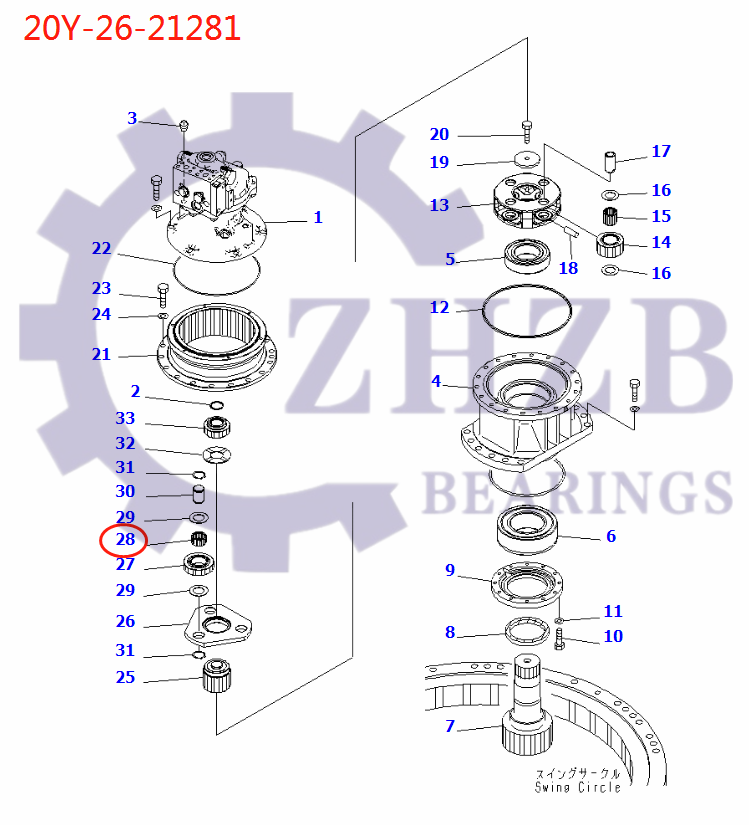

Any other parts for the final drive system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
1
|
706-7G-03040
|
[1]
|
MOTOR SUB ASS'Y,(SEE FIG.N1220-02A0) Komatsu
|
57.5 kg.
|
|
2
|
22U-26-21280
|
[1]
|
RING Komatsu
|
0.001 kg.
|
|
3
|
07042-00312
|
[1]
|
PLUG Komatsu
|
0.031 kg.
|
|
4
|
20Y-26-31110
|
[1]
|
CASE Komatsu
|
75.5 kg.
|
|
|
22U-26-21190
|
[1]
|
CASE Komatsu China
|
|
|
5
|
20Y-26-22330
|
[1]
|
BEARING Komatsu China
|
3.28 kg.
|
|
6
|
22U-26-22340
|
[1]
|
BEARING Komatsu China
|
|
|
|
22U-26-21340
|
[1]
|
BEARING Komatsu China
|
|
|
7
|
206-26-69111
|
[1]
|
SHAFT Komatsu
|
32.5 kg.
|
|
|
206-26-69120
|
[1]
|
SHAFT¤ 13 TEETH Komatsu China
|
|
|
8
|
20Y-26-22420
|
[1]
|
SEAL Komatsu China
|
0.3 kg.
|
|
|
07012-00115
|
[1]
|
SEAL Komatsu
|
0.127 kg.
|
|
9
|
20Y-26-22191
|
[1]
|
COVER Komatsu
|
4.6 kg.
|
|
|
22U-26-21270
|
[1]
|
SPACER Komatsu China
|
|
|
10
|
01010-81045
|
[12]
|
BOLT Komatsu
|
0.039 kg.
|
|
11
|
01643-31032
|
[12]
|
WASHER Komatsu
|
0.054 kg.
|
|
12
|
07000-15310
|
[1]
|
O-RING Komatsu China
|
0.035 kg.
|
|
13
|
22U-26-21580
|
[1]
|
CARRIER Komatsu
|
8.7 kg.
|
|
14
|
22U-26-21540
|
[4]
|
GEAR Komatsu
|
2.46 kg.
|
|
15
|
20G-26-11240
|
[4]
|
BEARING Komatsu China
|
0.24 kg.
|
|
16
|
20Y-27-21240
|
[8]
|
WASHER Komatsu China
|
0.02 kg.
|
|
17
|
20Y-26-22250
|
[4]
|
PIN Komatsu China
|
0.52 kg.
|
|
18
|
20Y-27-21280
|
[4]
|
PIN Komatsu China
|
0.01 kg.
|
|
19
|
20Y-26-21240
|
[1]
|
PLATE Komatsu
|
5.1 kg.
|
|
20
|
112-32-11211
|
[1]
|
BOLT¤ SHOE Komatsu
|
0.09 kg.
|
|
21
|
22U-26-21551
|
[1]
|
GEAR Komatsu
|
25.41 kg.
|
|
|
22U-26-21550
|
[1]
|
GEAR Komatsu
|
25.41 kg.
|
|
22
|
20K-22-11190
|
[1]
|
O-RING Komatsu
|
0.02 kg.
|
|
23
|
01010-81440
|
[18]
|
BOLT Komatsu
|
0.073 kg.
|
|
24
|
01643-31445
|
[18]
|
WASHER Komatsu
|
0.019 kg.
|
|
25
|
22U-26-21530
|
[1]
|
GEAR Komatsu
|
5.8 kg.
|
|
26
|
22U-26-21570
|
[1]
|
CARRIER Komatsu
|
2.96 kg.
|
|
27
|
22U-26-21520
|
[3]
|
GEAR Komatsu
|
1.54 kg.
|
|
28
|
20Y-26-21281
|
[3]
|
BEARING Komatsu
|
0.1 kg.
|
|
29
|
22U-26-21230
|
[6]
|
WASHER Komatsu
|
1 kg.
|
|
30
|
22U-26-21210
|
[3]
|
PIN Komatsu
|
0.81 kg.
|
|
31
|
04064-03515
|
[6]
|
RING Komatsu
|
0.005 kg.
|
|
32
|
22U-26-21250
|
[1]
|
WASHER Komatsu
|
1 kg.
|
|
33
|
22U-26-21510
|
[1]
|
GEAR Komatsu
|
1.56 kg.
|
|
34
|
195-03-13241
|
[1]
|
VALVE Komatsu
|
0.9 kg.
|
|
35
|
07270-21560
|
[1]
|
TUBE Komatsu
|
0.336 kg.
|
|
36
|
07281-00197
|
[1]
|
CLAMP Komatsu
|
0.015 kg.
|
|
37
|
01010-81035
|
[6]
|
BOLT Komatsu
|
0.033 kg.
|
|
38
|
01643-51032
|
[6]
|
WASHER Komatsu
|
0.17 kg.
|
|
39
|
20Y-26-31411
|
[1]
|
TUBE Komatsu China
|
|
|
|
20Y-26-31410
|
[1]
|
TUBE Komatsu China
|
|
|
40
|
20Y-26-31421
|
[1]
|
FILLER Komatsu China
|
|
|
|
20Y-26-31420
|
[1]
|
FILLER Komatsu China
|
|
|
41
|
20Y-26-31431
|
[1]
|
GAUGE Komatsu
|
0.07 kg.
|
|
|
20Y-26-31430
|
[1]
|
GAUGE Komatsu
|
0.15 kg.
|
|
42
|
20Y-26-31441
|
[1]
|
BRACKET Komatsu
|
0.88 kg.
|
|
43
|
22U-26-21460
|
[1]
|
CAP Komatsu
|
0.06 kg.
|
|
44
|
07238-10630
|
[1]
|
CONNECTOR Komatsu
|
0.24 kg.
|
|
45
|
07283-32738
|
[1]
|
CLIP Komatsu
|
0.084 kg.
|
|
46
|
04434-51710
|
[1]
|
CLIP Komatsu
|
0.02 kg.
|
|
47
|
01597-01009
|
[2]
|
NUT Komatsu
|
0.011 kg.
|
|
49
|
01010-81030
|
[2]
|
BOLT Komatsu OEM
|
0.03 kg.
|
|
51
|
01010-81025
|
[1]
|
BOLT Komatsu
|
0.36 kg.
|
|
53
|
07000-15240
|
[1]
|
O-RING Komatsu OEM
|
0.055 kg.
|
|
54
|
01010-82060
|
[12]
|
BOLT Komatsu China
|
0.2 kg.
|
|
55
|
01643-32060
|
[12]
|
WASHER Komatsu China
|
0.044 kg.
|
