Komatsu Excavator Bearing 20Y-27-22210
|
P/N
|
20Y-27-22210
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Radial needle roller bearings
|
Product features:
1. Special bearing for excavator final drive.
2. High-strength high-quality steel
3. Smooth rotation and low noise
4. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
A professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

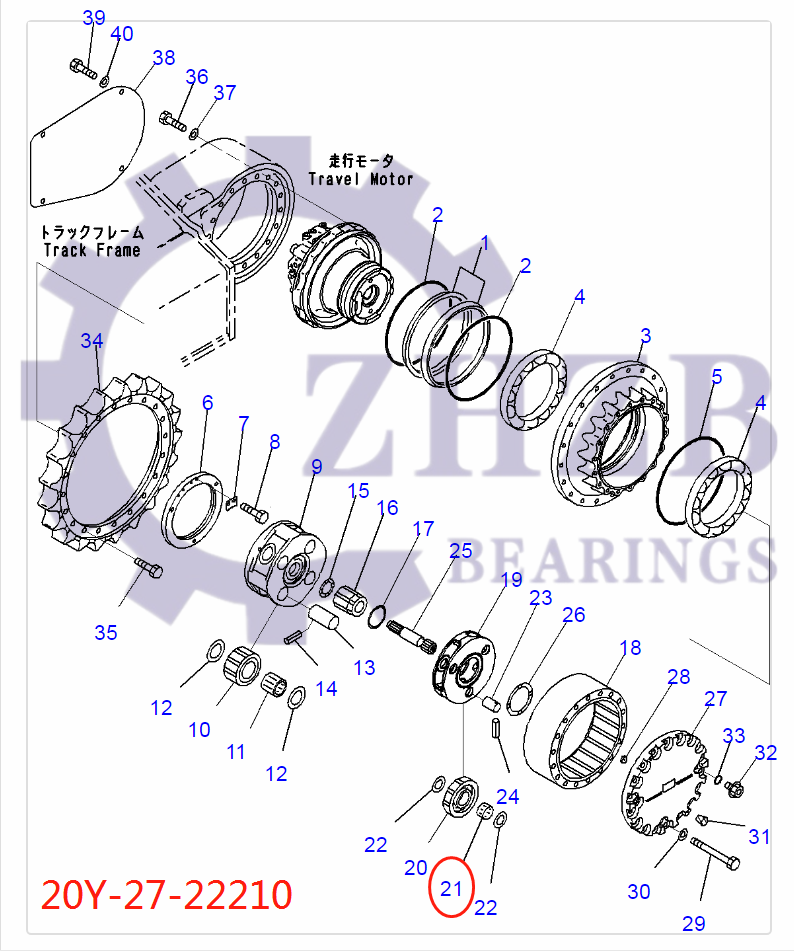

Any other parts for the final drive system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
|
206-27-00423
|
[2]
|
Final Drive Assembly Komatsu
|
394 kg.
|
|
|
206-27-00422
|
[2]
|
Final Drive Assembly Komatsu
|
394 kg.
|
|
|
150-27-00410
|
[1]
|
Floating Seal Assembly Komatsu China
|
2.99 kg.
|
|
3.
|
22U-27-21182
|
[1]
|
Hub Komatsu
|
79.81 kg.
|
|
4.
|
20Y-27-22230
|
[2]
|
Bearing Komatsu
|
4.6 kg.
|
|
5.
|
22U-27-21220
|
[1]
|
O-ring Komatsu
|
0.015 kg.
|
|
6.
|
20Y-27-22261
|
[1]
|
Lock Komatsu
|
5.22 kg.
|
|
7.
|
20Y-27-22270
|
[1]
|
Lock Komatsu
|
0.07 kg.
|
|
8.
|
01010-81020
|
[2]
|
Bolt Komatsu
|
0.161 kg.
|
|
9.
|
22U-27-21171
|
[1]
|
Carrier Komatsu OEM
|
20.65 kg.
|
|
9.
|
22U-27-21170
|
[1]
|
Carrier Komatsu OEM
|
20.65 kg.
|
|
10.
|
22U-27-21140
|
[4]
|
Gear Komatsu OEM
|
9.28 kg.
|
|
11.
|
20Y-27-22220
|
[4]
|
Bearing Komatsu China
|
0.3 kg.
|
|
12.
|
20Y-27-21250
|
[8]
|
Washer, Thrust Komatsu China
|
0.03 kg.
|
|
13.
|
22U-27-21230
|
[4]
|
Pin Komatsu OEM
|
1.543 kg.
|
|
14.
|
20Y-27-21290
|
[4]
|
Pin Komatsu OEM
|
0.03 kg.
|
|
15.
|
20Y-27-13310
|
[1]
|
Washer, Thrust Komatsu China
|
0.08 kg.
|
|
16.
|
22U-27-21130
|
[1]
|
Gear Komatsu OEM
|
2.01 kg.
|
|
17.
|
22U-27-21210
|
[1]
|
Washer, Thrust Komatsu
|
0.03 kg.
|
|
18.
|
22U-27-21153
|
[1]
|
Gear Komatsu
|
37.23 kg.
|
|
19.
|
22U-27-21161
|
[1]
|
Carrier Komatsu OEM
|
7.43 kg.
|
|
20.
|
22U-27-21120
|
[3]
|
Gear Komatsu China
|
5.34 kg.
|
|
21.
|
20Y-27-22210
|
[3]
|
Bearing Komatsu China
|
0.12 kg.
|
|
22.
|
22U-27-21240
|
[6]
|
Washer, Thrust Komatsu
|
0.02 kg.
|
|
23.
|
20Y-27-21220
|
[3]
|
Pin Komatsu China
|
0.411 kg.
|
|
24.
|
20Y-27-21280
|
[3]
|
Pin Komatsu China
|
0.01 kg.
|
|
25.
|
22U-27-21110
|
[1]
|
Shaft Komatsu OEM
|
1.5 kg.
|
|
26.
|
20Y-27-21310
|
[1]
|
Washer Komatsu China
|
0.17 kg.
|
|
27.
|
22U-27-21192
|
[1]
|
Cover Komatsu
|
18.75 kg.
|
|
28.
|
20Y-27-22250
|
[1]
|
Button Komatsu China
|
0.05 kg.
|
|
29.
|
20Y-27-13281
|
[20]
|
Bolt Komatsu
|
0.31 kg.
|
|
30.
|
01643-31645
|
[20]
|
Washer Komatsu
|
0.072 kg.
|
|
31.
|
07049-01012
|
[2]
|
Plug Komatsu
|
0.001 kg.
|
|
32.
|
07044-12412
|
[3]
|
Plug Komatsu
|
0.09 kg.
|
|
33.
|
07002-02434
|
[3]
|
O-ring Komatsu China
|
0.01 kg.
|
|
34.
|
20Y-27-11582
|
[1]
|
Sprocket Komatsu China
|
36.2 kg.
|
|
35.
|
20Y-27-11561
|
[20]
|
Bolt Komatsu China
|
0.14 kg.
|
|
36
|
01010-61660
|
[36]
|
Bolt Komatsu
|
0.127 kg.
|
|
38
|
20Y-30-21192
|
[2]
|
Cover Komatsu China
|
|
|
38
|
20Y-30-21191
|
[2]
|
Cover Komatsu
|
12.25 kg.
|
|
39
|
01010-81230
|
[8]
|
Bolt Komatsu
|
0.043 kg.
|
|
40
|
01643-31232
|
[8]
|
Washer Komatsu
|
0.027 kg.
|
|
1
|
22U-26-21280
|
[1]
|
Ring Komatsu
|
0.001 kg.
|
|
2
|
07042-00312
|
[1]
|
Plug, Taper Komatsu
|
0.031 kg.
|
|
3
|
206-26-73310
|
[1]
|
Case Komatsu
|
92 kg.
|
|
4
|
206-26-73150
|
[1]
|
Bearing Komatsu
|
4.64 kg.
|
|
5
|
206-26-73160
|
[1]
|
Bearing Komatsu China
|
12.5 kg.
|
|
6
|
206-26-73210
|
[1]
|
Shaft Komatsu
|
32.63 kg.
|
|
7
|
206-26-73140
|
[1]
|
Spacer Komatsu
|
0.86 kg.
|
|
8
|
07000-15100
|
[1]
|
O-ring Komatsu China
|
0.01 kg.
|
|
9
|
20Y-26-22420
|
[1]
|
Seal Komatsu China
|
0.3 kg.
|
|
10
|
206-26-73120
|
[1]
|
Cover Komatsu China
|
4.4 kg.
|
|
11
|
01010-81040
|
[12]
|
Bolt Komatsu
|
0.288 kg.
|
|
12
|
01643-31032
|
[12]
|
Washer Komatsu
|
0.054 kg.
|
|
13
|
07000-15310
|
[1]
|
O-ring Komatsu China
|
0.035 kg.
|
|
14
|
206-26-71480
|
[1]
|
Carrier Komatsu
|
10.88 kg.
|
|
15
|
206-26-71440
|
[4]
|
Gear Komatsu
|
1.91 kg.
|
|
16
|
22U-26-21320
|
[8]
|
Bearing Komatsu
|
1.1 kg.
|
|
17
|
206-26-71520
|
[8]
|
Washer, Thrust Komatsu
|
0.1 kg.
|
|
18
|
206-26-71510
|
[4]
|
Pin Komatsu
|
0.97 kg.
|
|
19
|
20Y-26-21330
|
[4]
|
Pin Komatsu China
|
0.1 kg.
|
|
20
|
20Y-26-21240
|
[1]
|
Plate Komatsu
|
5.1 kg.
|
|
21
|
112-32-11211
|
[1]
|
Bolt Komatsu
|
0.09 kg.
|
|
22
|
206-26-71452
|
[1]
|
Gear Komatsu
|
28.79 kg.
|
|
23
|
20K-22-11190
|
[1]
|
O-ring Komatsu
|
0.02 kg.
|
|
24
|
01010-81440
|
[22]
|
Bolt Komatsu
|
0.073 kg.
|
|
25
|
01643-31445
|
[22]
|
Washer Komatsu
|
0.019 kg.
|
|
26
|
206-26-71430
|
[1]
|
Gear Komatsu
|
2.33 kg.
|
|
27
|
04260-01270
|
[1]
|
Ball, Steel Komatsu OEM
|
0.009 kg.
|
|
28
|
206-26-71471
|
[1]
|
Carrier Komatsu
|
3.9 kg.
|
|
29
|
206-26-71420
|
[3]
|
Gear Komatsu
|
0.83 kg.
|
|
30
|
20Y-27-22210
|
[3]
|
Bearing Komatsu China
|
0.12 kg.
|
|
31
|
22U-26-21230
|
[6]
|
Washer, Thrust Komatsu
|
1 kg.
|
|
32
|
206-26-71210
|
[3]
|
Pin Komatsu
|
0.42 kg.
|
|
33
|
04064-03515
|
[6]
|
Ring, Snap, for Shaft Side Komatsu
|
0.005 kg.
|
|
34
|
206-26-71350
|
[1]
|
Holder Komatsu
|
0.21 kg.
|
|
35
|
206-26-71410
|
[1]
|
Gear Komatsu
|
0.83 kg.
|
|
36
|
206-26-71341
|
[1]
|
Plate Komatsu China
|
|
Company
ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!
ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!
Packaging
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.
Why choose us?
✬1.Trusted Product
✬2.Advanced Technology
✬3.Reliable Service
✬4.Competitive price
FAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock
