Product Details:

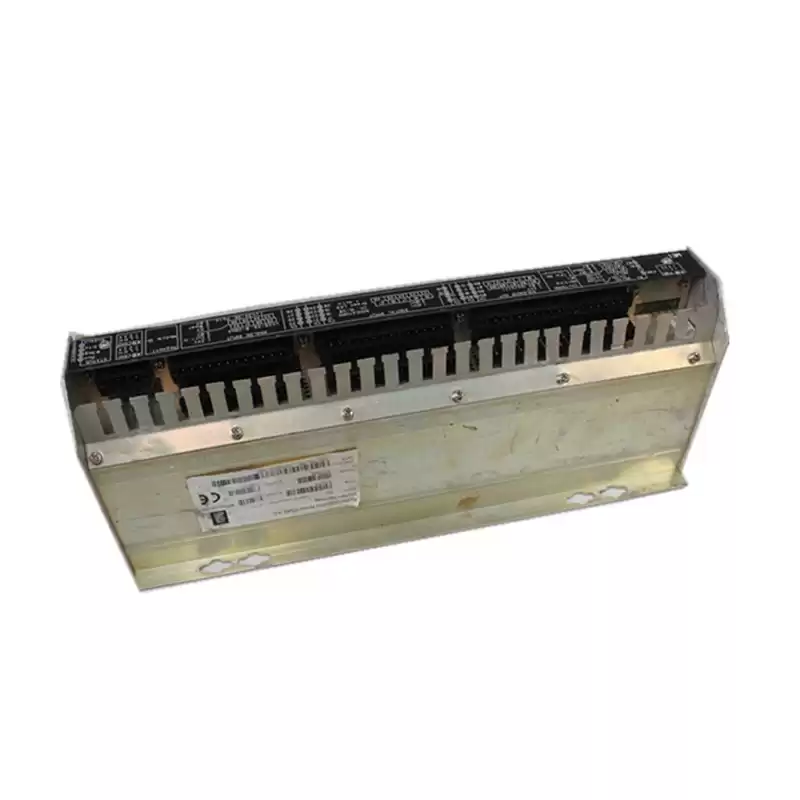

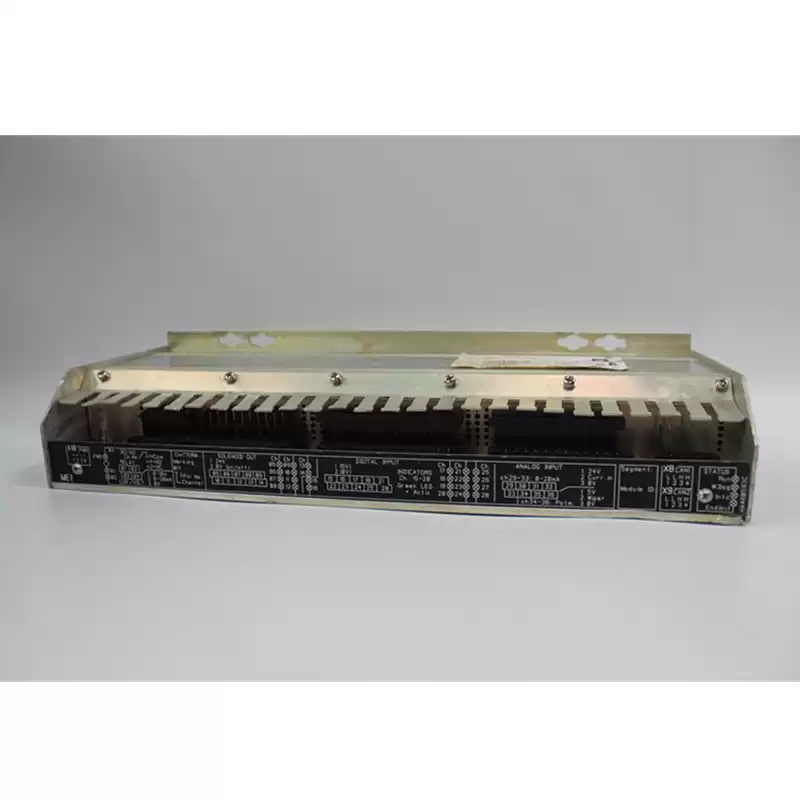

- The MEI module is a module with several types of digital and analogue inputs and outputs. All inputs can be used to activate outputs and the values are also reported on CAN.

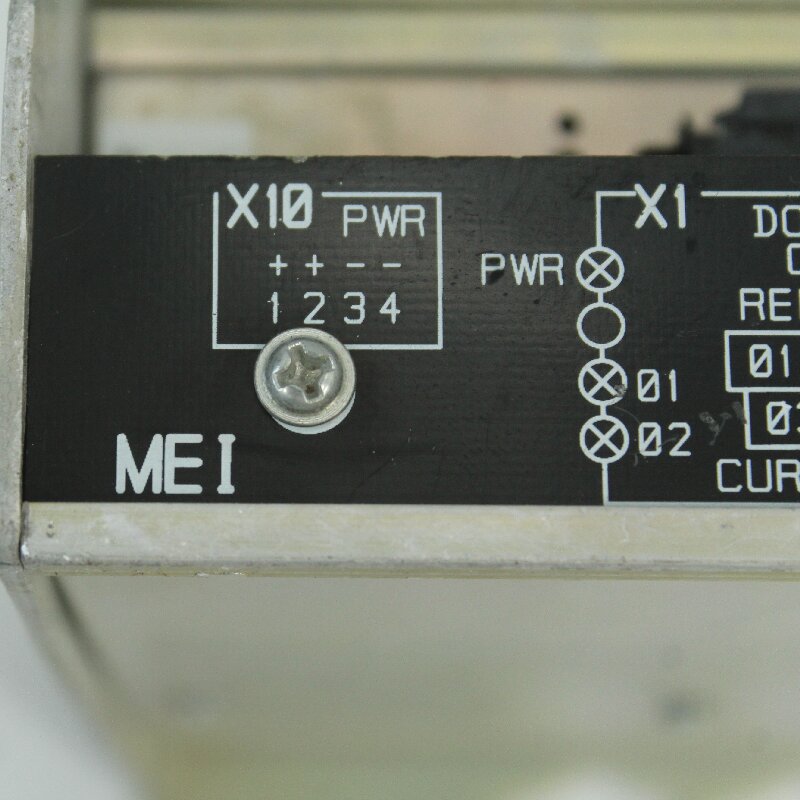

- The module is equipped with a dual CAN-bus interface. Led indication of power, watchdog, status and CAN communications.
- Channels 1 and 2 are relay outputs. Maximum inductive load is 3A at 230V.
- Channels 3 and 4 are analogue outputs. Current option is set at 4 to 20mA with a maximum load of 550Ω. Voltage option is 10V.
- Channels 5 to 14 are solenoid driver lines with line check (broken only) 18 to 32V with a maximum current of 500mA. Solenoid outputs are, directly supplied from the power supply.
- Channels 15 to 28 are digital inputs with line check option. Requires, dry switch or an optical coupler.
- Channels 29 to 36 are selectable digital or analogue inputs with line check option. Source current 4 to 20mA.
- Channels 34 to 36 are selectable digital or potentiometer (1, 5 or 10kΩ, type wiper) inputs with line check option.
